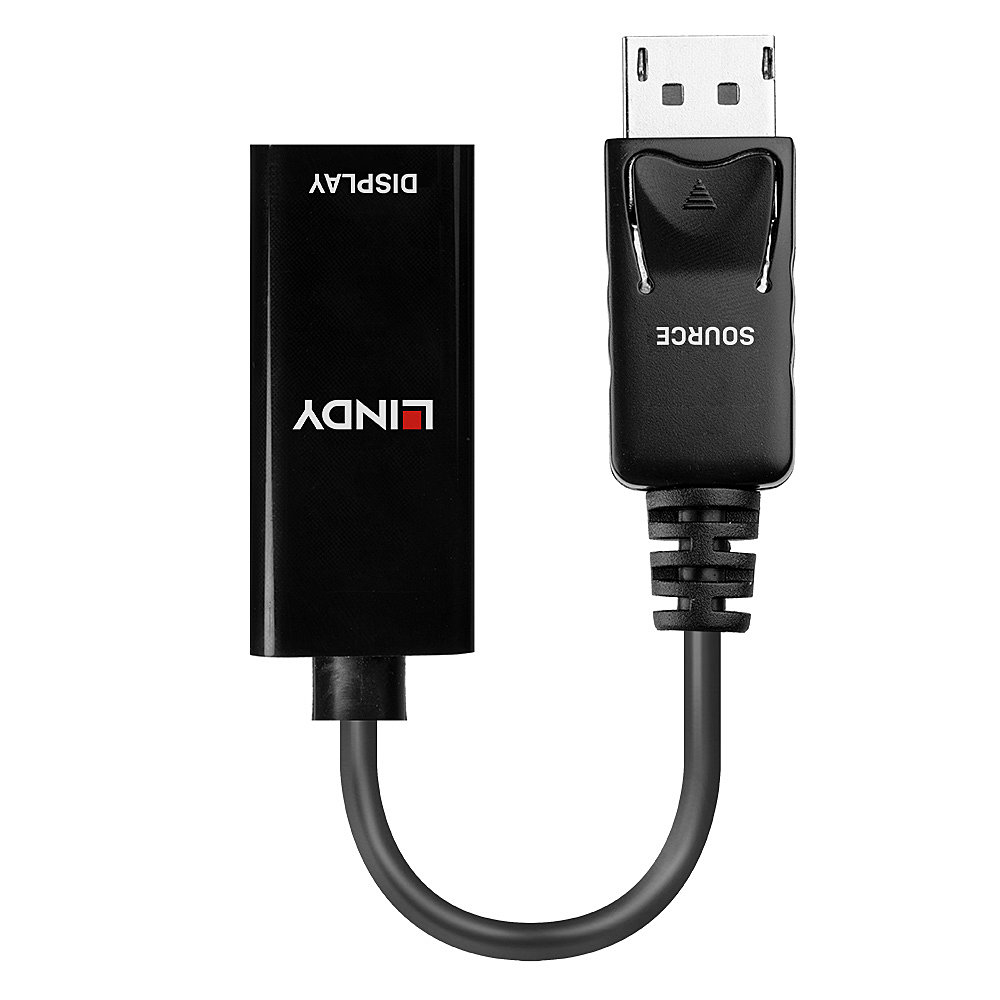

DP 1.2 TO HDMI 4K PASSIVE ADAPTER
Introduction
The Lindy DisplayPort 1.2 to HDMI Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI monitor or TV. It supports resolutions up to 4K 3840x2160@30Hz and allows audio pass-through if supported by the video source.
The converter can also be used to add another display to extend the available desktop workspace and increase productivity. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
This Converter requires the source or graphics card to support DP++ to provide dual-mode signals.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Chipset | PS8402A |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 0.15 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 10.2 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| HDCP | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDCP version | 1.4 |
| Bend radius (min) | 6 cm |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Weight | 30 g |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package weight | 38 g |
| Connector 1 dimensions (WxDxH) | 20.8 x 51 x 11.5 mm |
| Connector 2 dimensions (WxDxH) | 20.1 x 44.5 x 9 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package type | Polybag |
| Package weight | 38 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
