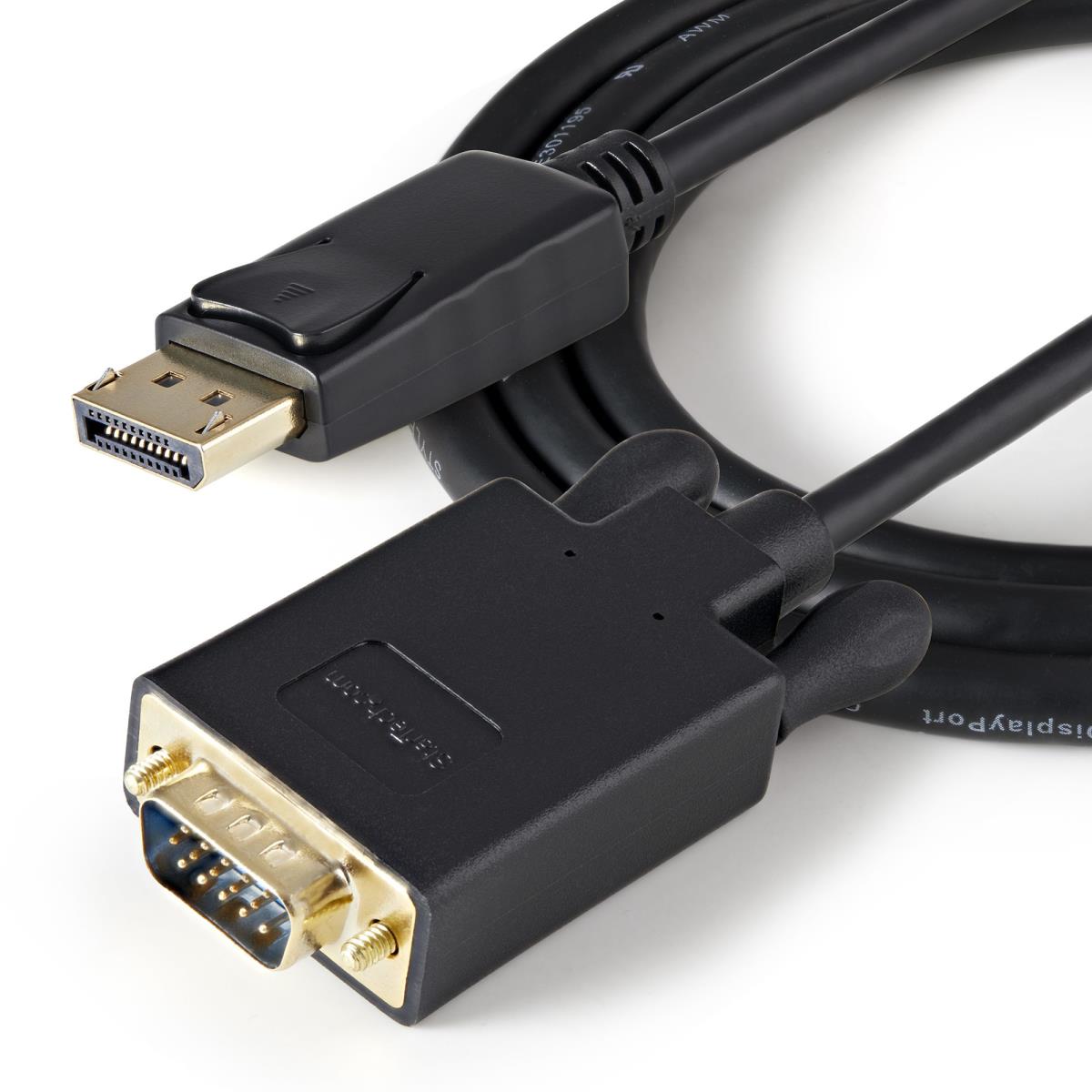

90CM DISPLAYPORT VGA CABLE DP
Introduction
Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable
The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | Analogix - 9832 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 0.91 m |
| Connector 1 | DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 2048 x 1280 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Width | 40 mm |
| Height | 15 mm |
| Depth | 915 mm |
| Weight & dimensions | |
| Width | 40 mm |
| Height | 15 mm |
| Depth | 915 mm |
| Weight | 79 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 90 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 90 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 200 pc(s) |
| Harmonized System (HS) code | 84733080 |
