EU Product - cive Displypor dper 1.2
Introduction

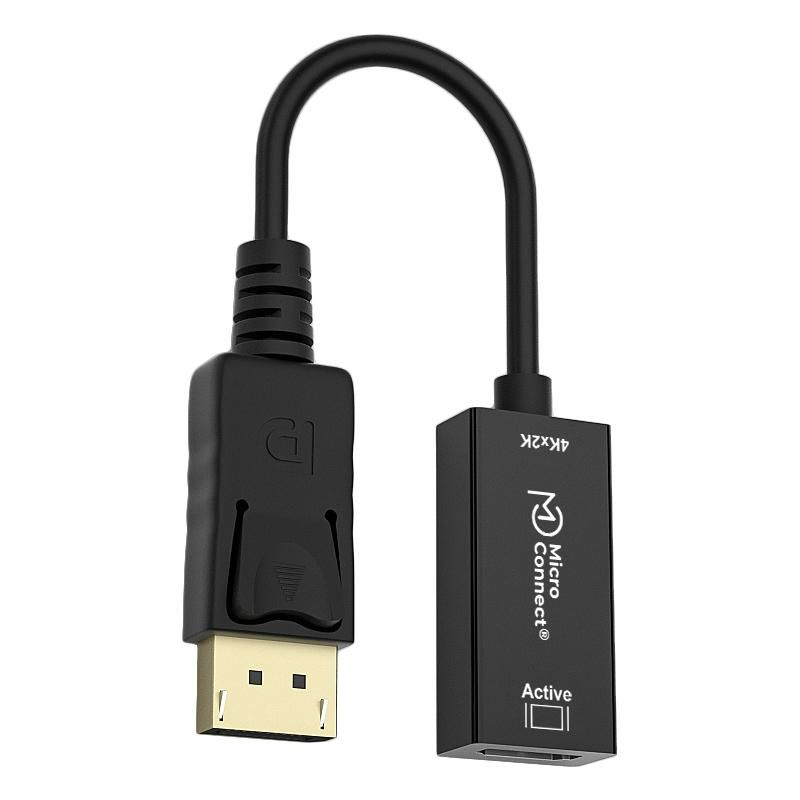

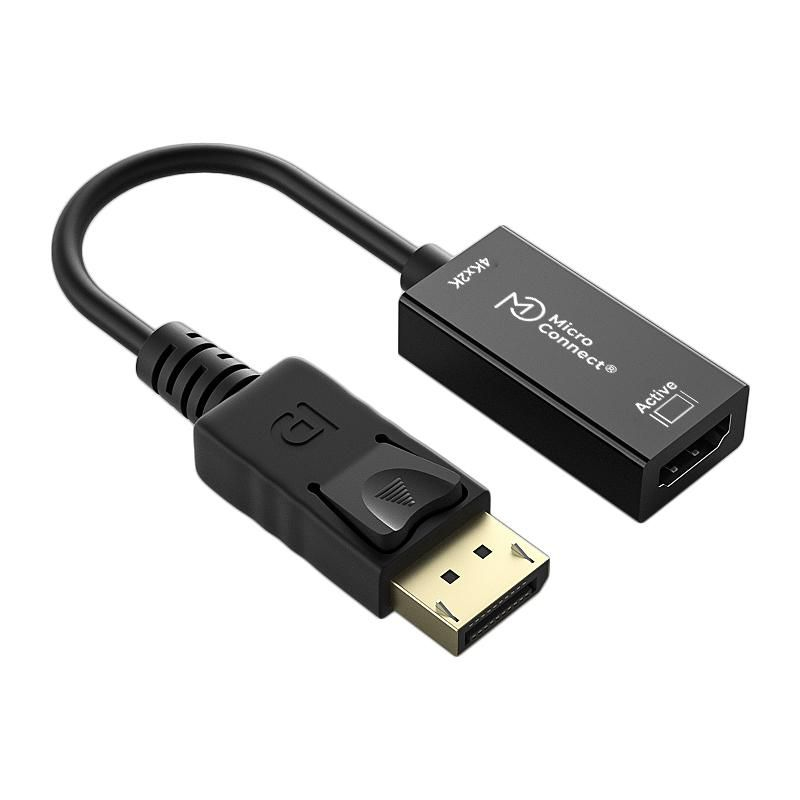

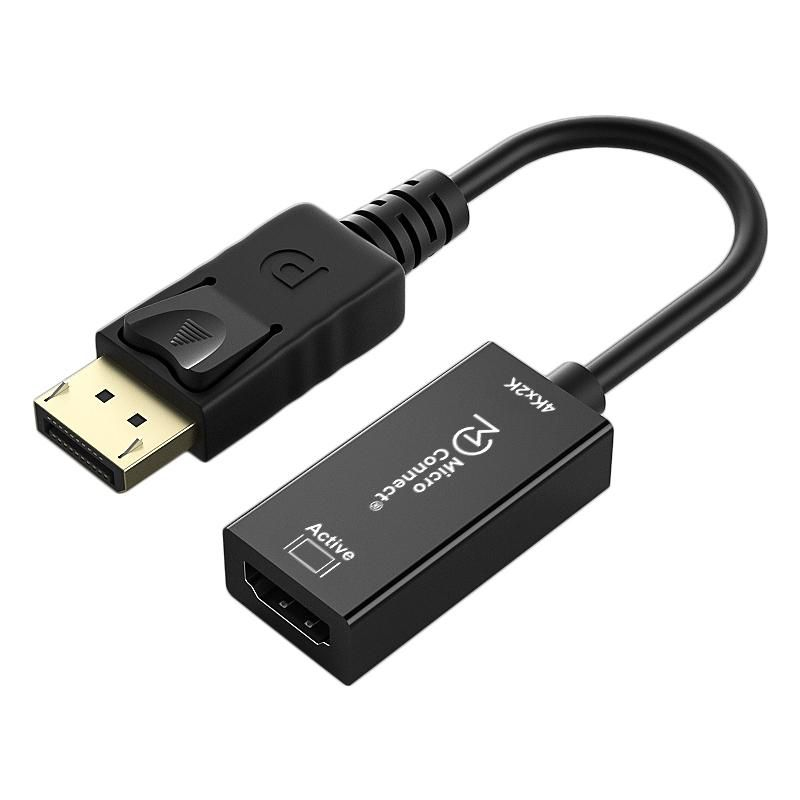

This MicroConnect Displayport to HDMI adapter allows you to display content from a device with Displayport output to a monitor/Projector with a HDMI input. This Active adapter allows you to do Multi Screen Display up to three screen displaying, also with sound.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | ITE6561 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Bandwidth | 225 MHz |
| Cable length | 0.15 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Data transfer rate | 10.2 Gbit/s |
| Bandwidth | 10200 MB/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 1.2 |
| Weight & dimensions | |
| Cable diameter | 5.5 mm |
| Weight | 40 g |
| Package width | 199 mm |
| Package depth | 177 mm |
| Package height | 21 mm |
| Package weight | 44 g |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 177 mm |
| Package height | 21 mm |
| Package weight | 44 g |
