5IN MINI HDMI TO HDMI ADAPTER
Introduction
Connect your portable HDMI® Mini-enabled devices to your HDMI TV or display

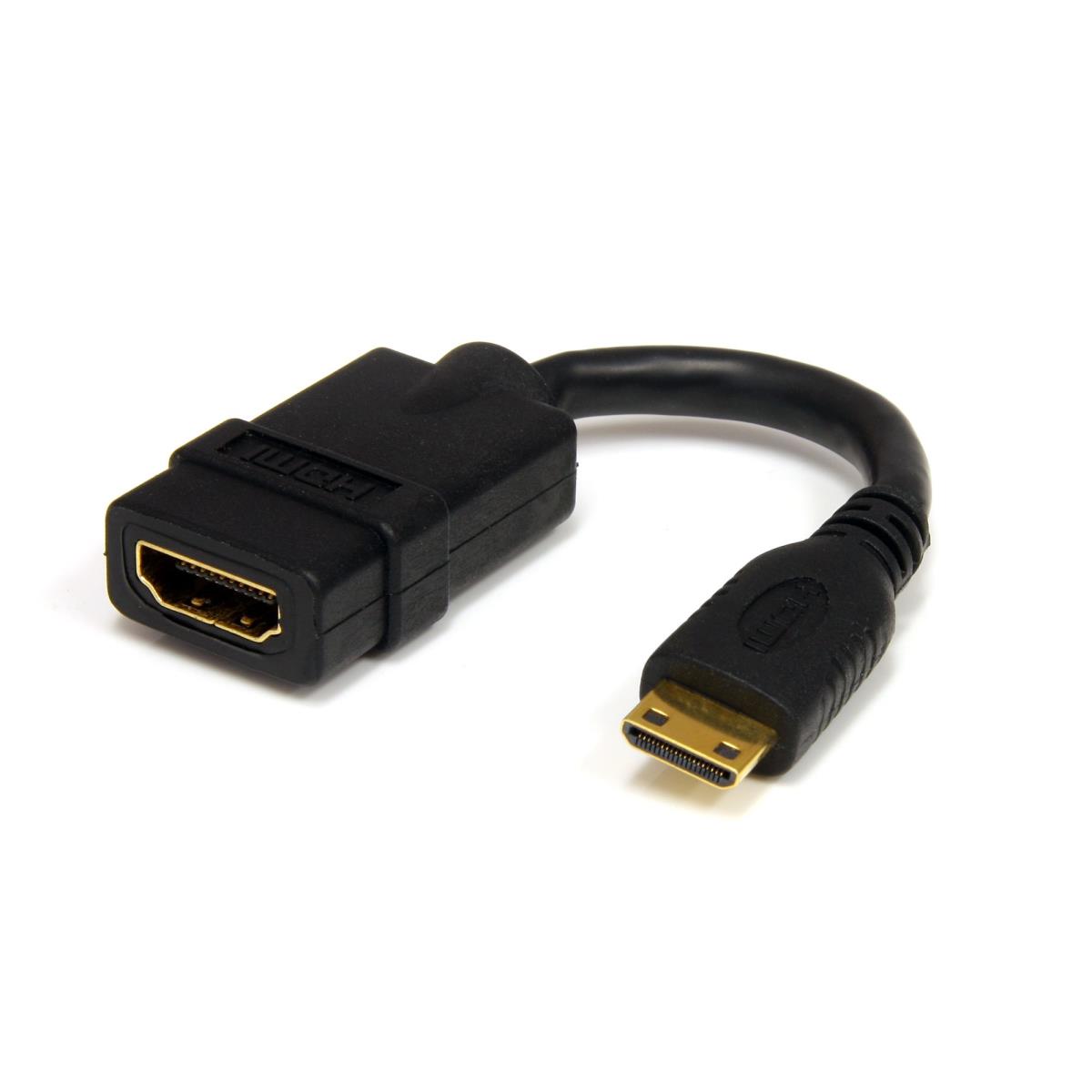

The HDACFM5IN 5-inch HDMI® to HDMI Mini Cable adapter enables you to use a standard HDMI male-to-male cable to connect your portable HDMI Mini-enabled devices (e.g. digital camera) to most video displays.
With a Standard HDMI female connector (type A) on one end and an HDMI Mini (type C) male connector on the other, you can easily make this conversion and connect to computer monitors, HDTV or HDMI-capable projectors virtually everywhere you go.
The HDMI/HDMI Mini cable features high quality, gold-tipped connectors that ensure peak connectivity, and is backed by StarTech.com's Lifetime Warranty.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 120 Hz |
| Dolby technologies | Dolby Digital Plus, Dolby TrueHD |
| Cable shielding | Aluminum mylar foil |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 0.127 m |
| Connector 1 | Mini HDMI |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| AWG wire size | 30 |
| HDMI version | 1.4b |
| Data transfer rate | 10.2 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Plug and Play | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 1.4 |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 20 g |
| Package weight | 25 g |
| Package width | 128 mm |
| Package depth | 99 mm |
| Package height | 20 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 25 g |
| Package width | 128 mm |
| Package depth | 99 mm |
| Package height | 20 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 400 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 300 mm |
| Harmonized System (HS) code | 84733080 |
