HDMI TO MINI HDMI - M/M
Introduction
Connect an HDMI® Mini-equipped camera, Smartphone or portable device to your HDMI-capable TV or display

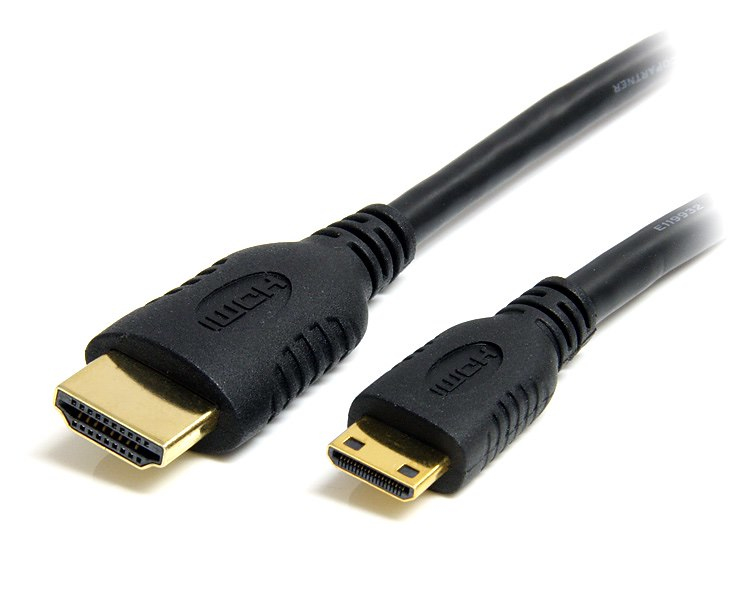

This HDMI™ Mini to HDMI Cable with Ethernet is designed to connect devices that feature an HDMI Mini port to an HDMI-enabled display/device, providing a cost-saving solution for connecting cutting-edge and next-generation HDMI-enabled devices to existing HDMI technology.
High Speed HDMI™
This HDMI 1.4b cable supports Ultra HD 4K resolutions (3840x2160p at 30Hz, or 4096x2160p at 24Hz), and a bandwidth of 10.2 Gbps for seamless video and audio transmission. It also supports wide aspect ratios, making it perfect for both home entertainment systems and professional presentations. With support for 3D video and 8-channel audio (5.1/7.1/Dolby Digital Plus/Dolby TrueHD), you can enjoy a fully immersive viewing and listening experience.
Constructed with 30 AWG copper wire, gold-plated connectors, and superior EMI shielding using Al-Mylar foil and a copper braid, this cable minimizes signal loss and interference. This ensures clear, high-quality audio and video transmission with exceptional reliability.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 30 Hz |
| Dolby technologies | Dolby Digital 5.1 Surround Sound, Dolby Digital Plus, Dolby Surround 7.1, Dolby TrueHD |
| Cable shielding | Aluminum mylar foil |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 1 m |

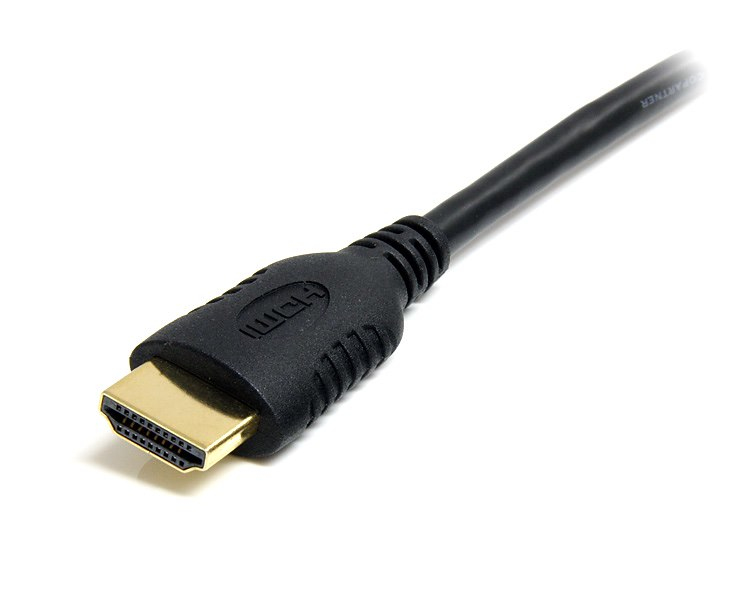

| Connector 1 | HDMI Type A (Standard) |

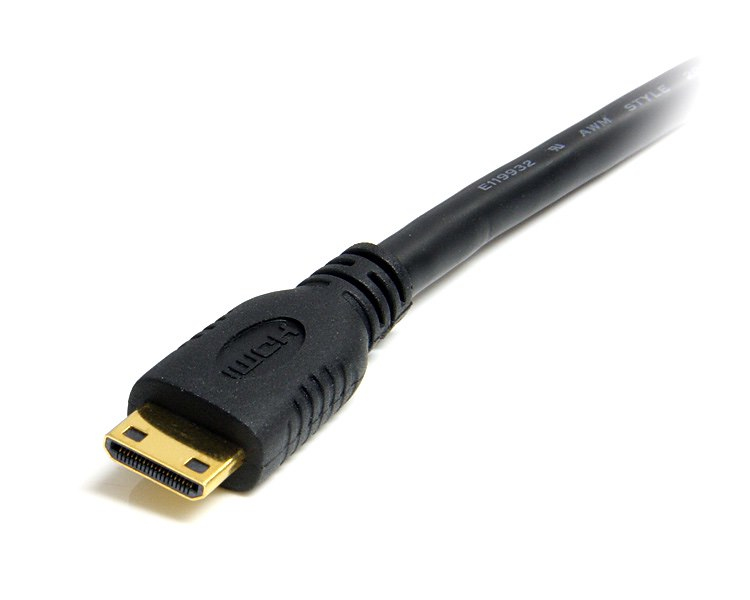

| Connector 2 | HDMI Type C (Mini) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| HDMI version | 1.4b |
| Bandwidth | 10200 MB/s |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 1.4 |
| Supported digital audio channels (uncompressed) | 5.1, 7.1, 8 |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 44.1 g |
| Package weight | 100 g |
| Package width | 142 mm |
| Package depth | 133 mm |
| Package height | 21 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 100 g |
| Package width | 142 mm |
| Package depth | 133 mm |
| Package height | 21 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 290 mm |
| Harmonized System (HS) code | 84733080 |
