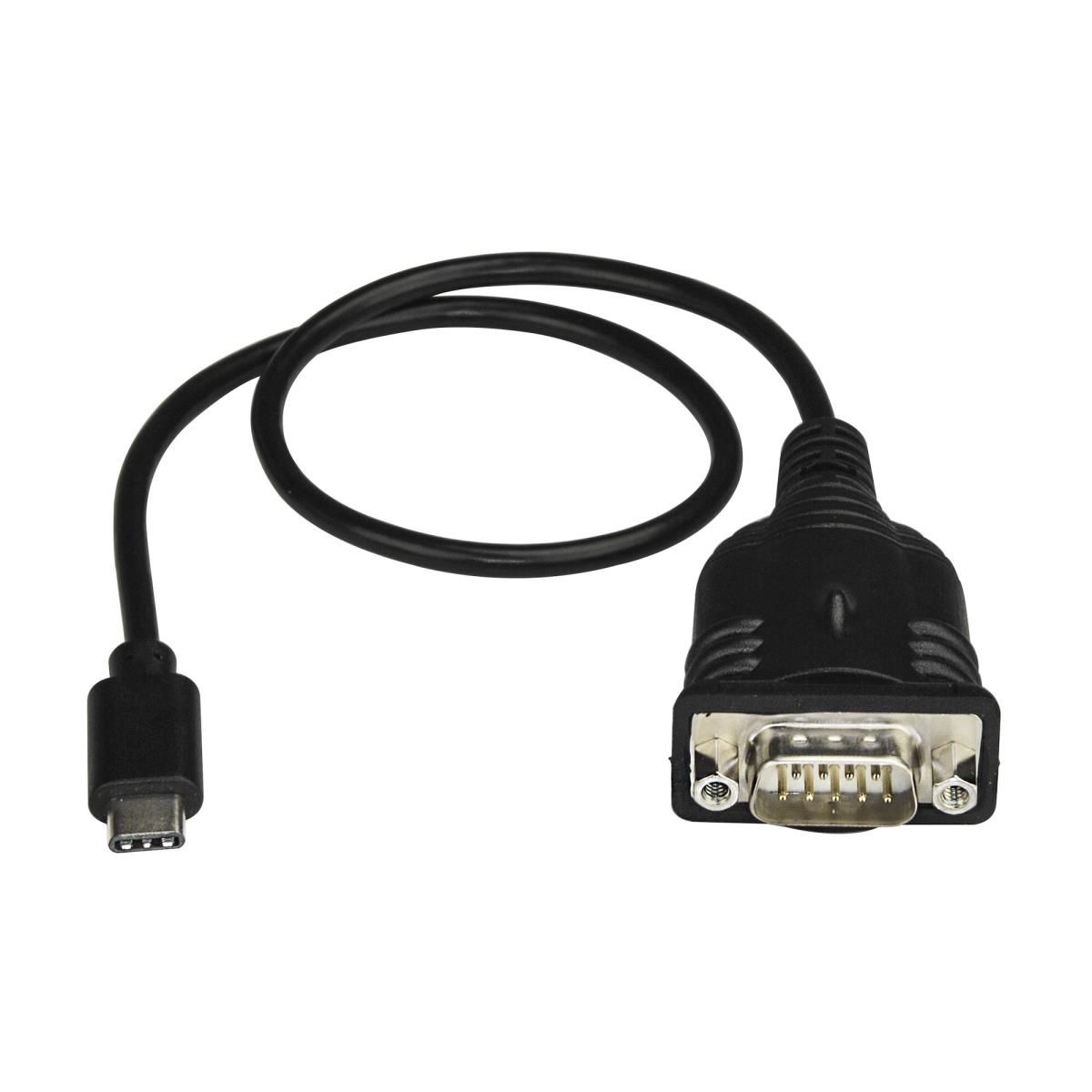

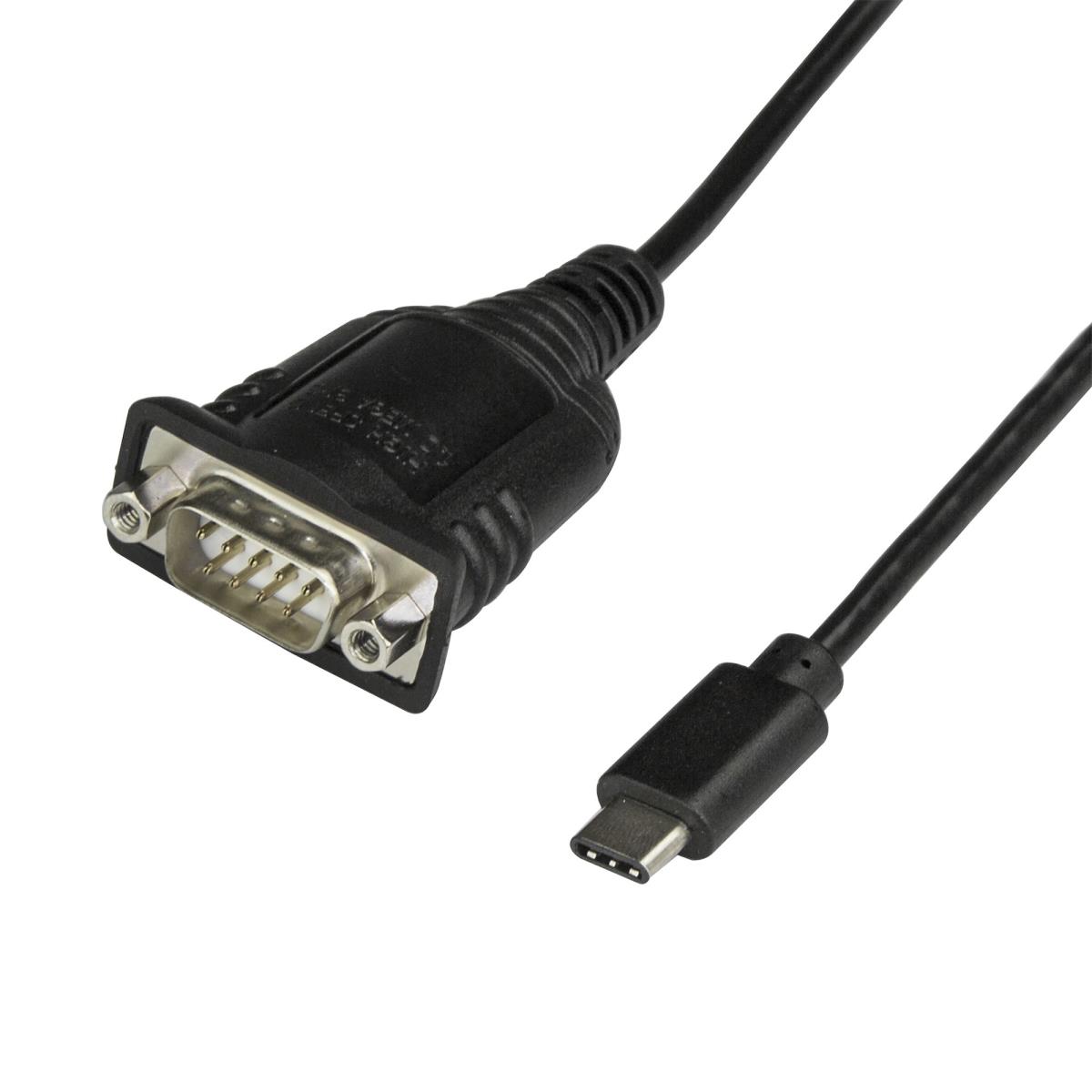

UCB C TO SERIAL ADAPTER
Introduction
Connect an RS232 (DB9) peripheral to your USB-C device
This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into a RS232 DB9 serial port, giving you a cost-saving way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
Connect with ease
The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.
Ready for mobile or desktop applications
The USB-C to serial adapter is USB powered, so you don’t need an additional external power supply. It’s a compact solution that’s easy to bring along with your laptop, when you’re on the go.
The ICUSB232C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Technical details | |
|---|---|
| Weight | 36 g |
| Connector 2 | DB-9 |
| Connector 1 | USB C |
| Product colour | Black |
| Cable length | 0.4 m |
| Package width | 199 mm |
| Package height | 21 mm |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | CE, RoHS |
| Features | |
| Weight | 36 g |
| Connector 2 | DB-9 |
| Connector 1 | USB C |
| Product colour | Black |
| Cable length | 0.4 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Chipset | Prolific - PL2303RA |
| Mac operating systems supported | Mac OS X 13.0 Ventura |
| Packaging data | |
| Package weight | 52 g |
| Package depth | 137 mm |
| Package width | 199 mm |
| Package height | 21 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight | 36 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 280 mm |
| Products per master (outer) case | 200 pc(s) |
| Harmonized System (HS) code | 84733080 |
