EU Product - Mini Displypor v1.2 DVI M-F
Introduction

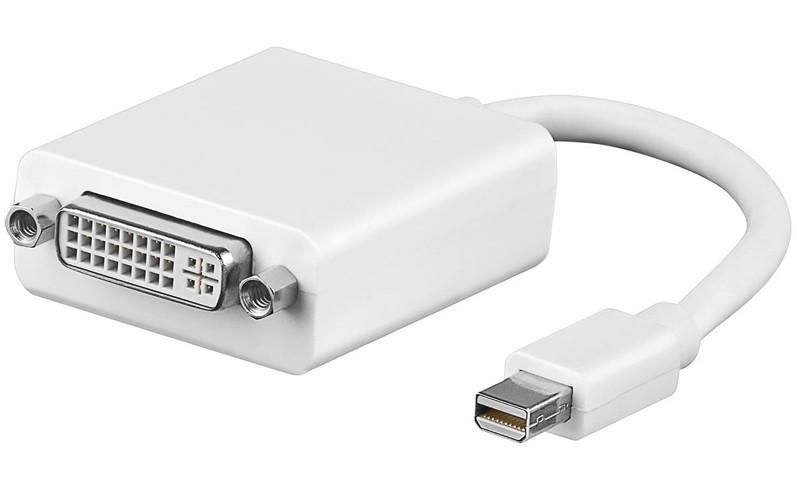

This MicroConnect Mini Displayport 1.2 to DVI-I adapter is for connecting a MacBook, iMac or PowerBook 12" to a monitor, projector or TV with a DVI port.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Chipset | PS8121E |
| DisplayPort version | 1.2 |
| Product colour | White |
| Bandwidth | 225 MHz |
| Cable length | 0.15 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-I |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Data transfer rate | 10.2 Gbit/s |
| Bandwidth | 10200 MB/s |
| 3D | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| Dual Link DVI | Yes |
| HDCP version | 2.2 |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 30 g |
| Package width | 157 mm |
| Package depth | 119 mm |
| Package height | 18 mm |
| Package weight | 32 g |
| Packaging data | |
| Package width | 157 mm |
| Package depth | 119 mm |
| Package height | 18 mm |
| Package weight | 32 g |
