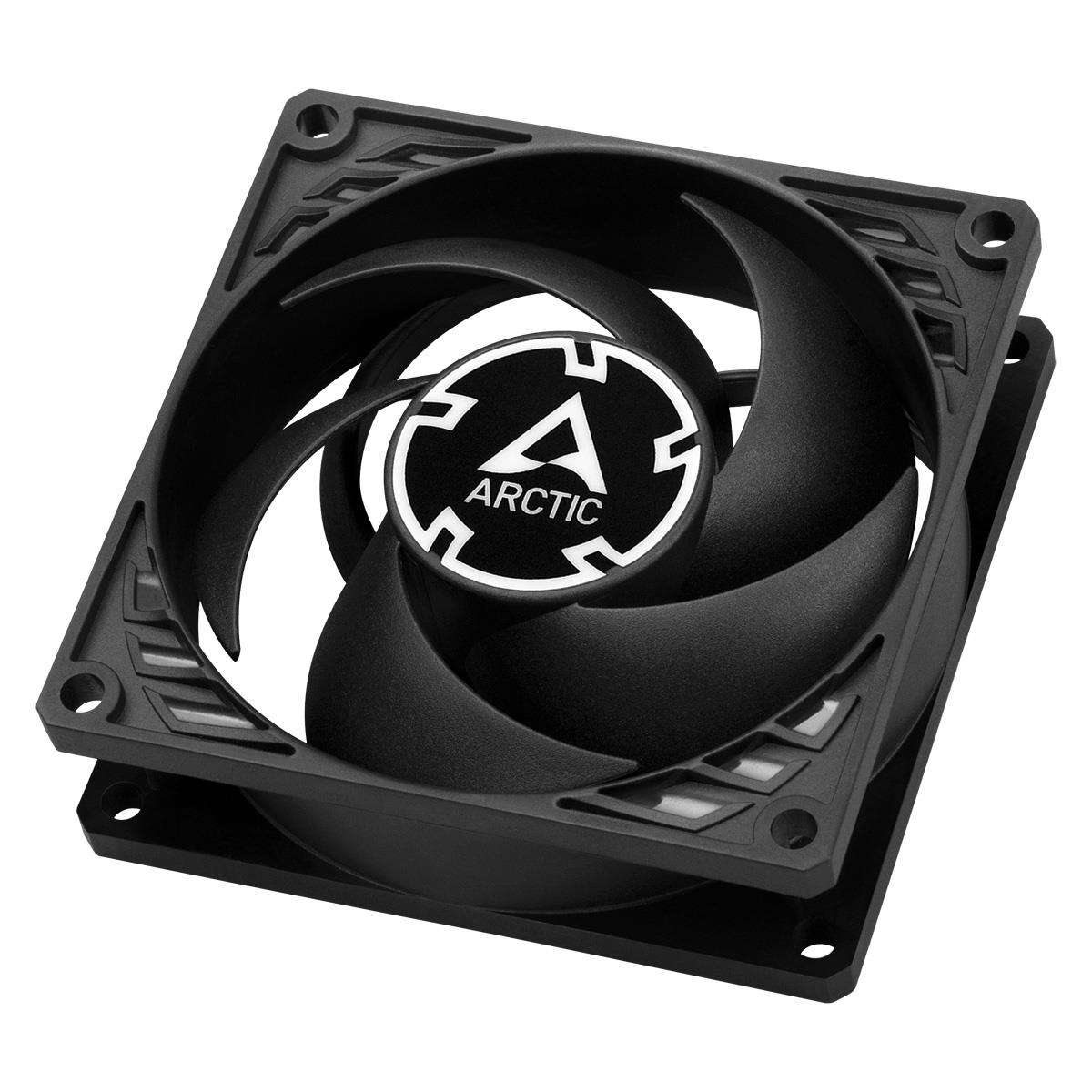

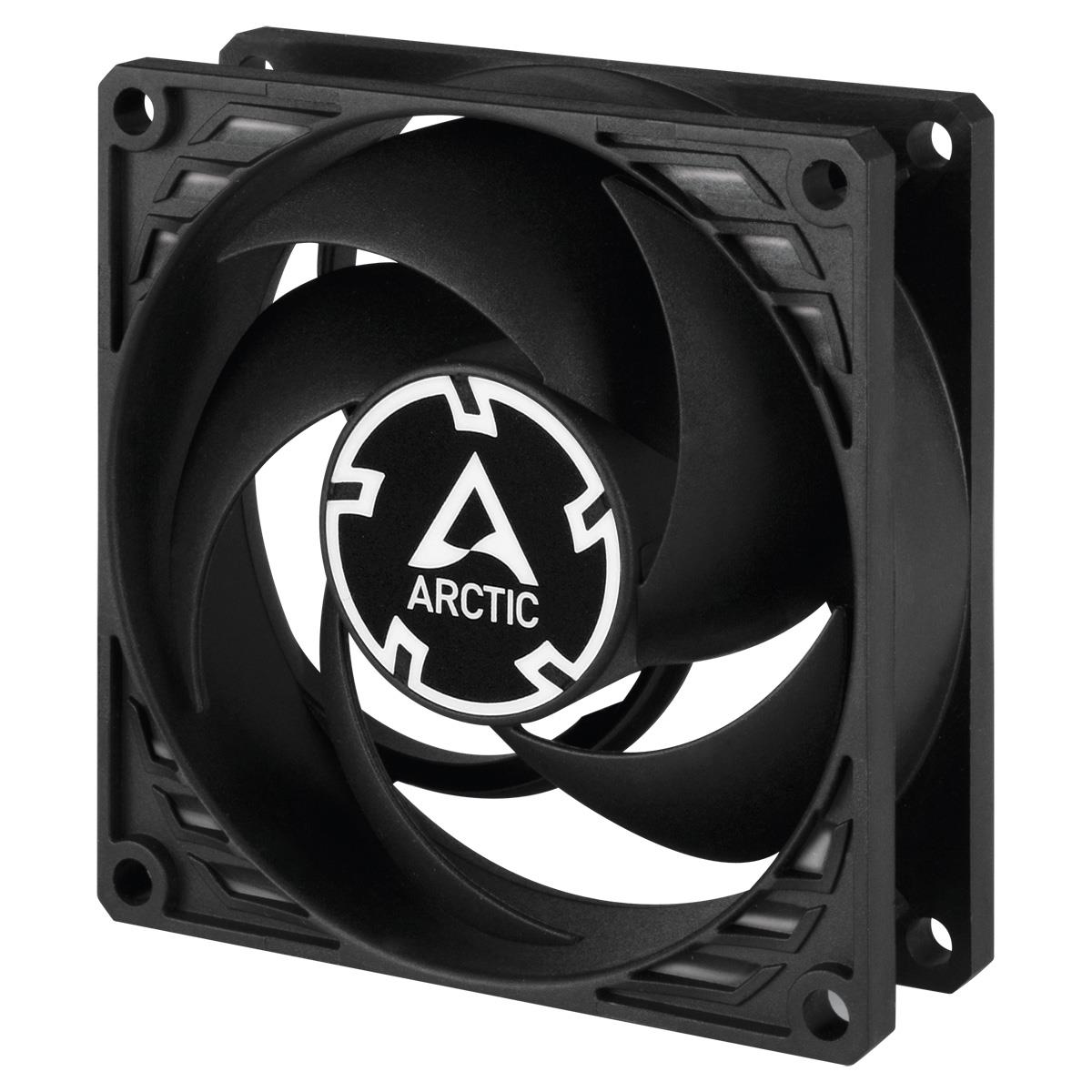

P8 80MM PST CO FAN
Introduction
Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!
As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 3000 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Airflow | 40.3 m³/h |
| Number of fans | 1 fan(s) |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Number of fan blades | 5 |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Illumination LED | No |
| Number of fan blades | 5 |
| Display type | Not applicable |
| Technical details | |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Airflow | 40.3 m³/h |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Illumination LED | No |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V |
| Rated current | 0.09 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 26 mm |
| Package width | 82.5 mm |
| Package height | 82.5 mm |
| Width | 80 mm |
| Package weight | 97 g |
| Depth | 25 mm |
| Height | 80 mm |
| Weight | 78.5 g |
| Packaging data | |
| Package depth | 26 mm |
| Package width | 82.5 mm |
| Package height | 82.5 mm |
| Package weight | 97 g |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Manual | Yes |
| Other features | |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Country of origin | China |
