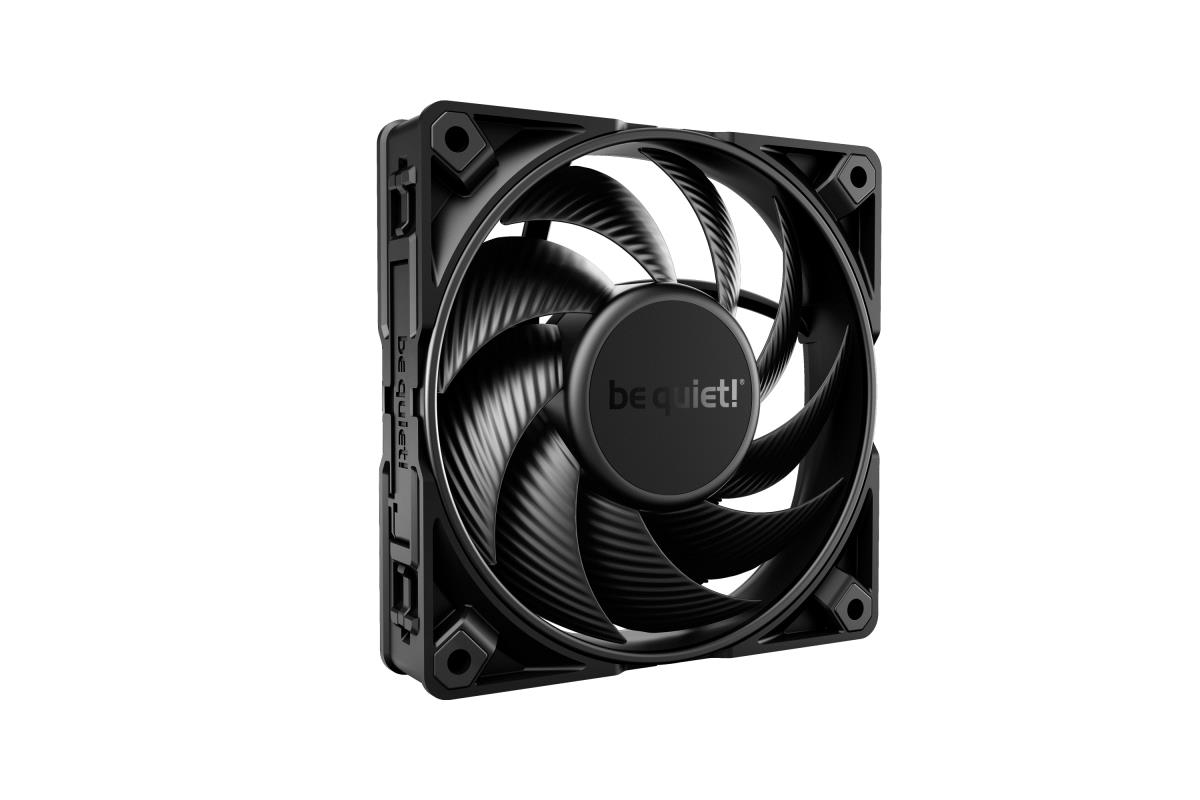

BL098 SILENT WINGS PRO 4 12CM FAN
Introduction
Legendary silence, epic performance and features
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 120mm PWM is the most progressive, performant, and versatile fan by be quiet!
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 3000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level (high speed) | 36.9 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 83.9 cfm |
| Maximum air pressure | 5.31 mmH2O |
| Airflow | 142.5 m³/h |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 300000 h |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
| Cable length | 0.5 m |
| Illumination LED | No |
| Display type | Not applicable |
| Technical details | |
| Noise level (high speed) | 36.9 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 83.9 cfm |
| Maximum air pressure | 5.31 mmH2O |
| Airflow | 142.5 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Illumination LED | No |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Voltage | 7 - 13.2 V |
| Rated current | 0.3 A |
| Power consumption (typical) | 3.6 W |
| Maximum current | 0.33 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |

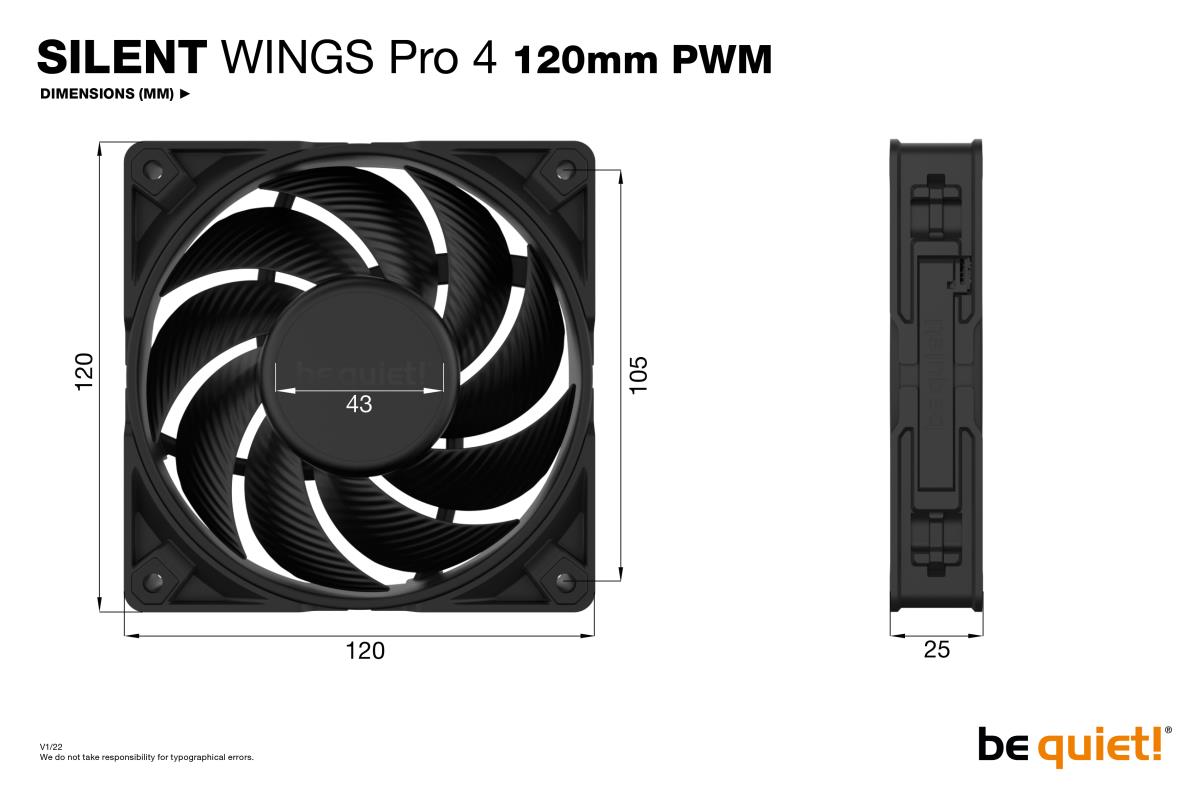

| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 192 mm |
| Package width | 141 mm |
| Package height | 31 mm |
| Width | 120 mm |
| Package weight | 400 g |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 227 g |
| Cable length | 0.5 m |
| Endurance | |
| Mean time between failures (MTBF) | 300000 h |
| Packaging data | |
| Package depth | 192 mm |
| Package width | 141 mm |
| Package height | 31 mm |
| Package weight | 400 g |
| Certificates | |
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |

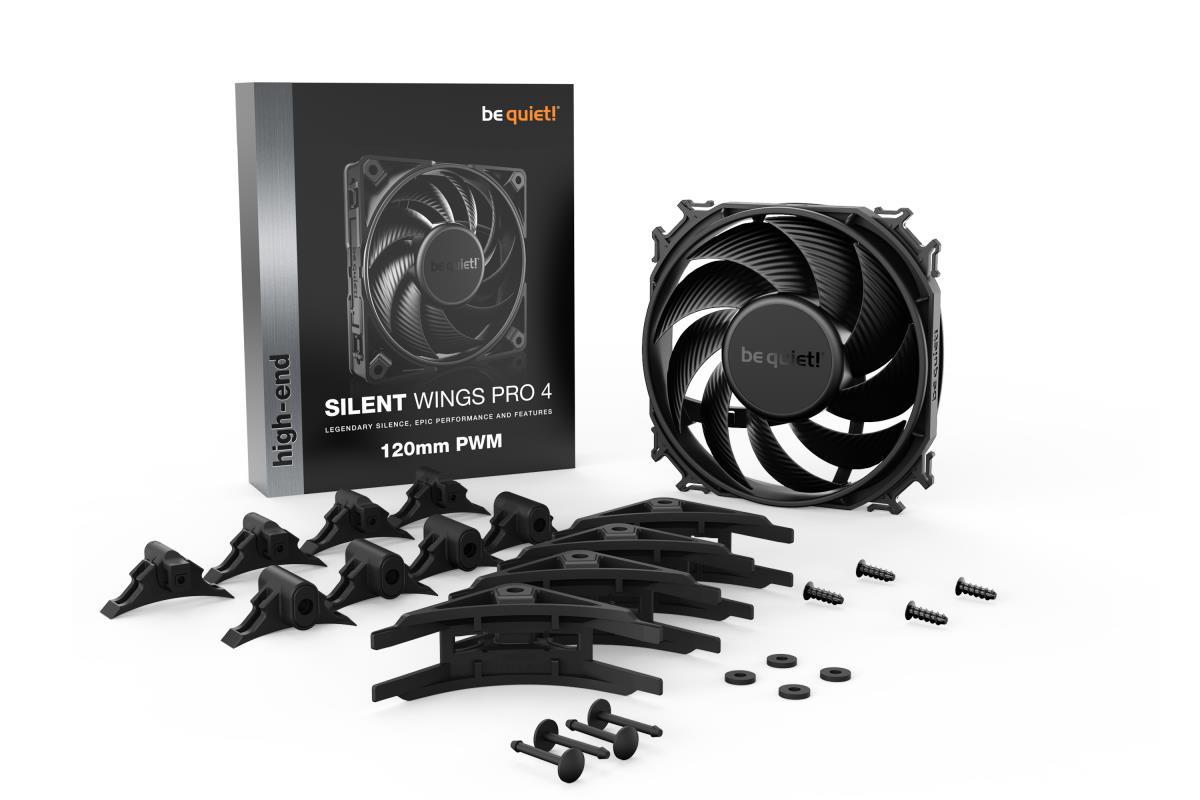

| Packaging content | |
| Screws included | Yes |
| Number of clips | 4 |
| Other features | |
| Country of origin | Germany |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Shipping (inner) case width | 38.7 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case height | 37.5 cm |
| Shipping (inner) case gross weight | 17.2 kg |
| Products per shipping (inner) case | 40 pc(s) |
| Harmonized System (HS) code | 84733080 |
