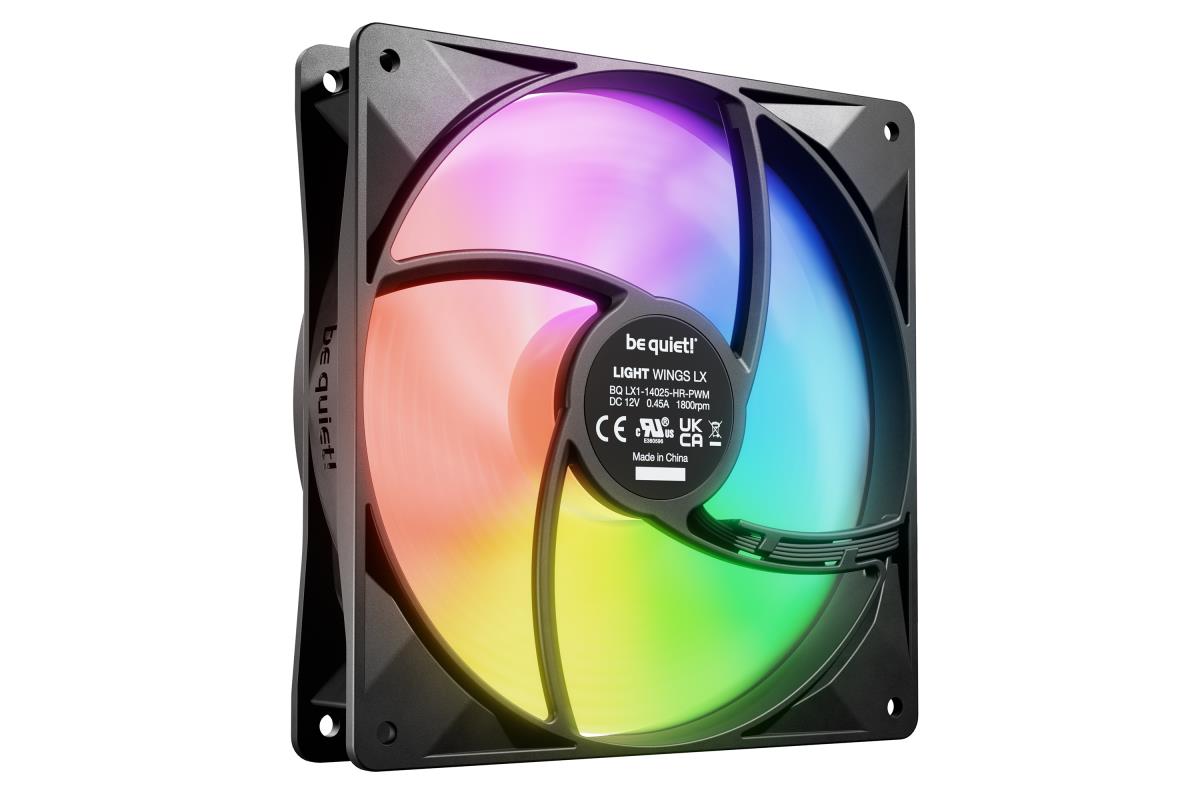

LIGHT WINGS 14CM PWM ARGB FAN 1800 R
Introduction
Great performance and impressive lighting
The Light Wings LX 140mm PWM high-speed boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 1800 RPM |
| Bearing type | Rifle bearing |
| Noise level (high speed) | 30.5 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 75.3 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Airflow | 127.9 m³/h |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Cable length | 0.5 m |
| Illumination LED | Yes |
| Number of LEDs | 16 |
| Number of fan blades | 9 |
| Display type | Not applicable |
| LED connector type | 3-pin |
| Technical details | |
| Noise level (high speed) | 30.5 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 75.3 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Airflow | 127.9 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Maximum current | 0.45 A |
| Fan power consumption | 5.4 W |
| Fan voltage | 12 V |
| Fan current | 0.18 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 184 mm |
| Package width | 142 mm |
| Package height | 27 mm |
| Width | 140 mm |
| Package weight | 210 g |
| Depth | 25 mm |
| Height | 140 mm |
| Weight | 169 g |
| Cable length | 0.5 m |
| Endurance | |
| Mean time between failures (MTBF) | 60000 h |
| Packaging data | |
| Package depth | 184 mm |
| Package width | 142 mm |
| Package height | 27 mm |
| Package weight | 210 g |
| Package type | Box |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Logistics data | |
| Shipping (inner) case width | 37.8 cm |
| Shipping (inner) case length | 49.4 cm |
| Shipping (inner) case height | 33 cm |
| Shipping (inner) case gross weight | 16.1 kg |
| Products per shipping (inner) case | 72 pc(s) |
