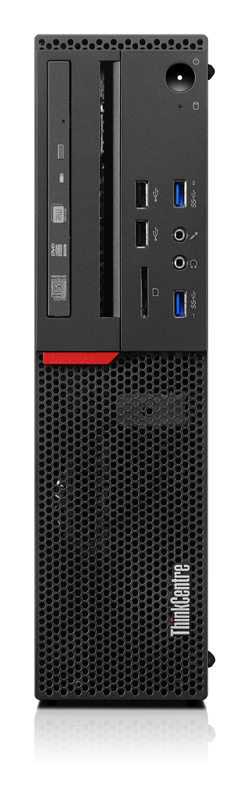

EU Product - M700 - PC
Introduction
Up to 6th Gen Intel Core Processors
Thin, light, quiet, and versatile. The new 6th Gen Intel® Core™ processors deliver great mobile performance with nimble responsiveness. This feature-packed processor with built-in security is ready to kick your productivity, creativity, and entertainment up a few notches. What's more, by enabling the exciting Windows 10 features, 6th Gen Intel Core processors empower you to unleash your imagination and explore the possibilities.
Up to Windows 10 Pro
Windows 10 Pro is designed to empower you and your business. It allows you to do great things across your devices securely with anyone, anywhere, and at any time. Fitting a variety of budgets, it's also very easy to use. So you can get more done right from the start.
Multiple Monitor Display
Maximize productivity with independent display support for up to three monitors. The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple monitors.
Green Leadership
Lenovo Desktop Power Manager enables professional-level power monitoring, putting you in control of saving energy and keeping costs down. Plus, with ratings like ENERGY STAR 6.1, ULE Gold, EPEAT Gold, and 85% efficiency with 80+ Platinum power supply unit (PSU), you can feel good about helping the planet and your bottom line.
Lenovo Solution Center
Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update.
Fast Data Transfer
Move data between the M700 SFF and other devices quickly with USB 3.0 — it's up to 10 times faster than previous USB technologies, and is backward-compatible.
More Dust-Resistant Than Ever
ThinkCentre PCs are designed with best-in-class dust resistance and thermal management; yet still, our Lenovo engineers wanted to do even more for our next generation desktops. We’ve added the option for ThinkCentre Dust Shield, filters that reduce internal dust and dirt filtration by up to 57%—this feature further improves reliability without impacting thermals or acoustics. Plus, the filters are easily removable and washable for long-term use. Extend the life of your ThinkCentre M800.
Specifications
| Processor | |
|---|---|
| Processor generation | 6th gen Intel® Core™ i5 |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133,1333,1600,1866 MHz |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71 °C |
| Processor series | Intel Core i5-6400 Desktop series |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 6 MB |
| Processor frequency | 2.7 GHz |
| Processor model | i5-6400 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3.3 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Core™ i5 |
| Memory | |
| Memory layout (slots x size) | 1 x 4 GB |
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | DVD±RW |
| SSD interface | SATA III |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Total storage capacity | 128 GB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 1912 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 530 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| Technical details | |
| Number of 2.5" bays | 1 |
| Intel 64 | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Product type | PC |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Product colour | Black |
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Number of 3.5" bays | 1 |
| Motherboard chipset | Intel® H110 |
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Compliance certificates | RoHS |
| Design | |
| Intel segment tagging | Home office, Small Business |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Number of 3.5" bays | 1 |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC662 |
| Password protection | Yes |
| Password protection type | HDD, Power on |
| Product type | PC |
| Motherboard chipset | Intel® H110 |
| Software | |
| Operating system architecture | 64-bit |
| Trial software | McAfee LiveSafe, Microsoft Office |
| Drivers included | Yes |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | SSE4.2, AVX 2.0, SSE4.1 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR2BY |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 88185 |
| Intel 64 | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 210 W |
| Certificates | |
| Certification | ErP Lot 3; GREENGUARD |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 357 mm |
| Height | 338 mm |
| Weight | 5.6 kg |
| Packaging content | |
| Manual | Yes |
| Mouse included | Yes |
| Drivers included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Display | |
| Display included | No |
| Other features | |
| Intel segment tagging | Home office, Small Business |
| On-board graphics card | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
