EU Product - 55 P-Line UHD 24/7

Introduction

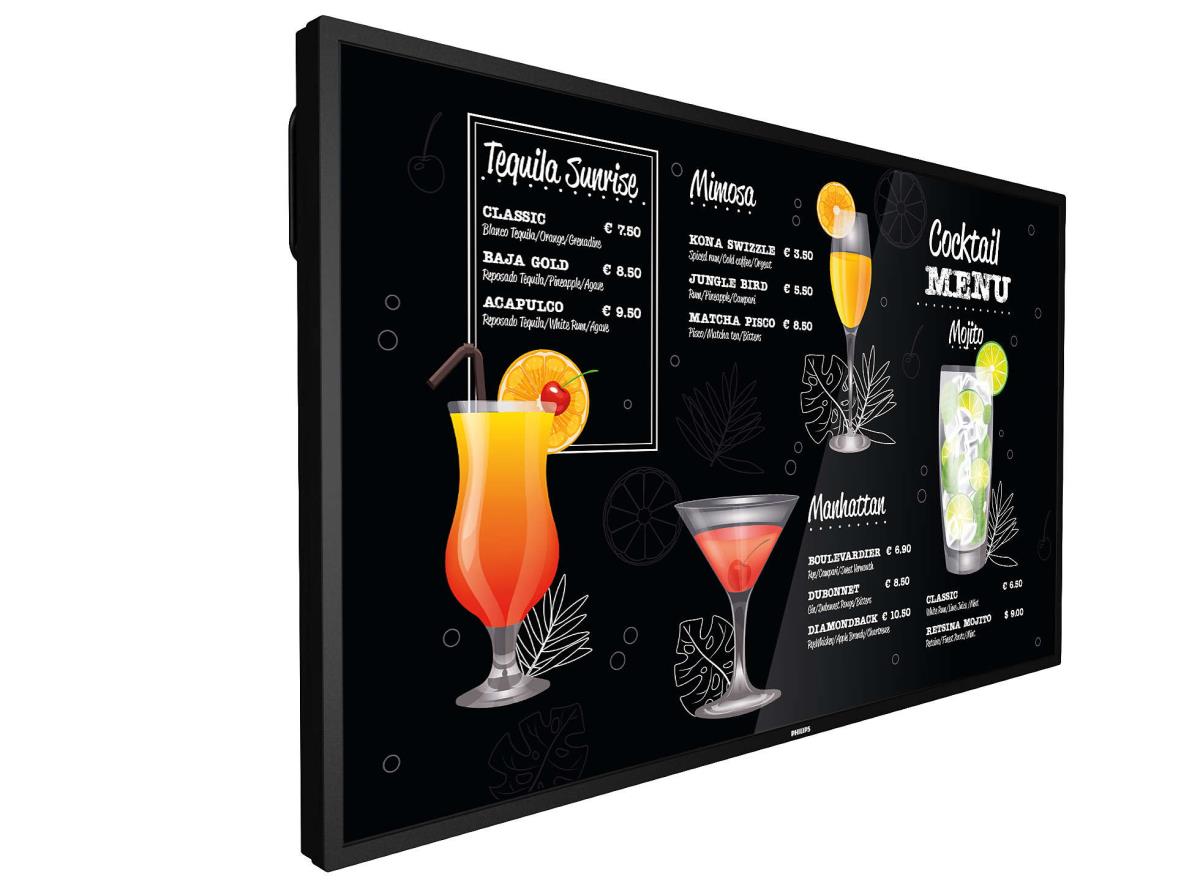

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high brightness make it perfect for demanding environments such as retail, transportation, and food and drink.

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

D-image: clinically accurate imaging
This Philips Professional Display is factory-calibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.

FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Sophistication and intelligence with SDM-L
An integrated Intel Smart Display Module Large adds scalable sophistication to your display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.

Specifications

Display
Display number of colours	1.07 billion colours
Touchscreen	No
Display technology	VA
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	750 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	5000:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	138.7 cm
Native aspect ratio	16:9
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
DisplayPorts out	1
DisplayPort version	1.2
USB port	Yes
DisplayPorts in	1
HDMI version	2.0
RS-232C	Yes
Wi-Fi	No
DisplayPorts quantity	2
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Ethernet LAN	Yes
HDMI ports quantity	4
DVI port	Yes
DVI-I ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	1
HDMI input ports quantity	3
HDMI output ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	400 x 400 mm
Certification	FCC, Class A CB BSMI EAC EMF VCCI PSB EnergyStar 8.0 ETL EPA
VESA mounting	Yes
Wall mountable	Yes
Performance
Purpose	Universal
Ambient light sensor	Yes
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
On Screen Display (OSD)	Yes
Number of OSD languages	18
Wi-Fi	No
Power
Power consumption (max)	300 W
Power consumption (typical)	150 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	141 kWh
Computer system
Computer system	No
Video formats supported	H.264, M-JPEG, MPEG1, MPEG2, WMV3
Audio formats supported	AAC, AAC HE
Image formats supported	BMP, JPEG, PNG
Built-in processor	No
Weight & dimensions
Display width	1241.8 mm
Display depth	76.8 mm
Display height	712.6 mm
Display weight	20.7 kg
Packaging content
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Cables included	AC, Daisy chain cable, RS-232
Operational conditions
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, Class A CB BSMI EAC EMF VCCI PSB EnergyStar 8.0 ETL EPA
Technical details
VESA mounting	Yes
Bezel width	1.39 cm
DisplayPorts out	1
DisplayPort version	1.2
Remote control battery type	AAA
Screen saving functions	Yes
DisplayPorts in	1
Network controllable	RS232/RJ-45
Ambient light sensor	Yes
Signal loop through	DisplayPort, RS232, HDMI, IR Loop through
Keyboard control	Hidden, Lockable
Energy saving functions	Smart Power
Tiled Matrix	Up to 15 x 15
Set width (inch)	124.2 cm (48.9")
Set height (inch)	71.3 cm (28.1")
Set depth (inch)	7.67 cm (3.02")
Product weight	20.7 kg (45.5 lbs)
Easy alignment	Yes
Sustainability compliance	Yes
Warranty period	3 year(s)
Compliance certificates	CE
Network
Wi-Fi	No
Ethernet LAN	Yes
Thin Client
Video formats supported	H.264, M-JPEG, MPEG1, MPEG2, WMV3
Audio formats supported	AAC, AAC HE
Image formats supported	BMP, JPEG, PNG
Sensors
Ambient light sensor	Yes
Logistics data
Harmonized System (HS) code	85285210
Packaging data
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Cables included	AC, Daisy chain cable, RS-232
Features
Harmonized System (HS) code	85285210
Wall mountable	Yes
Other features
Bezel width	1.39 cm
DisplayPorts out	1
DisplayPort version	1.2
Remote control battery type	AAA
Screen saving functions	Yes
DisplayPorts in	1
Network controllable	RS232/RJ-45
Wi-Fi	No
Power consumption (max)	300 W
Operating altitude	0 - 3000 m
Mean time between failures (MTBF)	50000 h
Display technology	VA
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Quick start guide	Yes
Energy efficiency scale	A to G
