EU Product - E55D-H Digil signge fl
Introduction

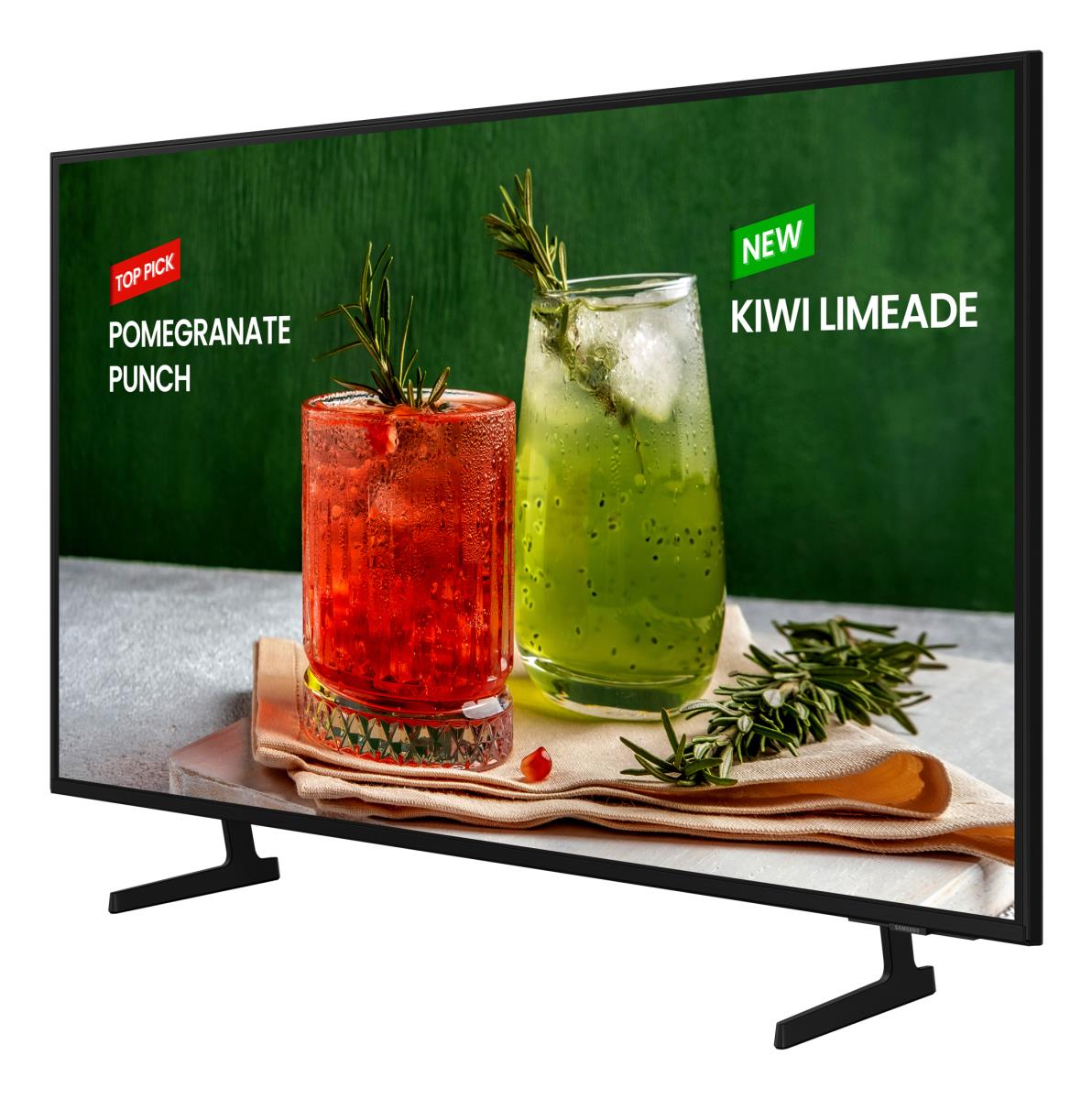

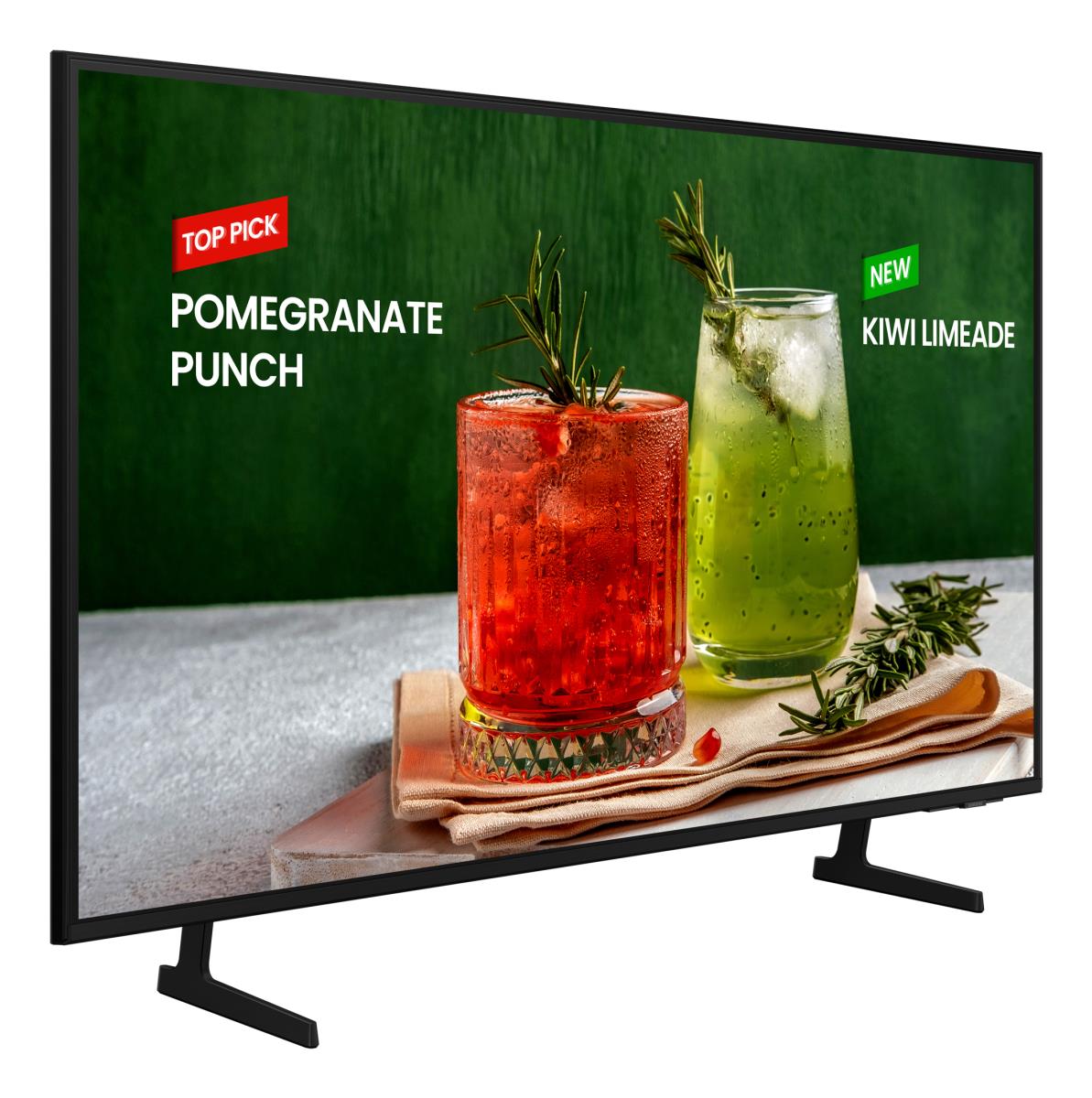

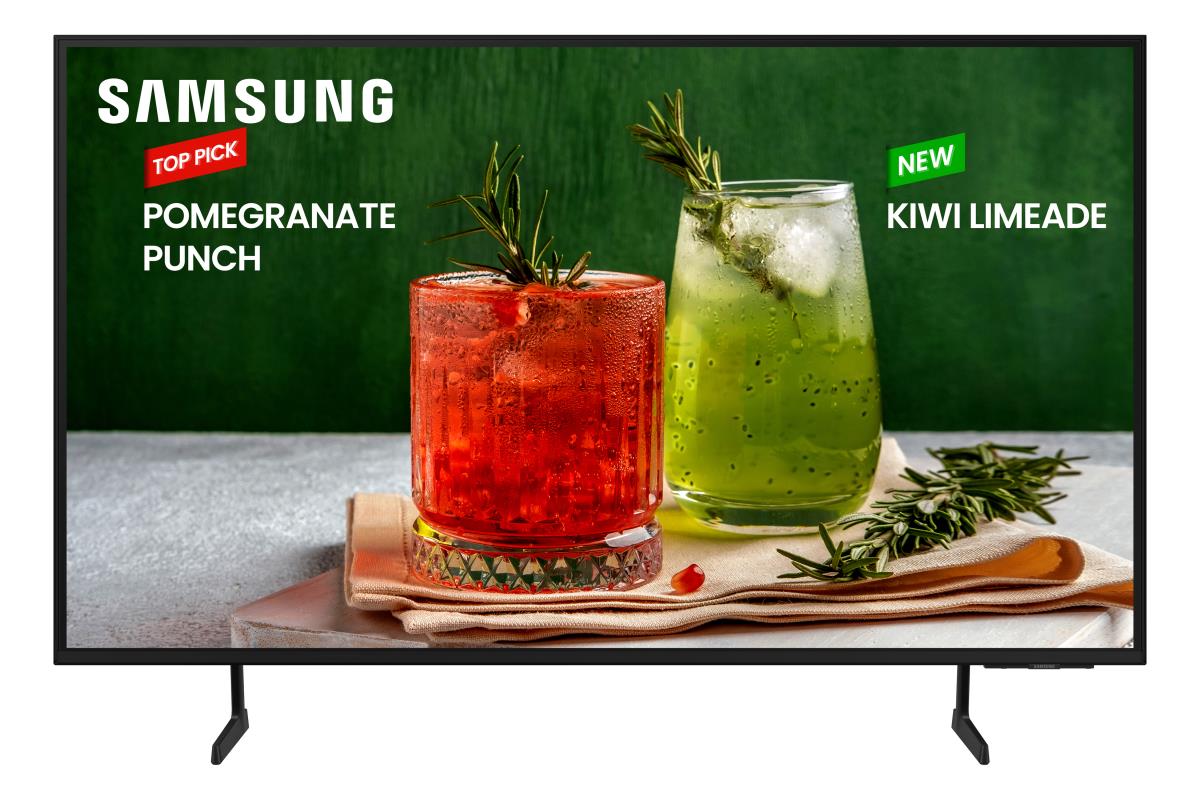

Samsung BE55D-H. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen. Product colour: Black
Specifications
| Display | |
|---|---|
| Touchscreen | No |
| Display technology | LED |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Display diagonal (metric) | 138 cm |
| Native aspect ratio | 16:9 |
| Motion interpolation technology | Motion Xcelerator |
| High Dynamic Range (HDR) technology | Filmmaker Mode, High Dynamic Range 10+ (HDR10 Plus) |
| High Dynamic Range (HDR) supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| RF input | 3 |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Audio output channels | 2.0 channels |
| Enhanced Audio Return Channel (eARC) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Screen shape | Flat |

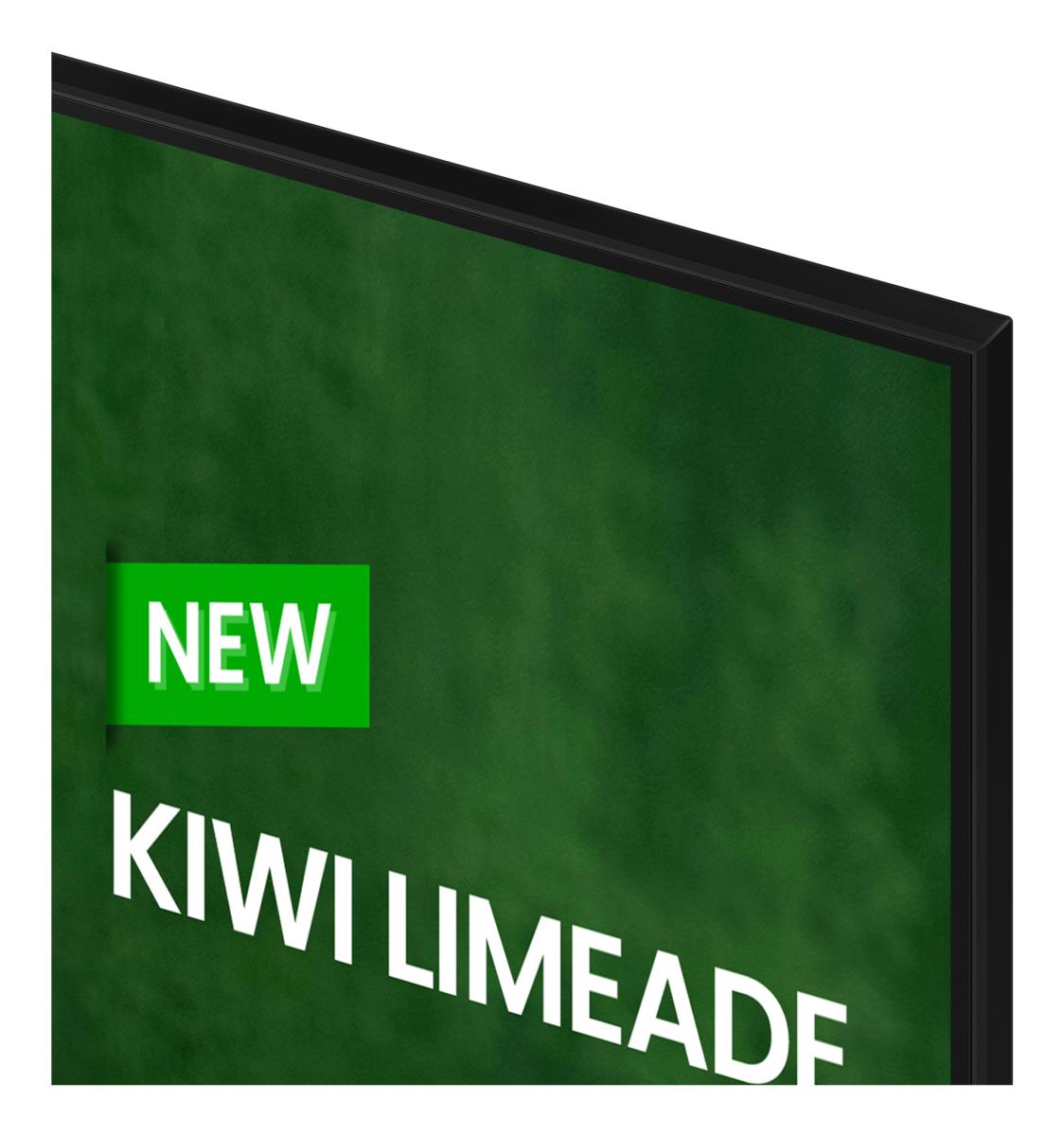

| Bezel type | 3 Bezel-less |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 16/7 |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Web browser | Yes |
| Sound mirroring | Yes |
| Wi-Fi | Yes |
| Power | |
| Power consumption (typical) | 125 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 80 kWh |
| Energy consumption (HDR) per 1000 hours | 121 kWh |
| Computer system | |
| Operating system installed | Tizen |
| Weight & dimensions | |
| Display width | 1234.1 mm |

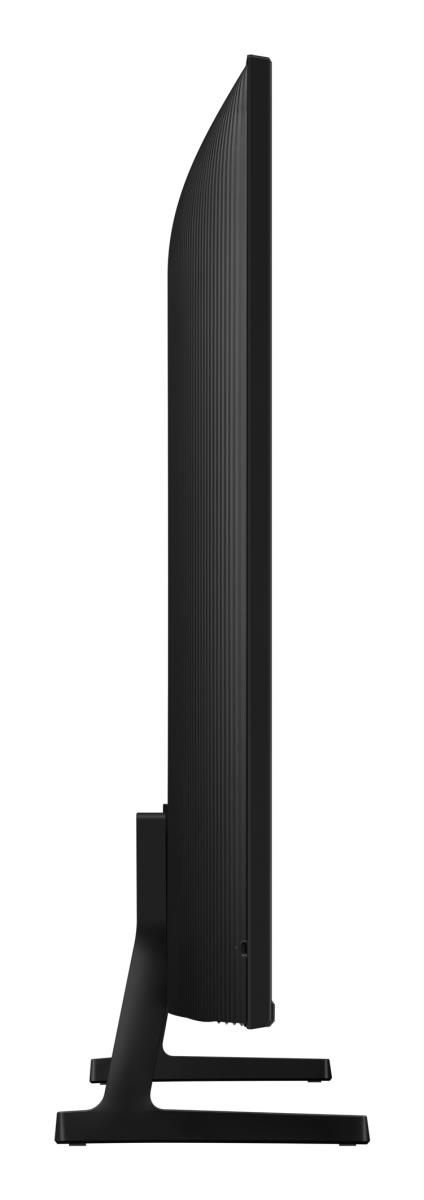

| Display depth | 60.3 mm |
| Display height | 710.8 mm |
| Display weight | 11.2 kg |
| Packaging data | |
| Package width | 1386 mm |
| Package depth | 158 mm |
| Package height | 828 mm |
| Package weight | 15.3 kg |
| Technical details | |
| VESA mounting | Yes |
| Tuner type | Analog & digital |
| Package type | Box |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Operating system installed | Tizen |
| Brand-specific features | |
| Samsung technologies (AV/TV) | 4K Upscaling, Crystal Processor 4K, Media Home, Motion Xcelerator, Object Tracking Sound Lite, Q-Symphony, Workspace |
| Other features | |
| Tuner type | Analog & digital |
| Package type | Box |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Display technology | LED |
| Common interface Plus (CI+) | Yes |
| Common interface (CI) | Yes |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Energy efficiency scale | A to G |
| Common interface Plus (CI+) version | 1.4 |
| VXT player support | Yes |
| USB port lock | Yes |
