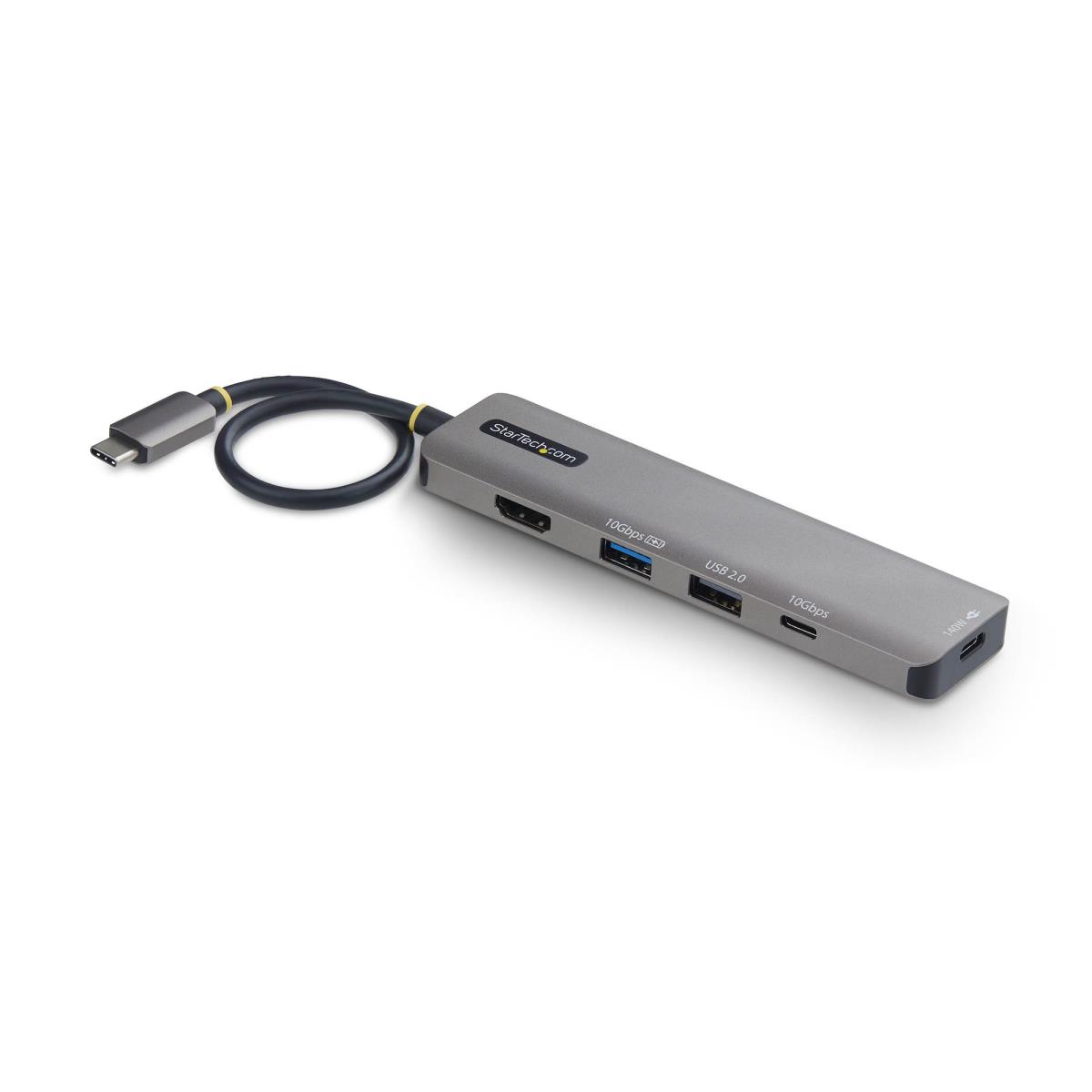

USB-C HDMI MULTIPORT HUB -
Introduction

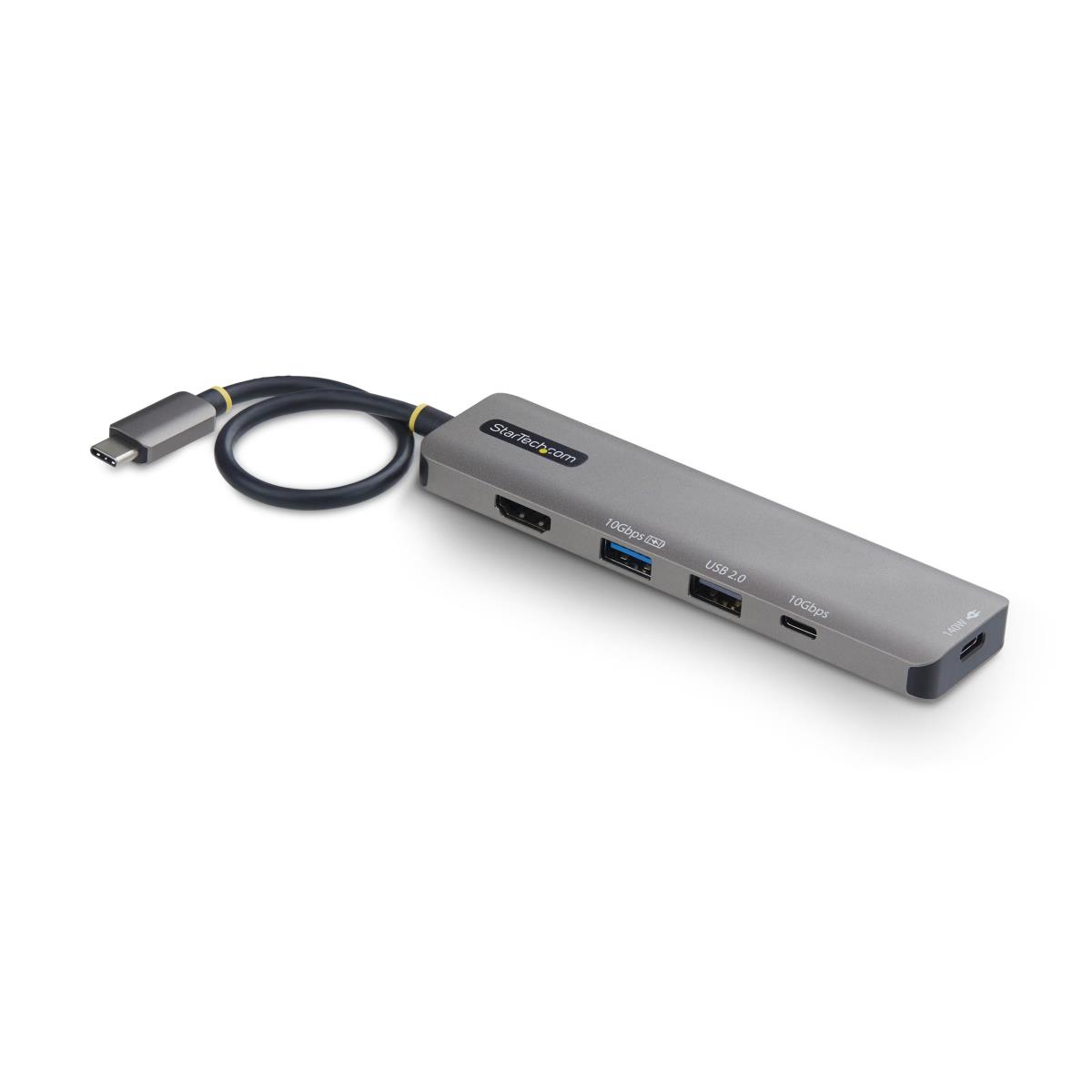

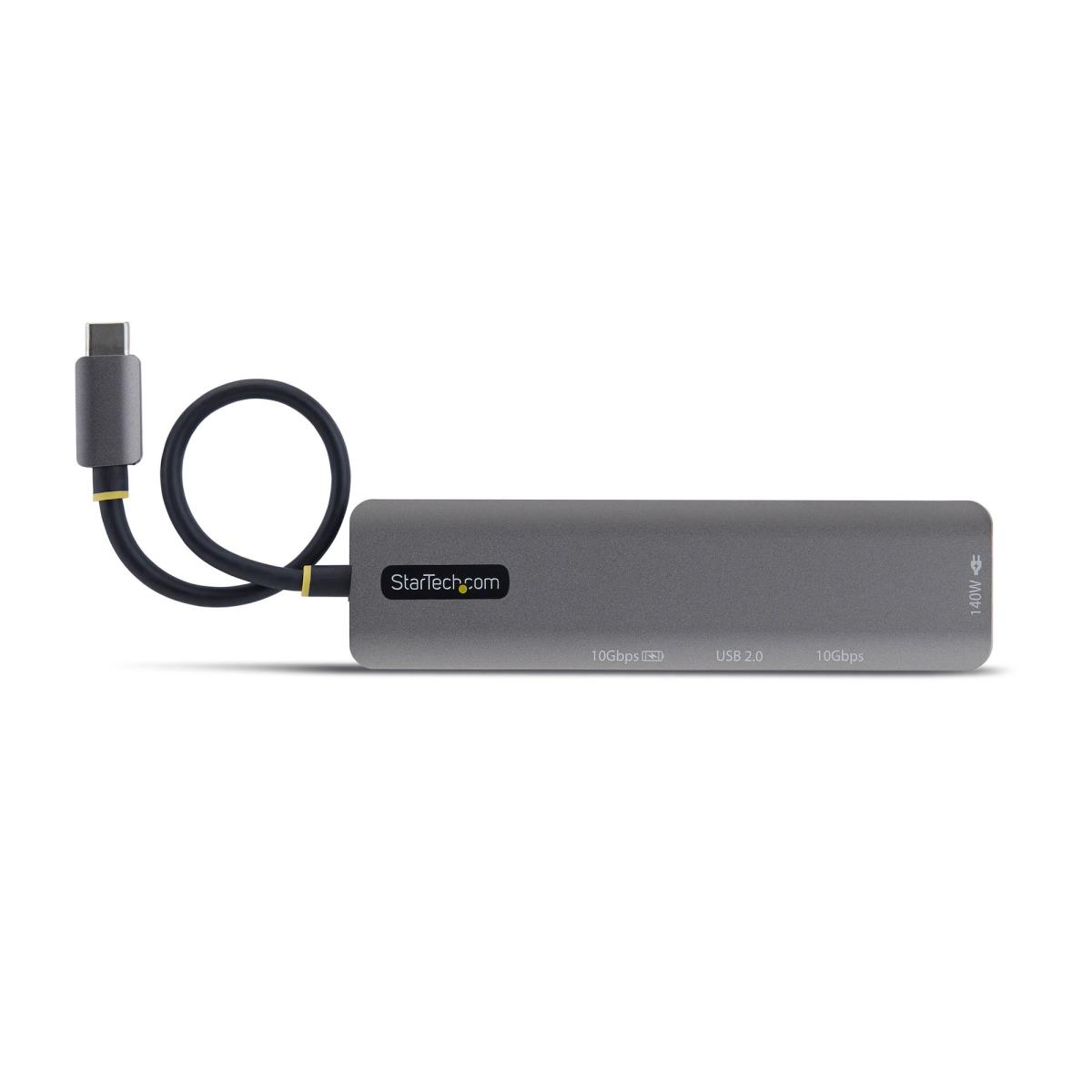

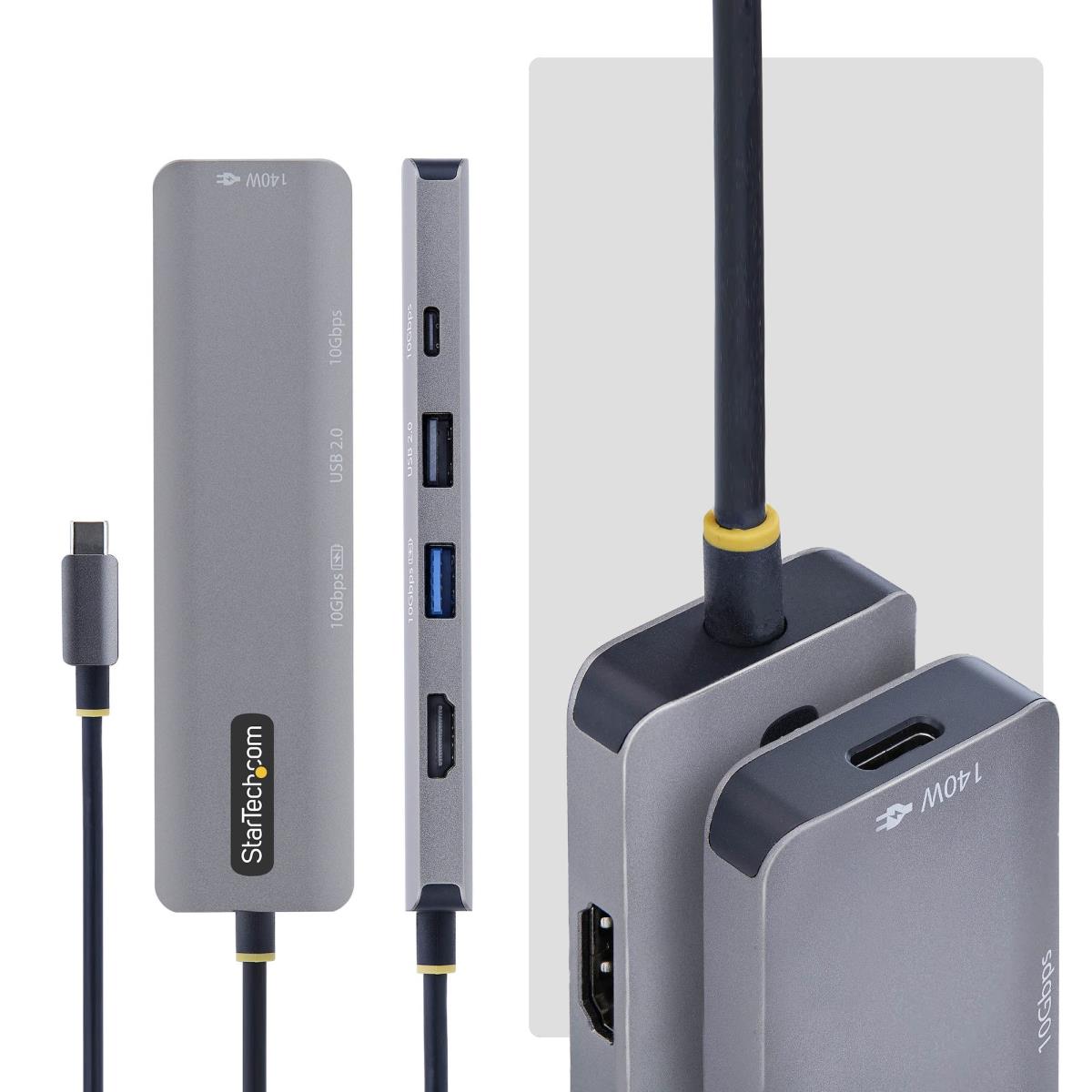

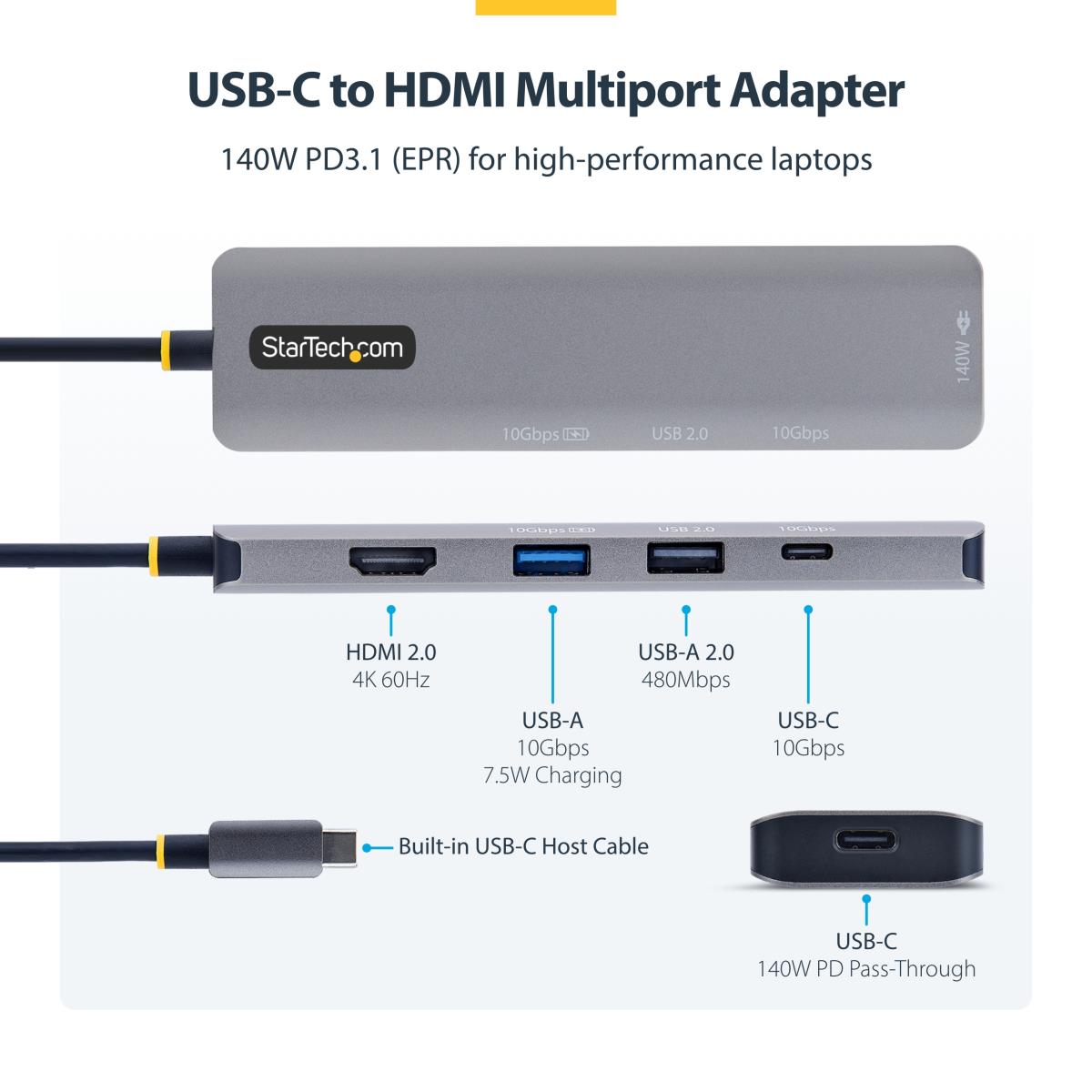

Turn a USB-C laptop into a workstation with 4K 60Hz HDMI, three USB ports (2x USB-A, 1x USB-C) and pass-through USB Power Delivery to charge your laptop or tablet
Turn one USB-C port into a complete mobile workstation with 4K video, 140W power delivery, and high-speed USB connectivity in a single compact adapter.

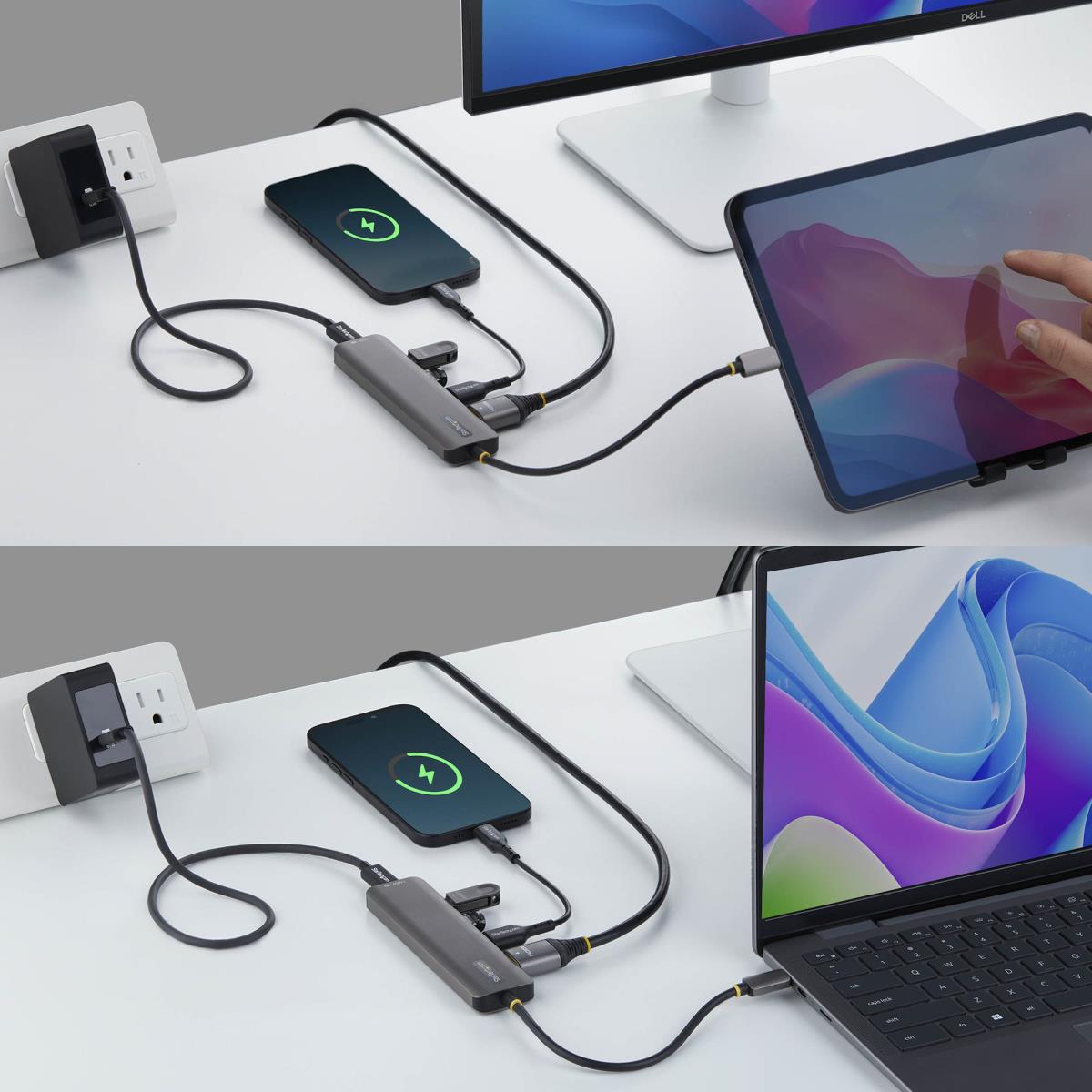

Build a Clean, High-Performance Workspace Anywhere

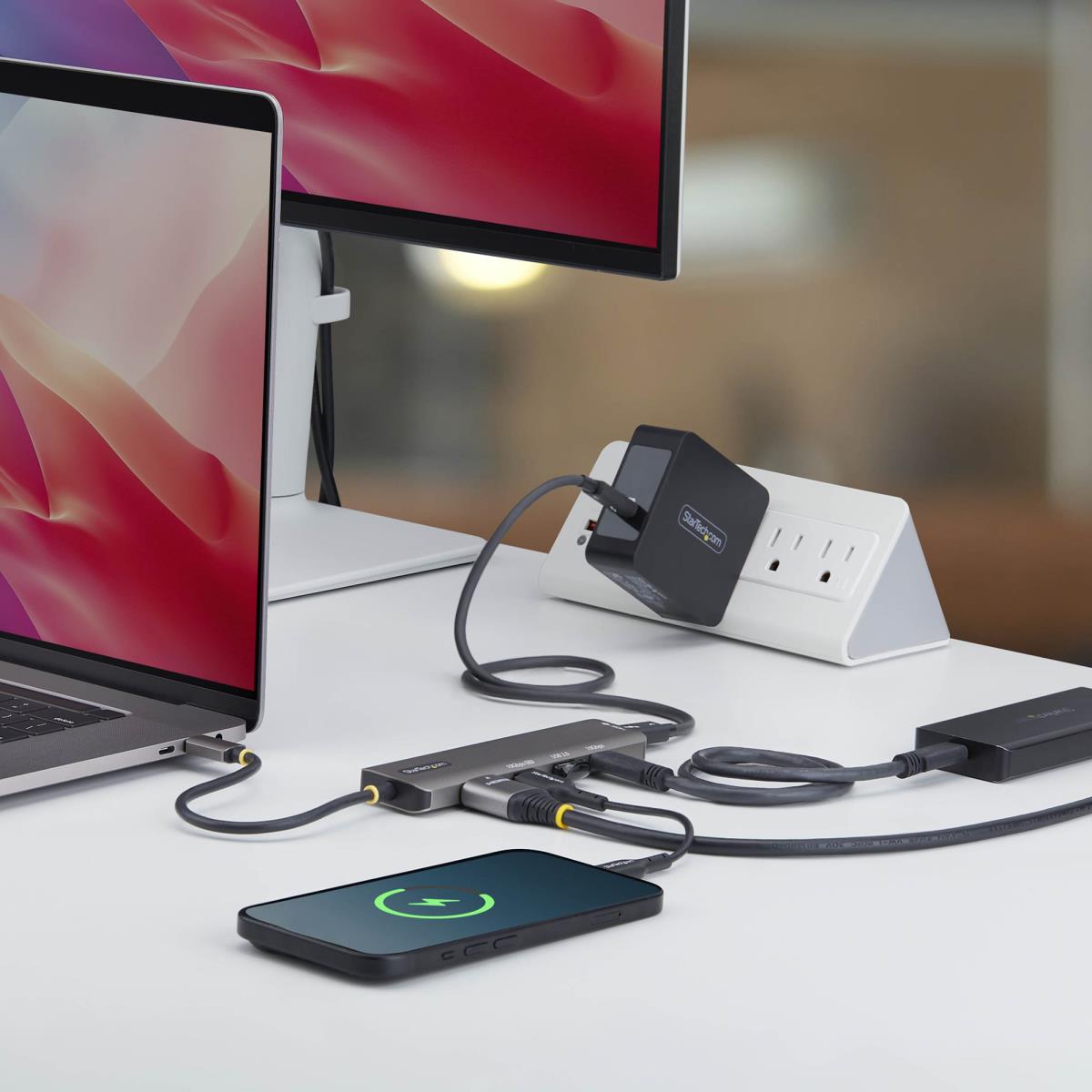

Drive a 4K 60Hz HDMI display while adding USB-C and USB-A data ports through one adapter. Replace multiple dongles in shared desks, hoteling stations, travel kits, and field deployments. Fewer accessories reduce setup time and cable clutter.
Charge High-Powered Laptops Without Compromise
Deliver up to 140W USB-C Power Delivery passthrough to support high-powered and AI-focused laptops under load. A dedicated USB-A 2.0 port connects essential peripherals without consuming critical host ports.
Expand with High-Speed, Driverless Connectivity

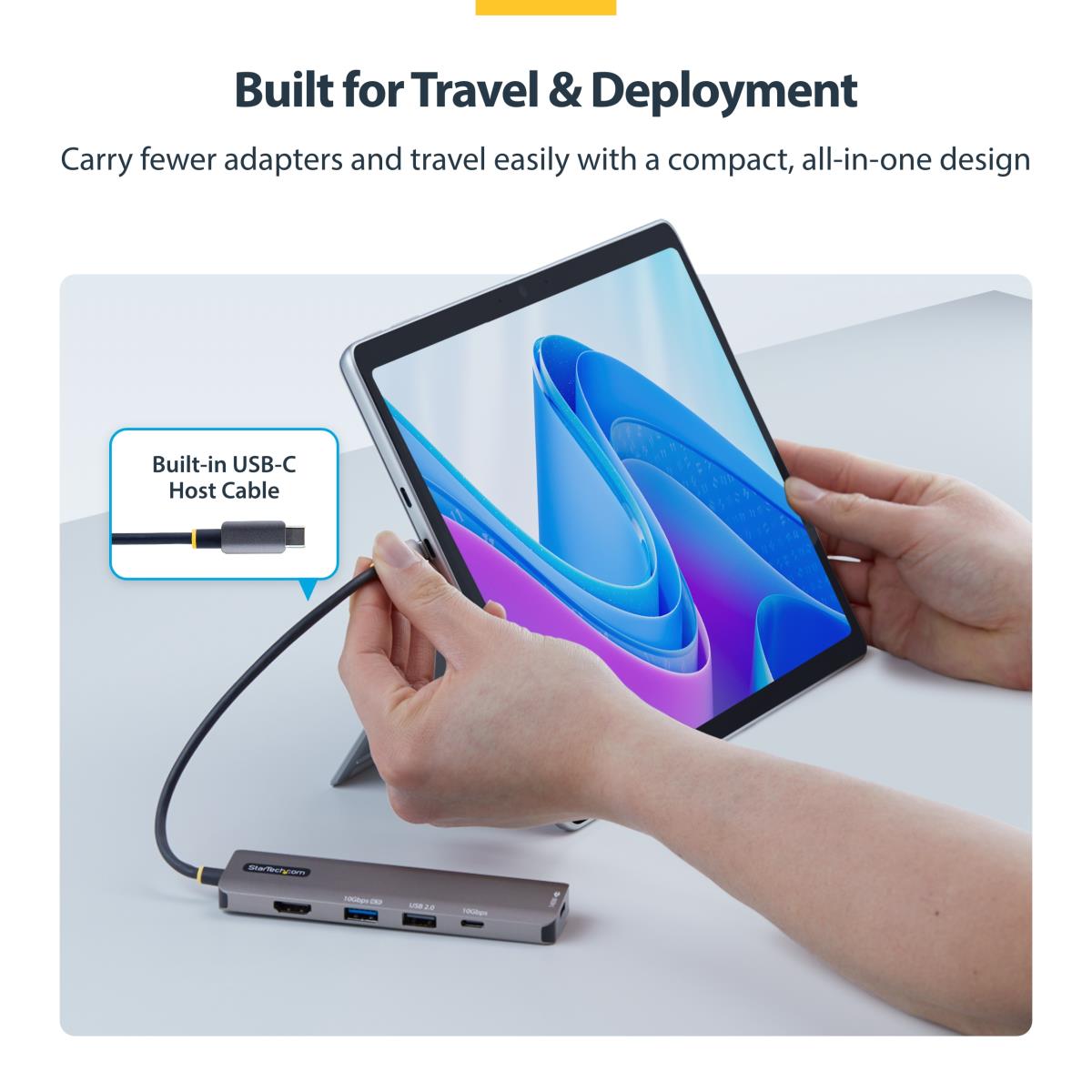

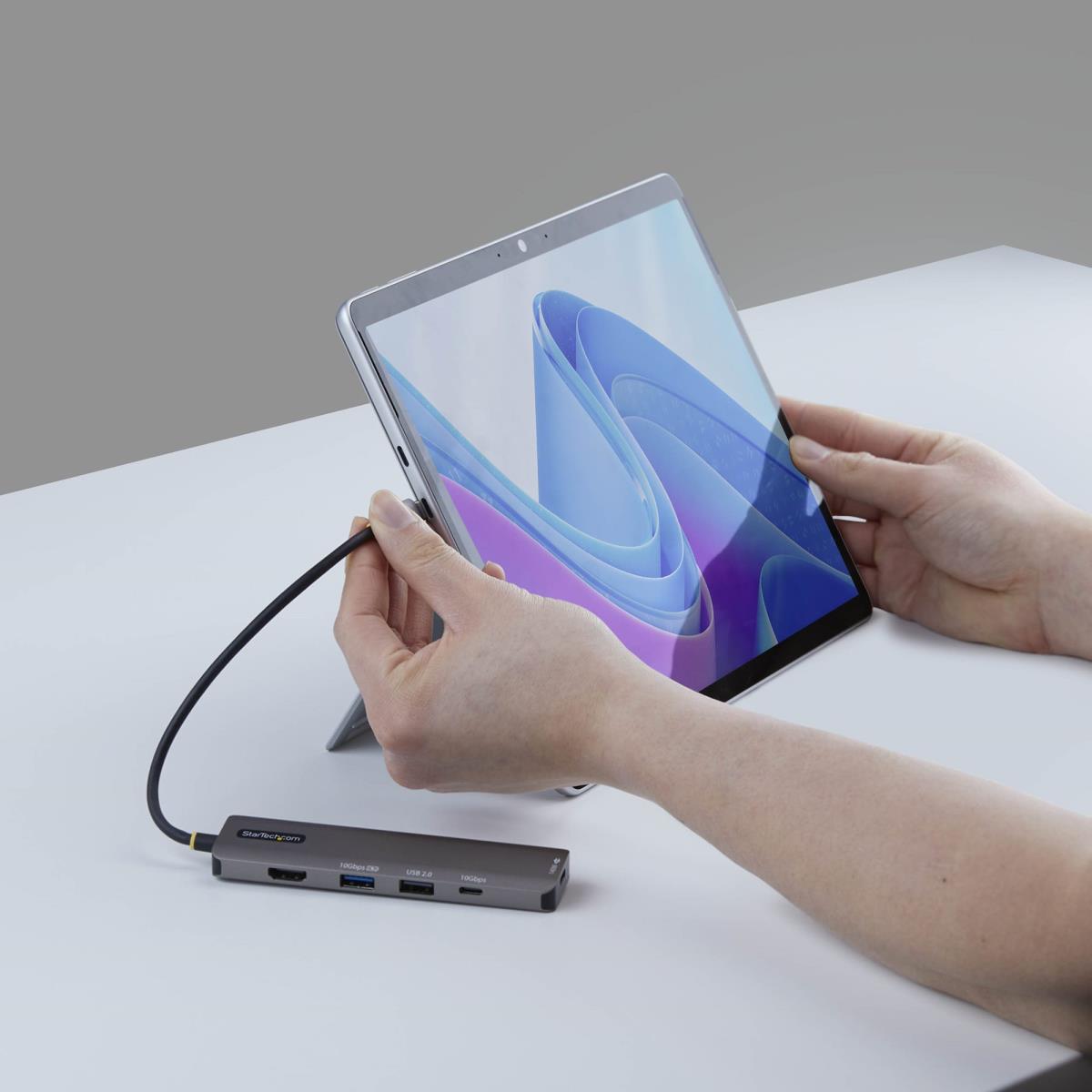

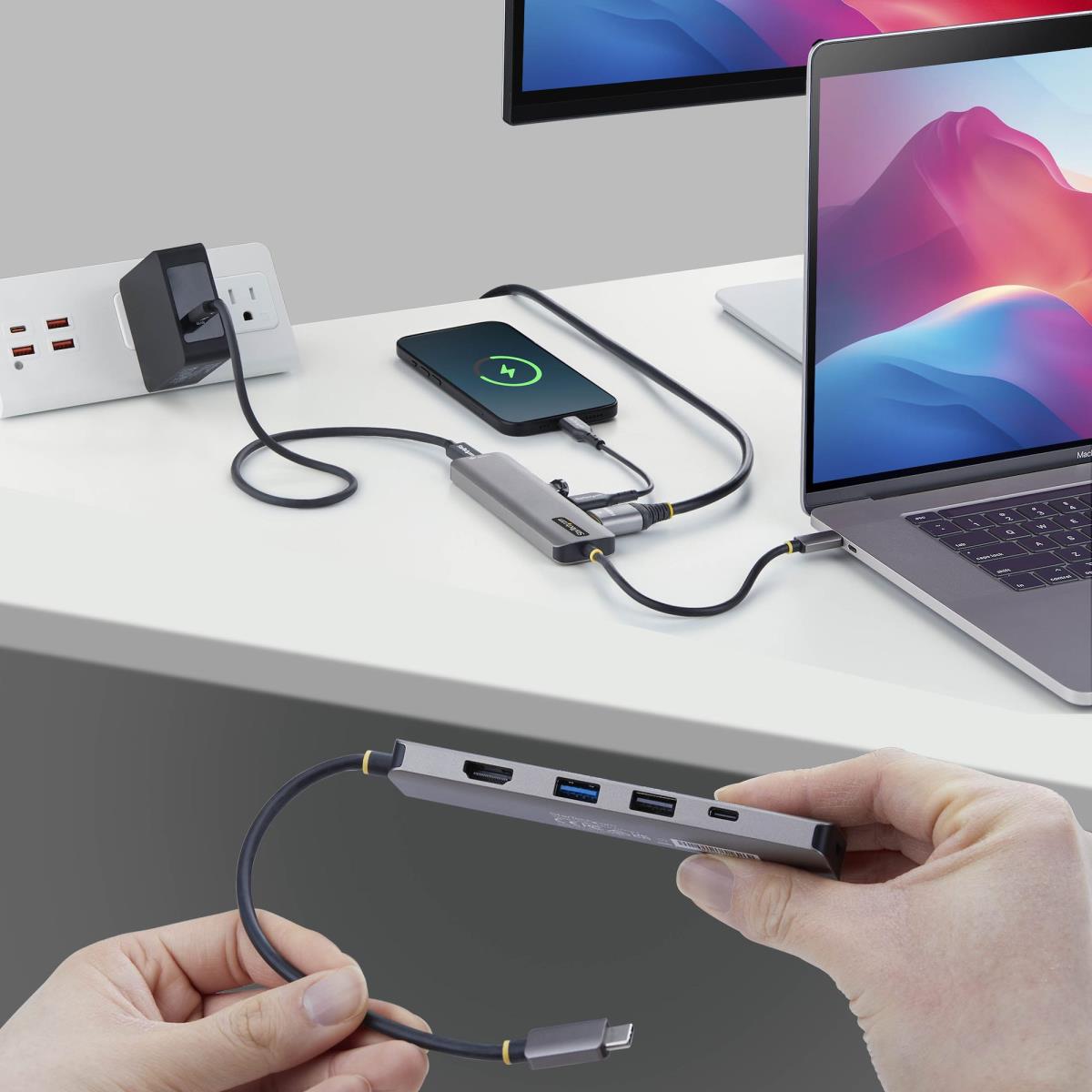

Add a 10Gbps USB-A port with BC 1.2 for fast data transfers and optimized device charging, plus a 10Gbps USB-C port for modern peripherals and storage. Deploy instantly with driverless plug-and-play installation. The compact design fits easily into laptop bags, simplifying rollouts for hybrid teams and remote users.
Built for Sustainability, Designed for Performance
This hub features a housing made from 75% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.2 |
| USB Power Delivery up to | 140 W |
| Network | |
| Ethernet LAN | No |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Housing material | Aluminium, Plastic |
| Technical details | |
| Product colour | Grey |
| Data transfer rate | 10 Gbit/s |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| User guide | Yes |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 310 mm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 15 W |
| Output voltage | 5 V |
| USB cable length | 0.2 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |

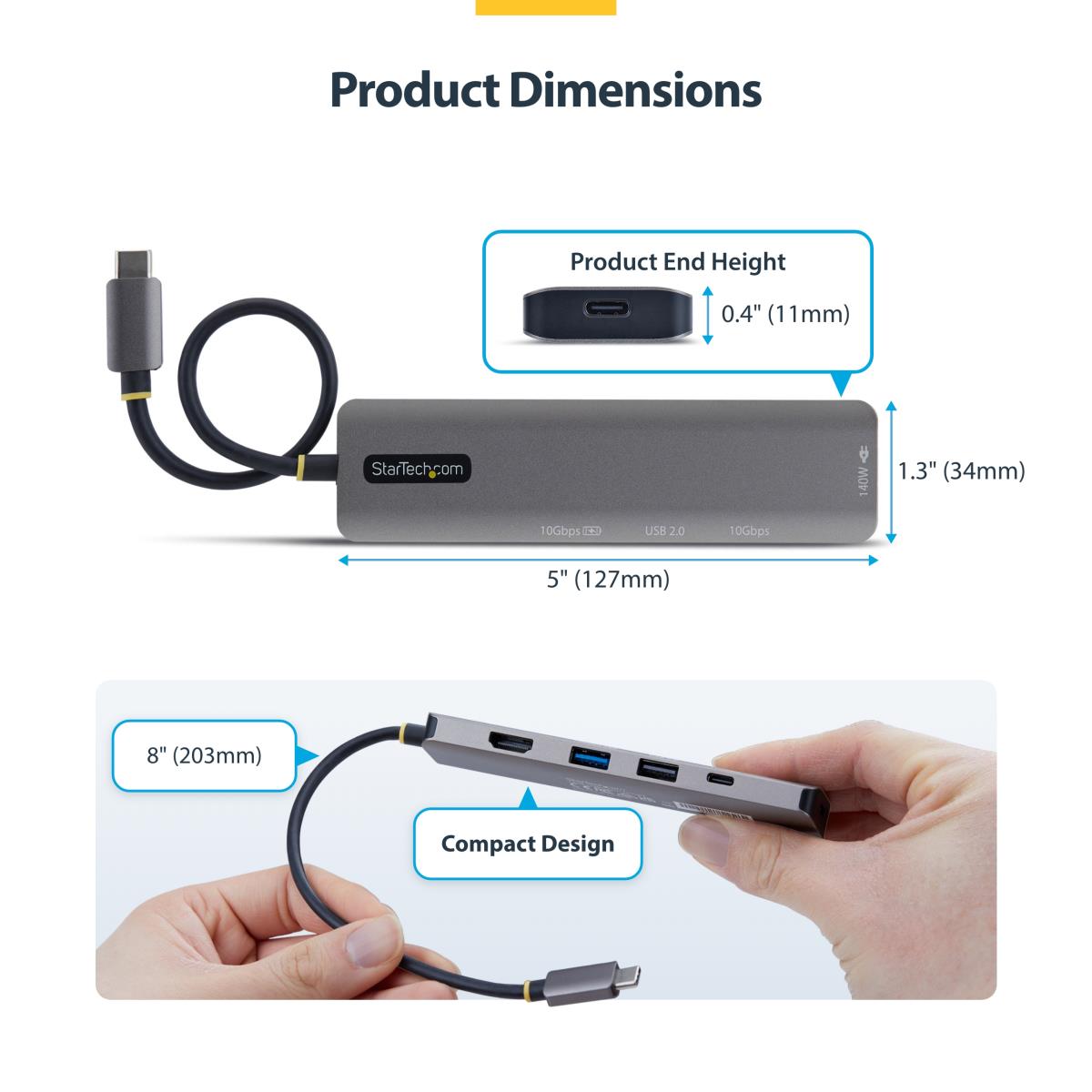

| Weight & dimensions | |
| Weight | 78 g |
| Width | 34 mm |
| Depth | 127 mm |
| Height | 11 mm |
| Package weight | 106 g |
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Design | |
| Product colour | Grey |
| Packaging data | |
| Package weight | 106 g |
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Packaging content | |
| User guide | Yes |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 310 mm |
| Other features | |
| Chipset | Parade - PS188 |
