USB-C MINI DOCK
Introduction
Stylish palm-sized power, ports, and portability

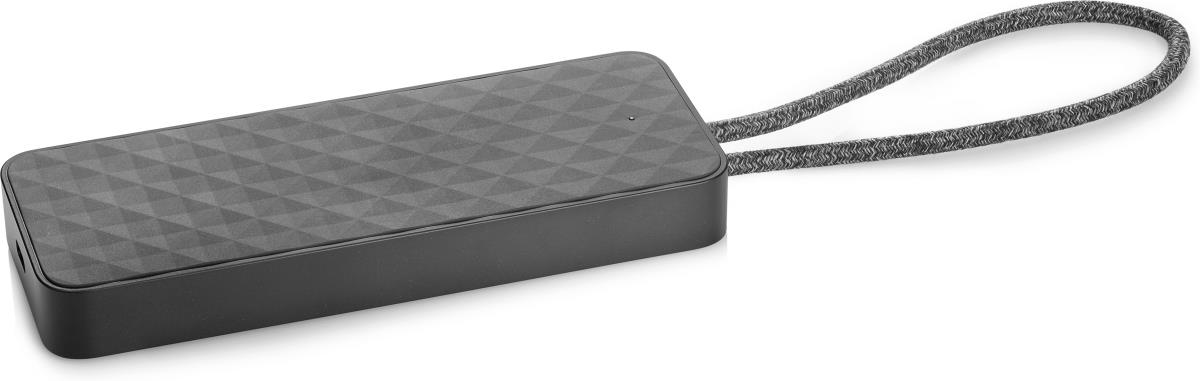

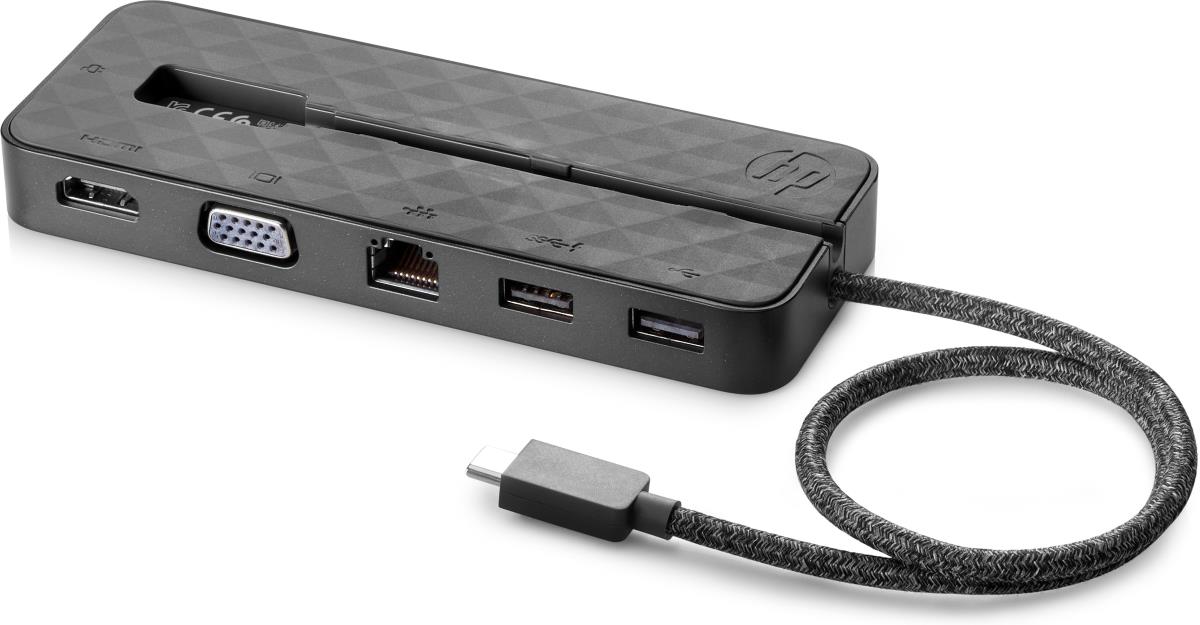

Be productive on the go with streamlined, pocket-sized port expansion that’s fashionable and functional. The HP USB-C™ Mini Dock has a modern, textured design and packs pass-through charging[1] and data, video, network, and device connectivity[2] into a compact, portable dock.
Specifications

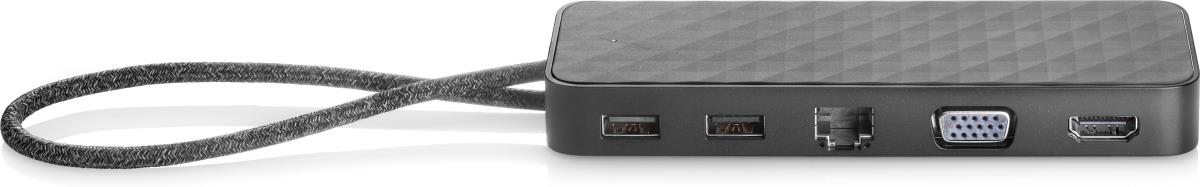

| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Country of origin | China |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | HP |
| Compatibility | HP x2 1012 G2 Tablet; HP x2 612 G2 Tablet; HP ProBook 470 G5; HP ProBook 450 G5; HP ProBook 440 G5; HP ProBook 430 G5; HP Elitebook x360; HP ChromeBook 13 G1; HP EliteBook x360 1020 G2; HP EliteBook Folio G1; HP EliteBook 1040 G4 |
| HP segment | Business |
| Technical details | |
| Product colour | Black |
| Brand compatibility | HP |
| Compatibility | HP x2 1012 G2 Tablet; HP x2 612 G2 Tablet; HP ProBook 470 G5; HP ProBook 450 G5; HP ProBook 440 G5; HP ProBook 430 G5; HP Elitebook x360; HP ChromeBook 13 G1; HP EliteBook x360 1020 G2; HP EliteBook Folio G1; HP EliteBook 1040 G4 |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Output voltage | 15 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 132 g |
| Width | 145 mm |
| Depth | 55 mm |
| Height | 17.5 mm |
| Design | |
| Country of origin | China |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
