Part No:DKT30CVAGPD
Stock:3 In Stock
EAN Code:0065030879163

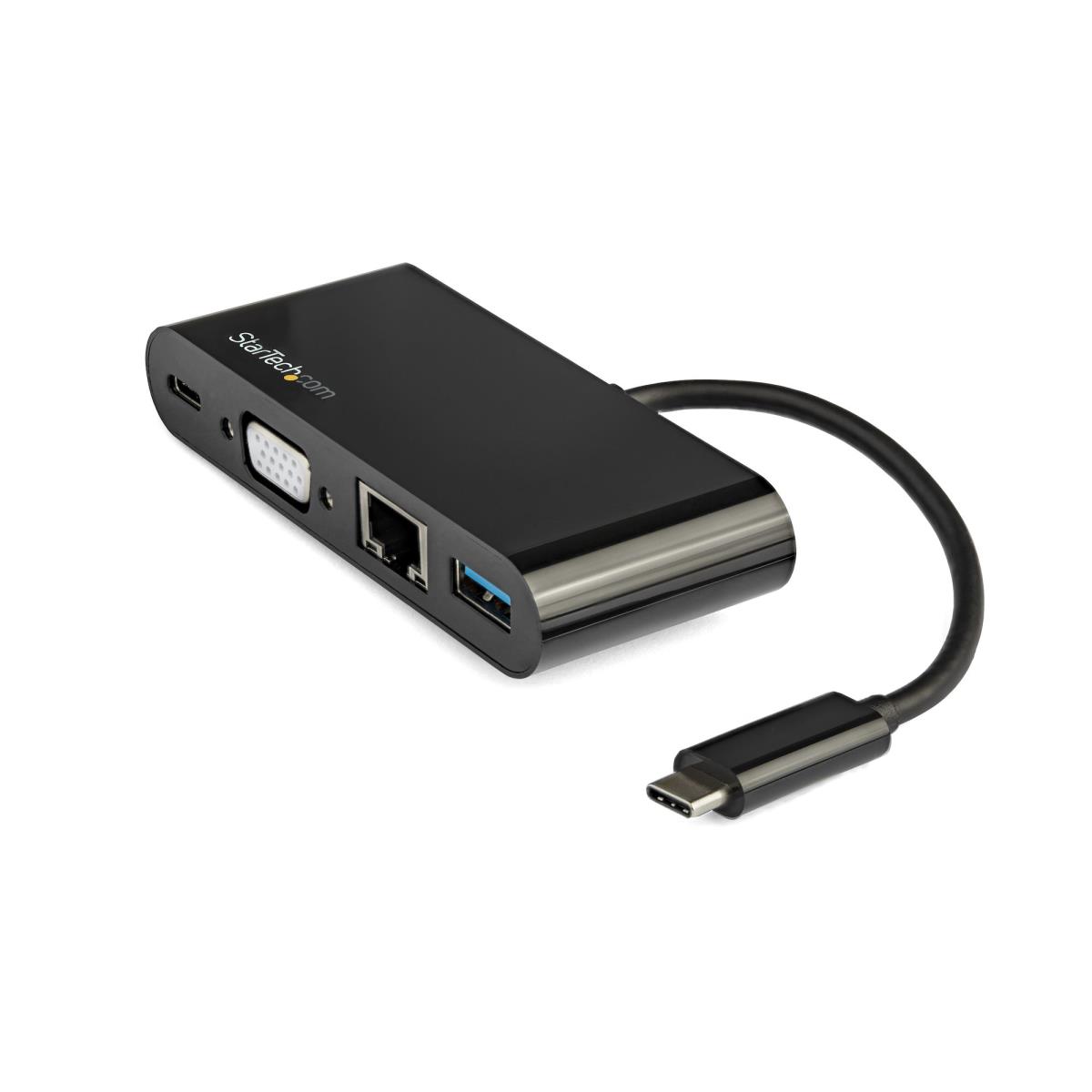

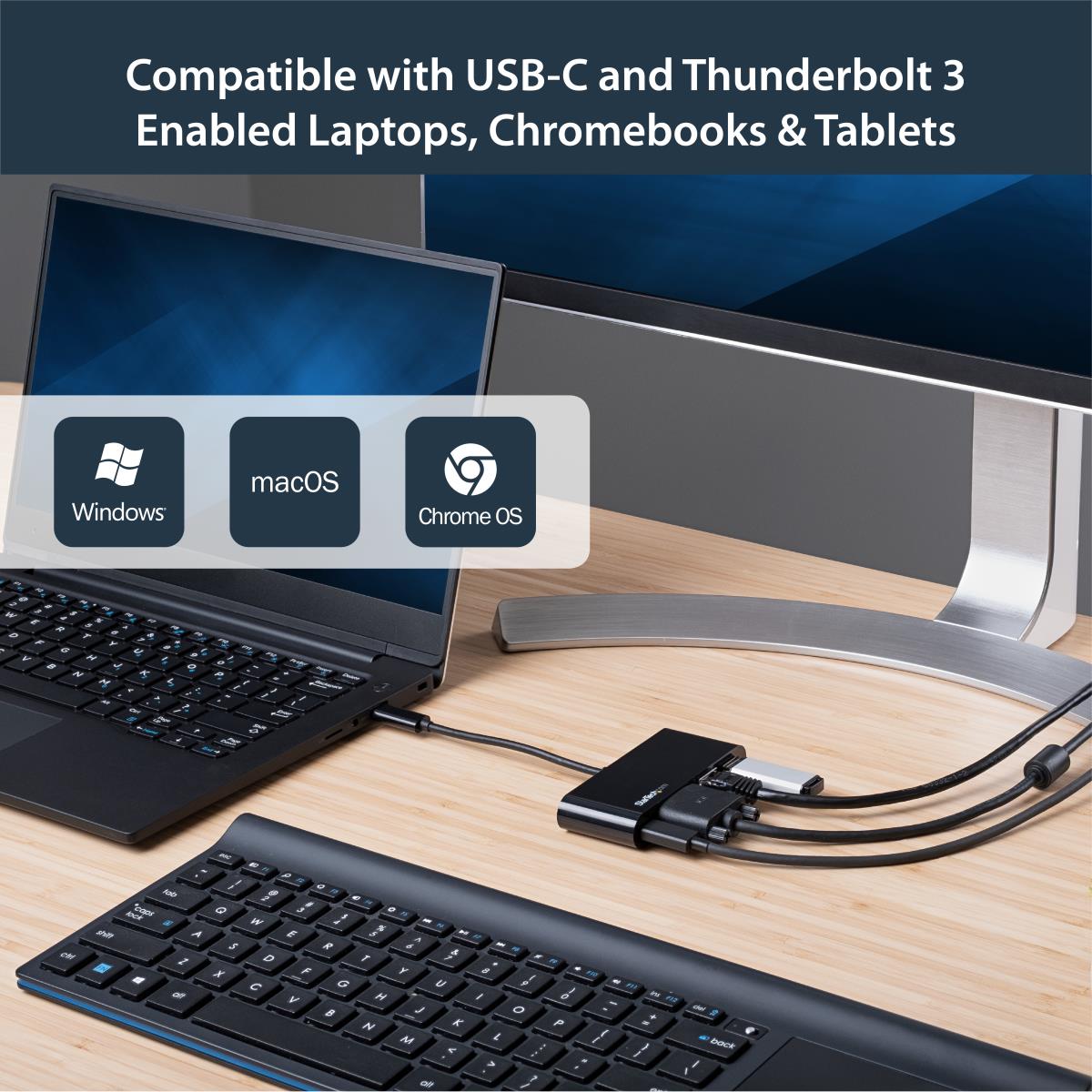

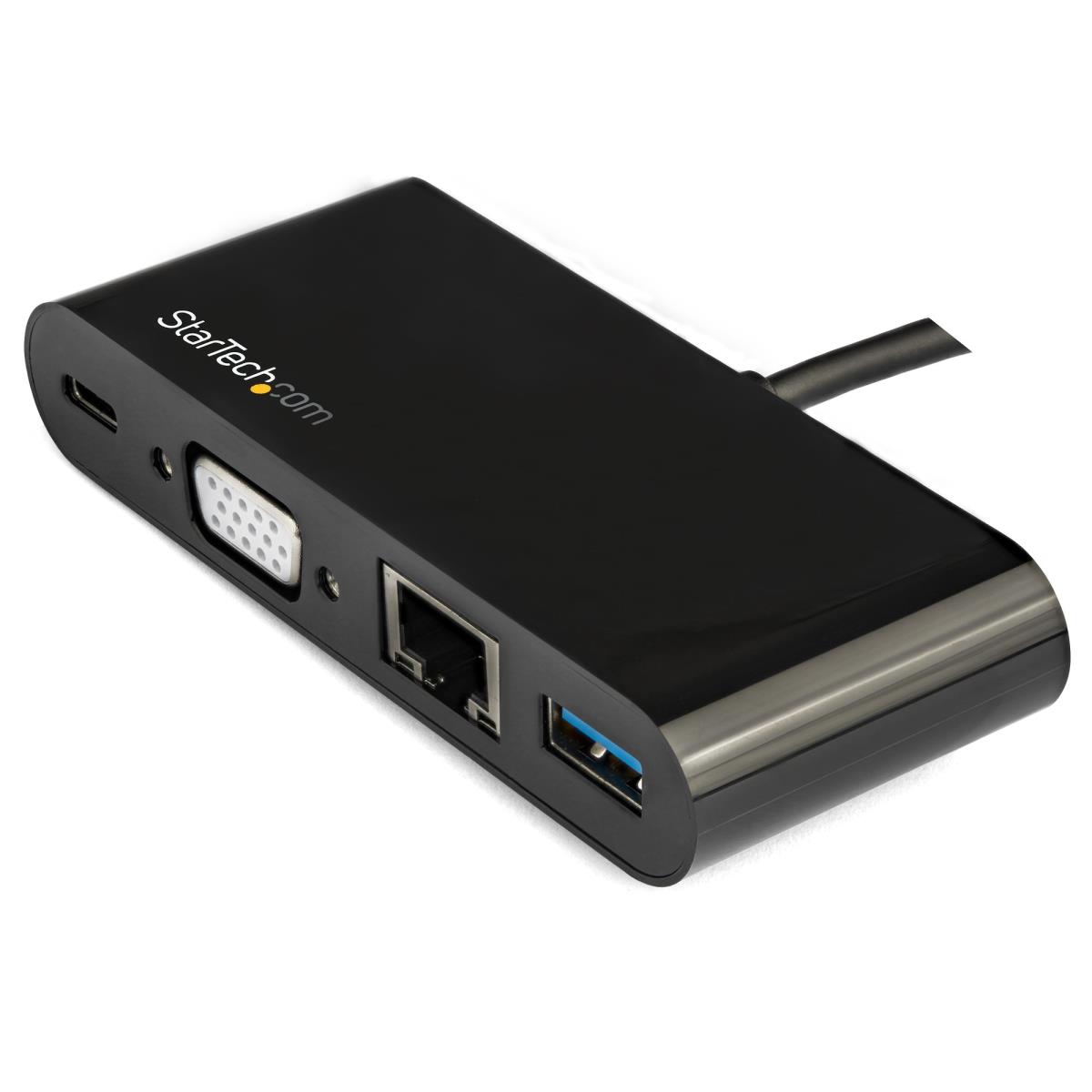

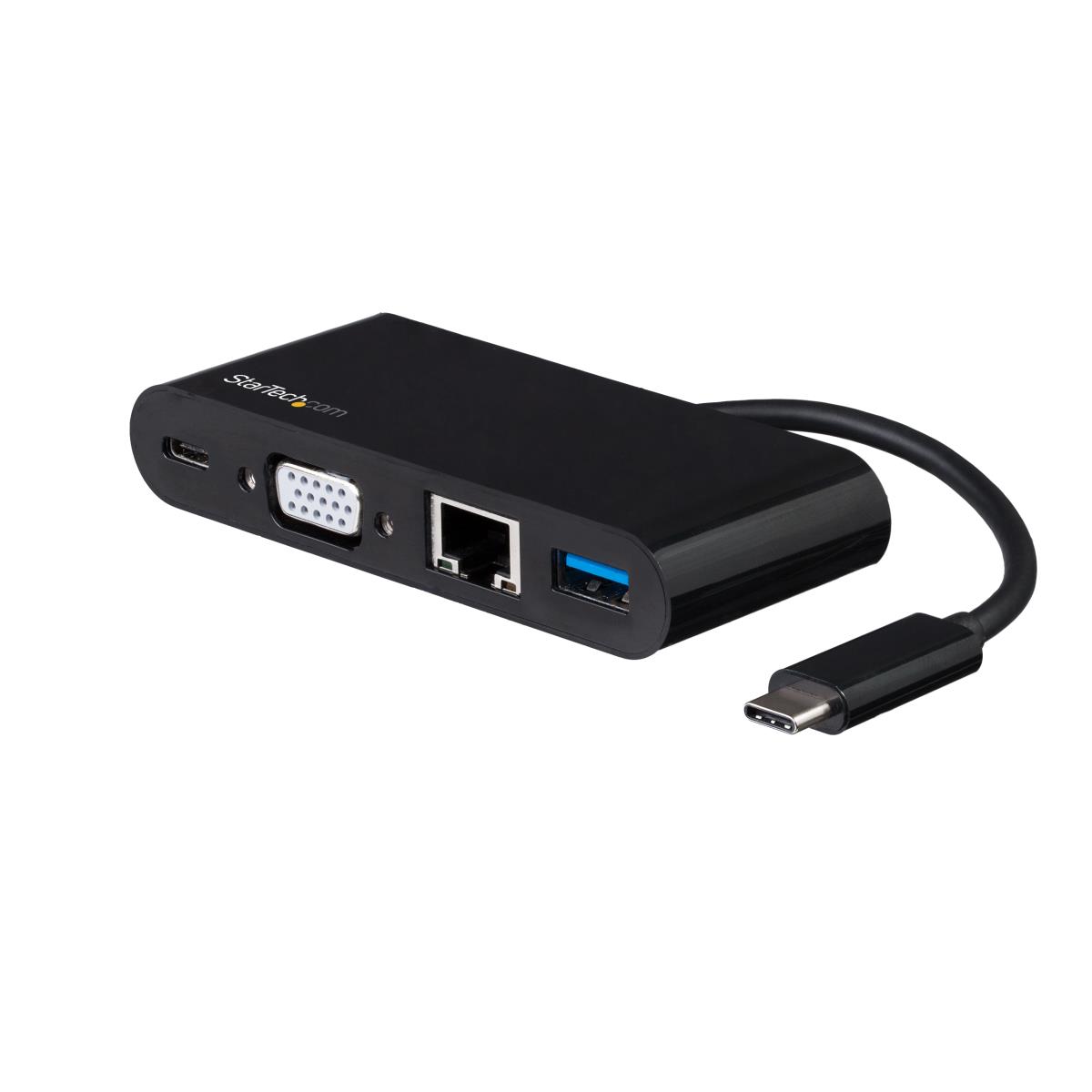

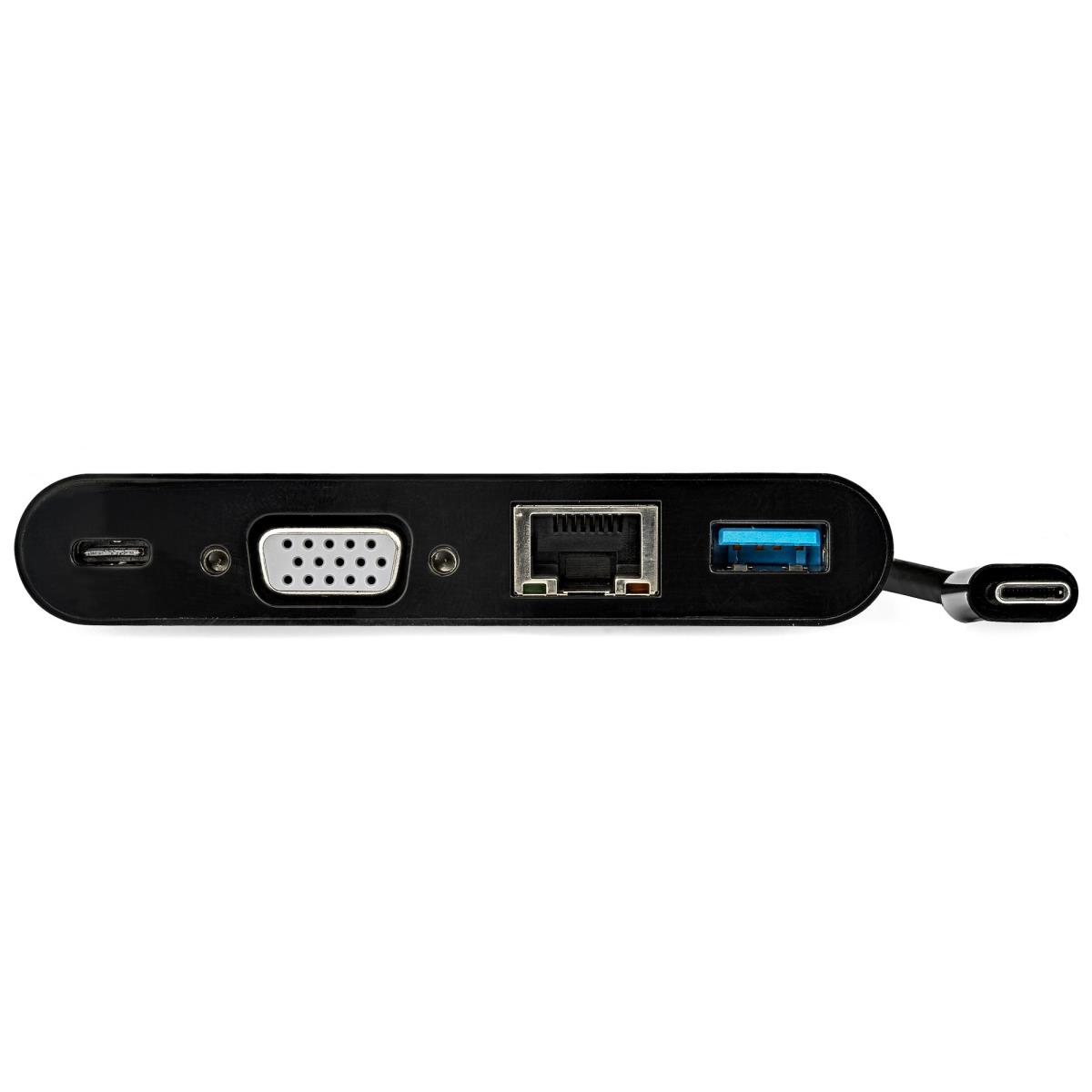

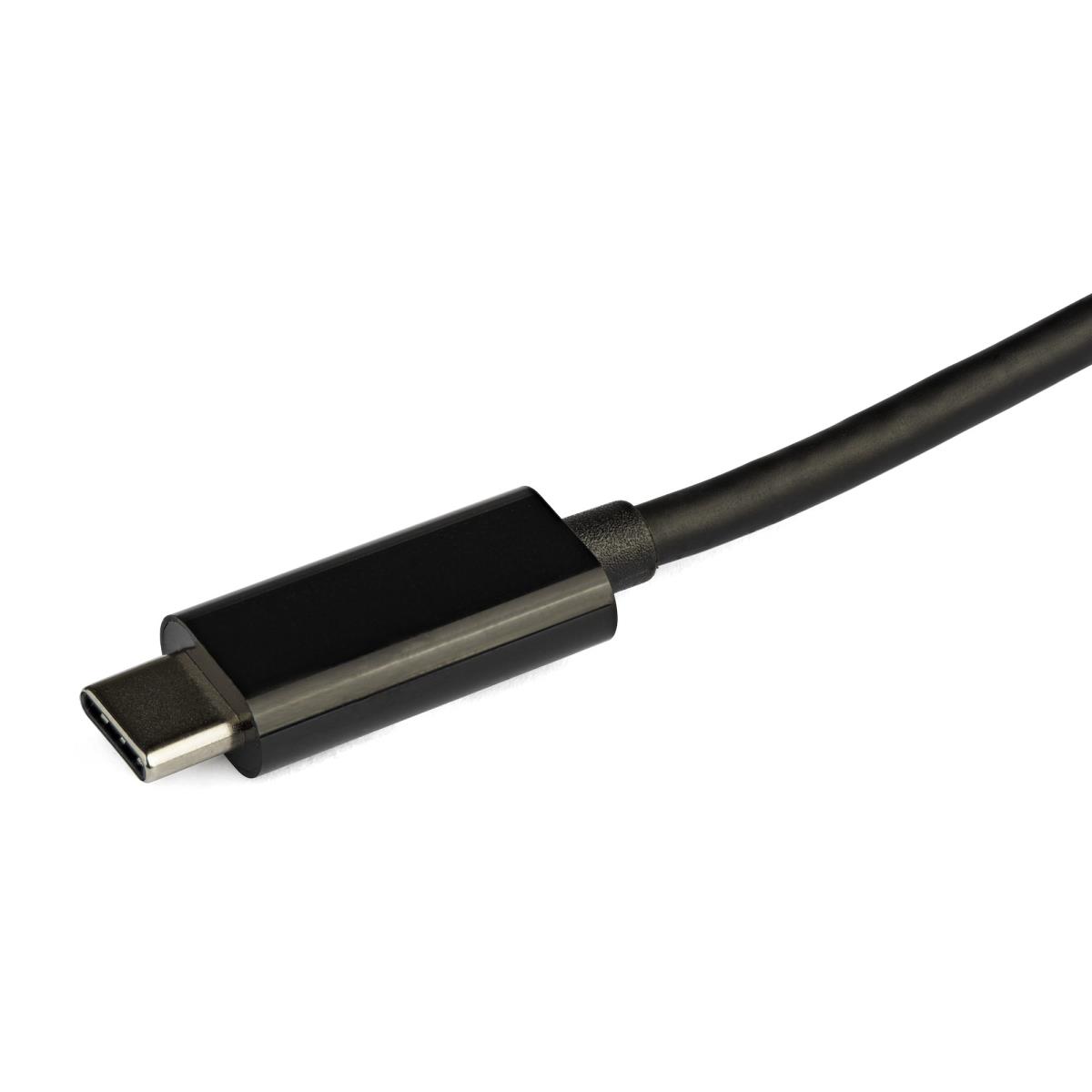

Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 deviceExpand the connectivity of your USB-C™ laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt™ 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows® and ChromeOS™ compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).Connect to a VGA monitor to give presentationsThis USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.Create a portable workstationCompact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.Fast and easy setupThe adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

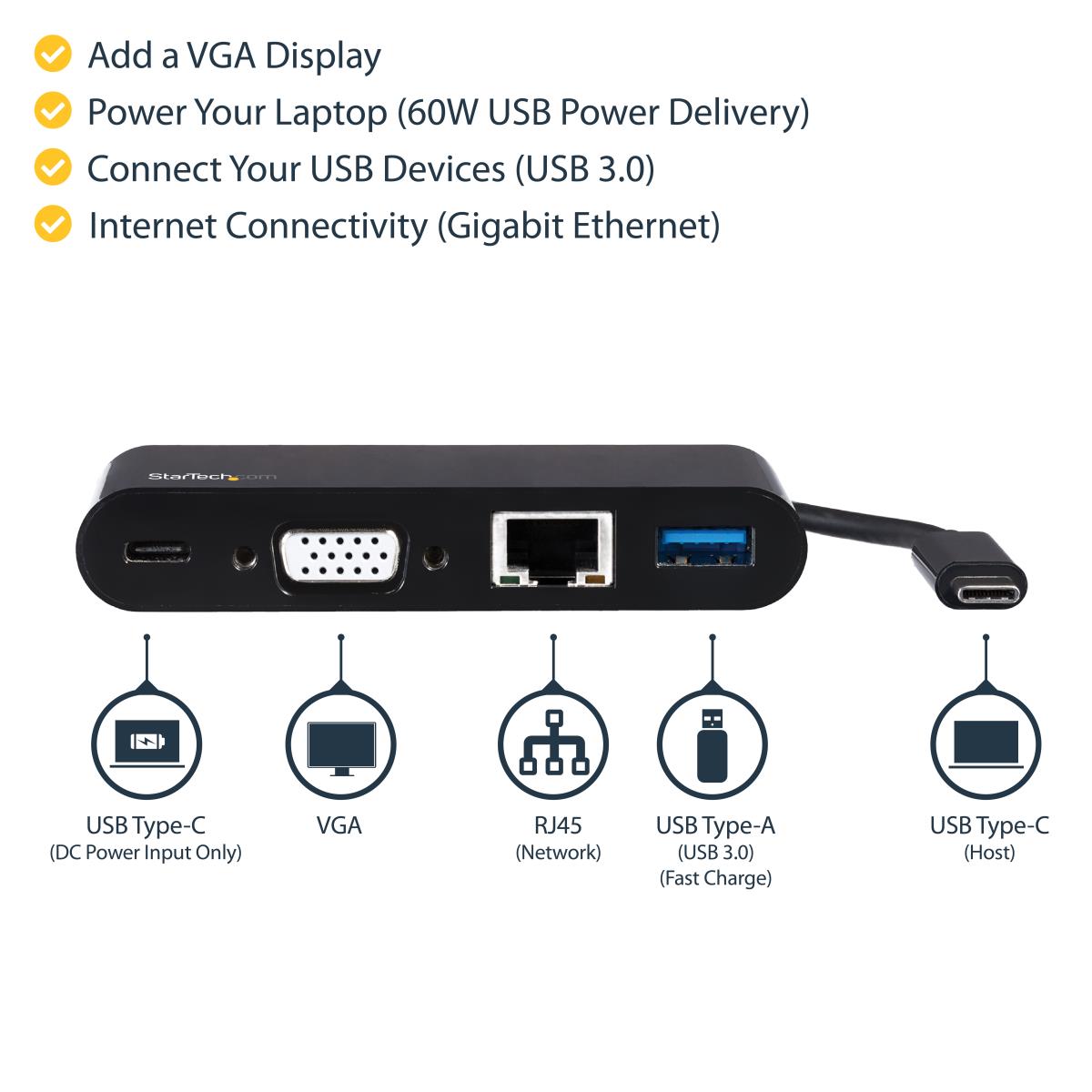

Ports & interfaces | |
---|---|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Ethernet LAN (RJ-45) ports | 1 |
VGA (D-Sub) ports quantity | 1 |
Microphone in | No |
Connectivity technology | Wired |
USB Power Delivery | Yes |
USB Power Delivery up to | 60 W |
Network | |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
10G support | No |
Performance | |
UASP support | Yes |
Maximum digital resolution | 1920 x 1200 pixels |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
Product colour | Black |
Card reader integrated | No |
Data transfer rate | 5 Gbit/s |
Certification | CE, FCC, REACH |
Housing material | Plastic |
Technical details | |
Product colour | Black |
Data transfer rate | 5 Gbit/s |
Cable length | 0.143 m |
Sustainability certificates | RoHS |
Harmonized System (HS) code | 84733020 |
Products per master (outer) case | 60 pc(s) |
Master (outer) case width | 330 mm |
Master (outer) case length | 530 mm |
Master (outer) case height | 310 mm |
Storage | |
Card reader integrated | No |
Power | |
Power source type | USB |
Software | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Mac compatibility | Yes |
Other operating systems supported | ChromeOS |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -10 - 80 °C |
Operating relative humidity (H-H) | 10 - 85% |
Sustainability | |
Sustainability certificates | RoHS |

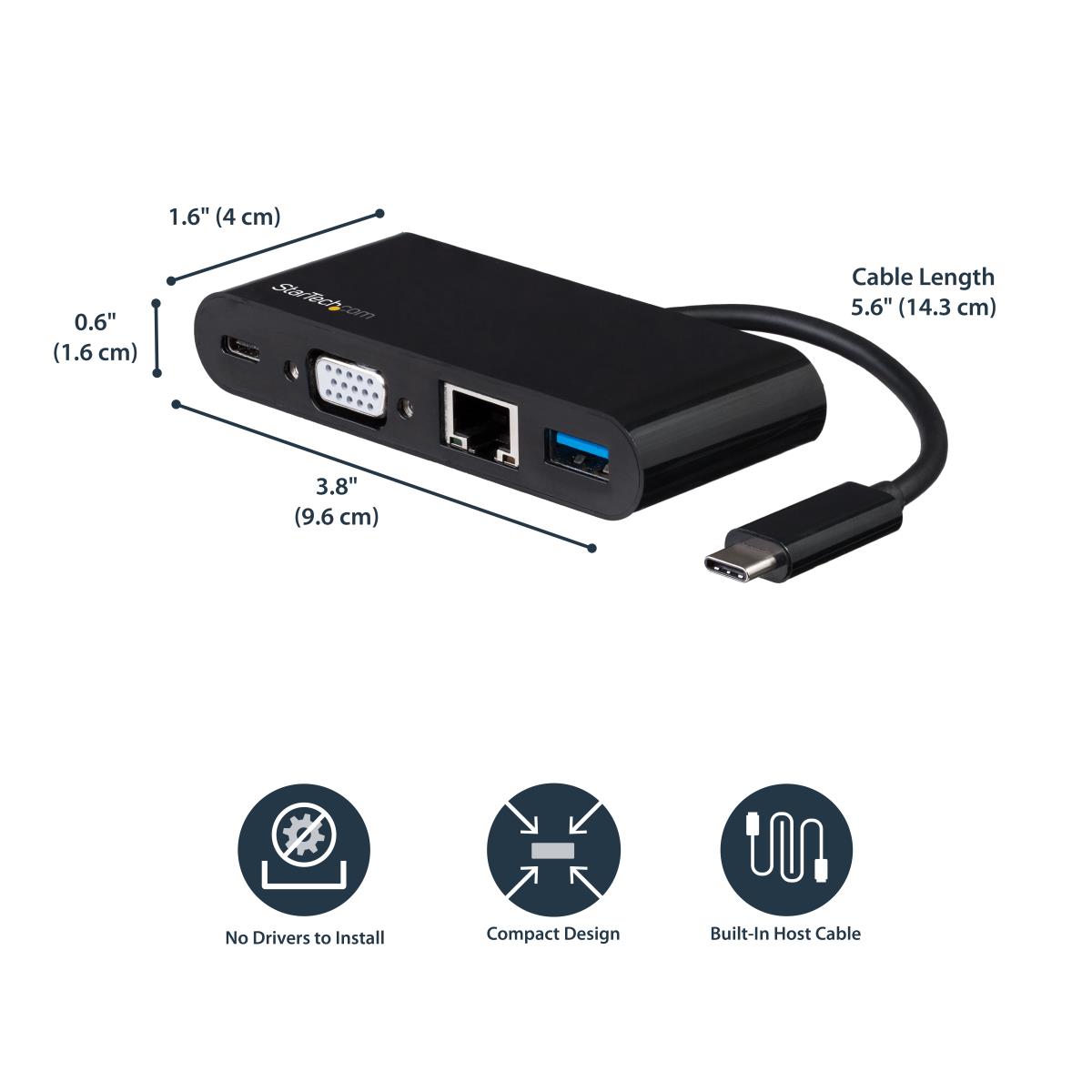

Weight & dimensions | |
Weight | 49 g |
Width | 40 mm |
Depth | 96 mm |
Height | 16 mm |
Package weight | 125 g |
Package width | 140 mm |
Package depth | 172 mm |
Package height | 30 mm |
Design | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Product colour | Black |
Certification | CE, FCC, REACH |
Packaging data | |
Package weight | 125 g |
Package width | 140 mm |
Package depth | 172 mm |
Package height | 30 mm |

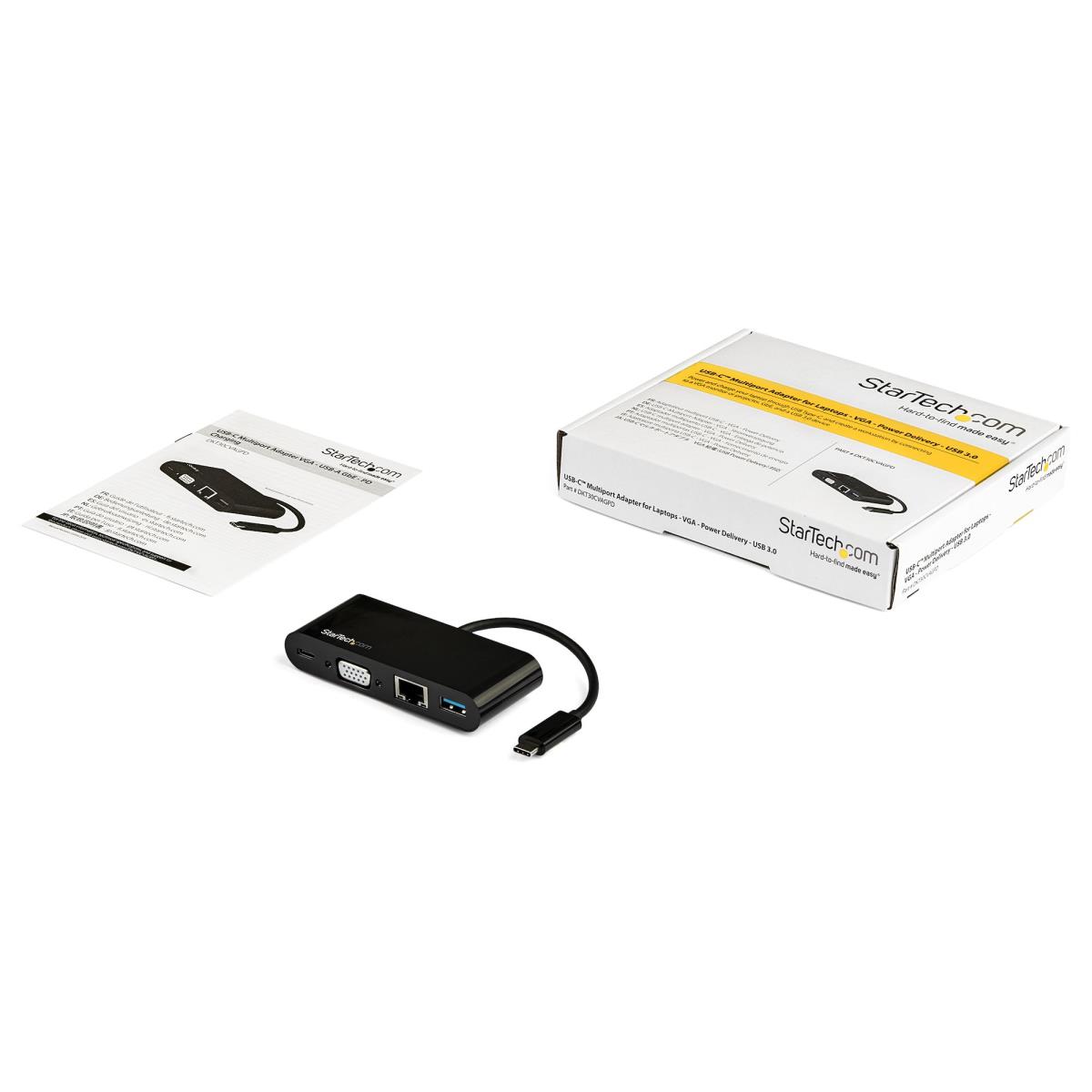

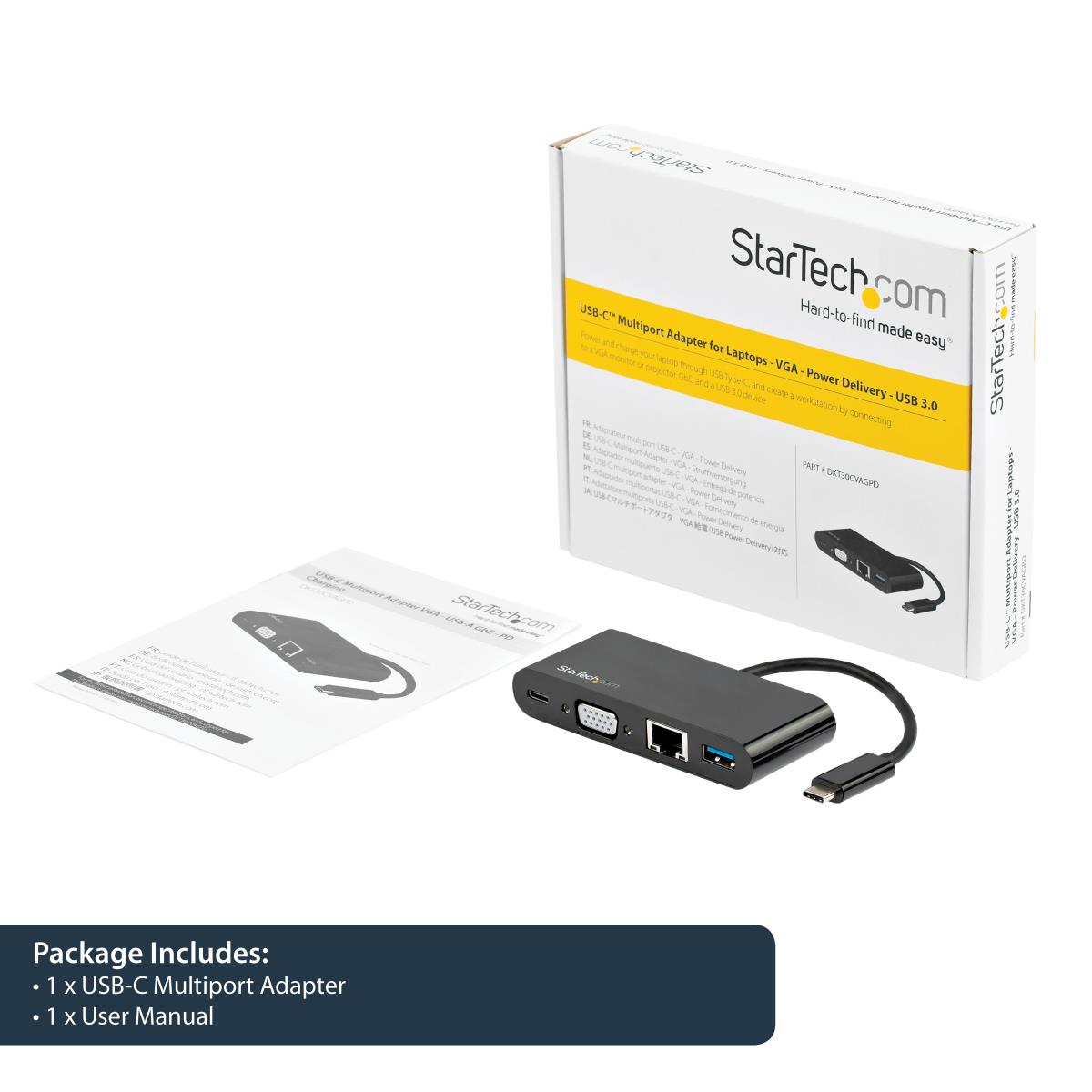

Packaging content | |
Manual | Yes |
Certificates | |
Certification | CE, FCC, REACH |
Logistics data | |
Products per master (outer) case | 60 pc(s) |
Master (outer) case width | 330 mm |
Master (outer) case length | 530 mm |
Master (outer) case height | 310 mm |
Harmonized System (HS) code | 84733020 |
Other features | |
Chipset | VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153 |
Cable length | 0.143 m |
