*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:DKT31CSDHPD3
Stock:13 In Stock
EAN Code:0065030880749

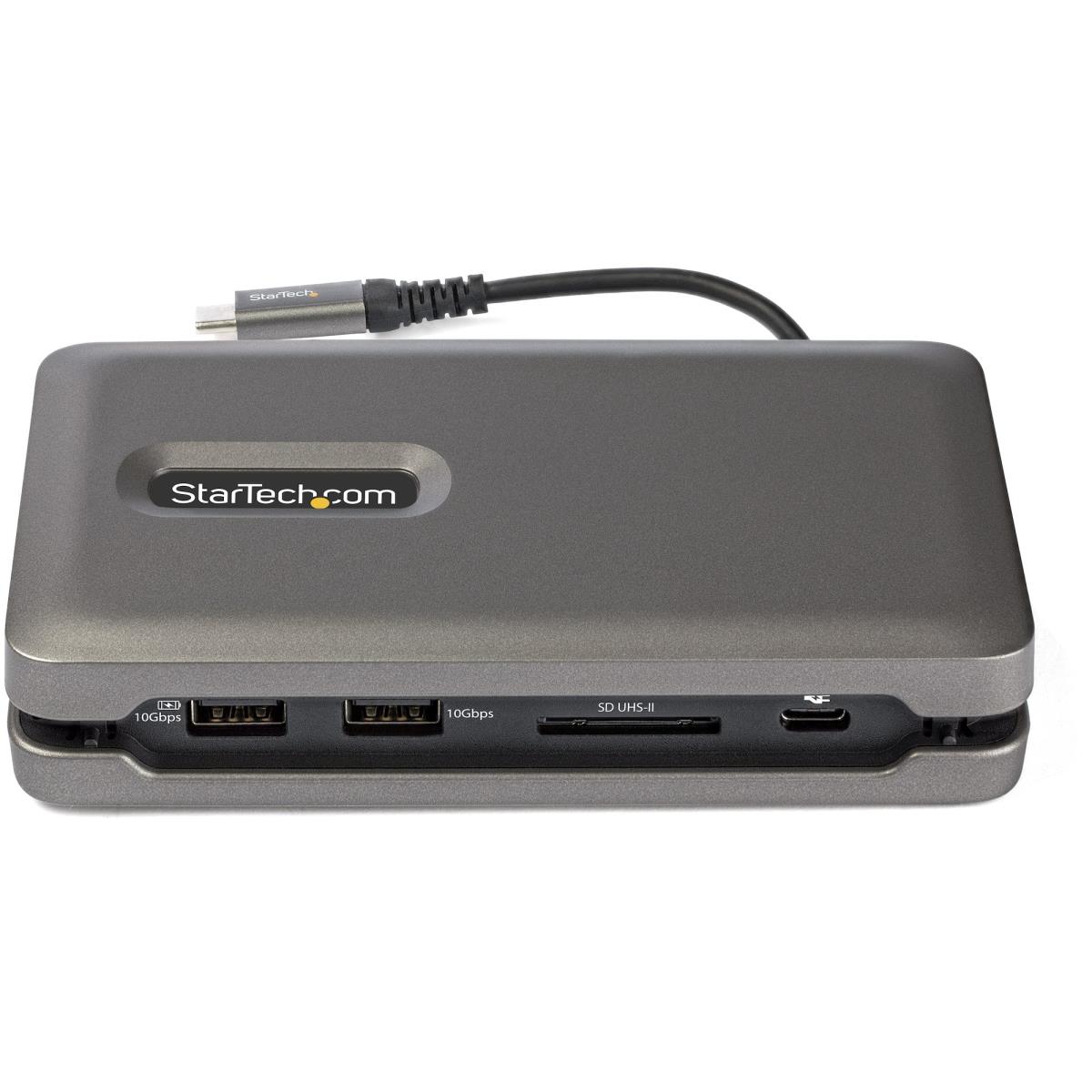

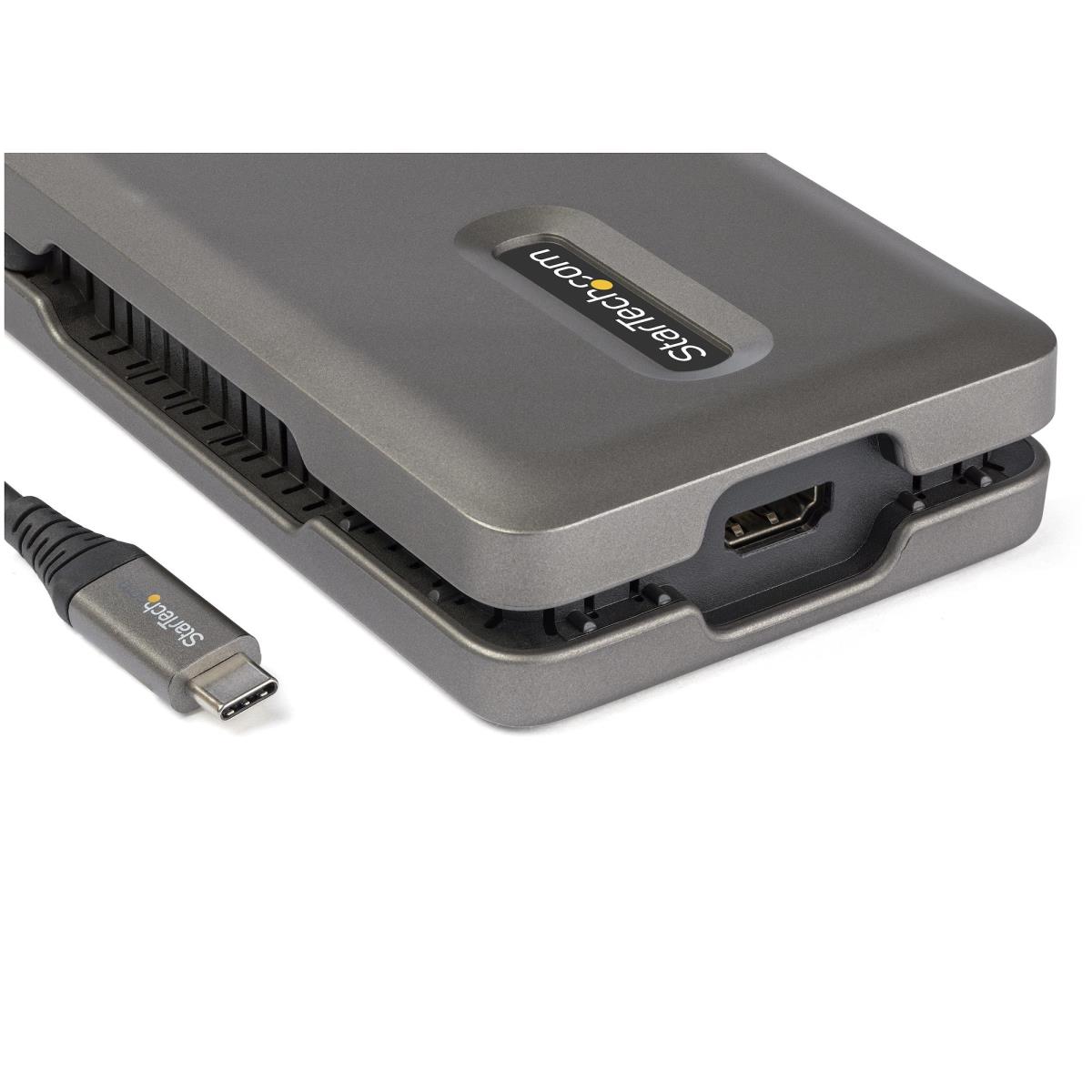

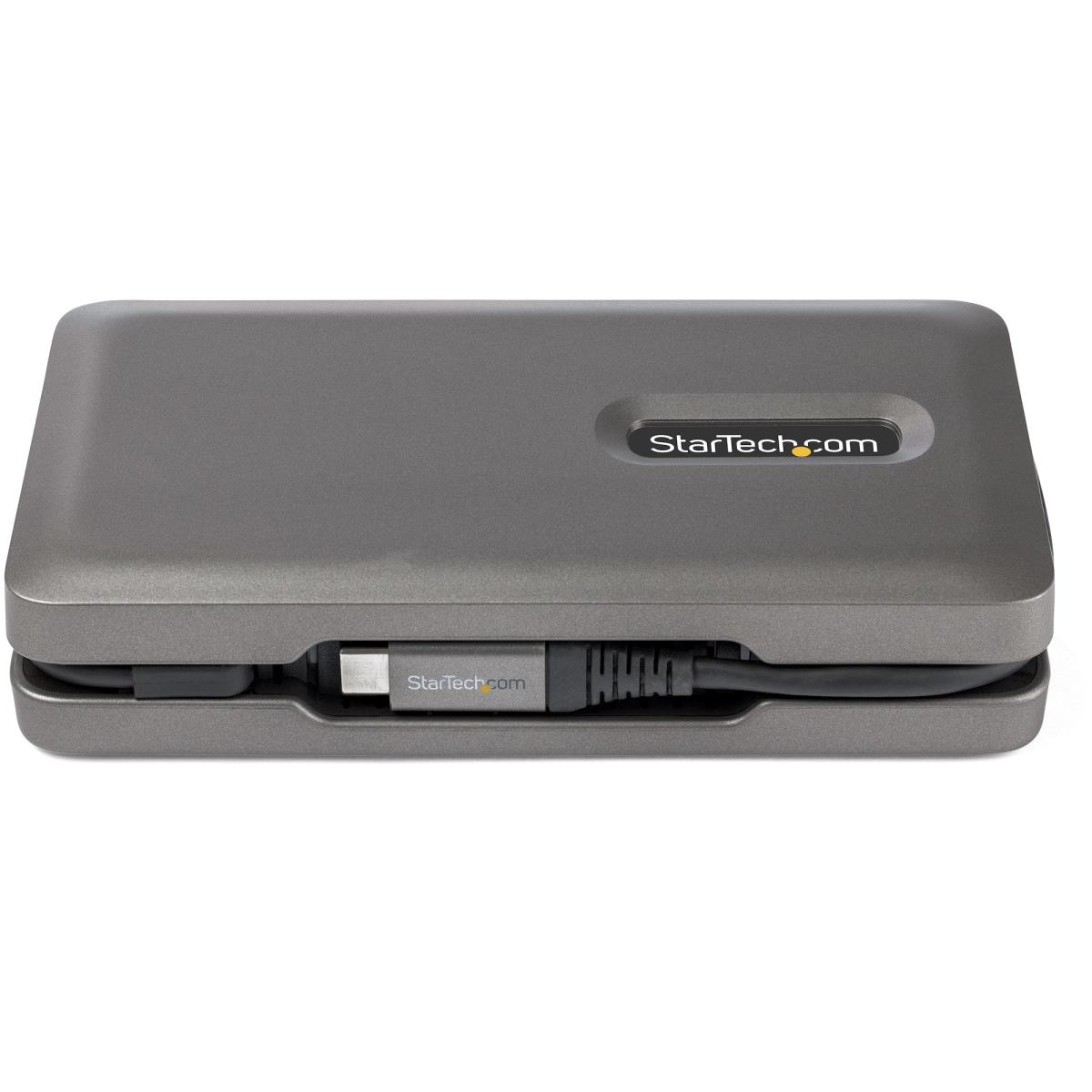

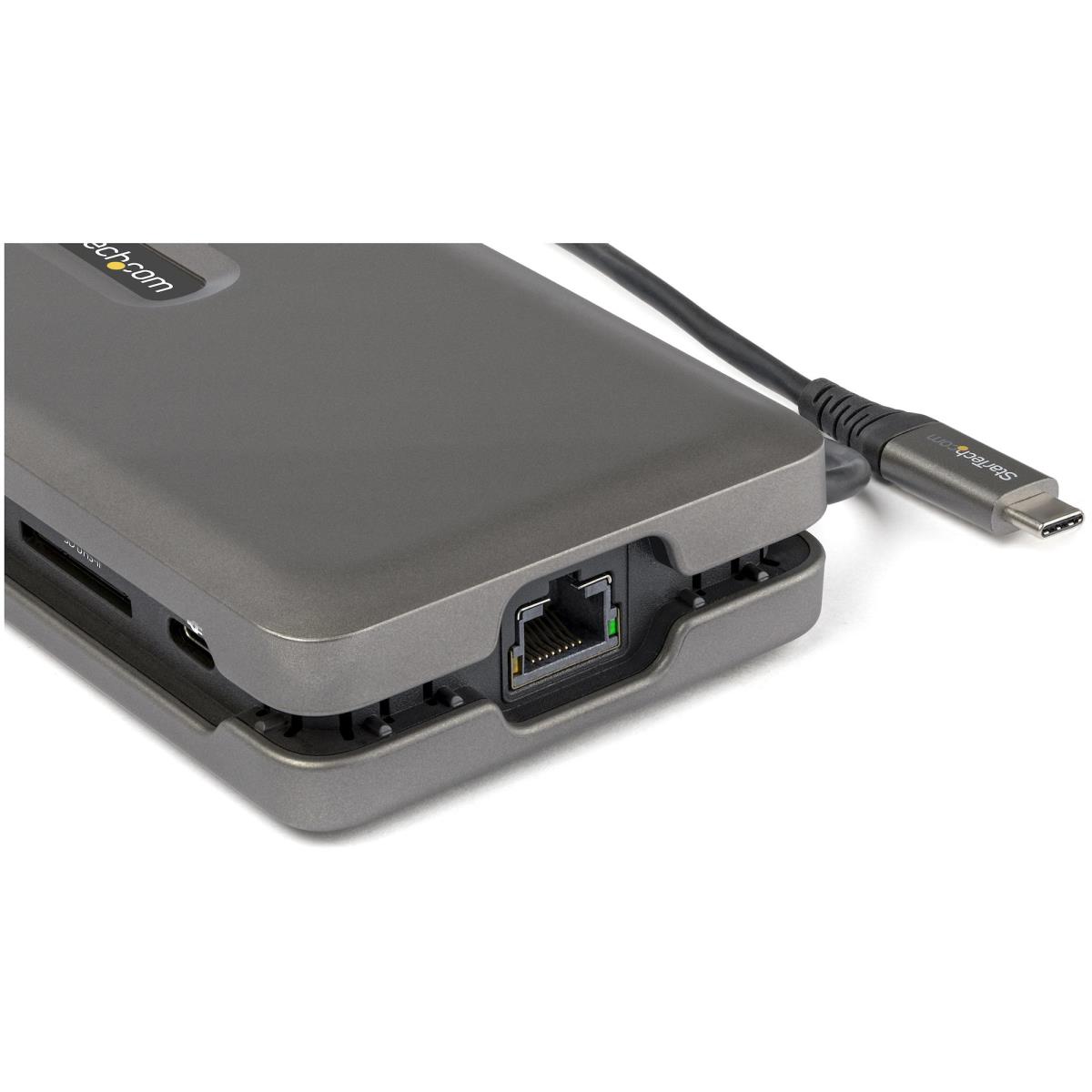

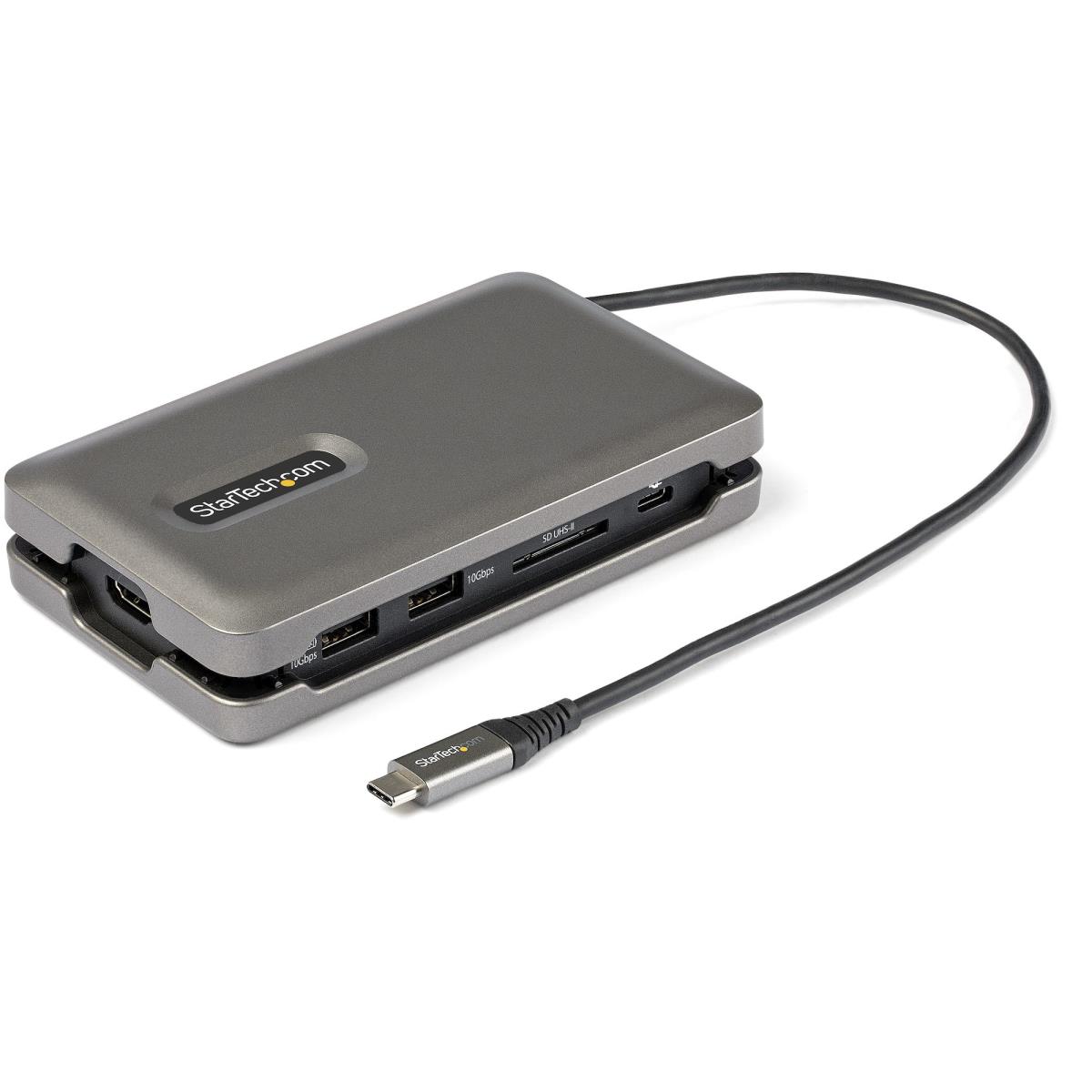

USB-C Multiport Adapter | HDMI Video | 100W PD Pass-Through | 2-Port USB Hub (10Gbps) | SD/MicroSD Card ReaderThis USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.1 Gen 2 Type-A (10Gbps) ports, an SD card reader and a Gigabit Ethernet port all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.USB 3.1 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2x1 (10Gbps).Enhance ProductivityThe portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.DP Alt Mode RequiredMaximum ResolutionDP 1.2 Alternate ModeUp to 4K 30HzDP 1.4 Alternate ModeUp to 4K 60HzConnect Your DevicesThe USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices.Easy PortabilityFor mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.Built-In SD Card ReaderAccess your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.Charge Your Laptop and PeripheralsWith support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe DKT31CSDHPD3 is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
Ports & interfaces | |
---|---|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.0b |
Microphone in | No |
Connectivity technology | Wired |
USB Power Delivery | Yes |
USB Power Delivery revision | 3.0 |
USB Power Delivery up to | 100 W |
DisplayPort version | 1.4 |
Network | |
Full duplex | Yes |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
Performance | |
UASP support | Yes |
Maximum digital resolution | 3840 x 2160 pixels |
Full duplex | Yes |
Number of displays supported | 1 |
Product colour | Grey |
Card reader integrated | Yes |
Data transfer rate | 10 Gbit/s |
Compatible memory cards | MMC, SD |
HD type | 4K Ultra HD |
Housing material | Plastic |
Maximum refresh rate | 60 Hz |
High Dynamic Range 10 (HDR10) | Yes |
Technical details | |
Product colour | Grey |
Data transfer rate | 10 Gbit/s |
Cable length | 0.25 m |
Sustainability certificates | CE, RoHS |
Harmonized System (HS) code | 84733020 |
Products per master (outer) case | 20 pc(s) |
Master (outer) case width | 420 mm |
Master (outer) case length | 318 mm |
Master (outer) case height | 227 mm |
Storage | |
Card reader integrated | Yes |
Compatible memory cards | MMC, SD |
Power | |
Power consumption (typical) | 15 W |
Software | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Other operating systems supported | ChromeOS |
Mobile operating systems supported | Android 10.0, Android 11.0, Android 9.0, iPadOS |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 5 - 95% |
Sustainability | |
Sustainability certificates | CE, RoHS |
Weight & dimensions | |
Weight | 150 g |
Width | 142 mm |
Depth | 82 mm |
Height | 29 mm |
Package weight | 270 g |
Package width | 210 mm |
Package depth | 144 mm |
Package height | 40 mm |
Design | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Product colour | Grey |
Packaging data | |
Package weight | 270 g |
Package width | 210 mm |
Package depth | 144 mm |
Package height | 40 mm |
Packaging content | |
Quick start guide | Yes |
Logistics data | |
Products per master (outer) case | 20 pc(s) |
Master (outer) case width | 420 mm |
Master (outer) case length | 318 mm |
Master (outer) case height | 227 mm |
Harmonized System (HS) code | 84733020 |
Other features | |
Chipset | Genesys Logic - GL9510, Genesys Logic - GL3590, Genesys Logic - GL3523, Realek - RTL8153VC, Parade - PS186 |
Cable length | 0.25 m |
