SD5760T THUNDERBOLT 4 DUAL 4K DOCK
Introduction

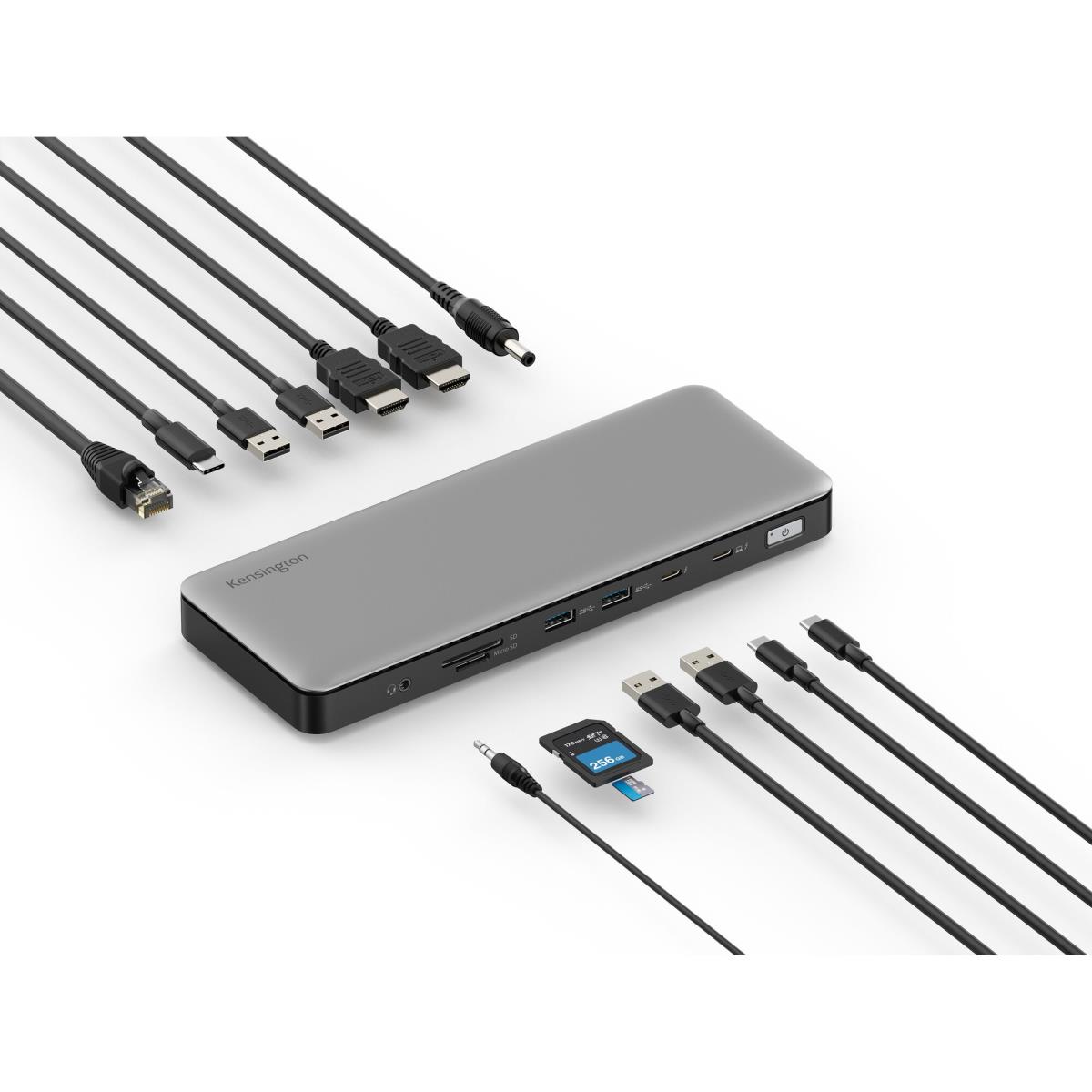

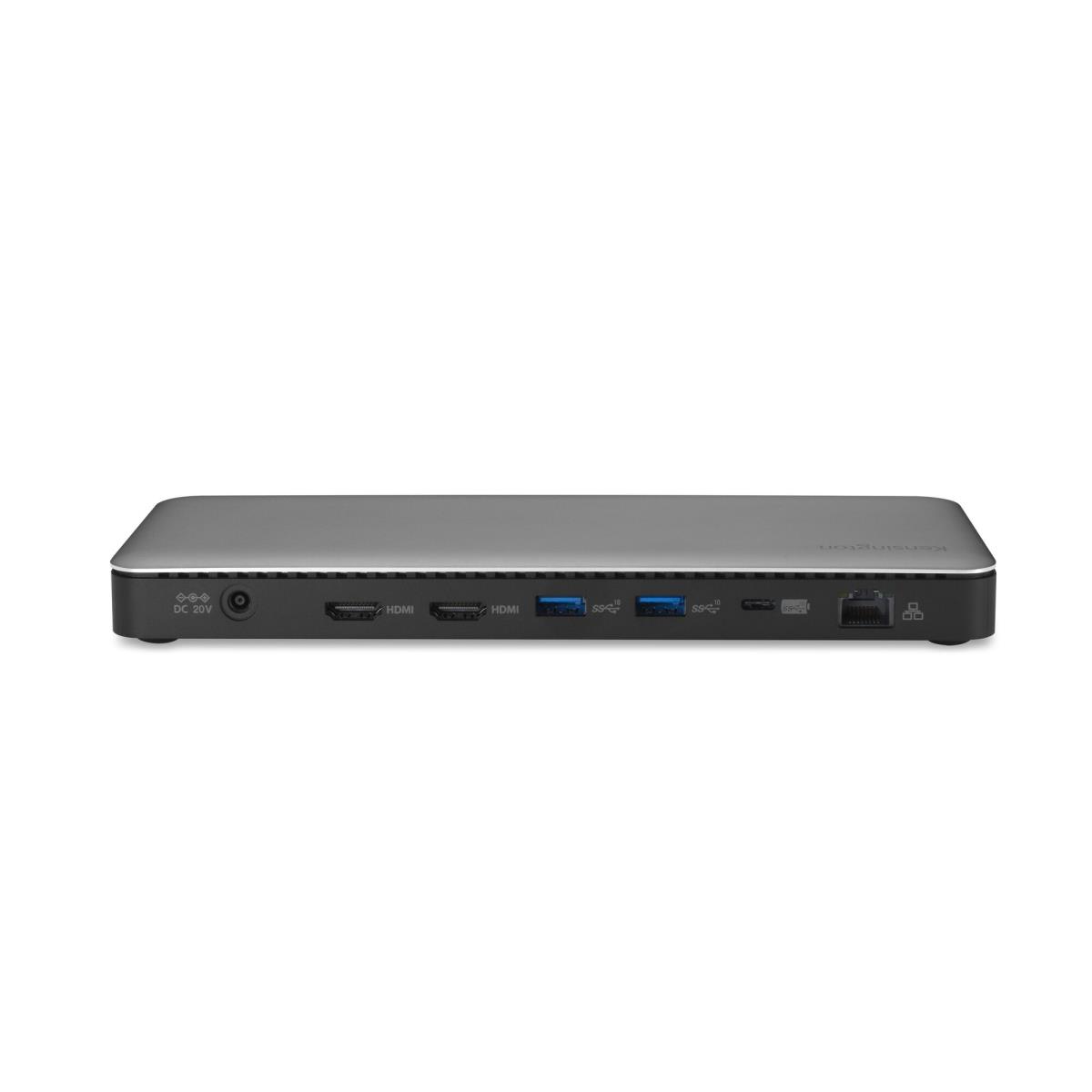

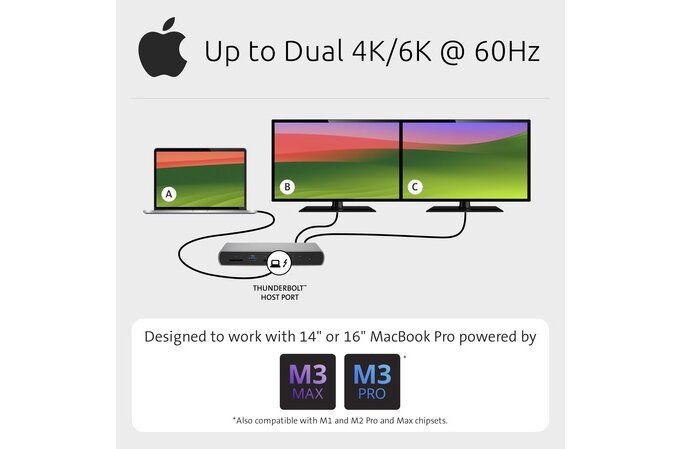

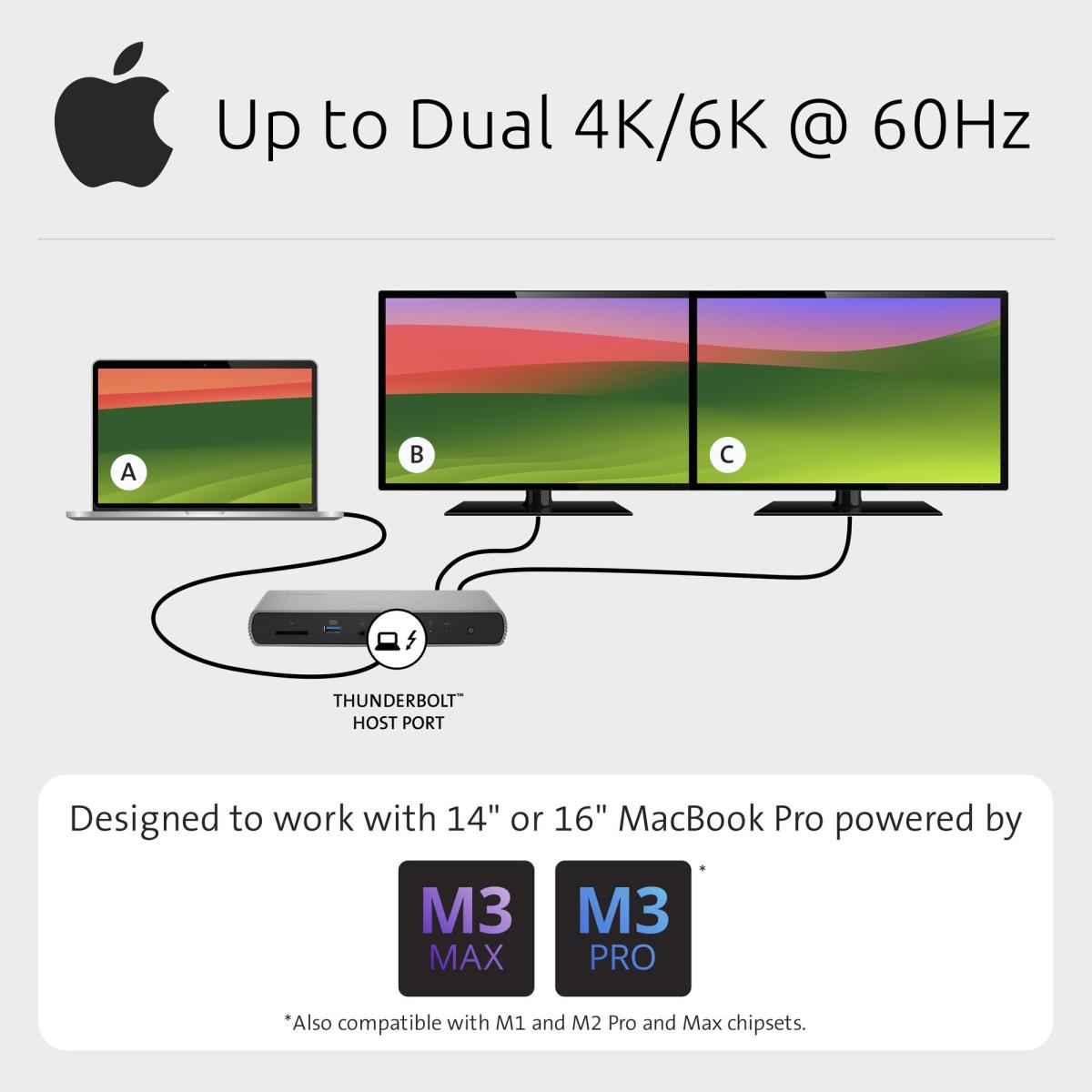

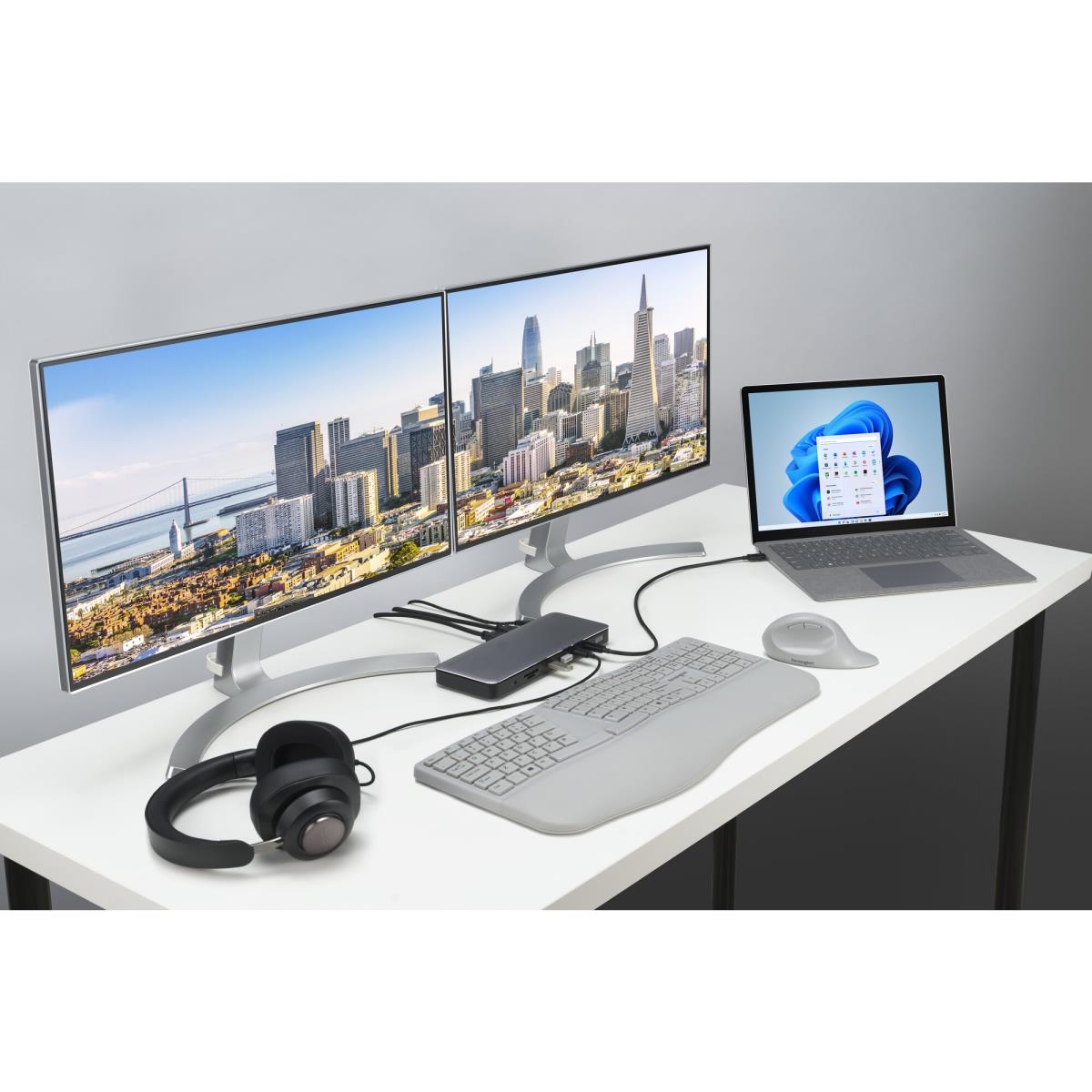

Ideal for busy professionals working in the home or office, the SD5760T Thunderbolt™ 4 Dual 4K Docking Station supports the latest MacBooks, Surface devices and other Thunderbolt™ 4 enabled laptops with everything you need to enhance your productivity today and well into the future. Providing a true plug-and-play experience with no drivers or downloads required, the SD5760T works with Windows and macOS, as well as Thunderbolt 4, Thunderbolt 3, USB4 and USB-C devices. Flexible port options include support for a Single 8K @ 60Hz (via front TB4 port) or Dual 4K @ 60Hz (via two HDMI ports or one TB4 port). Focused on productivity, the SD5760T supports up to 96W of Power Delivery, up to 40Gbps data transfer speeds, daisy chaining and includes 13 connectivity ports. Includes Kensington DockWorks™ Software and 3-year limited warranty.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Performance | |

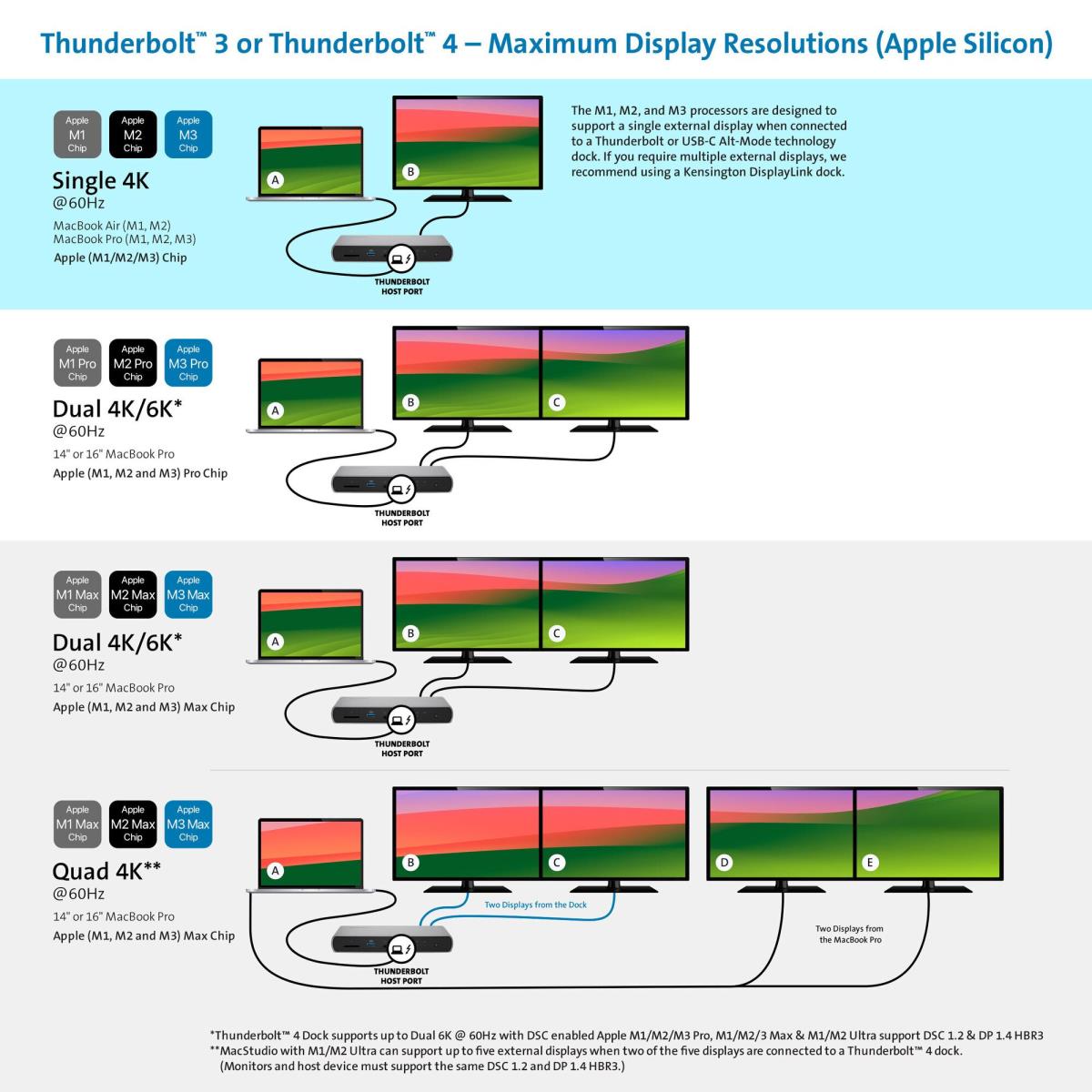

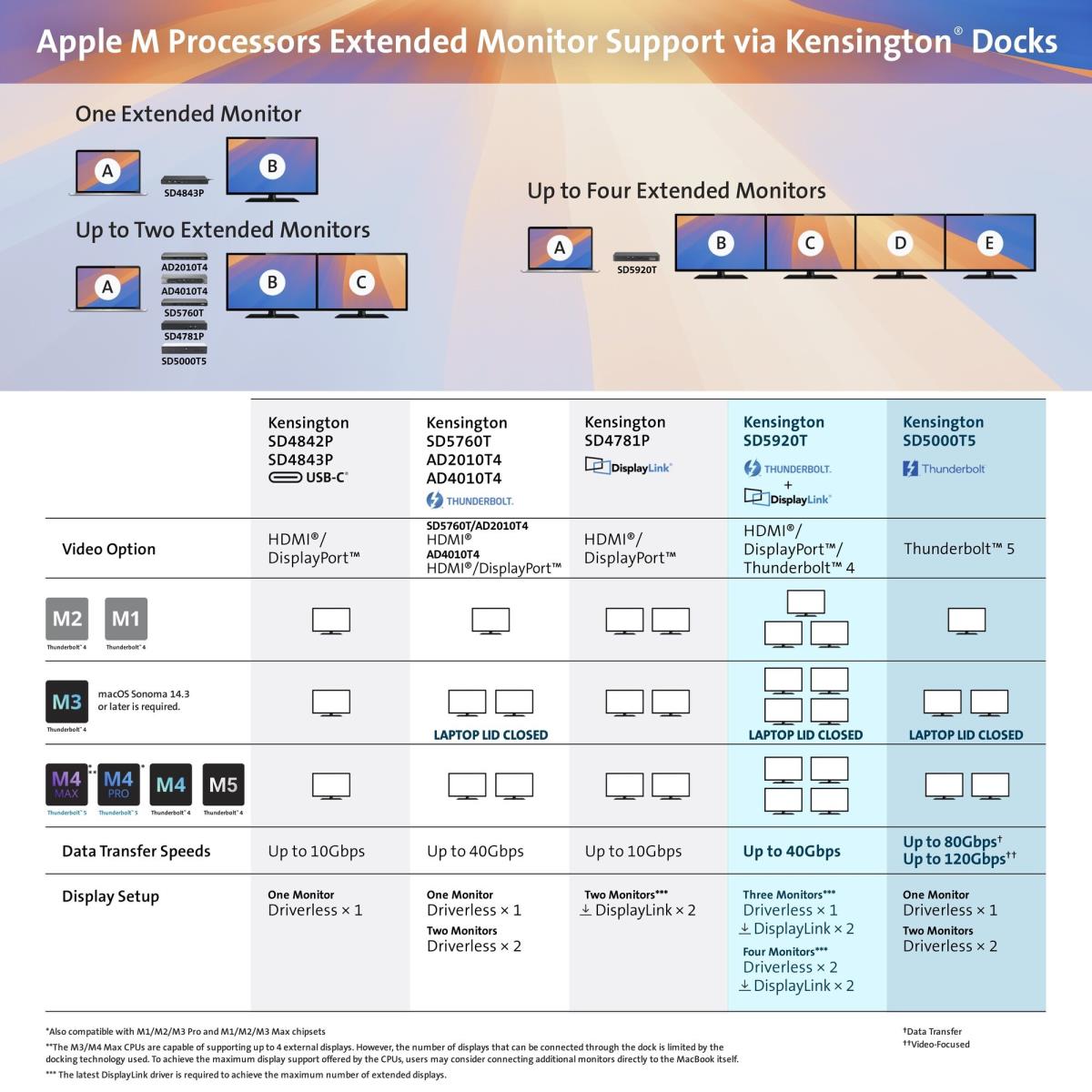

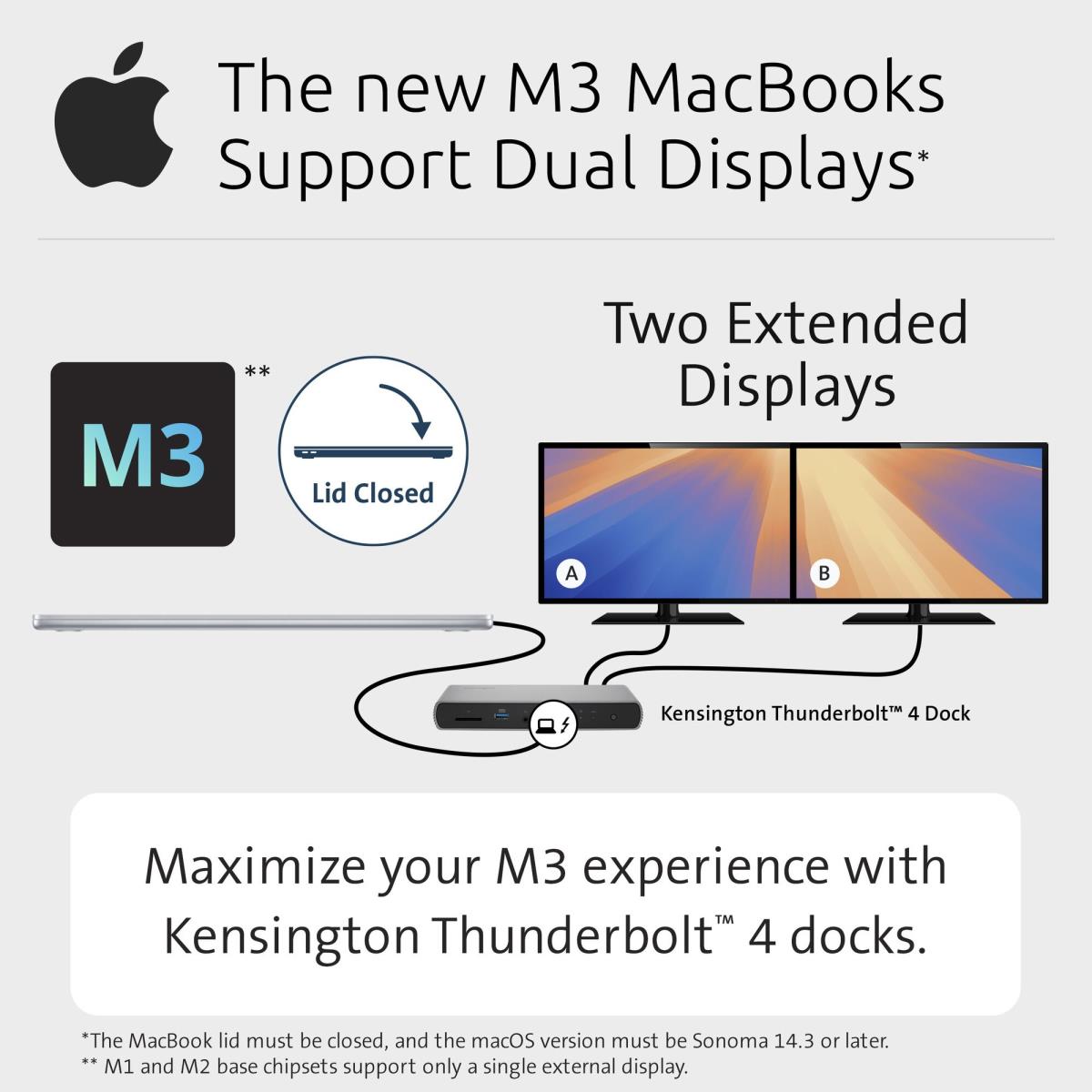

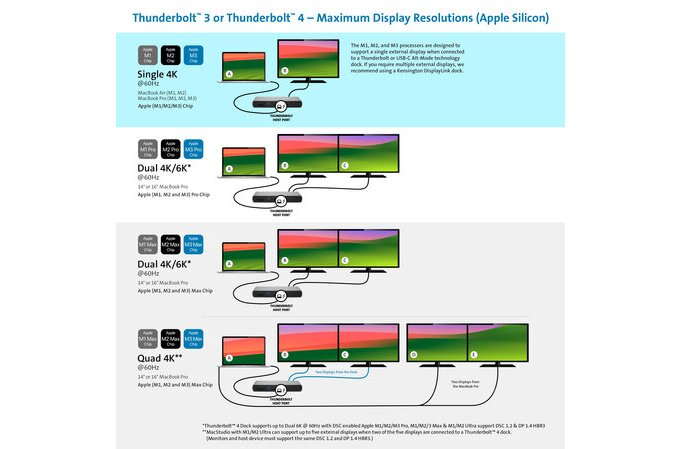

| Number of displays supported | 2 |
| Card reader integrated | Yes |
| Compatibility | MacBook M-Series Pro/Max Chipset |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | SD, MicroSD (TransFlash) |

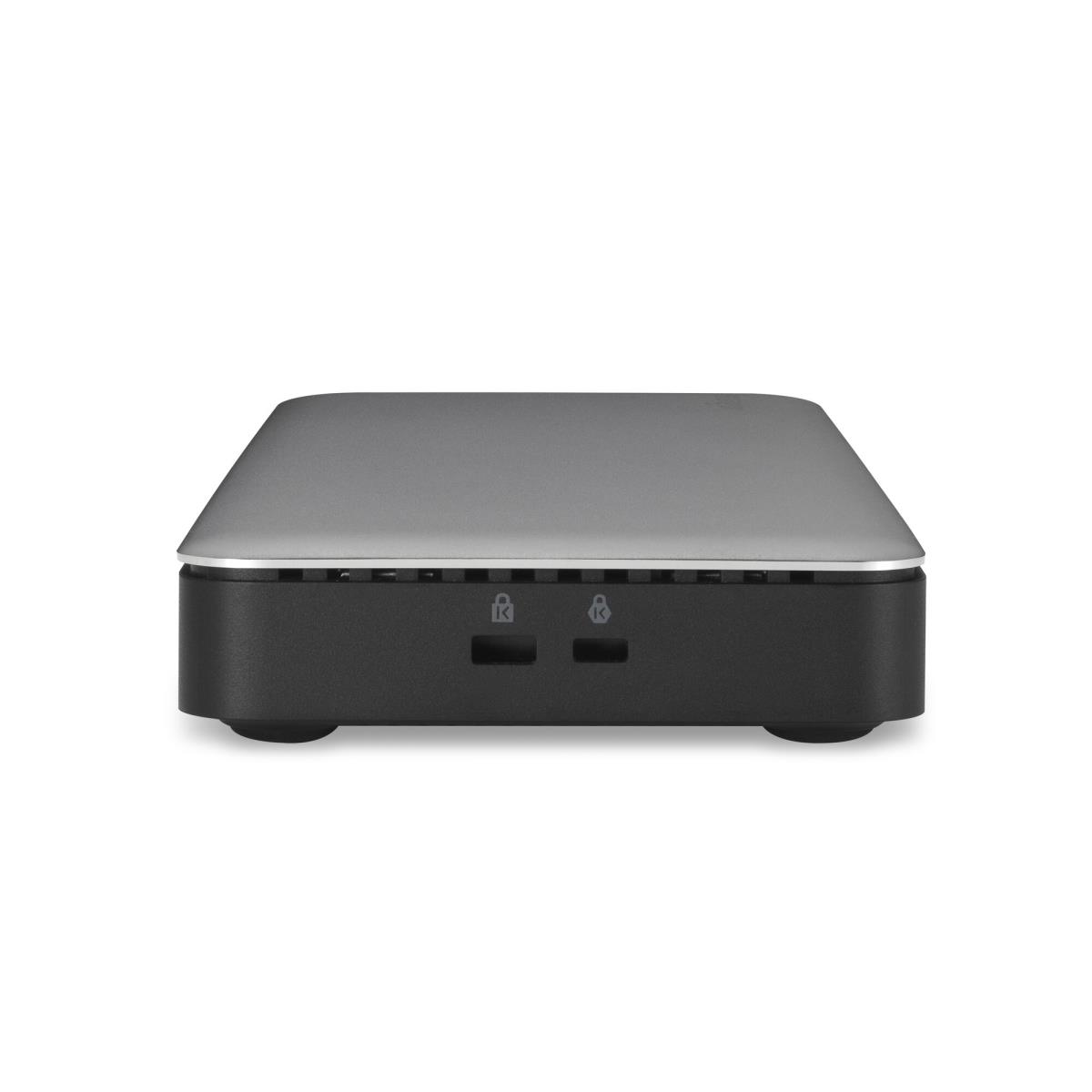

| Cable lock slot type | Nano, Kensington |
| HD type | 8K Ultra HD |
| Technical details | |
| Compatibility | MacBook M-Series Pro/Max Chipset |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 40 Gbit/s |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 247 mm |
| Master (outer) case gross weight | 9.14 kg |
| Master (outer) case length | 658 mm |
| Master (outer) case height | 115 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 1.42 kg |
| Package width | 108 mm |
| Package depth | 242 mm |
| Package height | 100 mm |
| Weight & dimensions | |
| Package weight | 1.42 kg |
| Package width | 108 mm |
| Package depth | 242 mm |
| Package height | 100 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 247 mm |
| Master (outer) case gross weight | 9.14 kg |
| Master (outer) case length | 658 mm |
| Master (outer) case height | 115 mm |
| Master (outer) case net weight | 7.88 kg |
| Other features | |
| USB ports quantity | 6 |
| Compatible operating systems | Chrome OS 91 or above; macOS 11 or above; Windows 10 or above |
