*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:KITBZDOCK
Stock:2 In Stock
EAN Code:0065030891219

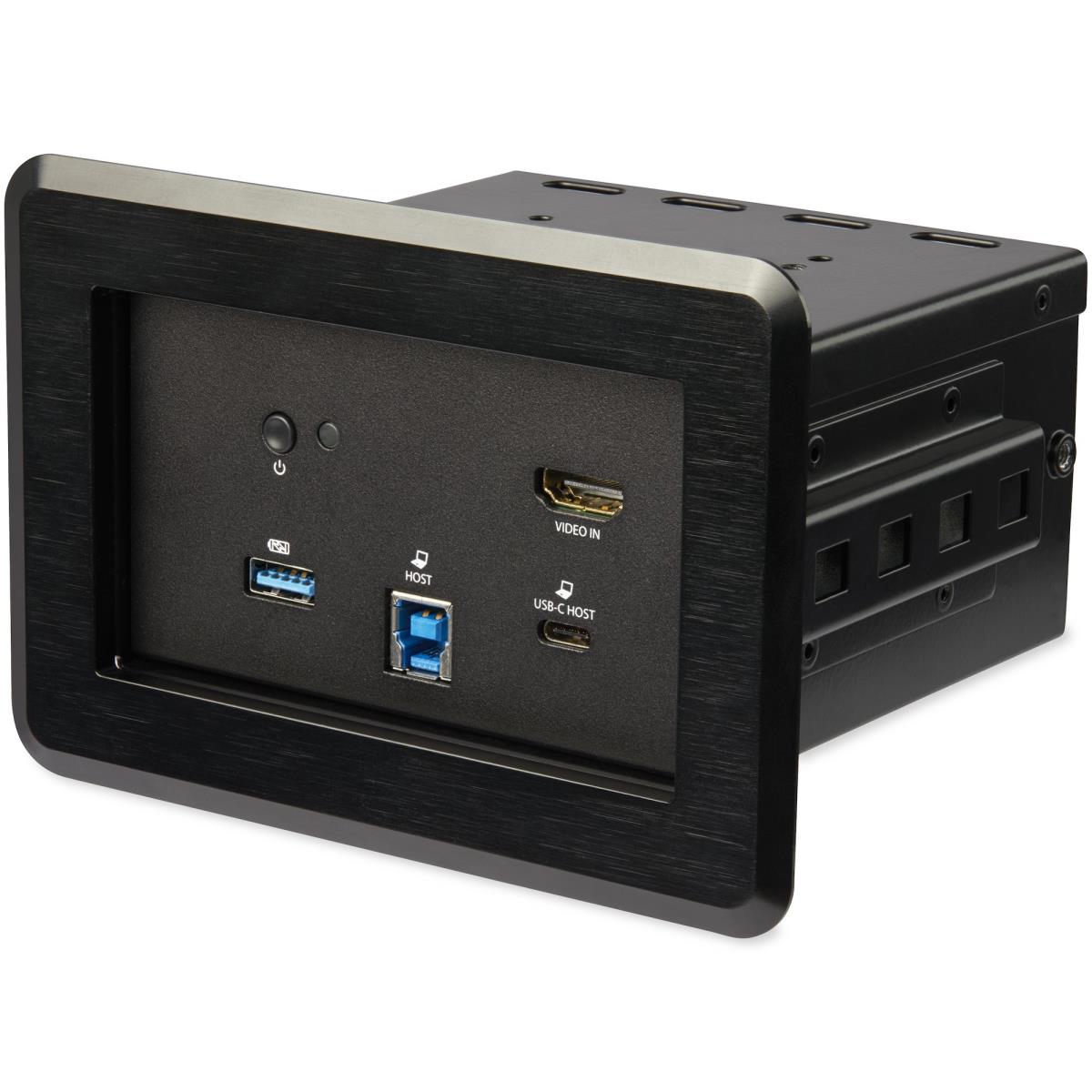

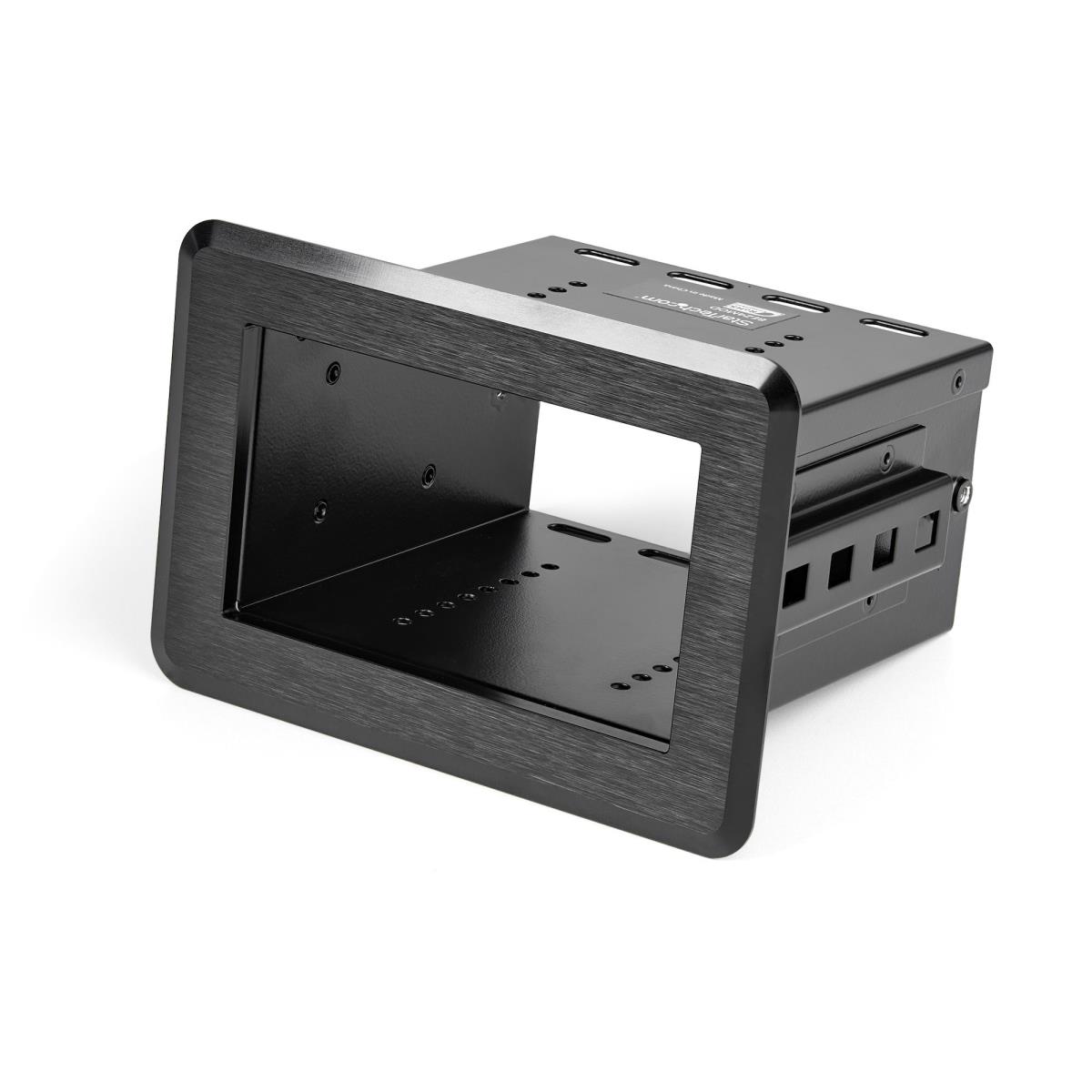

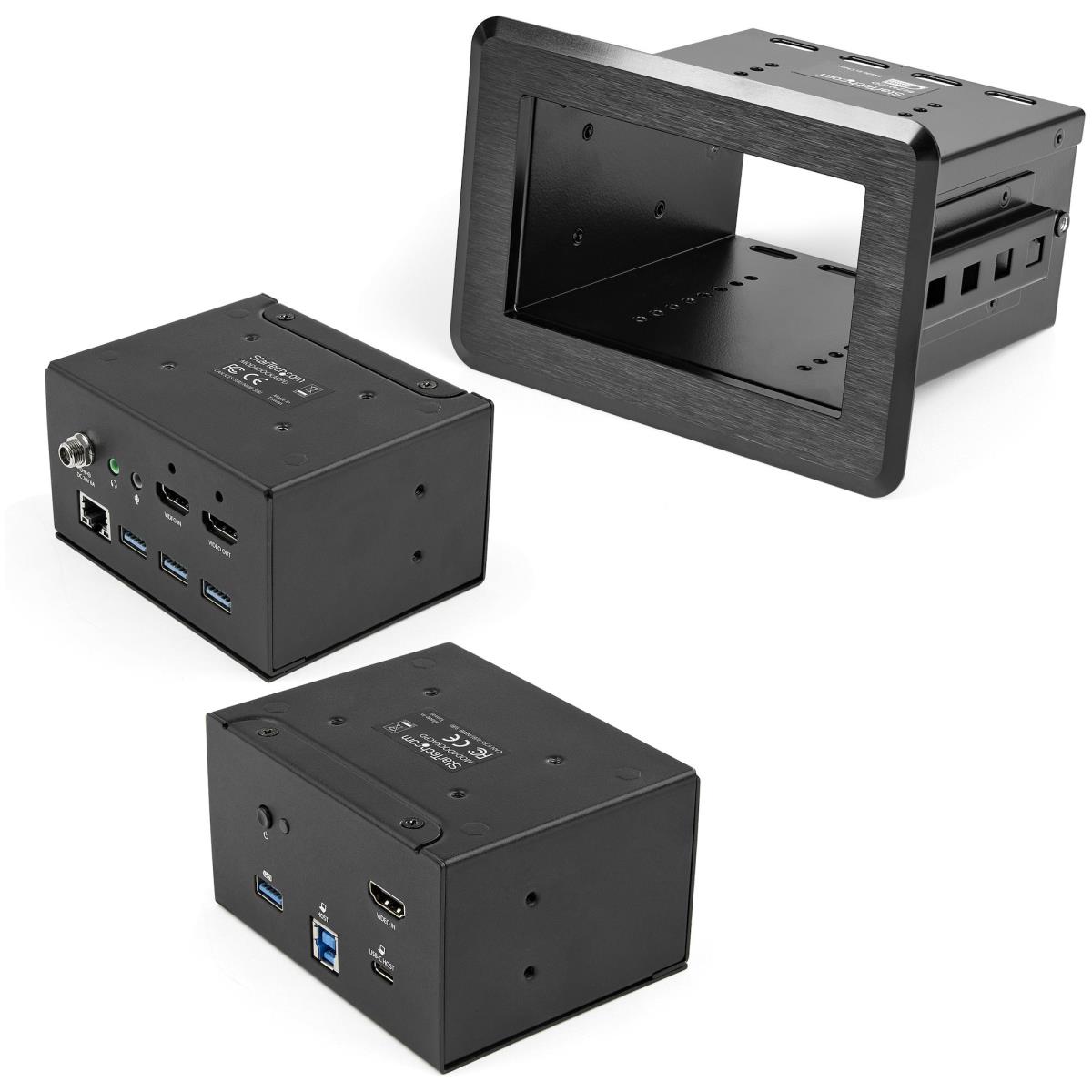

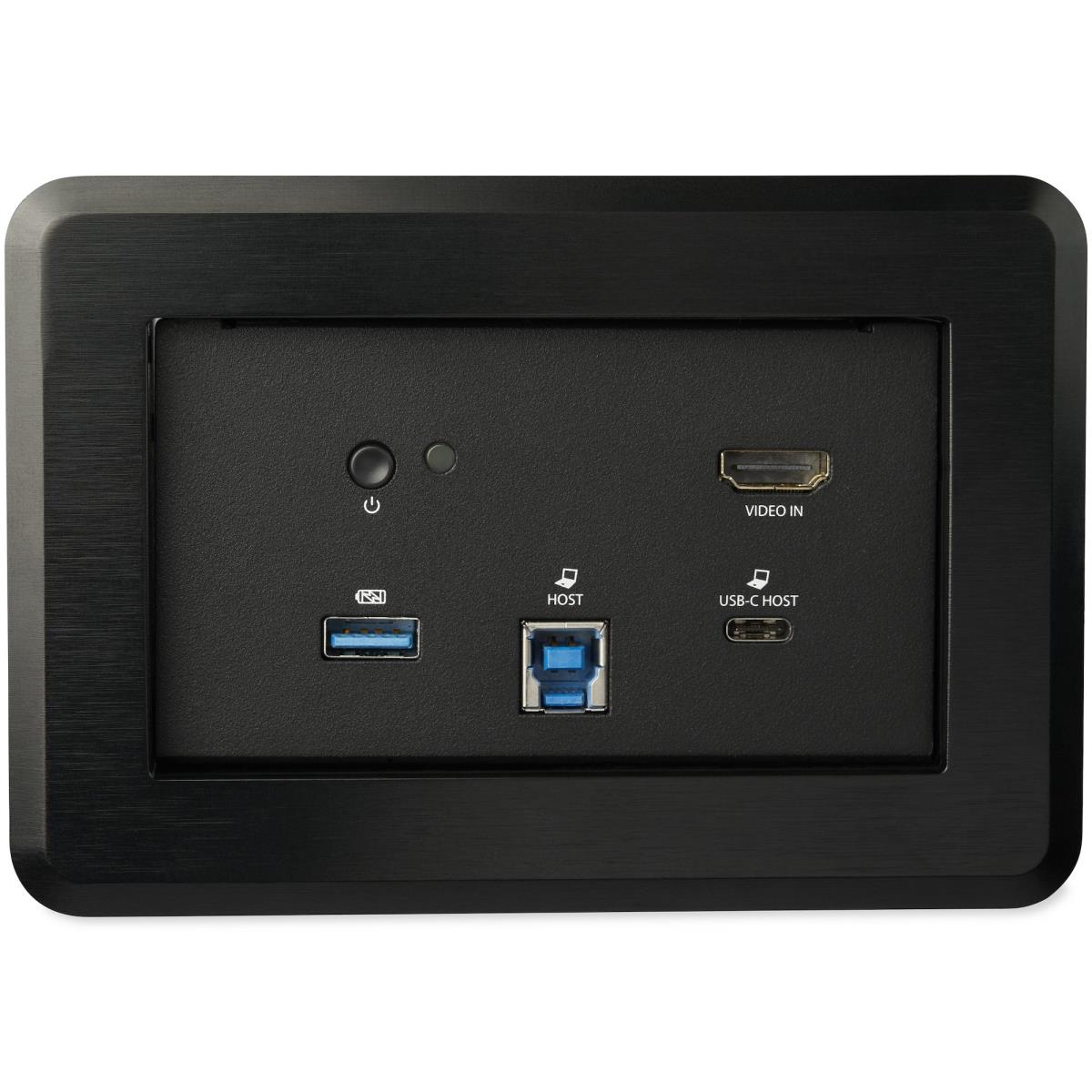

Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power DeliveryThe StarTech.com Advantage
Video | |
---|---|
Maximum resolution | 3840 x 2160 pixels |
Maximum refresh rate | 30 Hz |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Full duplex | Yes |
Data transfer rate (max) | 5 Gbit/s |
Auto MDI/MDI-X | Yes |
Design | |
Product colour | Black |
Housing material | Aluminium |
LED indicators | Power |
Features | |
Product colour | Black |
Housing material | Aluminium |
LED indicators | Power |
Chipset | DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153 |
Operating systems supported | Windows 7, 8, 8.1, 10 macOS 10.9 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0 Ventura Chrome OS v55+ |
Ports & interfaces | |
Audio input | 1 |
Audio output | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
HDMI input ports quantity | 2 |
HDMI output ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
UASP support | Yes |
Power | |
Input current | 2 A |
AC adapter input voltage | 100 - 240 V |
AC adapter output voltage | 20 V |
AC adapter output current | 6 A |
Power plug type | Type N |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 65 °C |
Operating relative humidity (H-H) | 20 - 80% |
Technical details | |
Sustainability certificates | CE, RoHS |
Compliance certificates | CE, RoHS |
Weight & dimensions | |
Width | 145 mm |
Package width | 190 mm |
Package depth | 192 mm |
Depth | 100 mm |
Package height | 134 mm |
Height | 115 mm |
Weight | 1.1 kg |
Package weight | 3 kg |
Packaging data | |
Package width | 190 mm |
Package depth | 192 mm |
Package height | 134 mm |
Package weight | 3 kg |
Logistics data | |
Master (outer) case width | 190 mm |
Master (outer) case length | 192 mm |
Master (outer) case height | 134 mm |
Products per master (outer) case | 1 pc(s) |
