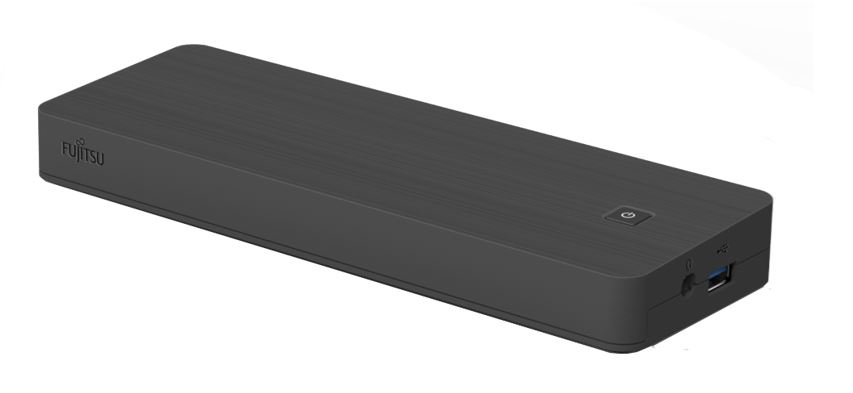

EU Product - - USB Typ C Dockingstation Kit
Introduction
For easy connecting your Fujitsu devices. Enhance your USB connection options, connect your displays via HDMI, DisplayPort or VGA and charge your device without an additional charger.

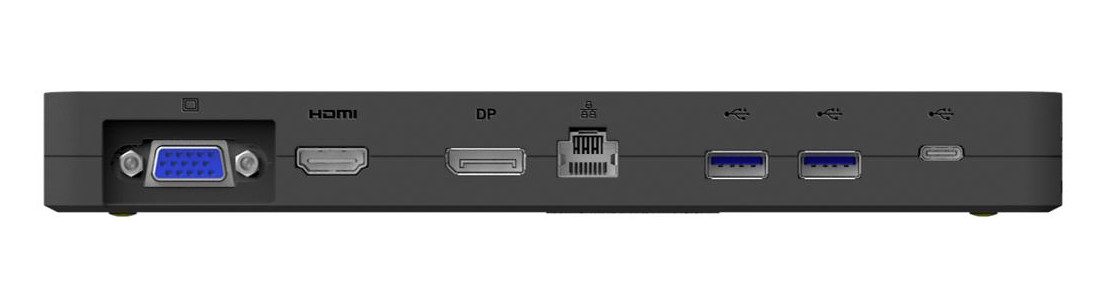

Interface Ports:
- Ethernet (RJ-45)
- USB Type-C (to Devices) 1 x USB 3.1 Gen1, up to 5V/3A power output
- USB Type-C (to PC/Tablet) 1 x USB 3.1 Gen1, up to 60 W power output (5V, 9V, 12V, 15V, 20V) / 3A
- Power input 5V/0.9A
- USB Type-A 3 x USB 3.1 Gen1, up to 5V/0,9A power output
- DisplayPort 1 x ver. 1.2 resolution up to 4096 x 2160 @24Hz / 3840 x 2160@30Hz depending on system and only one connected display
- HDMI 1 resolution up to 4096 x 2160 @24Hz / 3840 x 2160@30Hz depending on system and only one connected display
- VGA 1 x resolution up to 1920 x 1200 @60Hz depending on system and connected display
- Audio 1 x combo jack for headsets
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DC-in jack | No |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| DisplayPort version | 1.2 |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Product colour | Black |
| Card reader integrated | No |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Wireless charging | No |
| Weight & dimensions | |
| Weight | 334 g |
| Width | 219 mm |
| Depth | 75 mm |
| Height | 26 mm |
| Design | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
