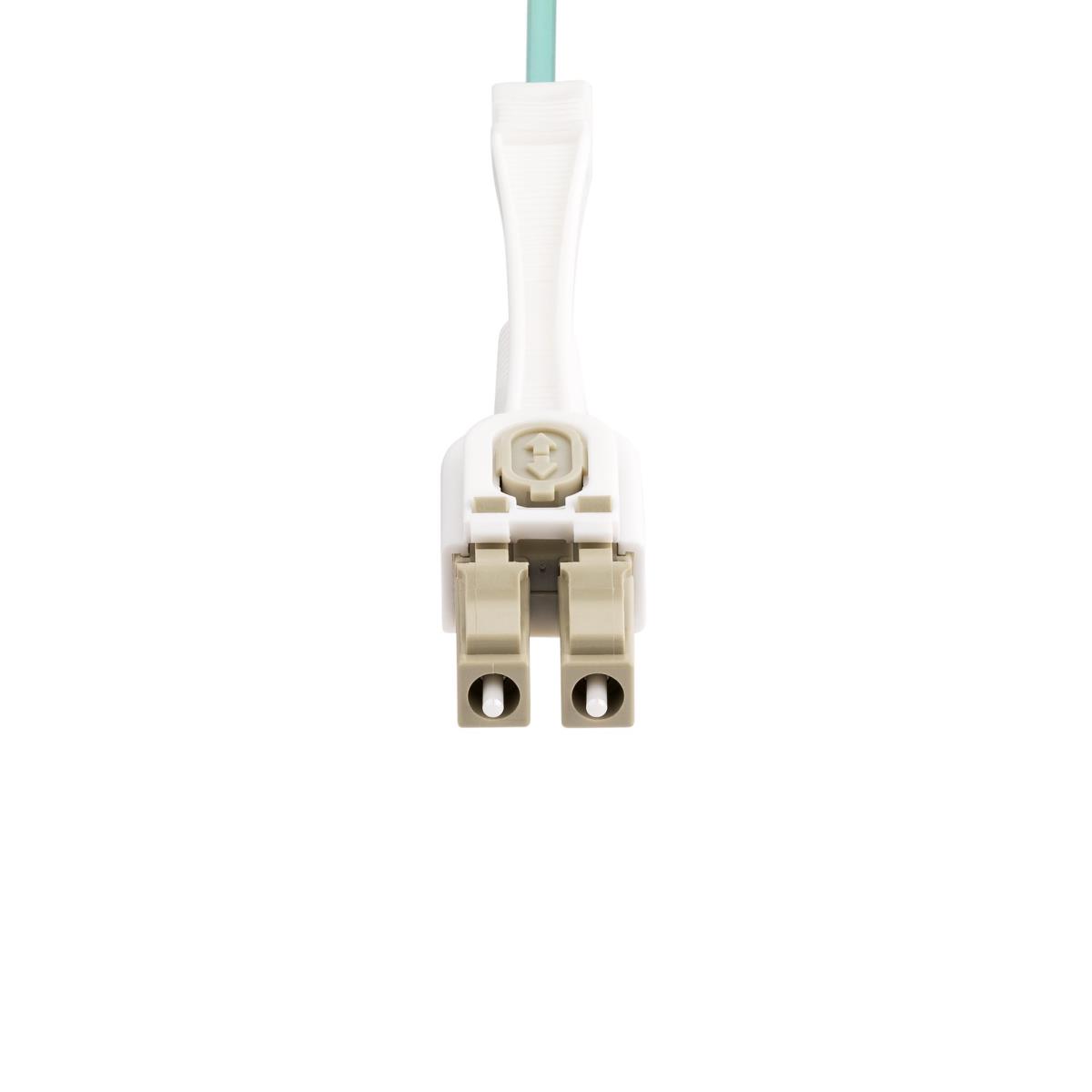

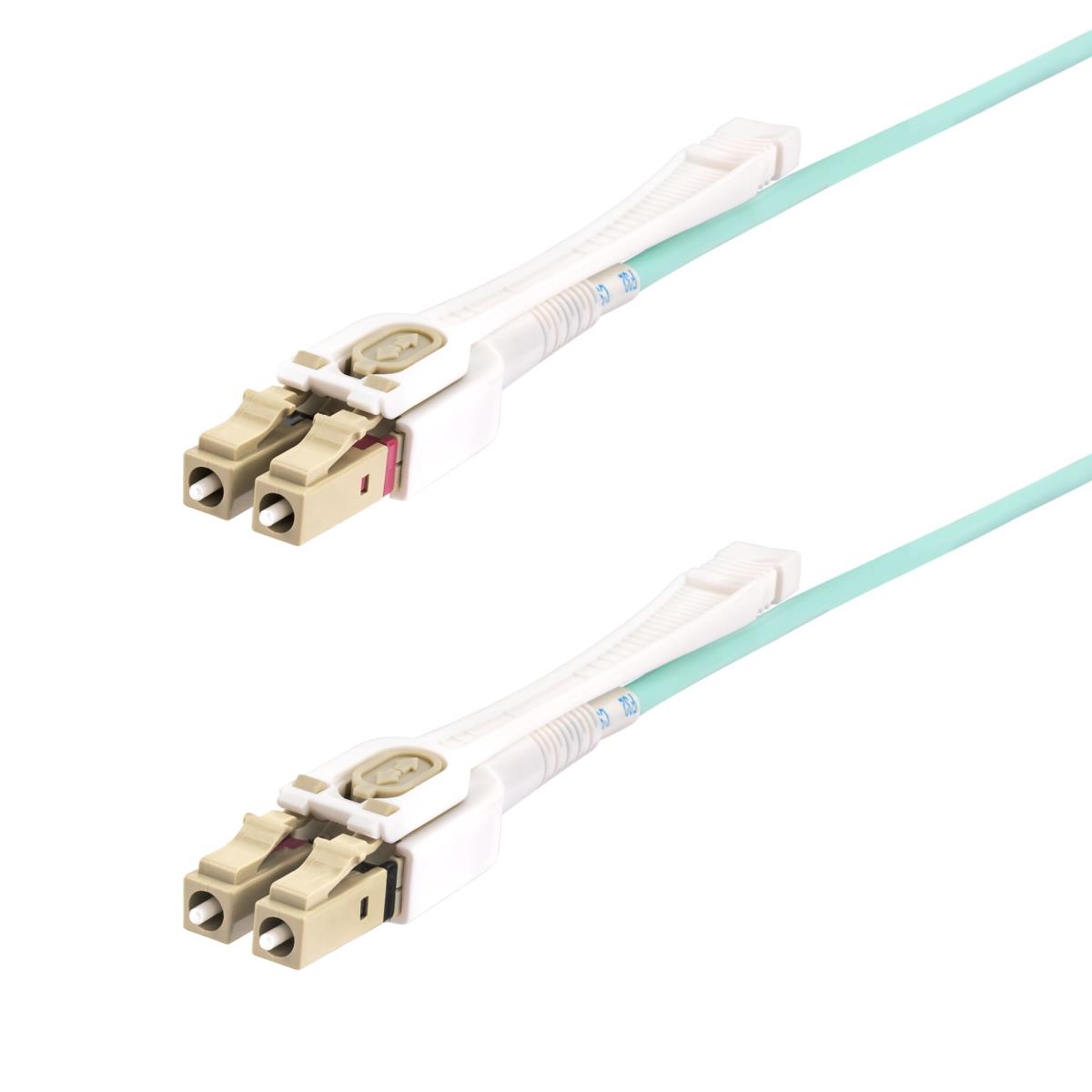

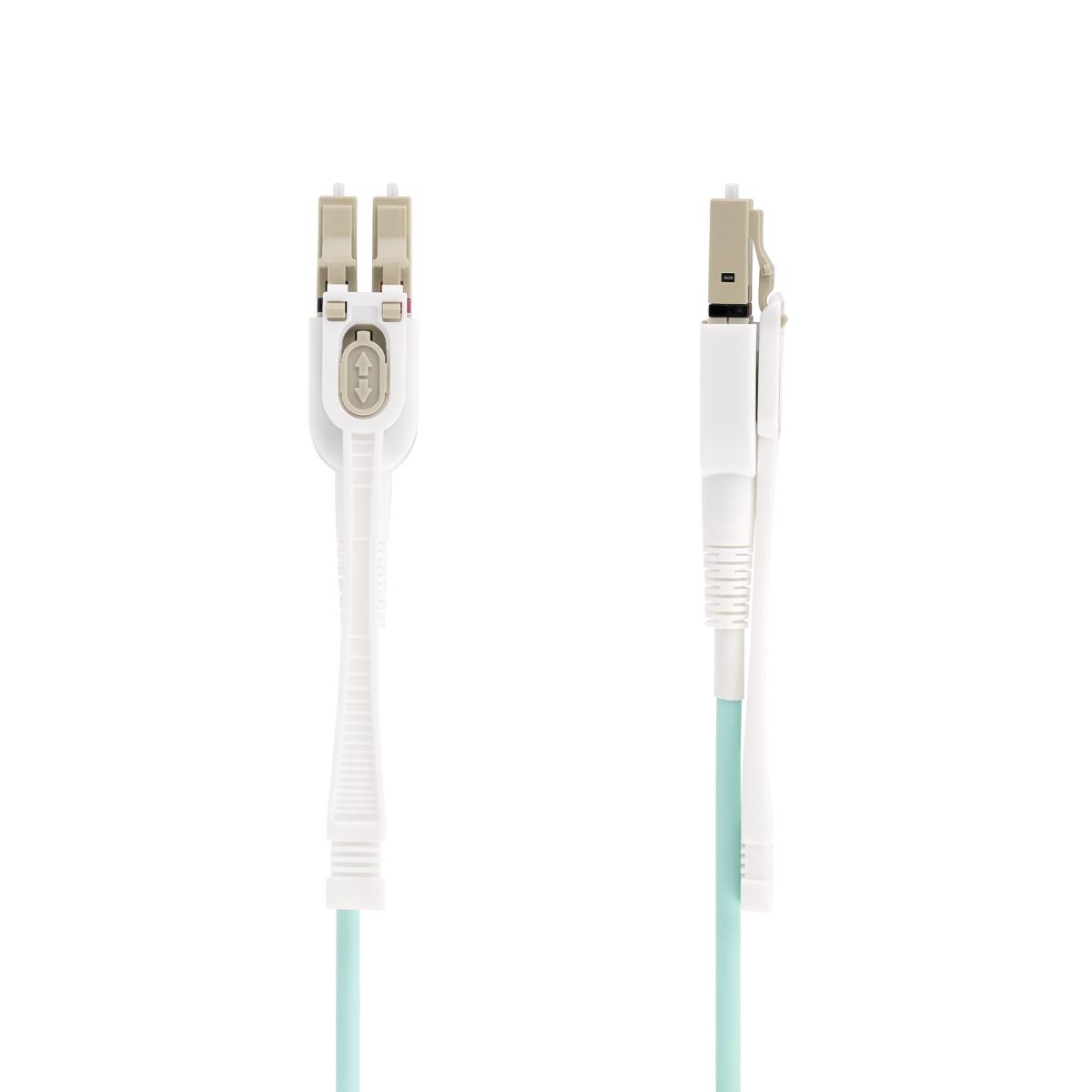

STARTECH.COM 450FBLCLC8PP STARTECH.COM OM4 LC/LC MULTIMODE FIBER CABLE

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

450FBLCLC8PP STARTECH.COM OM4 LC/LC MULTIMODE FIBER CABLE

Part No:450FBLCLC8PP

Stock:1 In Stock

EAN Code:0065030900799

£33.12 Excl. VAT

£39.74 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

OM4 LC/LC MULTIMODE FIBER CABLE

Introduction

Optimize fiber patch cabling in high-density patching applications where cables are prone to bending

LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable enables 40/100G network connections. The push-pull tabs on each connector ensure quick connection and removal, facilitating accurate installation in high connection density environments. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources.

Compatibility

This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments.

LSZH Cable Jacket

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.

The StarTech.com Advantage

Specifications

Technical details
Jacket materialLow smoke zero halogen (LSZH)
Fiber mode structureMulti-mode
Connector 1LC
Connector 2LC
Cable typeLOMM
Cable length8 m
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Sustainability complianceYes
Compliance certificatesCE, RoHS
Features
Bending radius6 cm
Fibre optic typeOM4
Jacket materialLow smoke zero halogen (LSZH)
Fiber mode structureMulti-mode
Connector 1LC
Connector 2LC
Cable typeLOMM
Cable length8 m
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Data transfer rate100 Gbit/s
Wavelengths supported850,1300 nm
Product colourAqua colour
Connector 2 genderMale
Connector 1 genderMale
Data transmission
Data transfer rate100 Gbit/s
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Bending radius6 cm
Cable length8 m
Package width220 mm
Package depth200 mm
Package height20 mm
Cable diameter2.9 mm
Packaging data
Package width220 mm
Package depth200 mm
Package height20 mm
Quantity per pack1 pc(s)
Logistics data
Master (outer) case width410 mm
Master (outer) case length410 mm
Master (outer) case height430 mm
Products per master (outer) case160 pc(s)
Quantity per pack1 pc(s)
