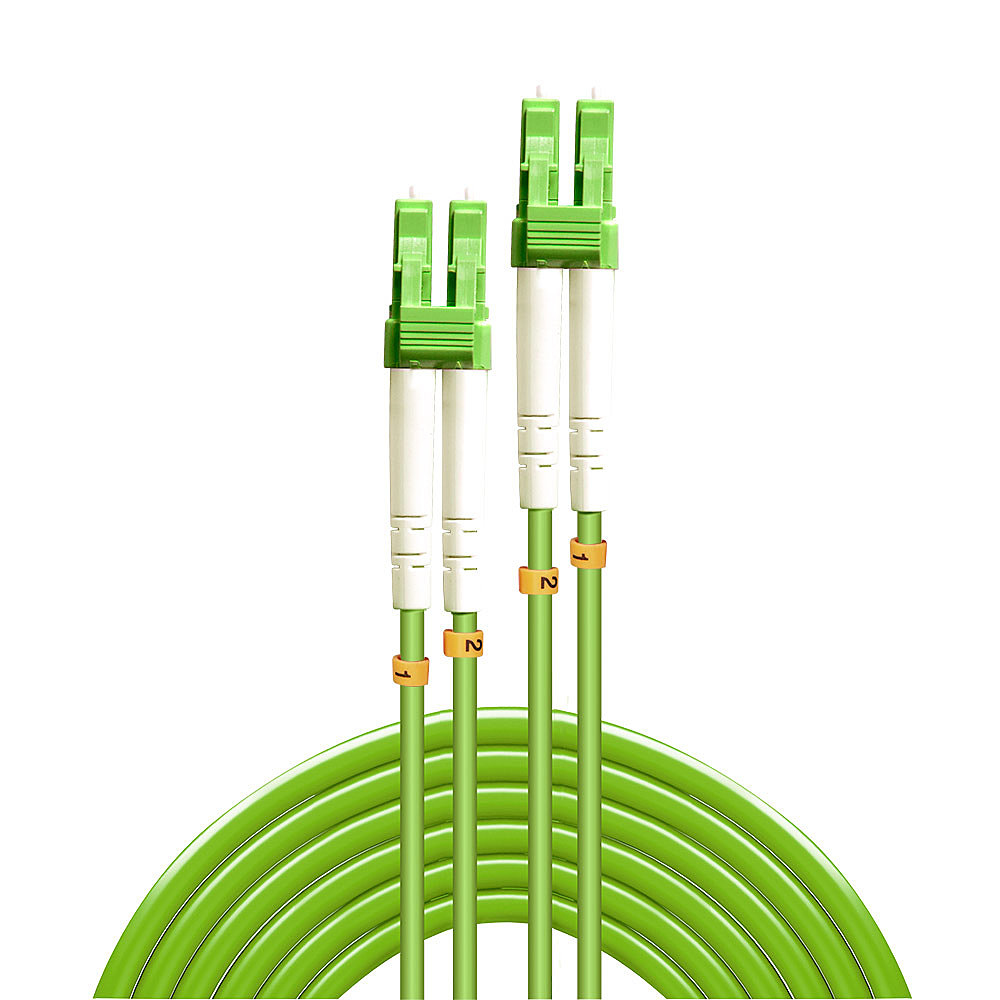

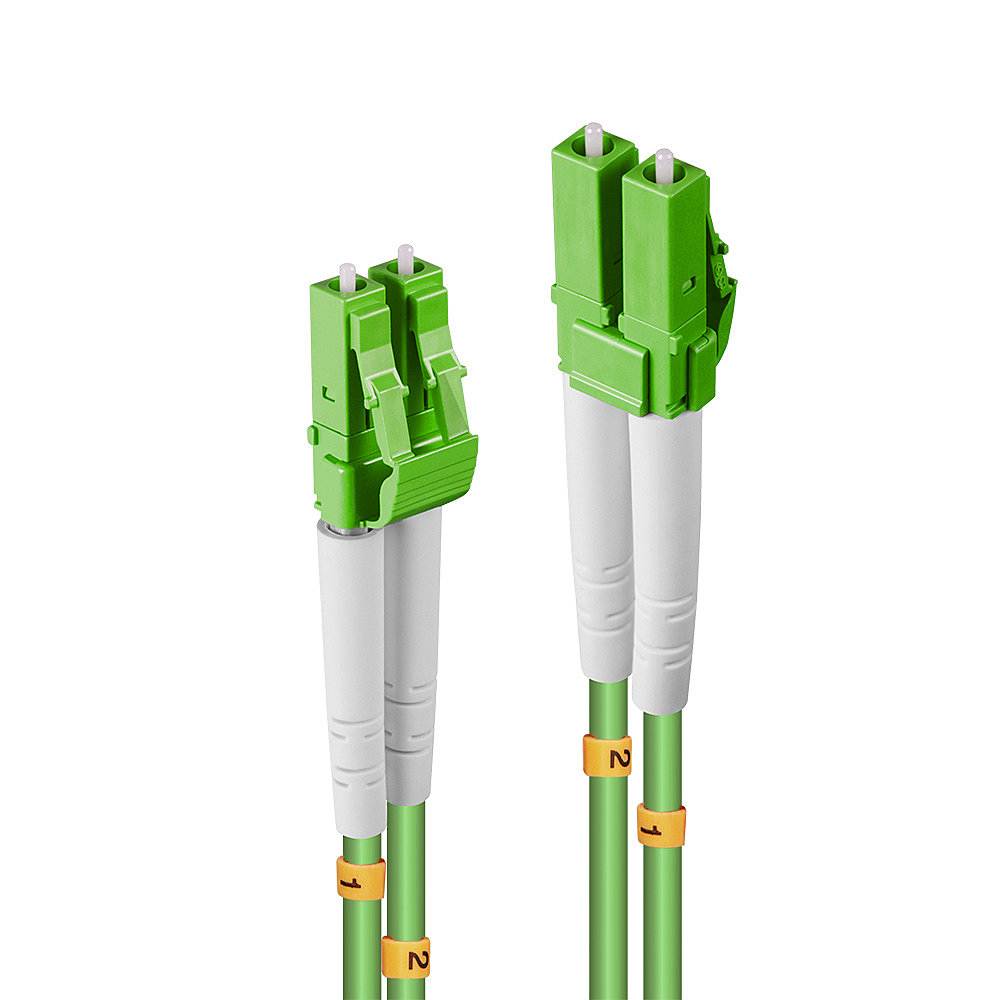

EU Product - 20m Fire Opic Cle LC/LC,
Introduction
Lindy Multimode fibre optic patch cables are ideal for use in telecoms and for high speed data connections, suitable for use with today's increasing demand for bandwidth.
The fibre optic connection ensure low signal loss and high reliability; the connectors are compatible with all standard fibre optic equipment.
OM5 fibre optic cables are available in lengths from 1m to 20m.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM5 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 20 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Product colour | Green |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Certification | UL |
| Package type | Bag |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Certification | UL |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging data | |
| Package type | Bag |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 20 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | REACH, RoHS |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Weight & dimensions | |
| Cable length | 20 m |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
