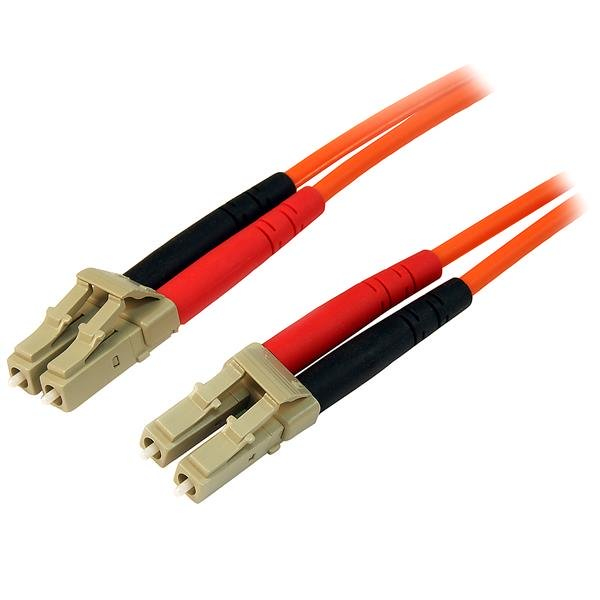

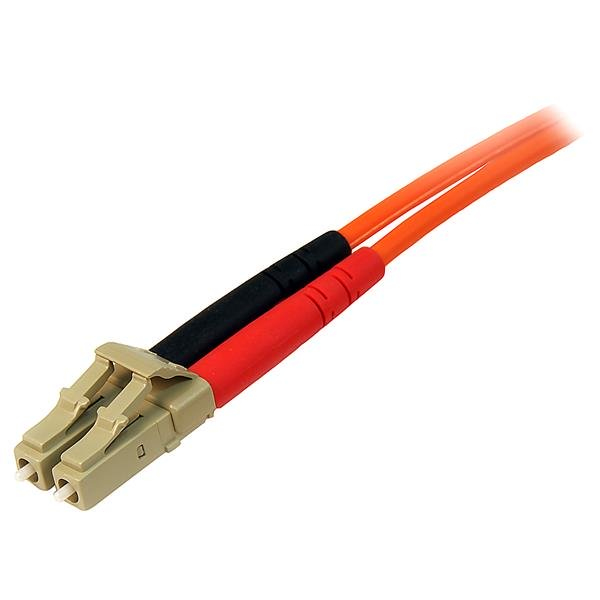

15M MULTIMODE 50/125 DUPLEX
Introduction
Connect fiber network devices for high-speed transfers with LSZH rated cable
The 50FIBLCLC15 15m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM2 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 15 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 10 Gbit/s |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CE |
| Harmonized System (HS) code | 85447000 |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | CE |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 198 g |
| Cable length | 15 m |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 41 mm |
| Package weight | 207 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 41 mm |
| Package weight | 207 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 15 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Doesn't contain | Halogen |
| Compliance certificates | REACH, RoHS |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 28 pc(s) |
| Harmonized System (HS) code | 85447000 |
