EU Product - - LWL Duplex Kabel, SC/SC, 9/125µm, 20m
Introduction

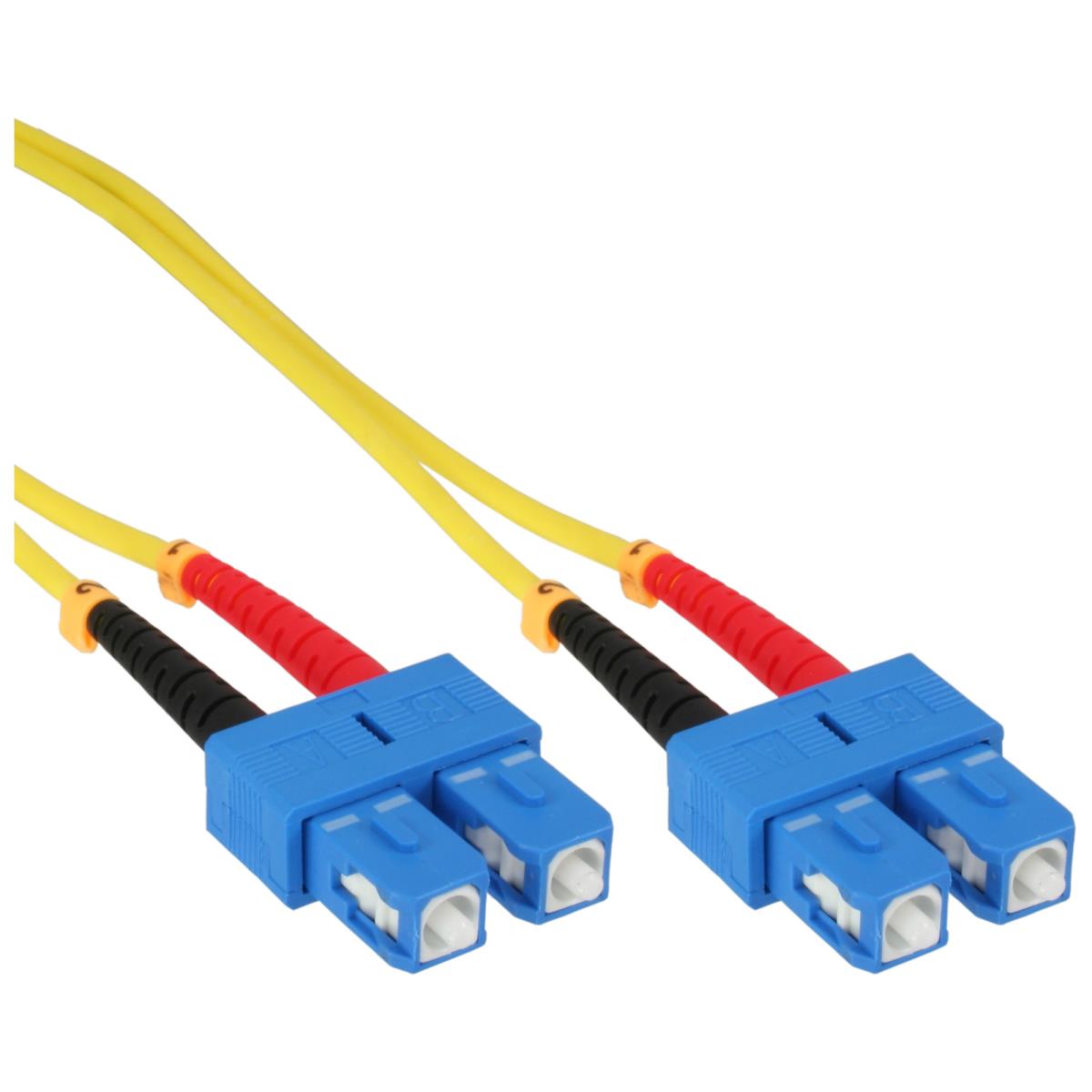

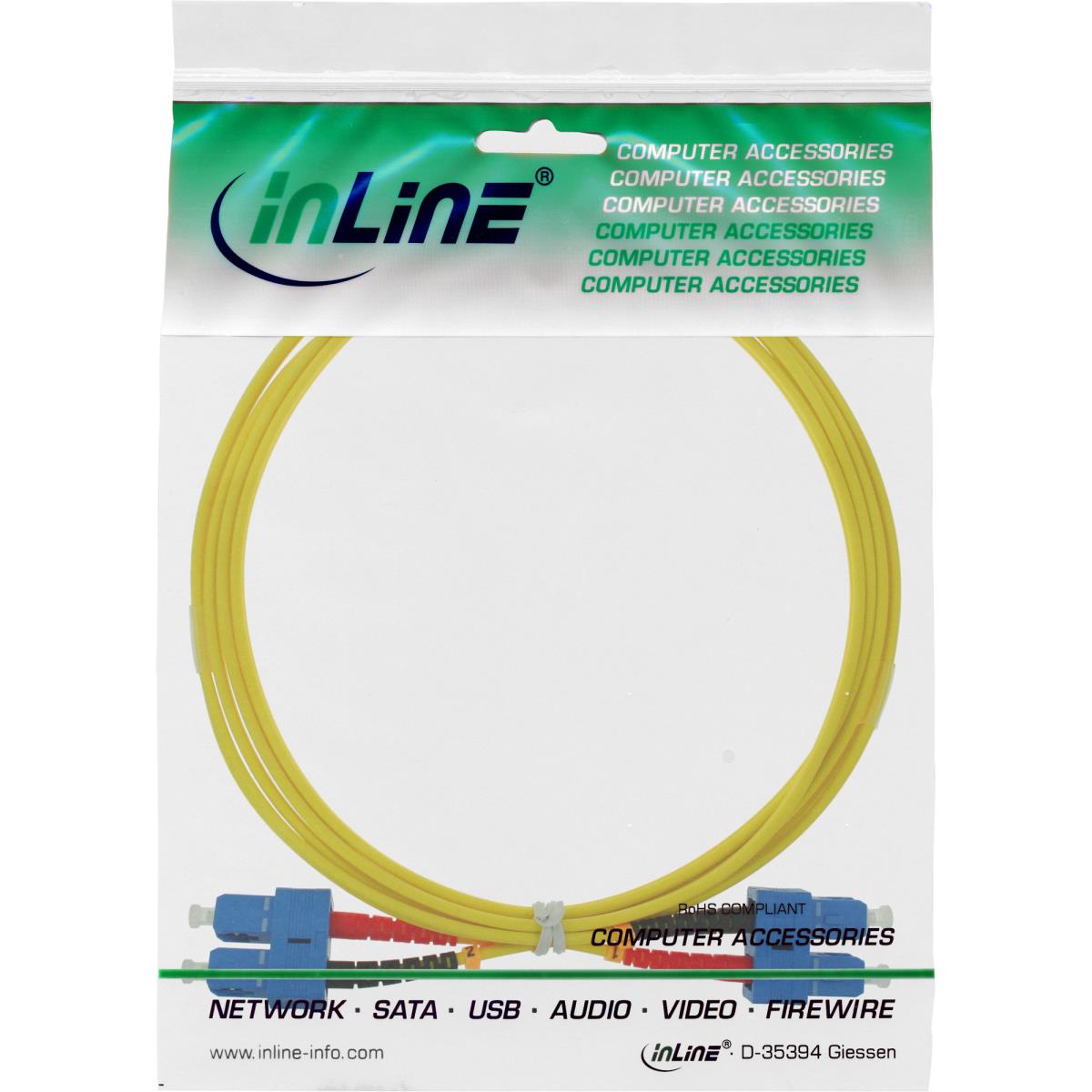

Fibre optic duplex patch cable, SC to SC, OS2 single-mode 9/125 µm, LSZH
Reliable fibre optic connection:Fibre optic duplex patch cable for stable, low-loss data transmission in network environments
Precision SC connectors:2x SC connectors to 2x SC connectors for precise and secure connections in fibre optic installations
Single-mode OS2 fibre:Designed for applications requiring long reach and consistent signal quality
Halogen-free LSZH jacket:Suitable for use in sensitive areas with reduced smoke and toxic gas emission
Duplex design:Two fibres in a single cable enable simultaneous transmission and reception
This fibre optic duplex patch cable is suitable for connecting network components with SC interfaces. It is used in structured fibre optic installations and supports stable data transmission over long distances.
The duplex design enables simultaneous transmission in both directions. This makes the cable suitable for applications where continuous communication is required. The SC connectors ensure a precise and secure connection with compatible devices.
The 9/125 µm OS2 single-mode fibre used is designed for applications with high range requirements. The halogen-free LSZH jacket supports use in environments with increased requirements for safety and material behaviour.
Various length options allow for customised installation depending on the location and cabling situation.
2x SC male to 2x SC male
Fibre: OS2 single-mode 9/125 µm
Duplex cable construction
Jacket: LSZH halogen-free
Diameter: 3.0 mm (x2)
Colour: Yellow
Specifications
| Features | |
|---|---|
| Fibre optic type | OS2 |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 20 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 282 g |
| Package volume | 1700 cm³ |
| Cable length | 20 m |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 34 mm |
| Package weight | 300 g |
| Packaging data | |
| Package volume | 1700 cm³ |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 34 mm |
| Package weight | 300 g |
| Test protocol included | Yes |
| Packaging content | |
| Test protocol included | Yes |
| Technical details | |
| Connector 1 | SC |
| Connector 2 | SC |
| Cable length | 20 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Other features | |
| Core / cladding diameter | 9/125 µm |
