EU Product - - LWL Duplex Kabel, LC/ST, 50/125µm, OM4, 7,5m
Introduction

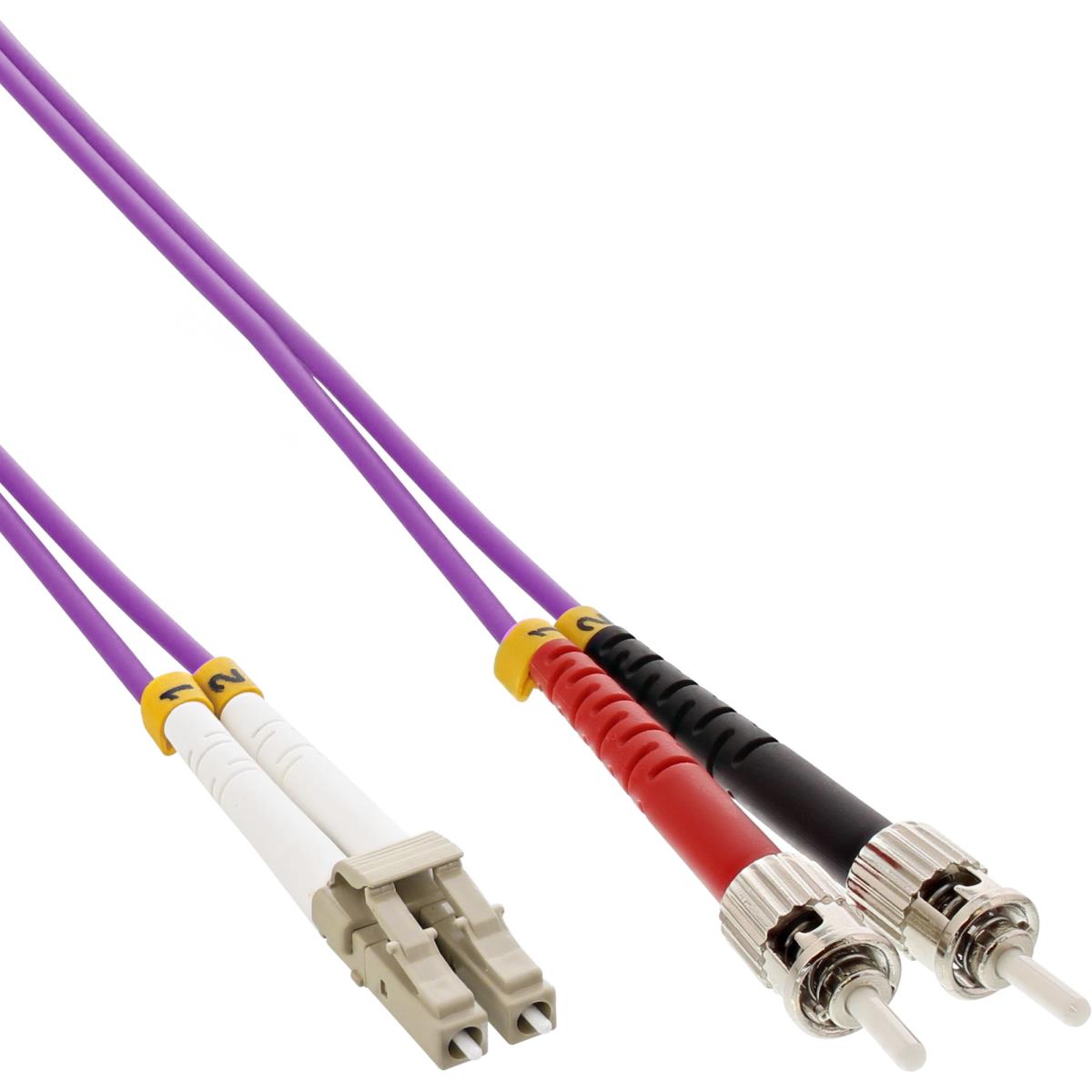

InLine Fiber Optical Duplex Cable LC/ST 50/125µm OM4 7.5m. Cable length: 7.5 m, Fibre optic type: OM4, Connector 1: 2x LC, Connector 2: 2x ST, Core diameter: 50 µm, Full duplex
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | 2x LC |
| Connector 2 | 2x ST |
| Cable length | 7.5 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Product colour | Purple |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 114 g |
| Package volume | 700 cm³ |
| Cable length | 7.5 m |
| Package width | 190 mm |
| Package depth | 185 mm |
| Package height | 20 mm |
| Package weight | 125 g |
| Packaging data | |
| Package volume | 700 cm³ |
| Package width | 190 mm |
| Package depth | 185 mm |
| Package height | 20 mm |
| Package weight | 125 g |

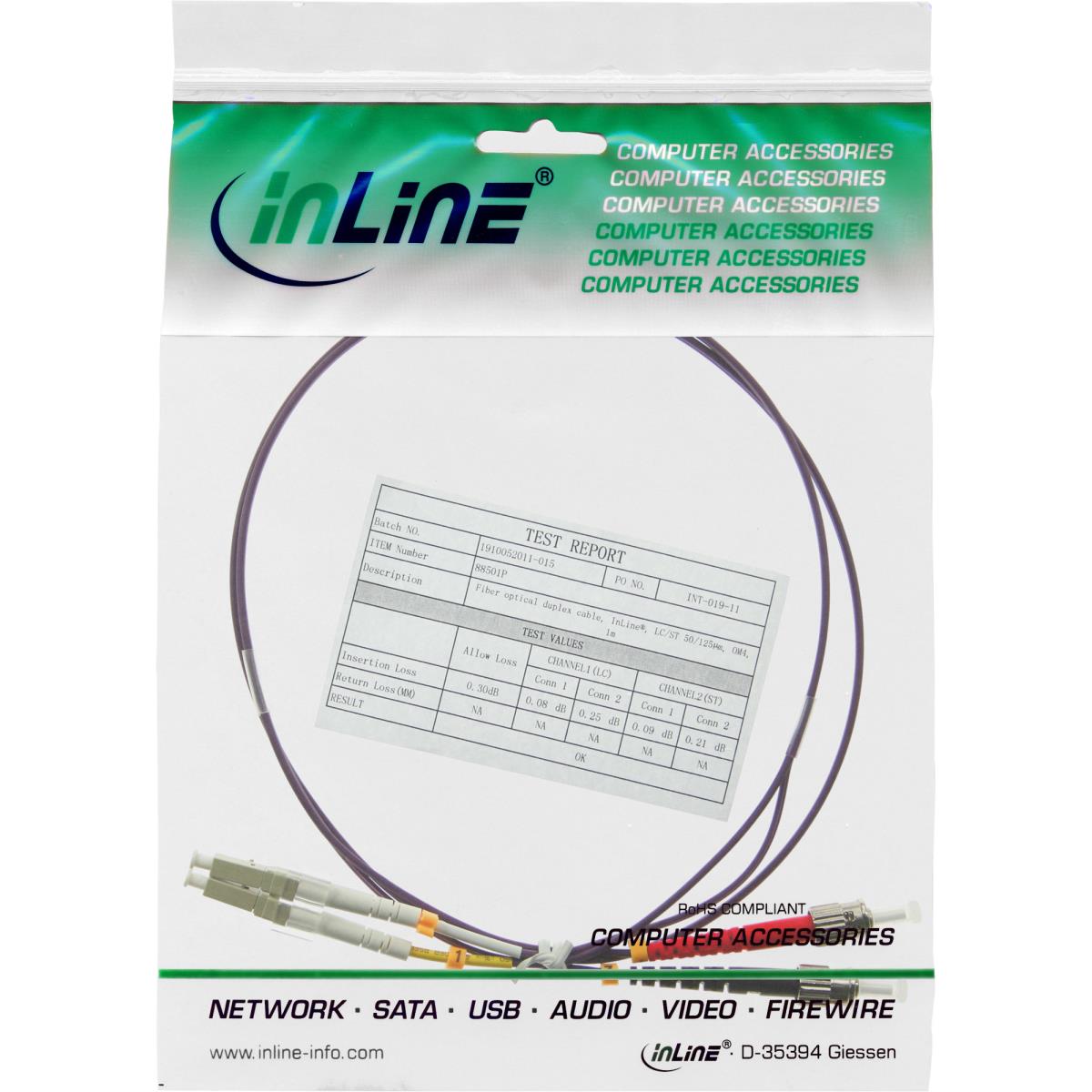

| Test protocol included | Yes |
| Packaging content | |
| Test protocol included | Yes |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | 2x LC |
| Connector 2 | 2x ST |
| Cable length | 7.5 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Doesn't contain | Halogen |
| Other features | |
| Dimensions (WxDxH) | 11 x 7500 x 11 mm |
