EU Product - - LWL Duplex Kabel, LC/LC, 50/125µm, OM3, 25m
Introduction

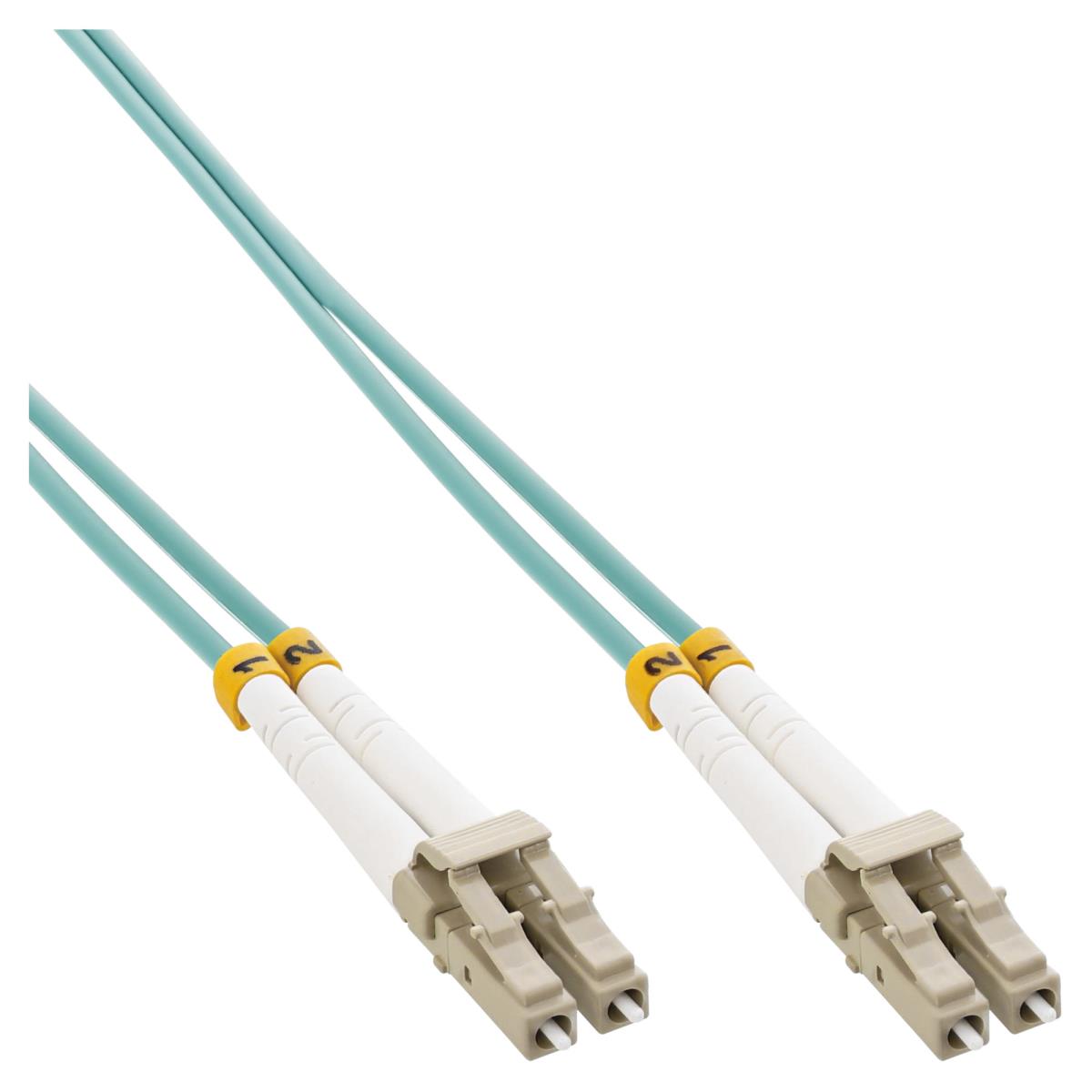

InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM3 25m. Cable length: 25 m, Fibre optic type: OM3, Connector 1: 2x LC, Connector 2: 2x LC, Core diameter: 50 µm, Full duplex
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | 2x LC |
| Connector 2 | 2x LC |
| Cable length | 25 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Product colour | Turquoise, Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 340 g |
| Package volume | 1900 cm³ |
| Cable length | 25 m |
| Package width | 195 mm |
| Package depth | 185 mm |
| Package height | 53 mm |
| Package weight | 360 g |
| Packaging data | |
| Package volume | 1900 cm³ |
| Package width | 195 mm |
| Package depth | 185 mm |
| Package height | 53 mm |
| Package weight | 360 g |

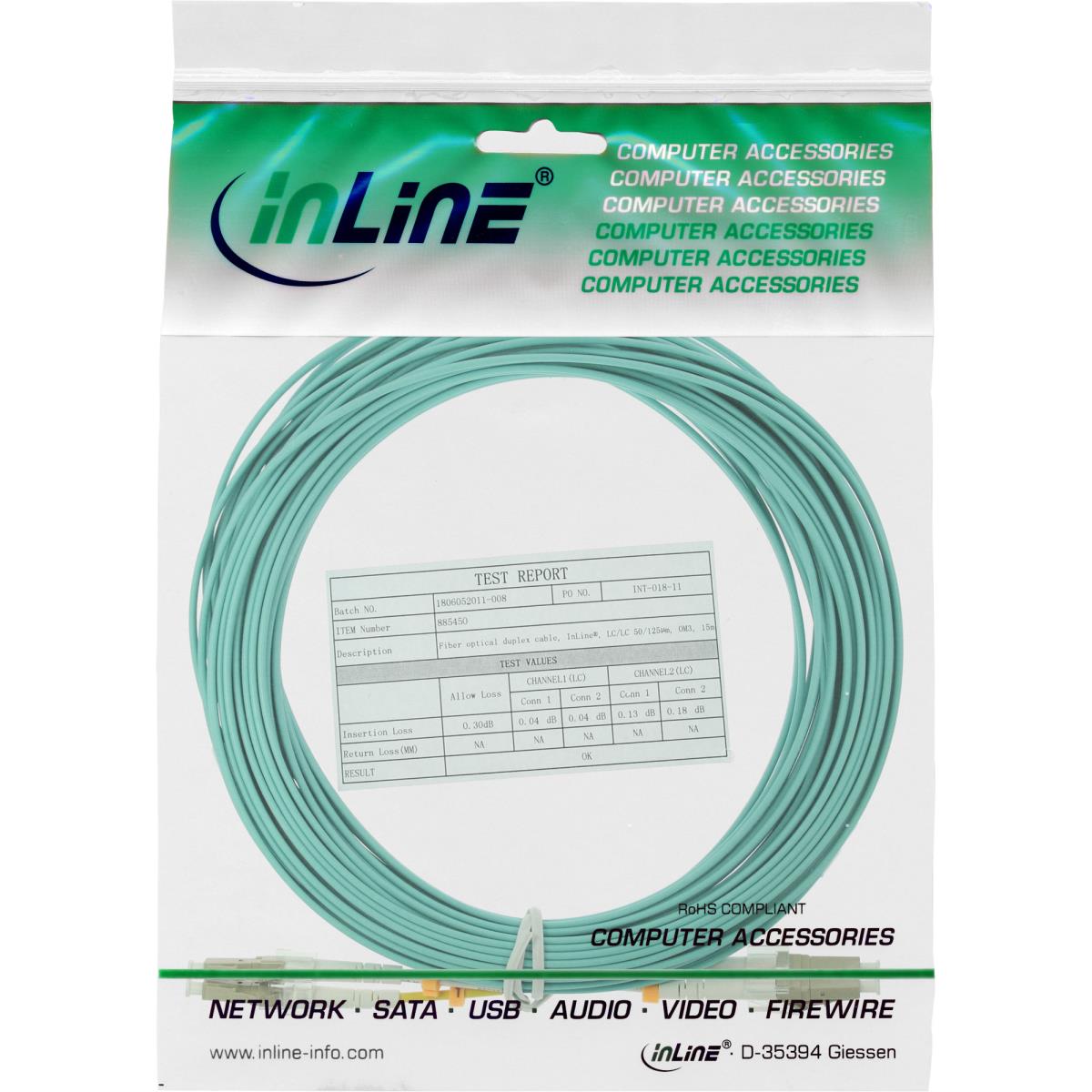

| Test protocol included | Yes |
| Packaging content | |
| Test protocol included | Yes |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | 2x LC |
| Connector 2 | 2x LC |
| Cable length | 25 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Doesn't contain | Halogen |
