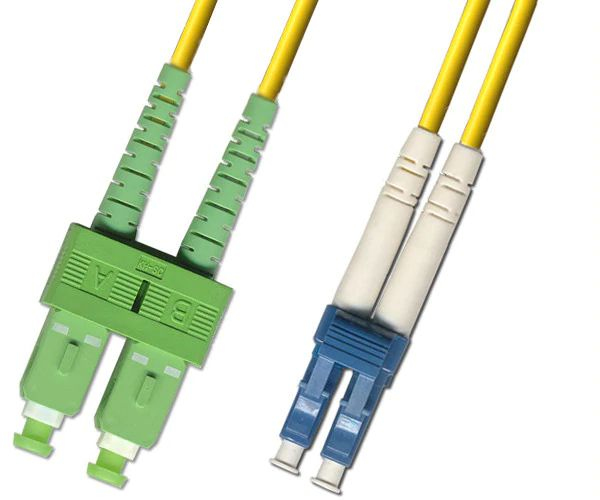

EU Product - SC/PC-LC/UPC 2m OS2 Fire

Introduction

Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.

Specifications

Features
Fibre optic type	OS2
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	SC
Connector 2	LC
Cable length	2 m
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Product colour	Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Cable diameter	2 mm
Weight	26 g
Cable length	2 m
Package width	177 mm
Package depth	164 mm
Package height	17 mm
Package weight	36 g
Packaging data
Package width	177 mm
Package depth	164 mm
Package height	17 mm
Package weight	36 g
Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	SC
Connector 2	LC
Cable length	2 m
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Other features
Core / cladding diameter	9/125 µm
