PANEL MOUNT HDMI CABLE 4K 60HZ
Introduction

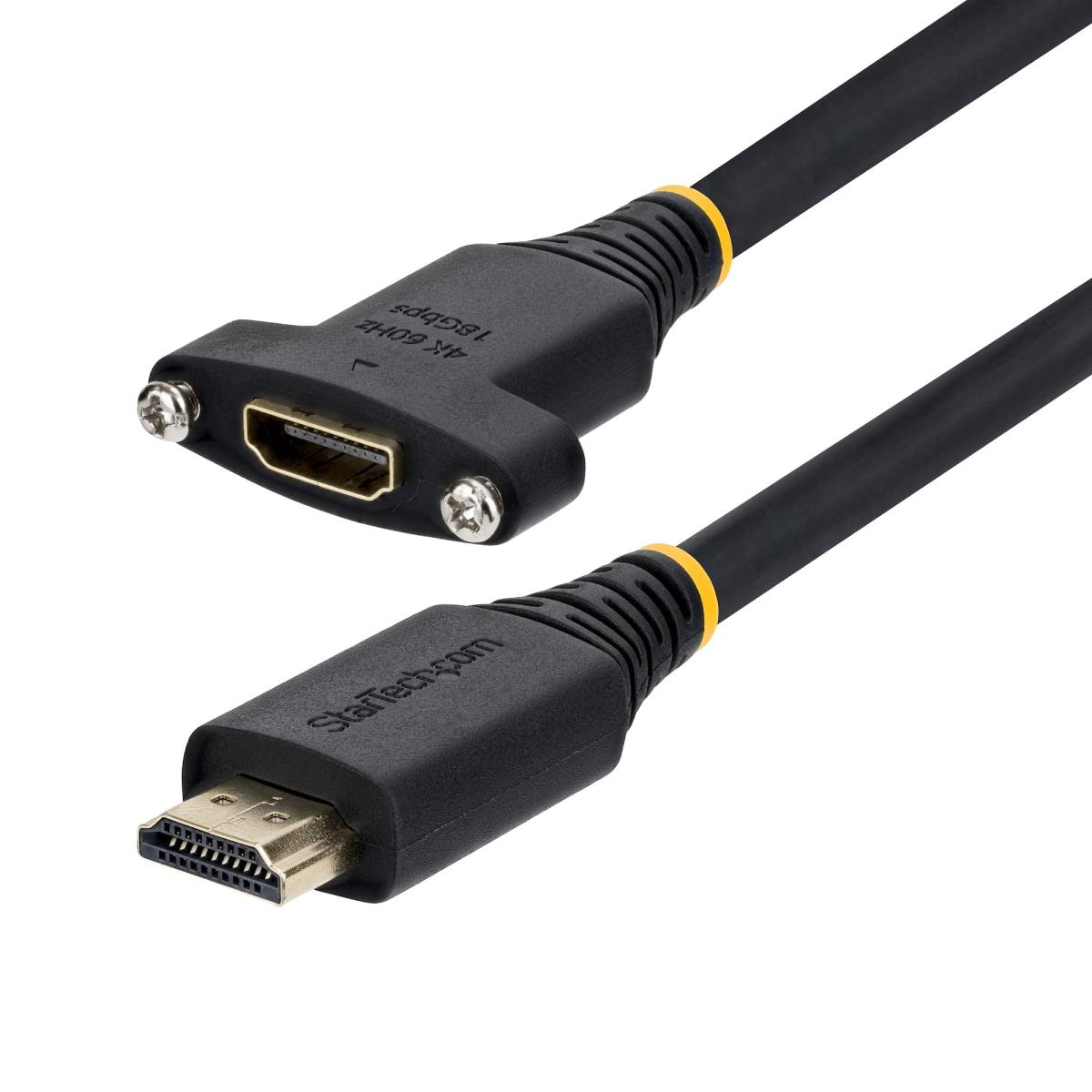

Extend an HDMI connection to an AV panel or face plate using this HDMI male to panel mount female extension cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dolby technologies | Dolby TrueHD |
| Colour depth | 10 bit |
| Cable shielding | Aluminum mylar foil |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| Supported graphics resolutions | 5120 x 2880, 3840 x 2160, 2560 x 1400, 1920 x 1080 (HD 1080) |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Dolby Vision |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| HDCP version | 2.2 |
| Supported digital audio channels (uncompressed) | 32, 7.1 |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| HDMI cable type | High Speed HDMI cable |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 125 g |
| Package width | 190 mm |
| Package depth | 110 mm |
| Package height | 23 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package weight | 125 g |
| Package width | 190 mm |
| Package depth | 110 mm |
| Package height | 23 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 250 mm |
