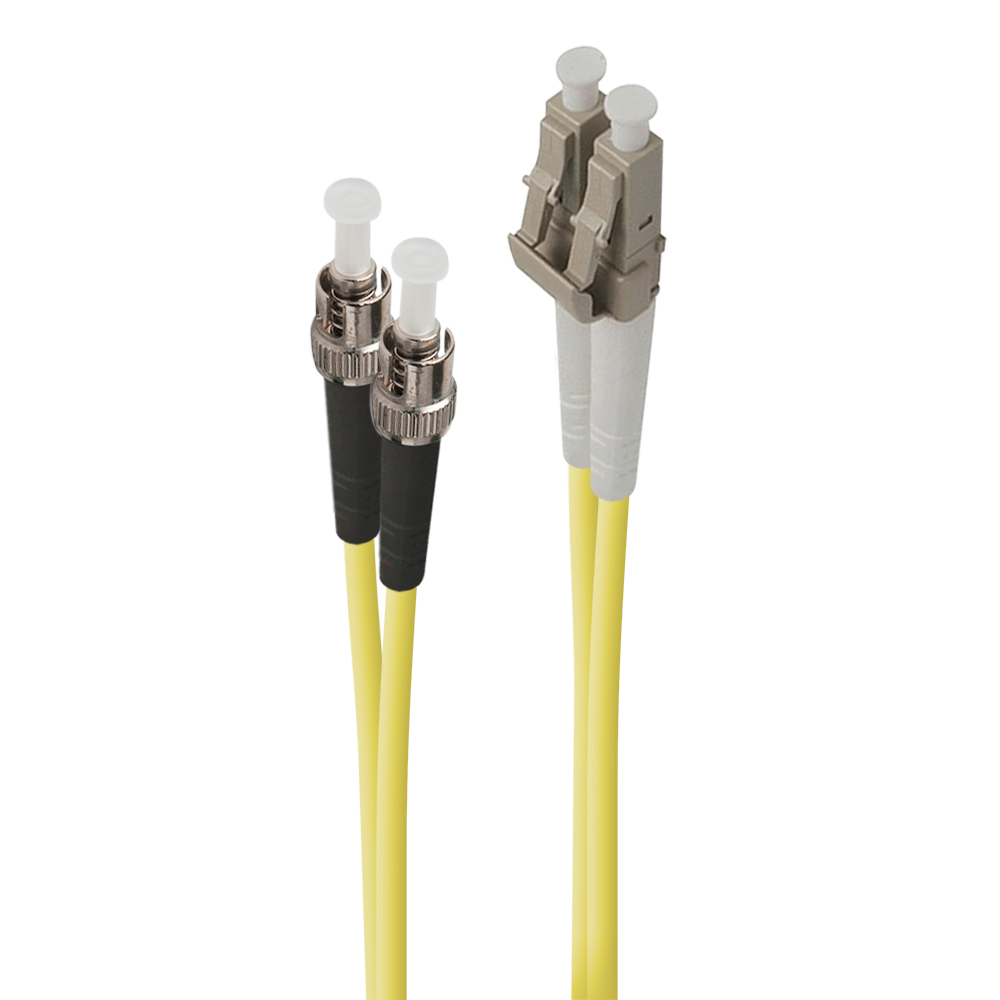

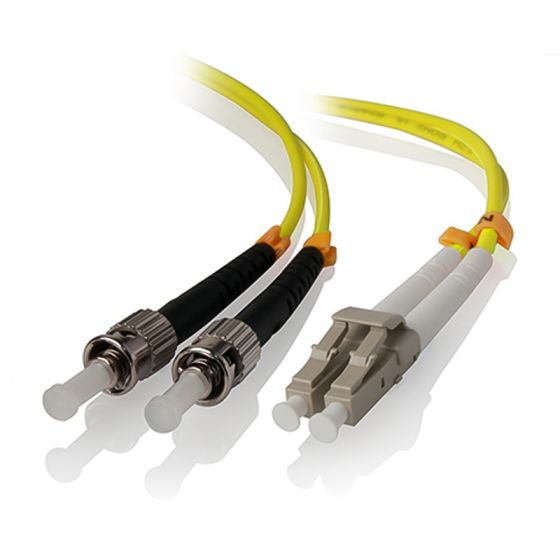

ALOGIC 1M LC-ST SINGLE MODE
Introduction
The Single mode OS2 cables are designed to support very high transfer speed and have universal loose tube construction, the ALOGIC cables are compliant to fibre type B1.3 in IEC 60793-2-50 G652d capable of supporting up to 10gigabit applications over very long distances.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | ST |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Number of optical fibres | 2 |
| Features | |
| Fibre optic type | OS2 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | ST |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Data transfer rate | 10 Gbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wavelengths supported | 1300,1550 nm |
| Harmonized System (HS) code | 85447000 |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 1 m |
| Cable diameter | 3 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Number of optical fibres | 2 |
