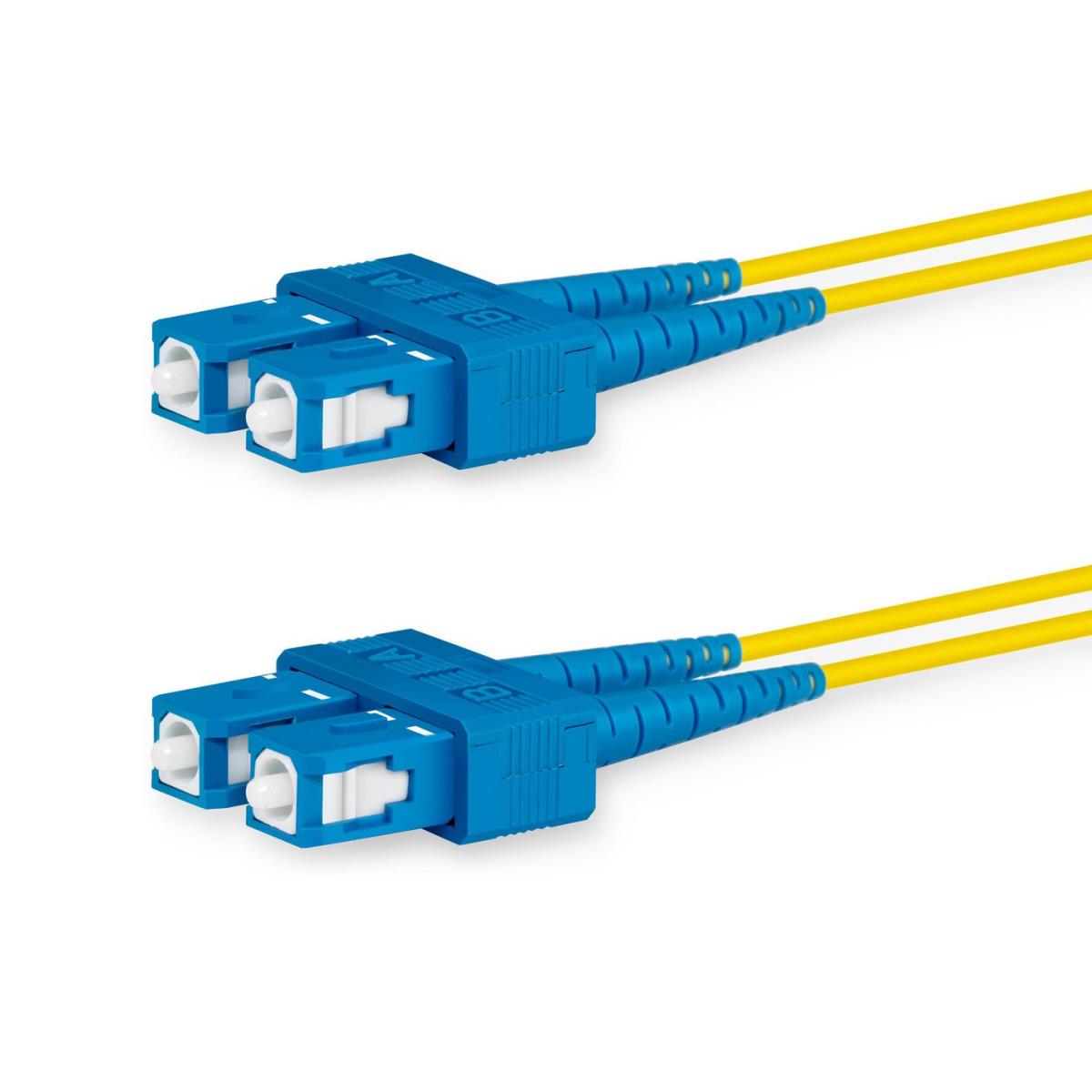

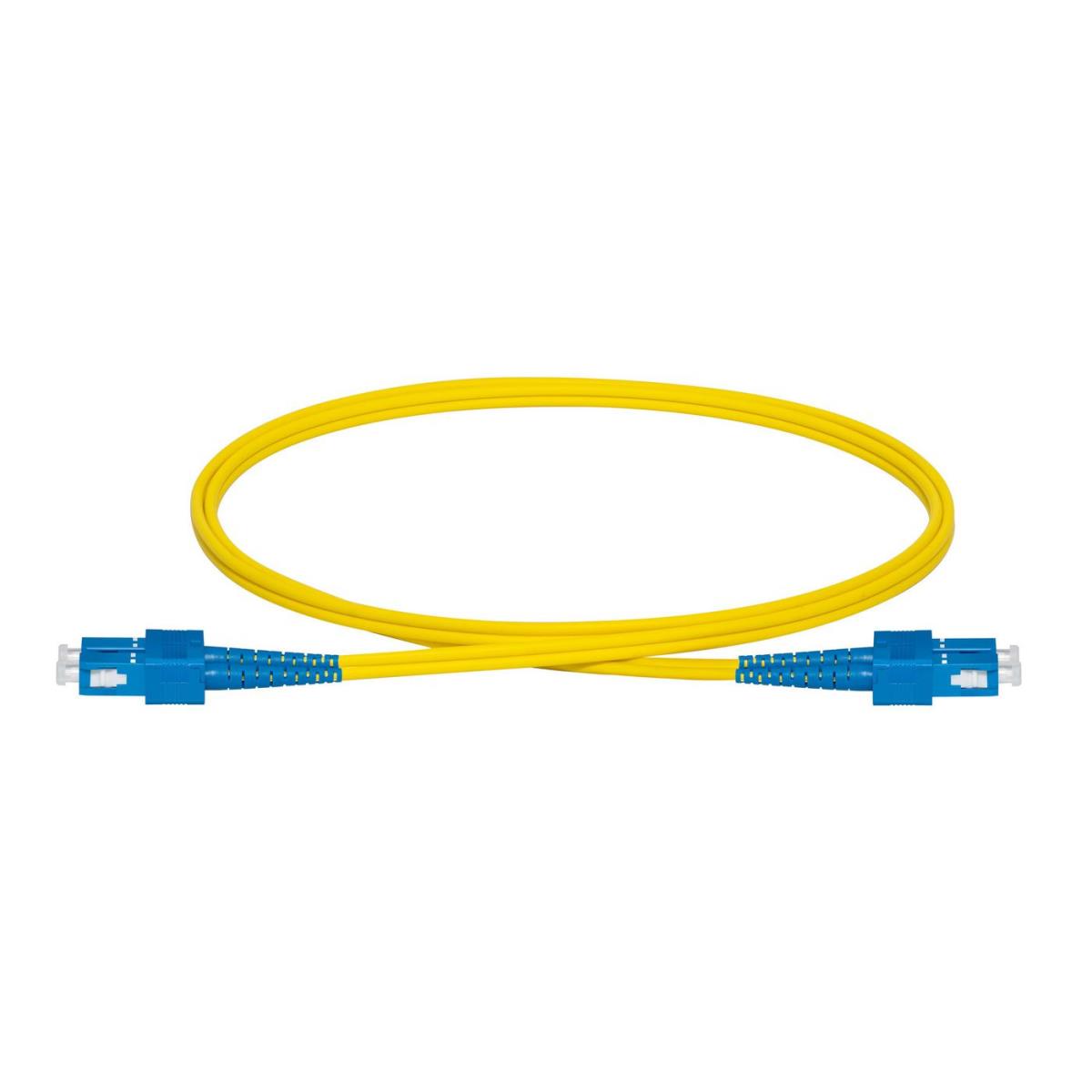

Fiber Patch Cable - SC-SC single mode Duplex OS2 9/125 LSZH 10m
Introduction
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Features | |
|---|---|
| Fibre optic type | OS2 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | 2x SC |
| Connector 2 | 2x SC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Ethernet interface type | 40 Gigabit Ethernet |
| Wavelengths supported | 1550 nm |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | IEC, EIA, TIA, Telcordia |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | IEC, EIA, TIA, Telcordia |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 112 g |
| Cable length | 10 m |
| Package width | 250 mm |
| Package depth | 80 mm |
| Package height | 300 mm |
| Package weight | 113 g |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 80 mm |
| Package height | 300 mm |
| Package weight | 113 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | 2x SC |
| Connector 2 | 2x SC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Connector(s) | SC - SC |
| Doesn't contain | Halogen |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Connector(s) | SC - SC |
