EU Product - LC-LC Unioo Mulimode
Introduction

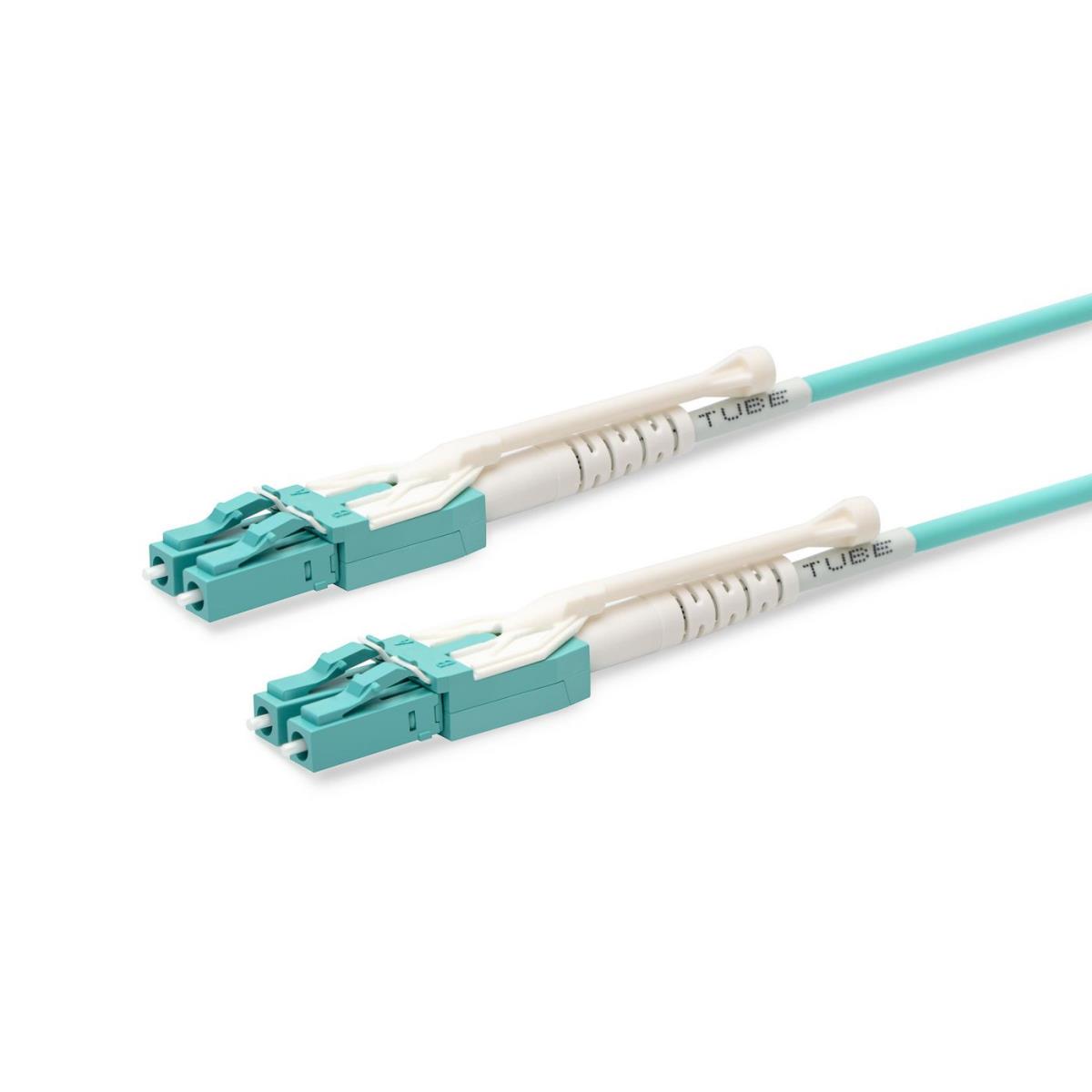

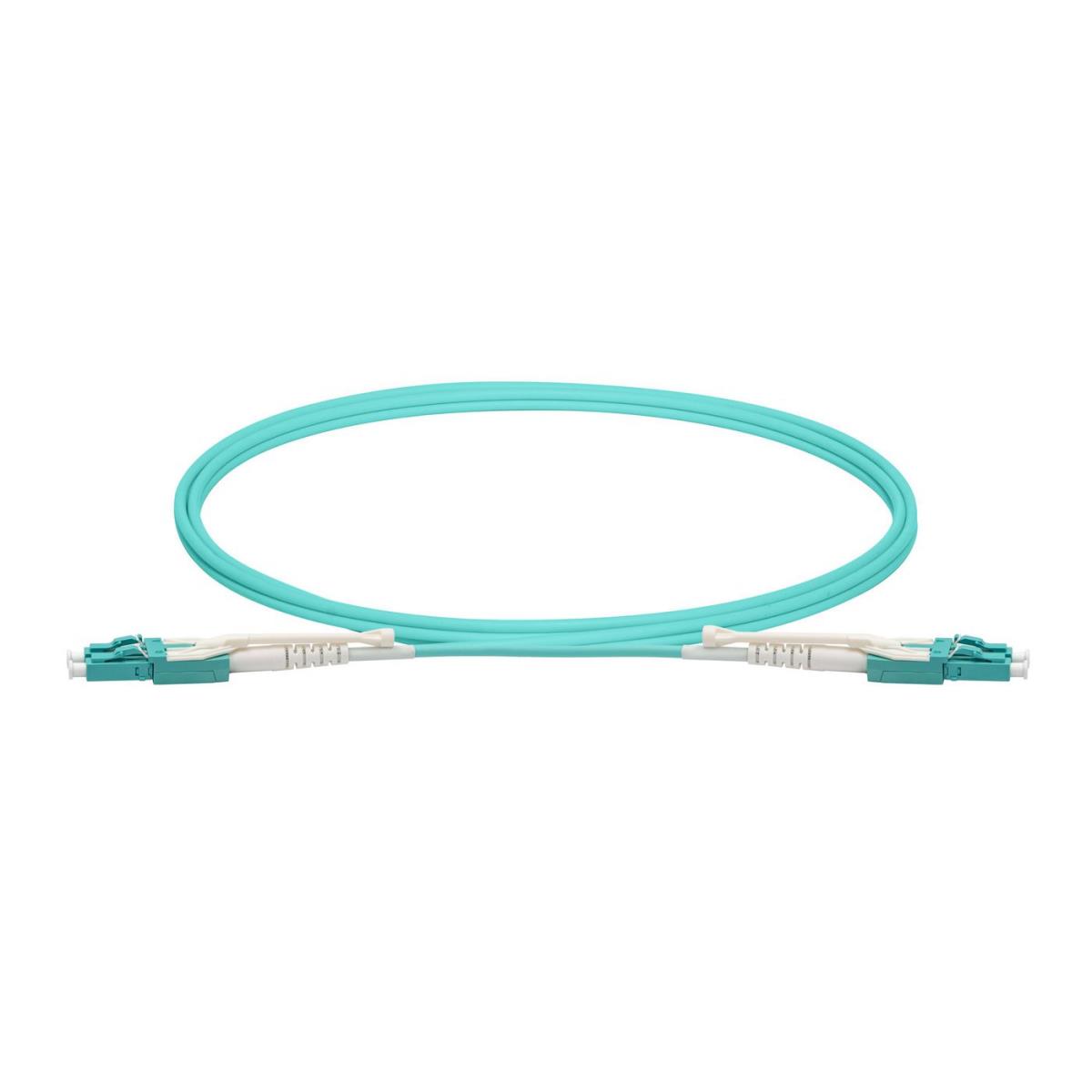

This Uniboot cable comes with a lot of great features to take your networking setup to the next level, Uniboot cables comes with both the fibre leads coated in a single jacket, meaning there is more room for airflow in the rack. This also means the insertion loss is low.
Another special feature of the Uniboot cable is the option to switch polarities, simply remove the top cover and you can swap the connectors to change the polarity, no need to swap to another cable with Uniboot.
This cable lives up to the OM3 fibre standard to connect to high speed and legacy networks like 10/40/100 gigabit. This cable standard is ideal for for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc.
The cable is made of LSZH material to live up to Telecordia, EIA TIA or IEC standards.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Return loss | 38.42 dB |
| Connector gender | Male/Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Cladding diameter | 150 µm |
| Insertion loss | 0.14 dB |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wavelengths supported | 850 nm |
| Product colour | Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Plug and Play | Yes |
| Certification | Rohs |
| Sustainability | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | Rohs |
| Compliance certificates | REACH |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 46 g |
| Cable length | 10 m |
| Package weight | 47 g |
| Packaging data | |
| Package weight | 47 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Cladding diameter | 150 µm |
| Insertion loss | 0.14 dB |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | REACH |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
