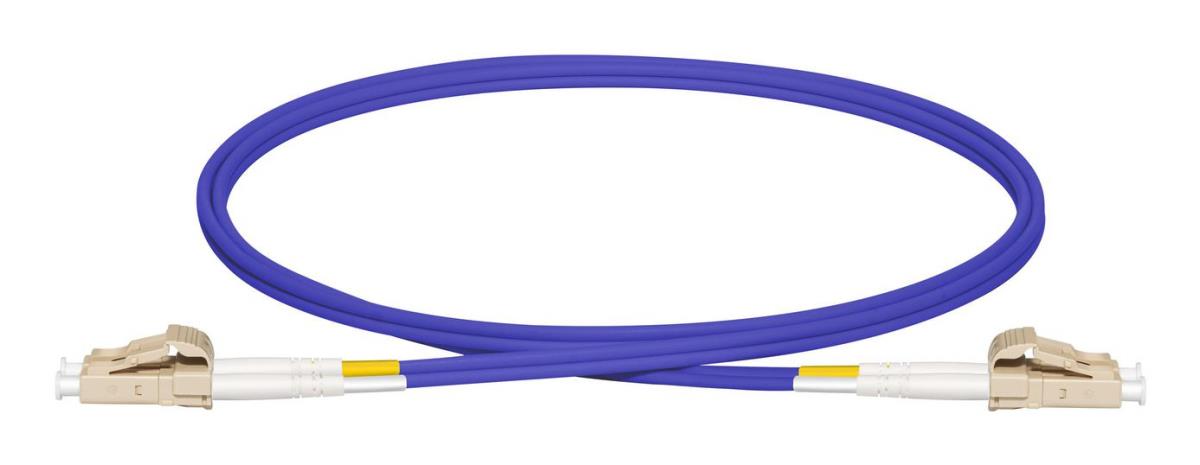

EU Product - LC-LC Muli mode Duplex OM4
Introduction
OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Ethernet interface type | 40 Gigabit Ethernet |
| Product colour | Purple |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | EIA, TIA, IEC |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | EIA, TIA, IEC |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 3 g |
| Cable length | 3 m |
| Package width | 200 mm |
| Package depth | 80 mm |
| Package height | 200 mm |
| Package weight | 4 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 80 mm |
| Package height | 200 mm |
| Package weight | 4 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Connector(s) | LC - LC |
| Doesn't contain | Halogen |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Connector(s) | LC - LC |
