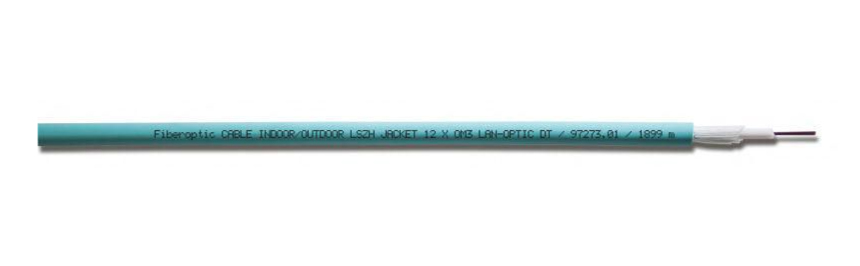

EU Product - Fire cle 12 x OM3 LSZH
Introduction
Mainly used in data installations as backbone cabling. This cable is suitable for indoor and outdoor installations. For outdoor installations conduit have to be used. Designed for 10 Gigabit.
Specifications
| Features | |
|---|---|
| Compressive strength | 1500 |
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | No |
| Connector 2 | No |
| Cable length | 100 m |
| Core diameter | 50 µm |
| Wavelengths supported | 850 nm |
| Product colour | Aqua colour |
| Bending radius | 14 cm |
| Operating temperature (T-T) | -30 - 70 °C |
| Certification | UNE-EN 50266 (IEC 60332-3), UNE-EN 50267 (IEC 60754-1), UNE-EN 50268 (IEC 61034- 1/2), EN 187000, CB 60794 |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | UNE-EN 50266 (IEC 60332-3), UNE-EN 50267 (IEC 60754-1), UNE-EN 50268 (IEC 61034- 1/2), EN 187000, CB 60794 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Weight & dimensions | |
| Cable weight | 53 kg/km |
| Bending radius | 14 cm |
| Cable diameter | 7 mm |
| Weight | 3.9 kg |
| Cable length | 100 m |
| Package weight | 4 kg |
| Packaging data | |
| Package weight | 4 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | No |
| Connector 2 | No |
| Cable length | 100 m |
| Core diameter | 50 µm |
| Tube diameter | 3.2 mm |
| Number of optical fibres | 12 |
| Doesn't contain | Halogen |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Tube diameter | 3.2 mm |
| Number of optical fibres | 12 |
