10M MTP TO LC BREAKOUT CABLE
Introduction
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+

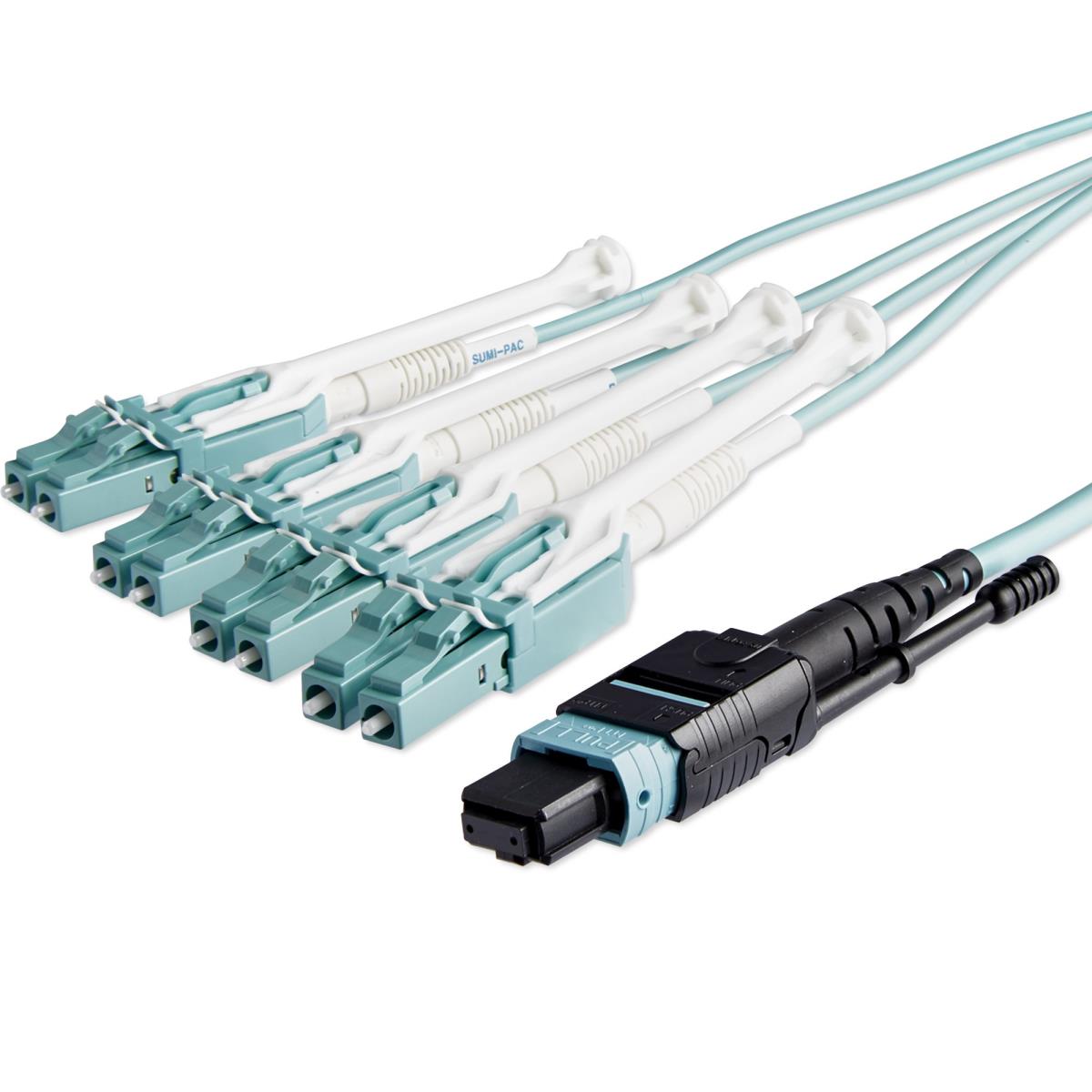

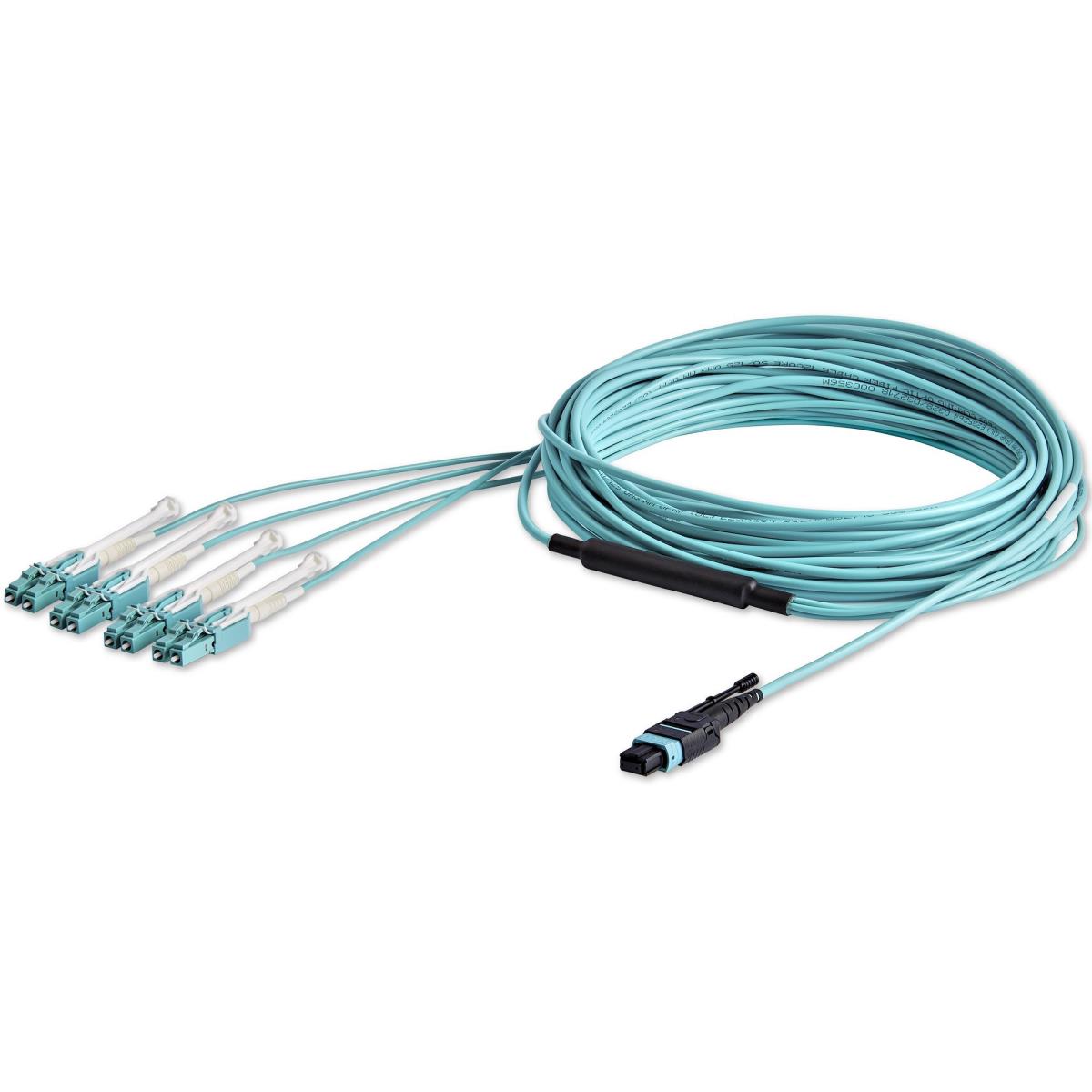

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

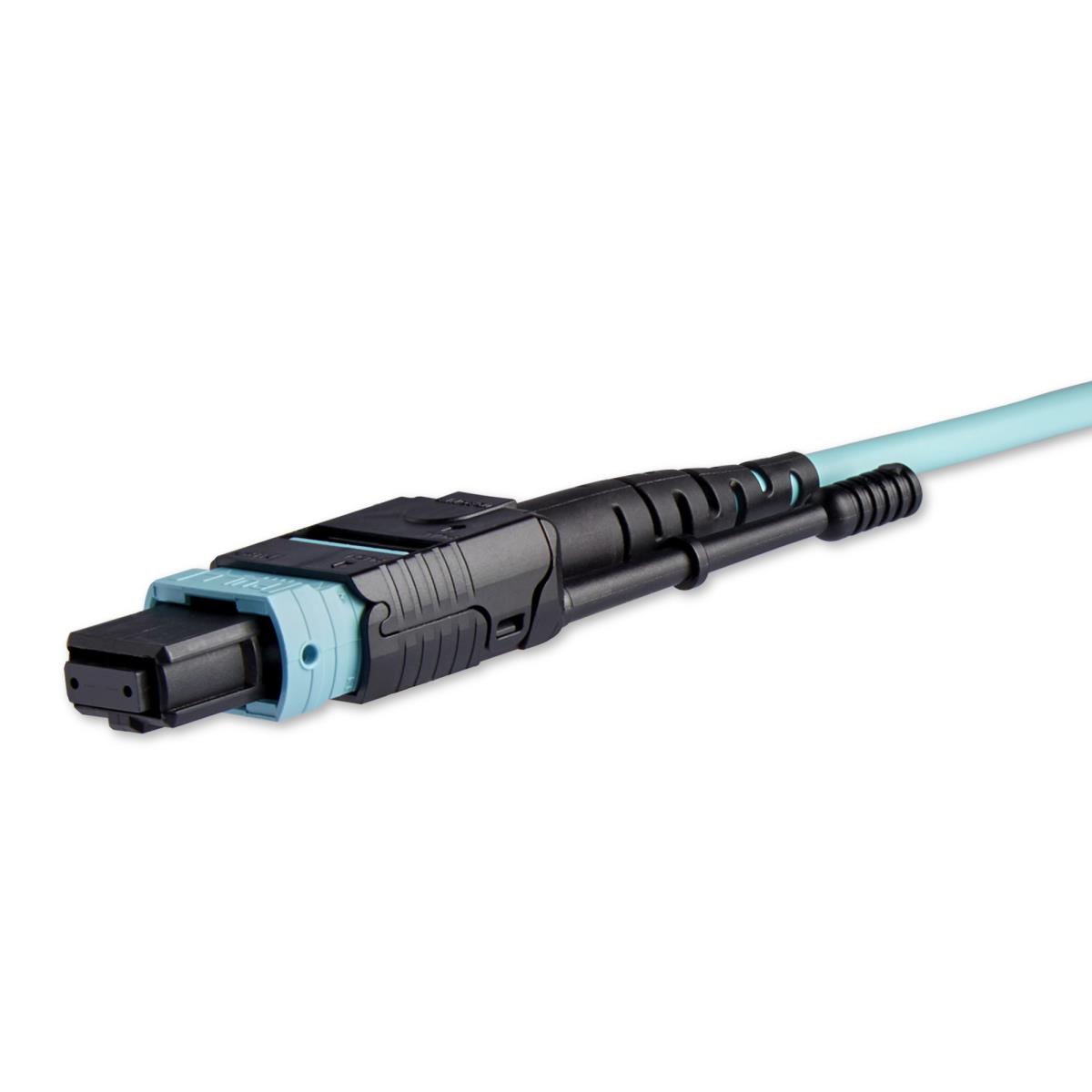

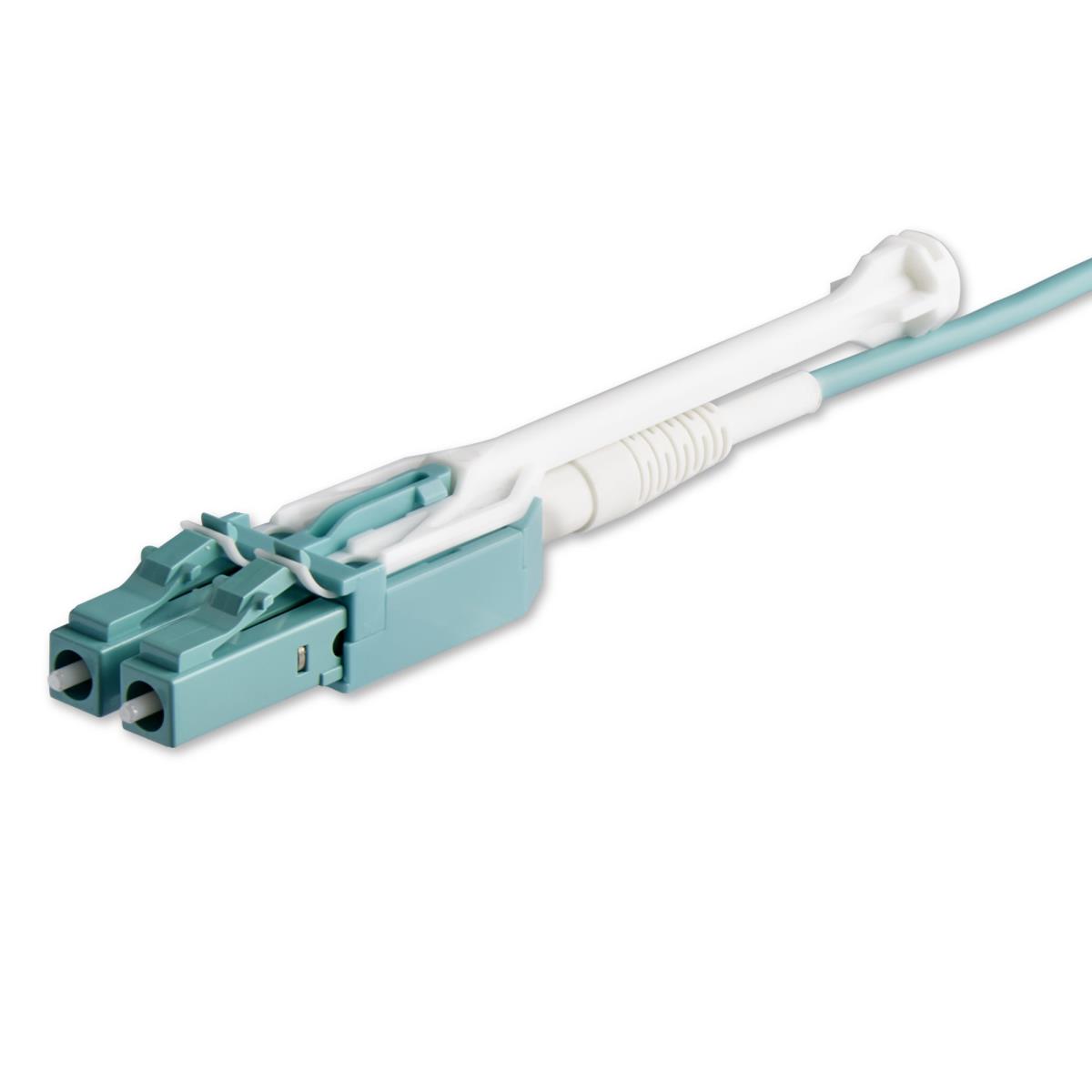

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.

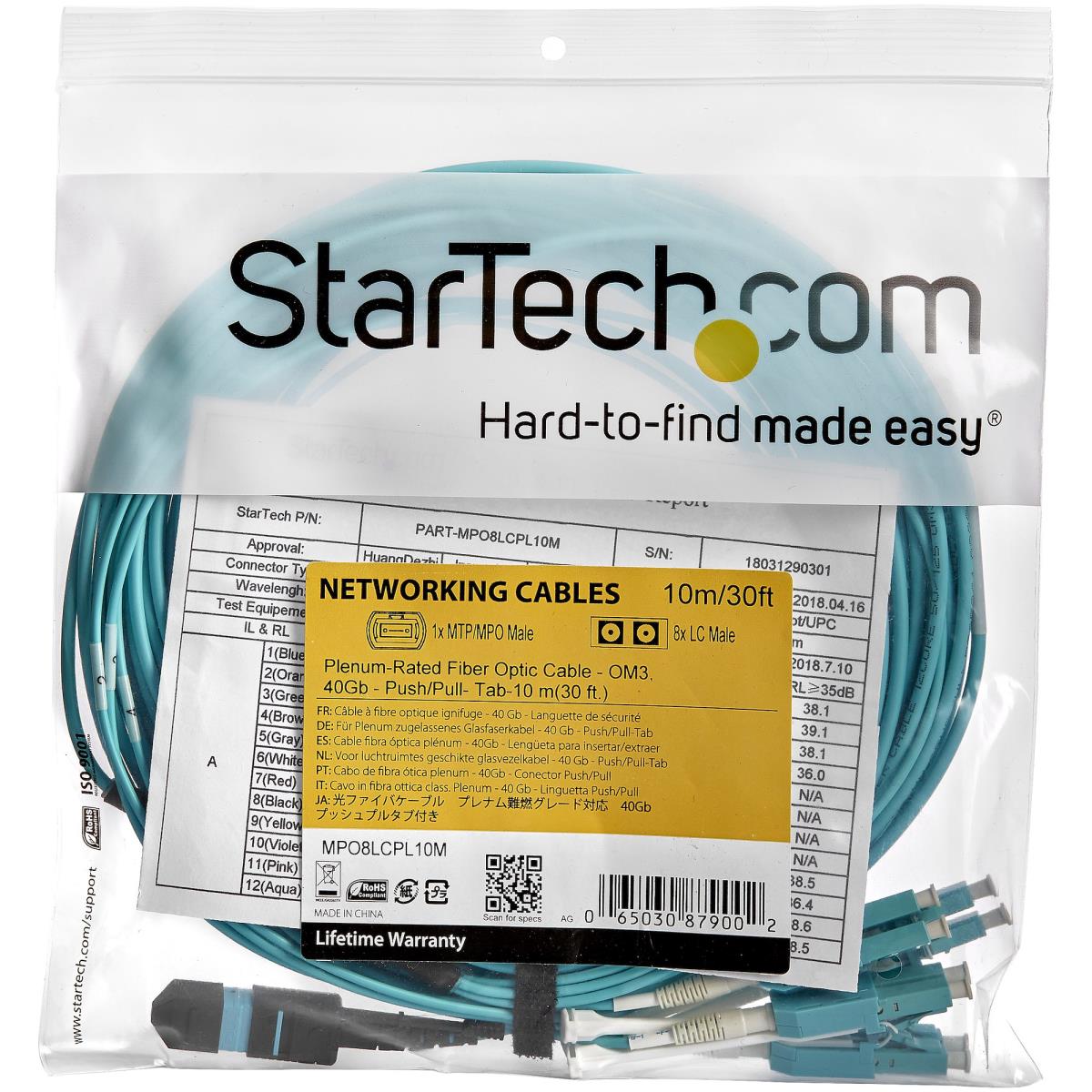

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 40 Gbit/s |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 991.4 g |
| Cable length | 10 m |
| Package width | 199 mm |
| Package depth | 164 mm |
| Package height | 24 mm |
| Package weight | 114 g |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 164 mm |
| Package height | 24 mm |
| Package weight | 114 g |
| Technical details | |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 40 Gbit/s |
| Logistics data | |
| Master (outer) case width | 198 mm |
| Master (outer) case length | 386 mm |
| Master (outer) case height | 228 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85447000 |
