MTP to LC Breakout Cable - 10 ft / 3m - OM3 Multimode - 40Gb - Pull Tab - Plenum - MPO / MTP Connector - Fiber Optic Cable (MPO8LCPL3M) - Breakout cable - MTP/MPO multi-mode (F) push/pull to LC multi-mode (M) push/pull - 3 m - 3 m - fibre optic - 50 / 125
Introduction
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+

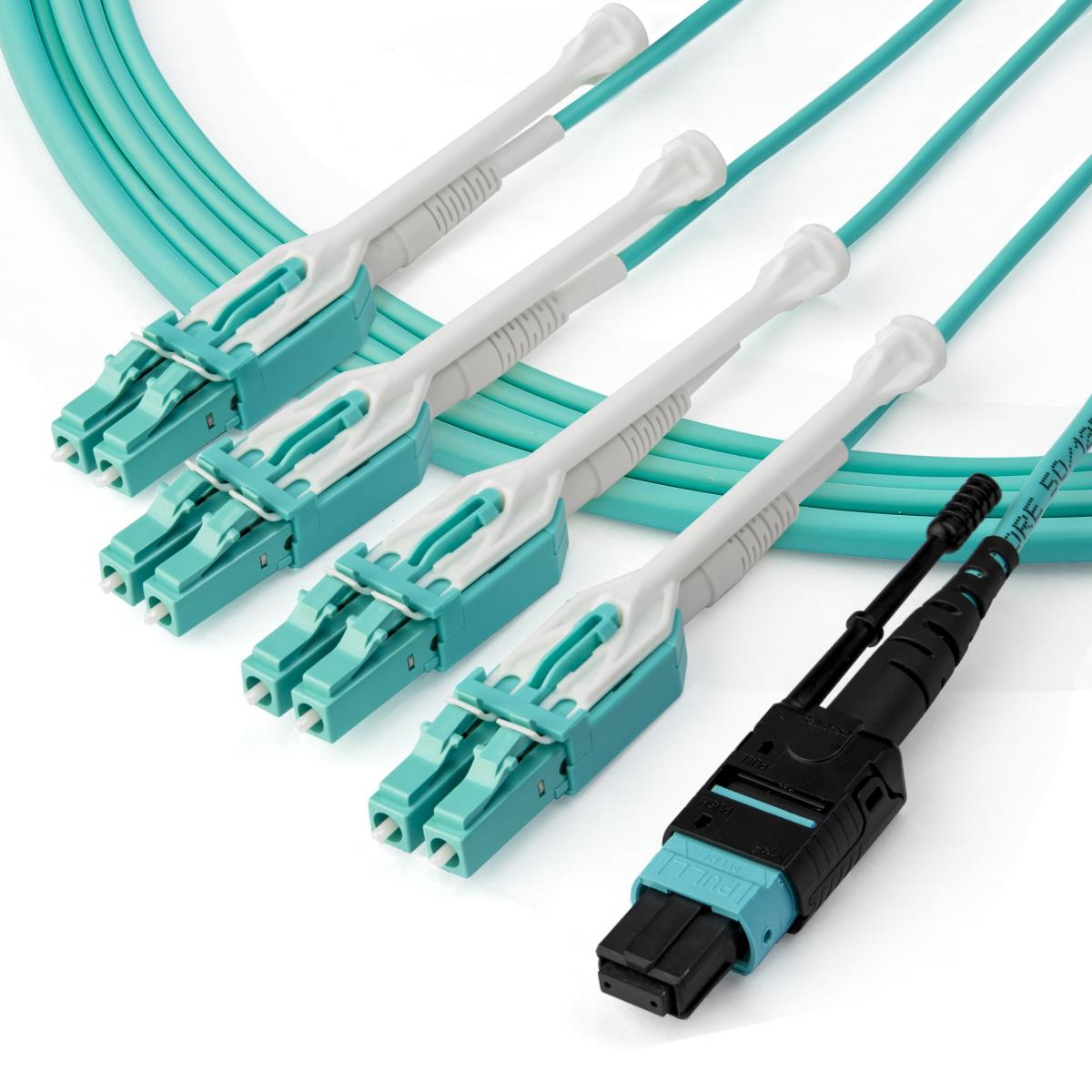

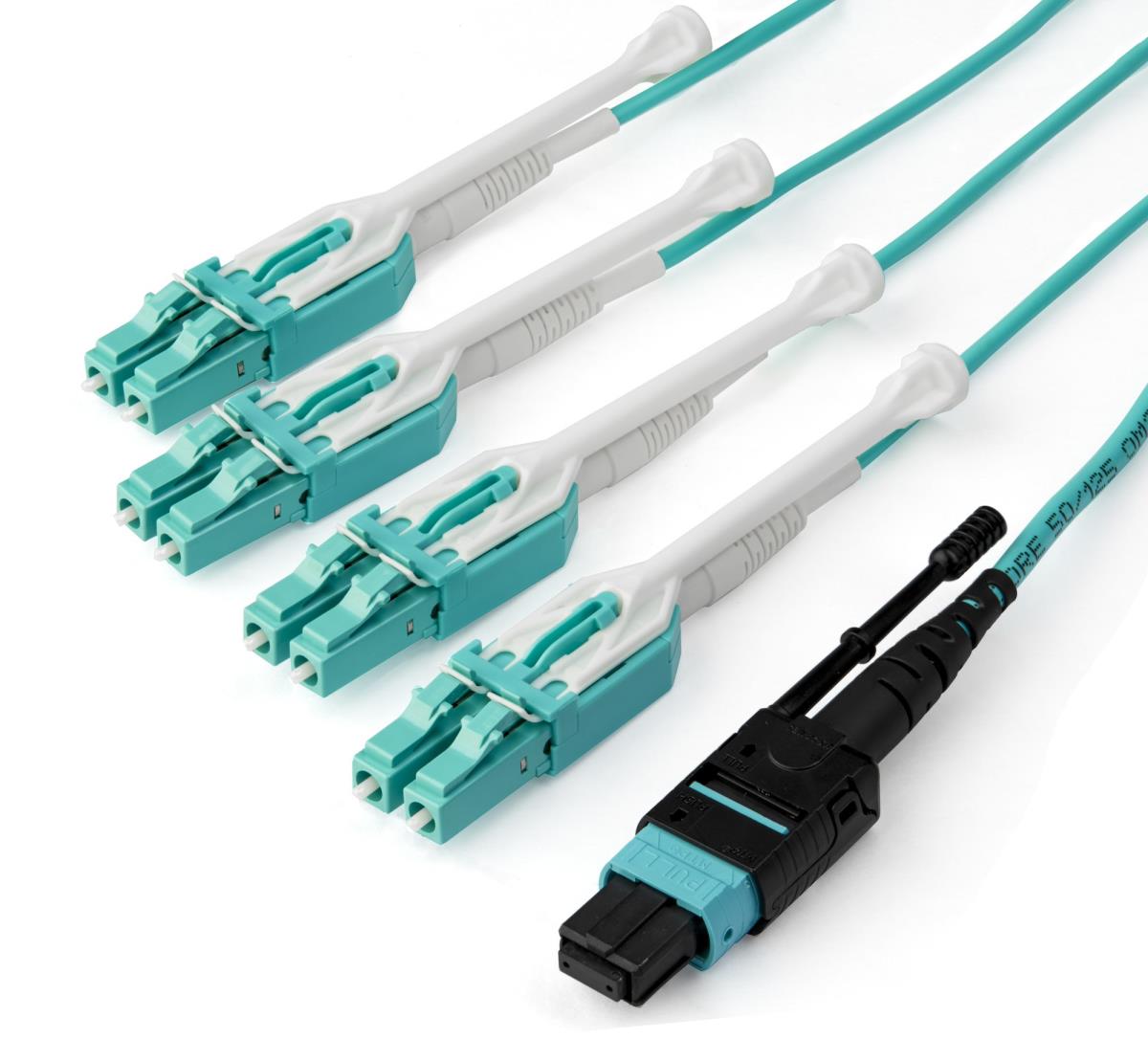

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

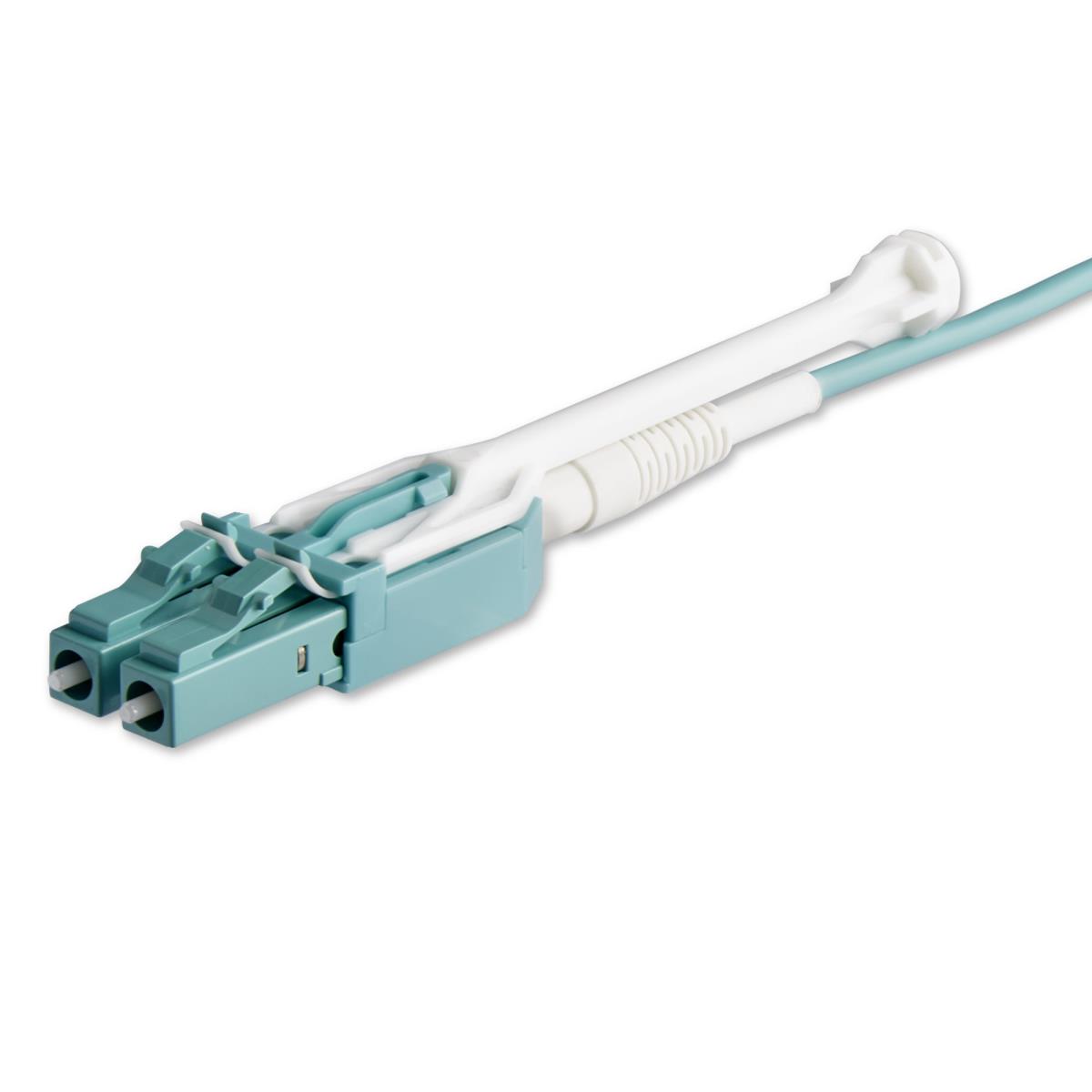

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

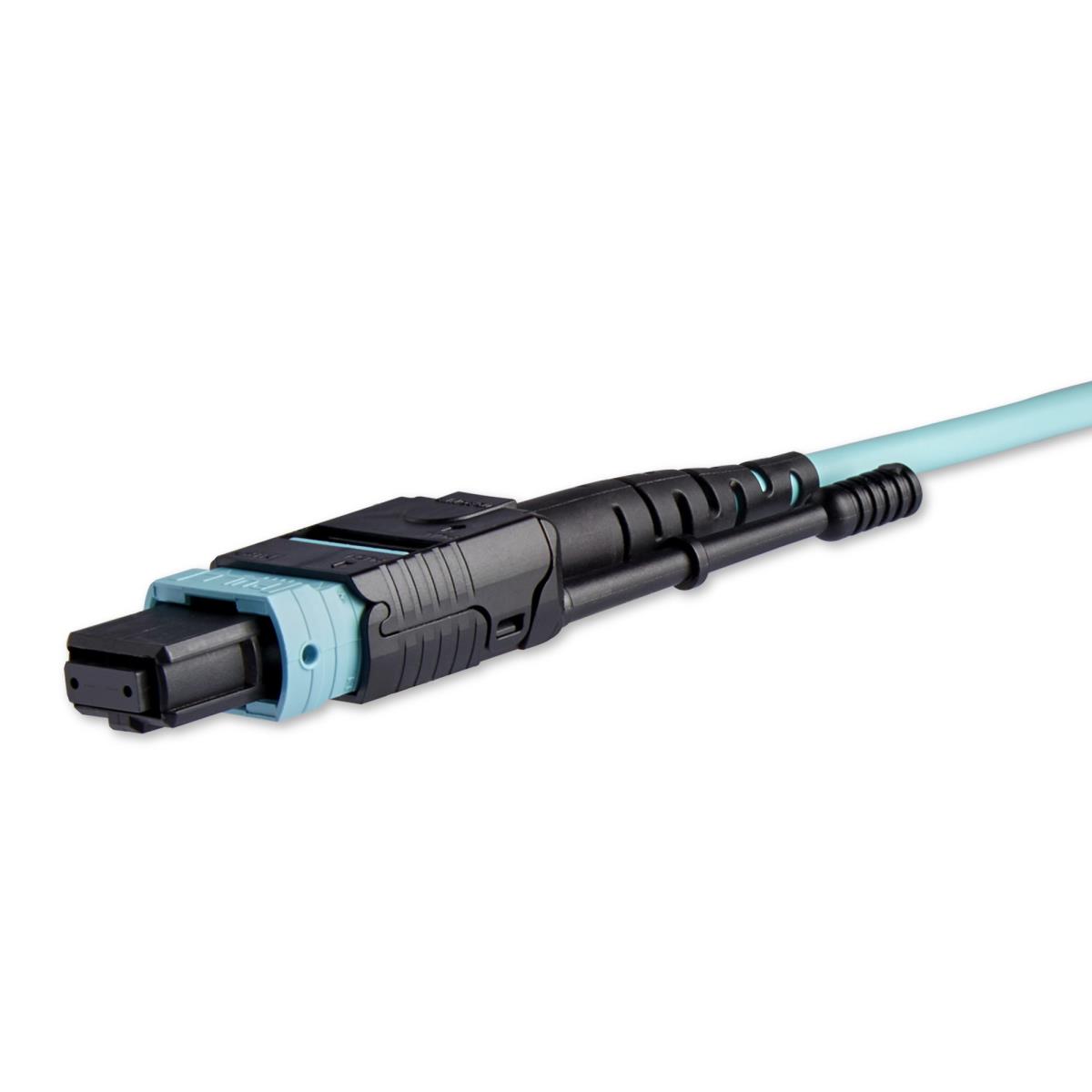

The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

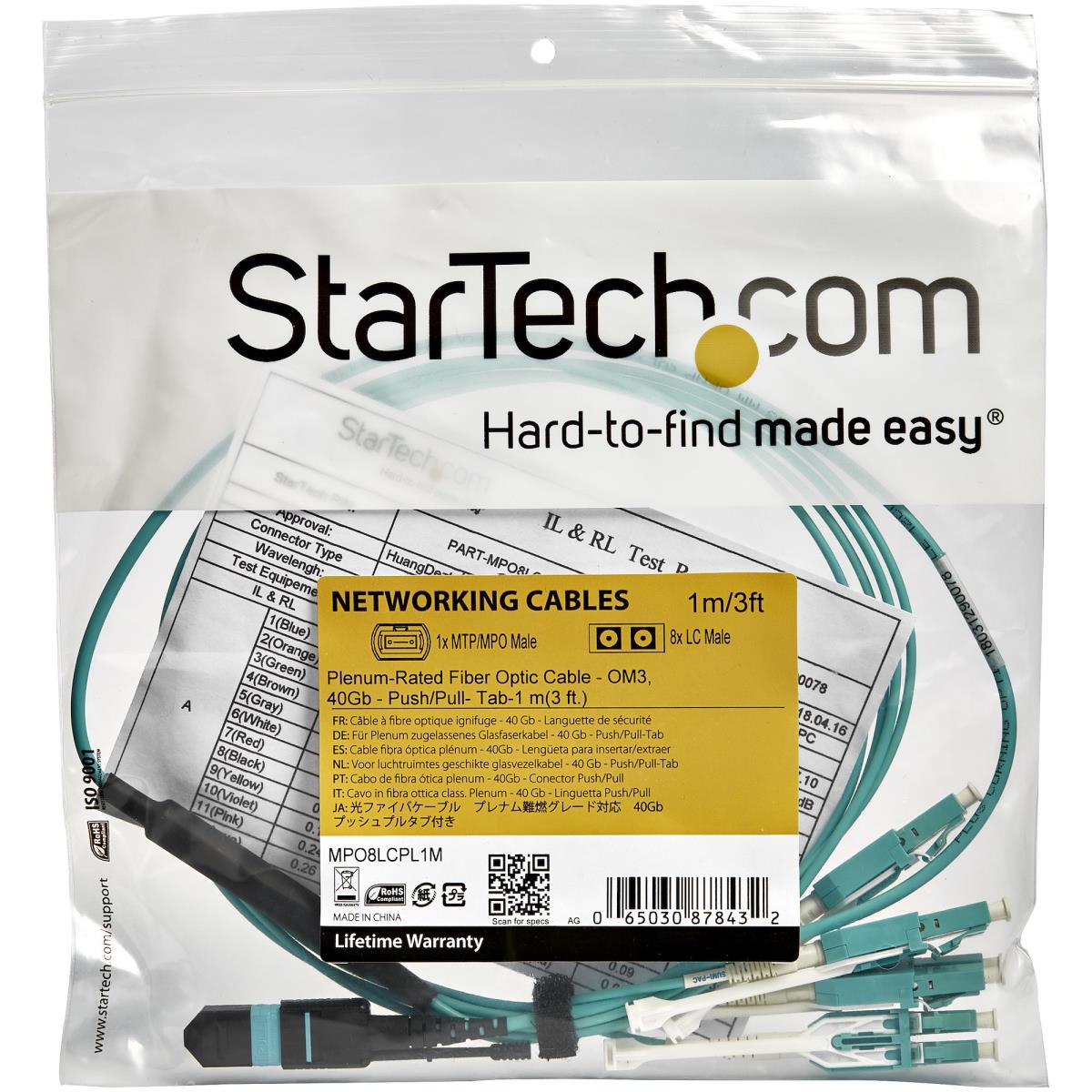

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Cable length | 3 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 40 Gbit/s |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 55 g |
| Cable length | 3 m |
| Package width | 199 mm |
| Package depth | 154 mm |
| Package height | 21 mm |
| Package weight | 62 g |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 154 mm |
| Package height | 21 mm |
| Package weight | 62 g |
| Technical details | |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Cable length | 3 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 40 Gbit/s |
| Logistics data | |
| Master (outer) case width | 200 mm |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 238 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 85447000 |
