Part No:N820-03M
Stock:3 In Stock
EAN Code:0037332124869

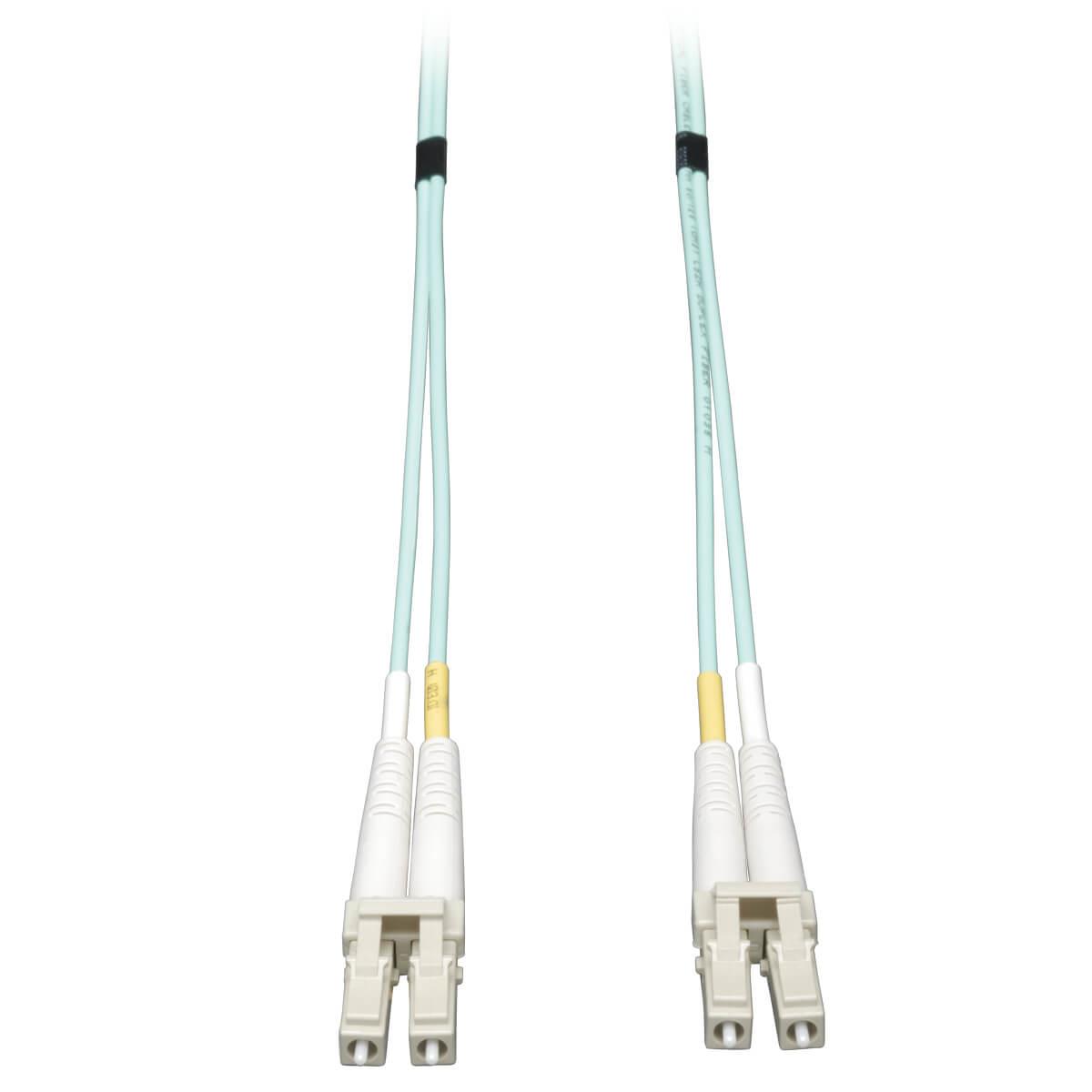

3 Meter ( 10ft ) LC/LC, OM3 Rated
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Technical details | |
---|---|
Jacket material | Low smoke zero halogen (LSZH) |
Fiber mode structure | Multi-mode |
Connector 1 | LC |
Connector 2 | LC |
Cable type | OFNR |
Cable length | 3 m |
Full duplex | Yes |
Core diameter | 50 µm |
Cladding diameter | 125 µm |
Insertion loss | 0.2 dB |
Sustainability certificates | RoHS |
Master (outer) case GTIN (EAN/UPC) | 10037332124866 |
Features | |
Fibre optic type | OM3 |
Jacket material | Low smoke zero halogen (LSZH) |
Fiber mode structure | Multi-mode |
Connector 1 | LC |
Connector 2 | LC |
Cable type | OFNR |
Cable length | 3 m |
Full duplex | Yes |
Core diameter | 50 µm |
Cladding diameter | 125 µm |
Operating temperature (T-T) | -20 - 60 °C |
Storage temperature (T-T) | -20 - 60 °C |
Insertion loss | 0.2 dB |
Data transfer rate | 10 Gbit/s |
Country of origin | China |
Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
Wavelengths supported | 850 nm |
Harmonized System (HS) code | 85447000 |
Product colour | Blue, White, Yellow |
Connector 2 gender | Male |
Connector 1 gender | Male |
Data transmission | |
Data transfer rate | 10 Gbit/s |
Operational conditions | |
Operating temperature (T-T) | -20 - 60 °C |
Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions | |
Cable length | 3 m |
Package width | 177.8 mm |
Package depth | 12.7 mm |
Package height | 228.6 mm |
Package weight | 30 g |
Packaging data | |
Package width | 177.8 mm |
Package depth | 12.7 mm |
Package height | 228.6 mm |
Package weight | 30 g |
Logistics data | |
Master (outer) case width | 149.9 mm |
Master (outer) case length | 101.6 mm |
Master (outer) case height | 190.5 mm |
Master (outer) case gross weight | 390 g |
Products per master (outer) case | 10 pc(s) |
Harmonized System (HS) code | 85447000 |
