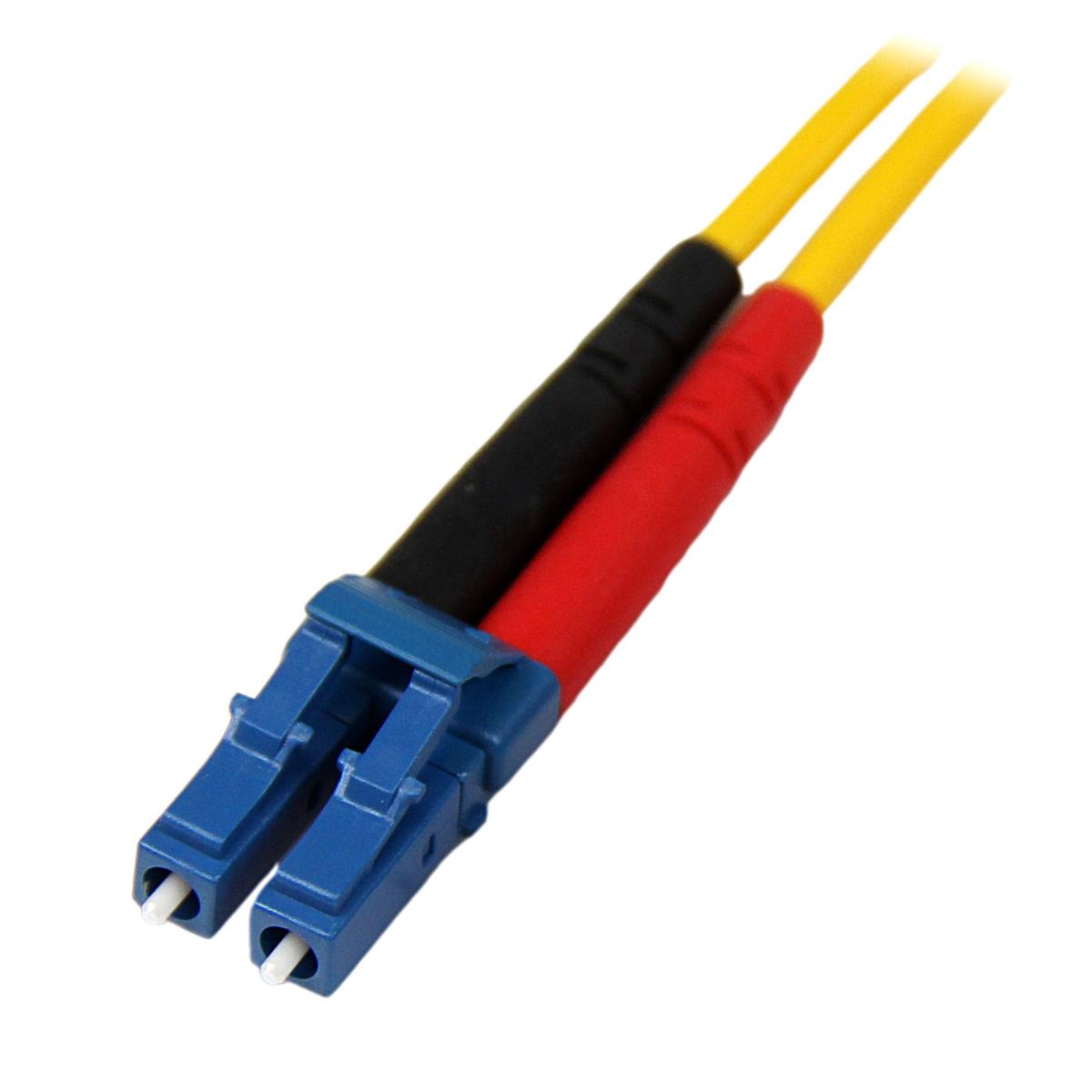

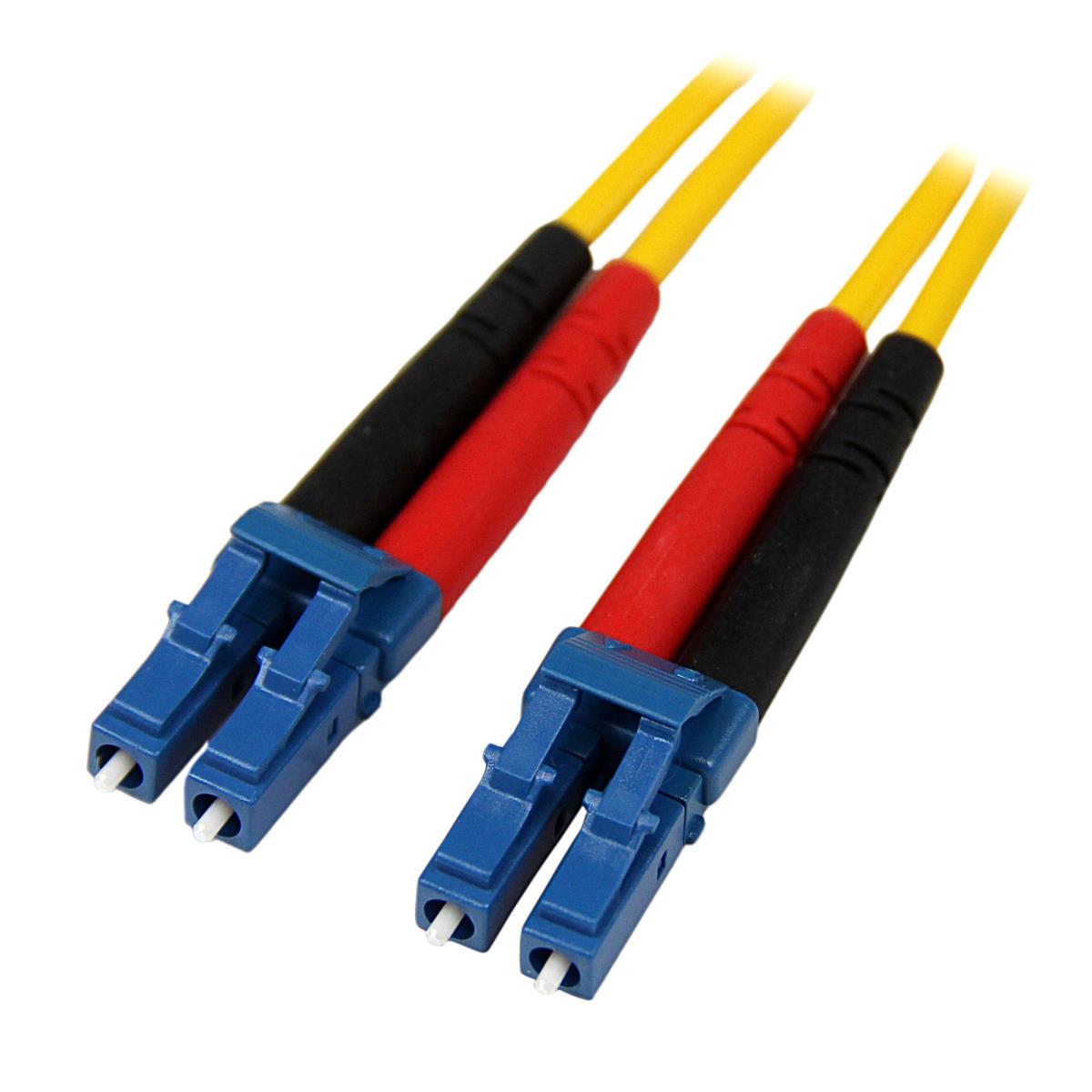

10M FIBER OPTIC PATCH CORD LC
Introduction
Connect fiber network devices for high-speed transfers with LSZH rated cable
The SMFIBLCLC10 10m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
Specifications
| Features | |
|---|---|
| Fibre optic type | OS1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Weight | 140 g |
| Cable length | 10 m |
| Package width | 197 mm |
| Package depth | 168 mm |
| Package height | 34 mm |
| Package weight | 149 g |
| Packaging data | |
| Package width | 197 mm |
| Package depth | 168 mm |
| Package height | 34 mm |
| Package weight | 149 g |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | RoHS, CE |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Logistics data | |
| Master (outer) case width | 398 mm |
| Master (outer) case length | 408 mm |
| Master (outer) case height | 446 mm |
| Products per master (outer) case | 80 pc(s) |
| Harmonized System (HS) code | 85447000 |
