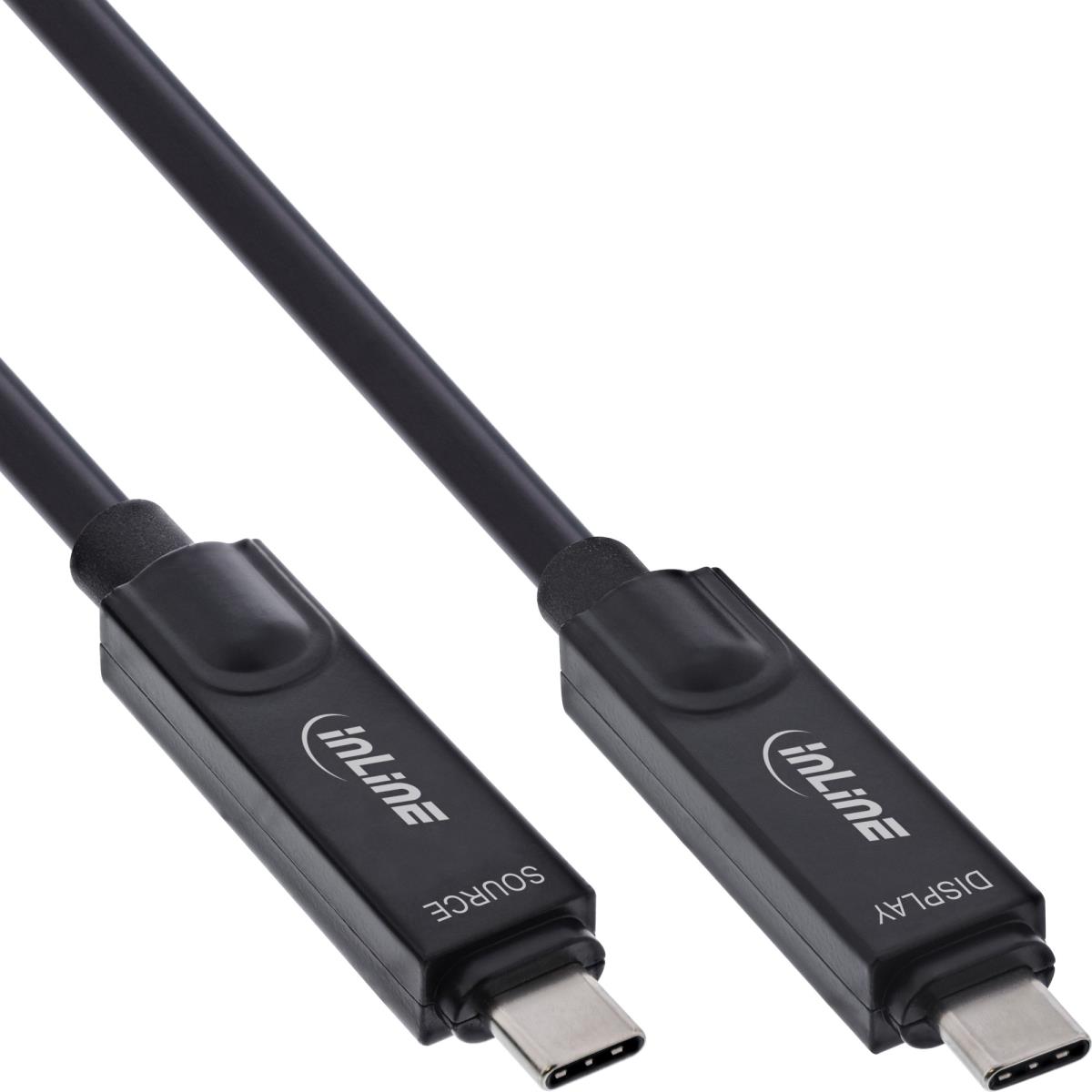

EU Product - - USB 3.2 Gen.2 AOC Kabel, USB-C Stecker/Stecker, 8K60Hz, 60W, schwarz, 7,5m
Introduction
Maximum transmission quality up to 8K@60Hz:Supports modern video formats such as 8K@60Hz or 4K@120Hz – perfect for professional AV applications with the highest demands.
Adaptive 5-fibre structure:One of the OM3 fibres is adaptively usable (DP or USB) – for flexible switching between pure video transmission or video with USB data channel.
Active optical hybrid technology (AOC):Combination of copper and fibre optic cables for loss-free transmission over long distances without an external power supply or repeater.
DisplayPort Alt Mode via USB-C with HDR support:Compatible with DP Alt Mode (4-lane/2-lane) – including HDR10, HDCP 2.2, EDID and 3D support.
Robust construction for professional applications:Metal housing, flexible cable sheath, OM3 fibres and copper conductors for durability in AV, industrial or test environments.
The InLine® USB 3.2 Gen.2 AOC cable from the 3579xI series is the high-end solution for demanding AV, data and docking applications with variable use. The unique adaptive fibre architecture allows either the use of all four lanes for DisplayPort 2.1 or a combination of 2x DP + 2x USB 3.2 (10 Gbps), depending on requirements. This enables resolutions of up to 8K@60Hz or 4K@120Hz, or alternatively 4K@60Hz with simultaneous high-speed data transfer. Active optical transmission (AOC) also allows longer cable lengths to be used without any loss of quality or external power supply.
Support for HDR10, HDCP 2.2, EDID, 3D and USB Power Delivery (up to 60W) round off the profile – ideal for modern AV systems, high-resolution displays, docking solutions and technical test environments.
USB-C plug to USB-C plug
Supports DP Alt Mode (4-lane or 2-lane)
Supports HDR10, HDCP 2.2, EDID, 3D
Data transfer: up to 10 Gb/s (USB 3.2 in 2-lane mode), 480 Mb/s (USB 2.0 at full video utilisation)
Video resolution: up to 8K@ 60Hz or 4K@120Hz
Power delivery: up to 20 V / 3 A (60W)
Plug-and-play without external power supply
Cable type: 5x OM3 fibre (1 adaptive), 8x copper conductors
Bending radius: 30 mm
Operating temperature: 0–50 °C
Storage temperature: -20–70 °C
Metal housing
Specifications
| Features | |
|---|---|
| Country of origin | Taiwan |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 7.5 m |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Connector housing material | Metal |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 144 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
| DisplayPort version | 1.4 |
| 3D | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Output voltage | 20 V |
| Output current (max) | 3 A |
| Cable diameter | 5 mm |
| Weight | 486 g |
| Quantity per pack | 1 pc(s) |
| Power | |
| Output voltage | 20 V |
| Output current (max) | 3 A |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Cable length | 7.5 m |
| Width | 14 mm |
| Weight | 486 g |
| Height | 9 mm |
| Dimensions (WxDxH) | 14 x 75000 x 9 mm |
| Depth | 75000 mm |
| Bend radius (min) | 3 cm |
| Package width | 155 mm |
| Package depth | 175 mm |
| Package height | 55 mm |
| Package weight | 560 g |
| Package type | Box |
| Packaging data | |
| Package volume | 0 cm³ |
| Package width | 155 mm |
| Package depth | 175 mm |
| Package height | 55 mm |
| Package weight | 560 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Country of origin | Taiwan |
| Compliance certificates | CE, TÜV mark |
| Certificates | |
| Compliance certificates | CE, TÜV mark |
| Other features | |
| Package type | Box |
| Product colour | Black |
| Width | 14 mm |
| Height | 9 mm |
| Dimensions (WxDxH) | 14 x 75000 x 9 mm |
| Depth | 75000 mm |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Compliance certificates | CE, TÜV mark |
| Logistics data | |
| Country of origin | Taiwan |
| Package volume | 0 cm³ |
