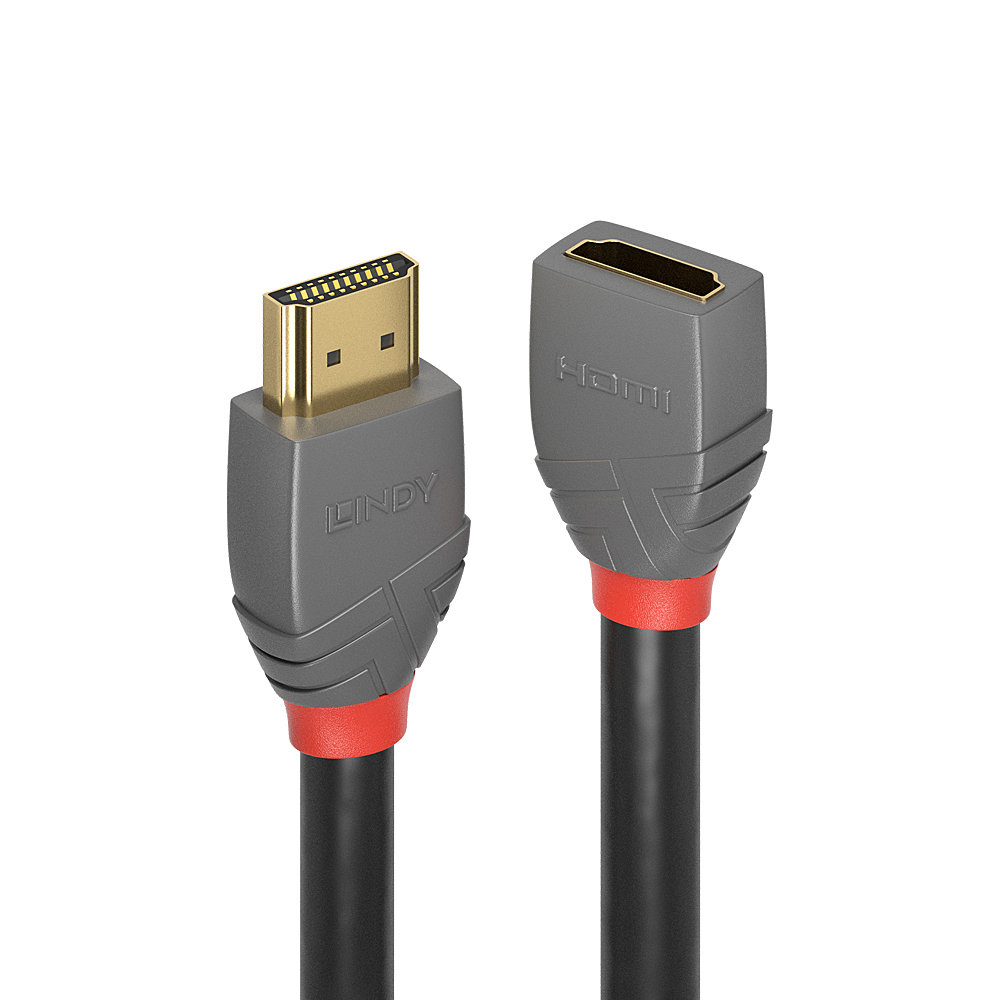

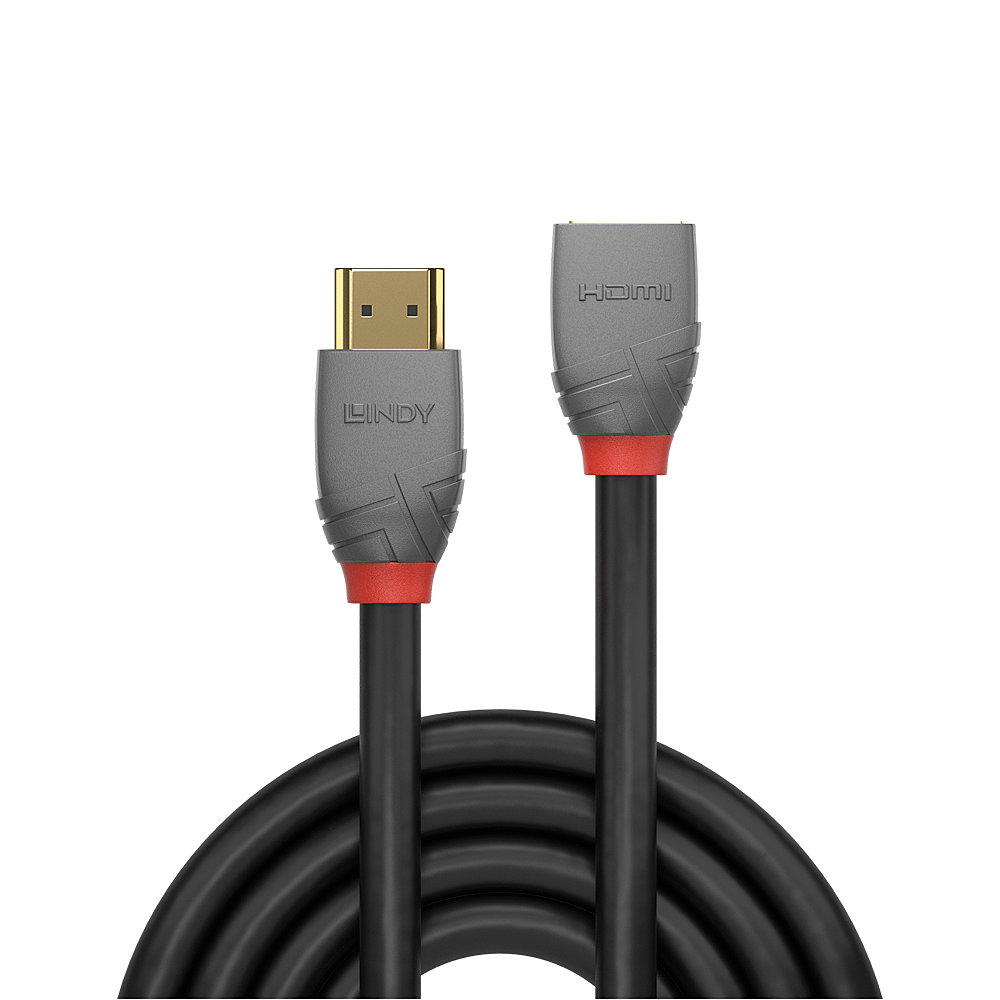

EU Product - 3m High Speed HDMI Exension
Introduction
Superior performance and design High Speed HDMI 2.0 cable
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant bare copper 28AWG conductors
HDMI 2.0 compliant, 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 28AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 18Gbps bandwidth capacity in cable lengths from 0.5m up to 3m.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 3 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| AWG wire size | 28 |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
