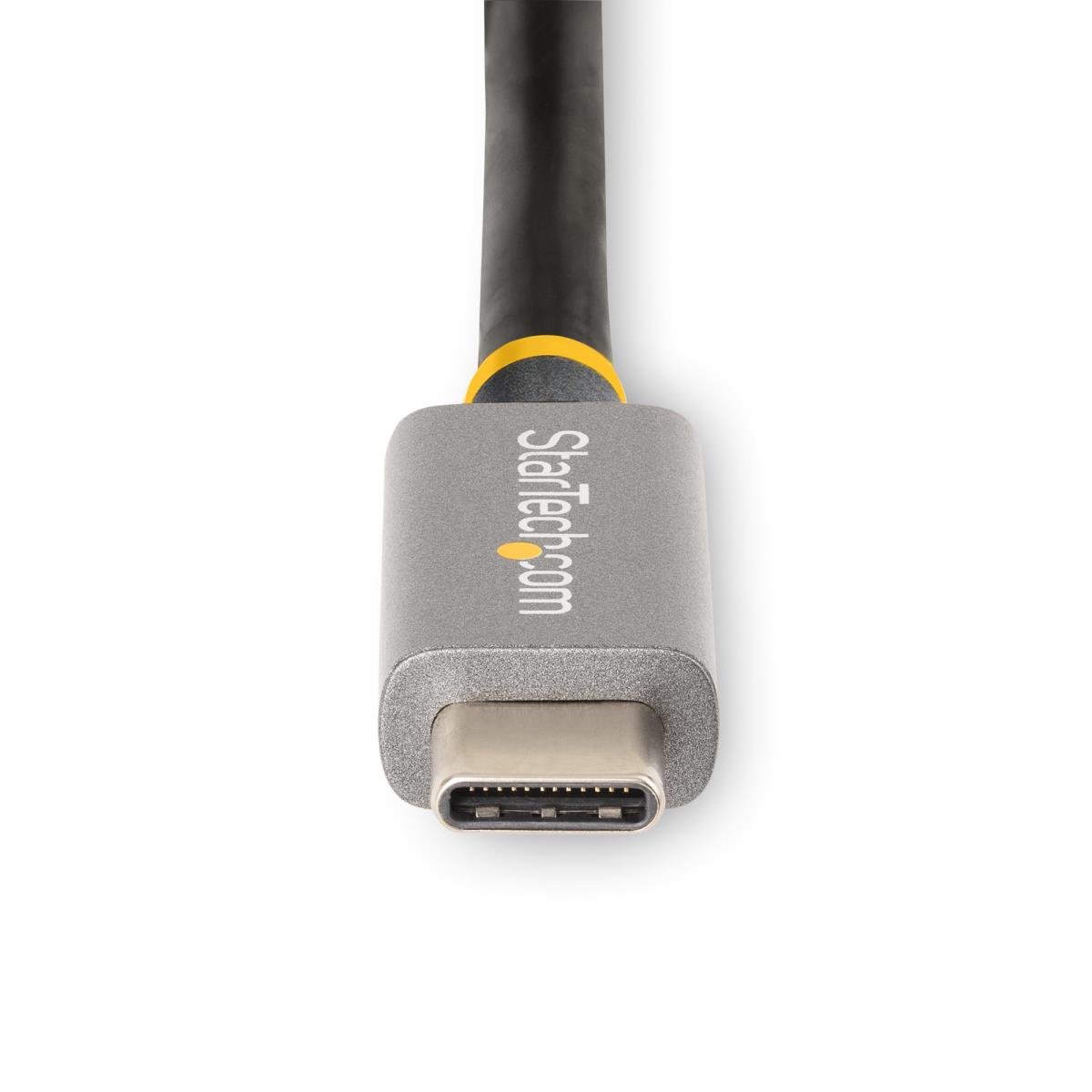

3FT USB4 CABLE USB-IF CERTIFIED
Introduction
Connect to USB4-enabled devices, using this USB-IF certified USB-C cable

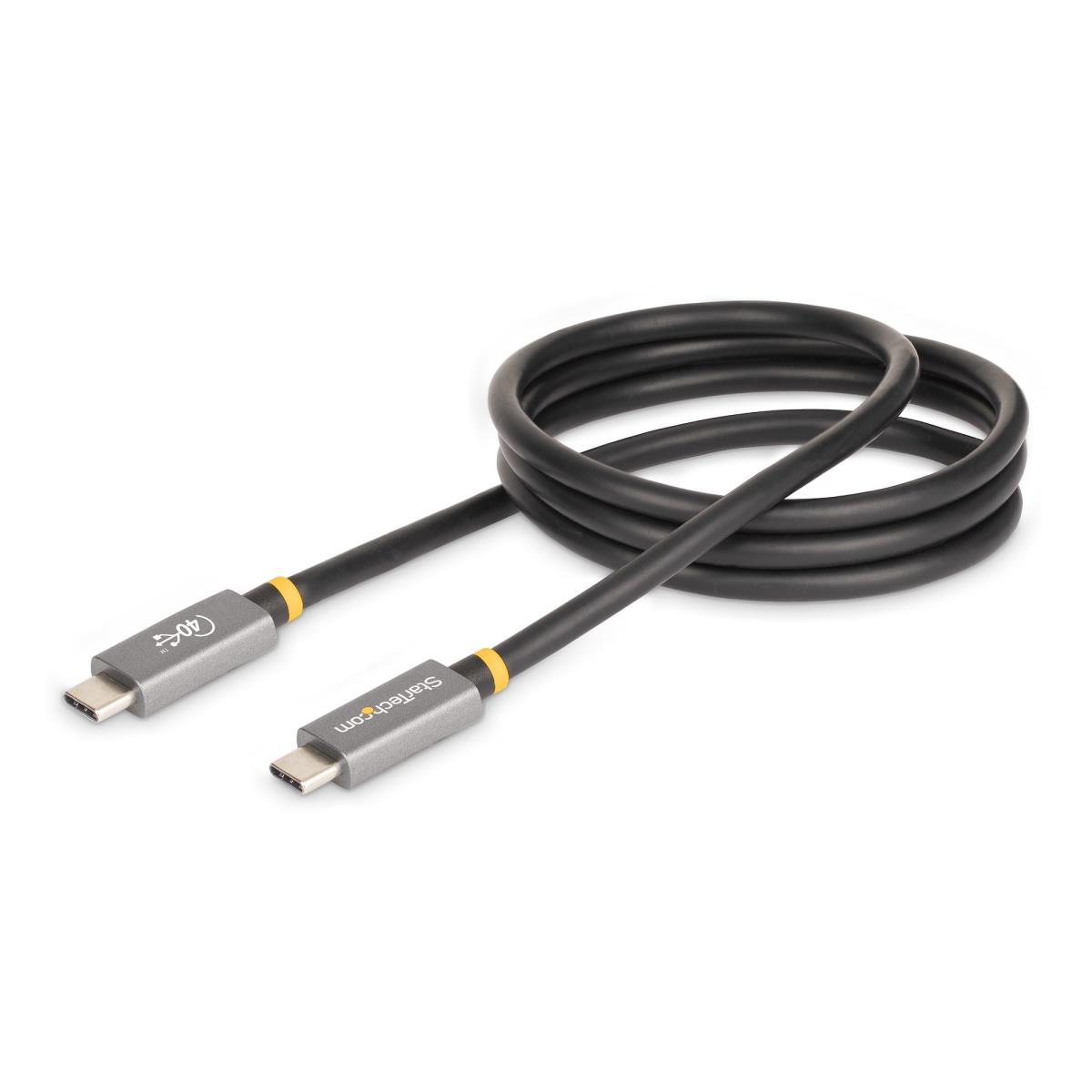

This 3ft (1m) USB4 Cable connects to USB Type-C® (USB 3.2), Thunderbolt™ 4/3, and PCIe-enabled devices, delivering up to 40Gbps, 4K/8K video, and 100W charging.

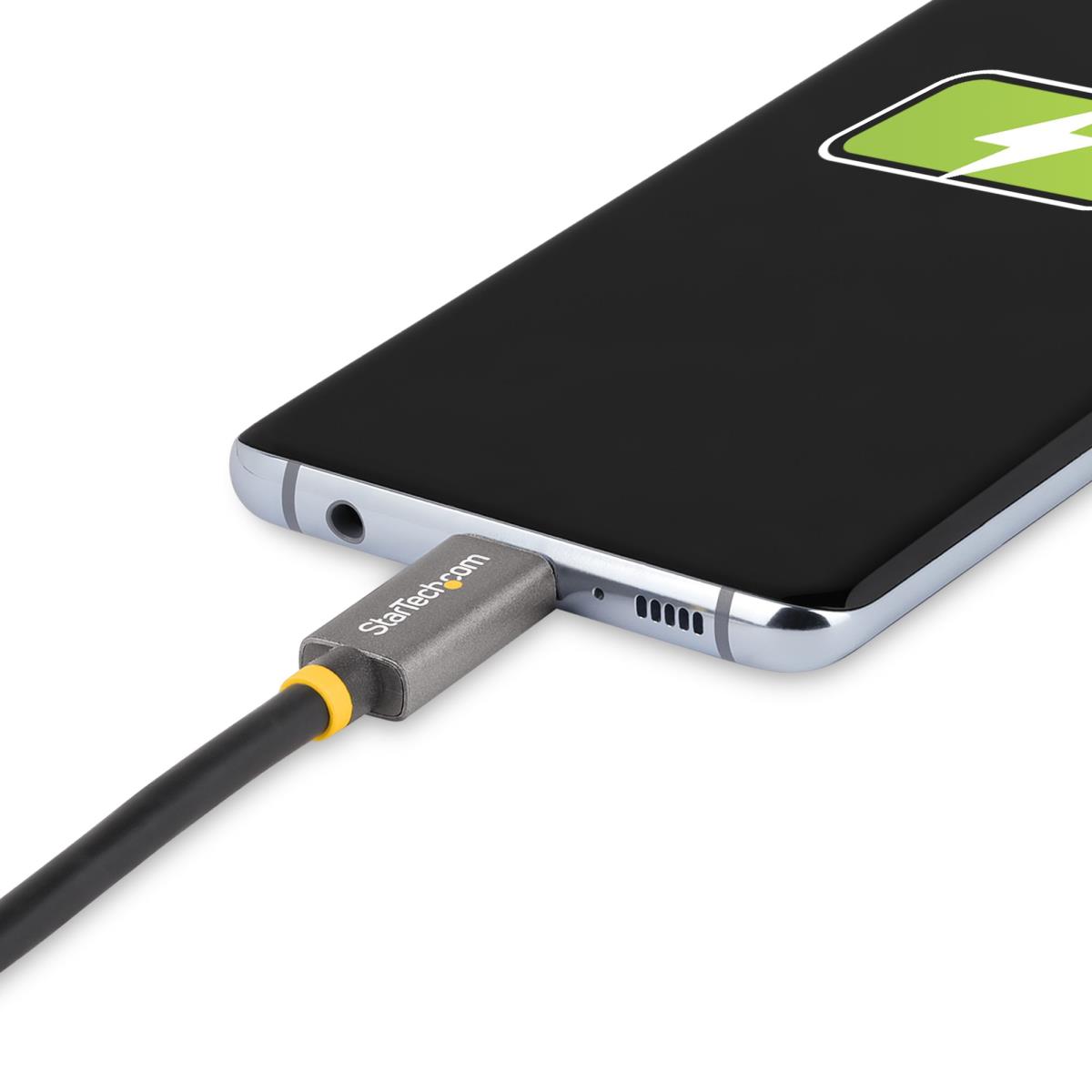

Establish Fast and Stable Power/Data Connections

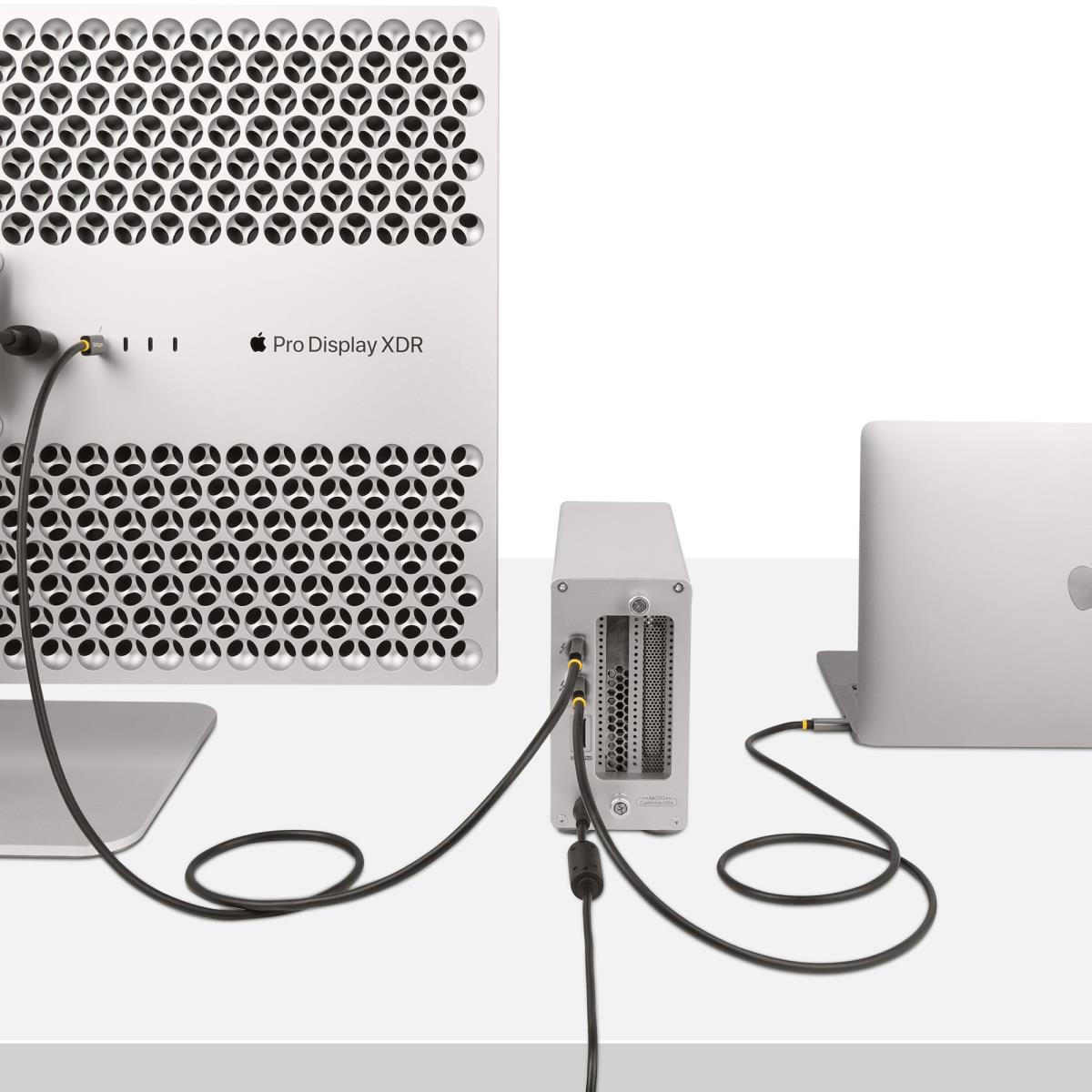

This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and up to 100W PD output. It is ideal for 40Gbps data transfer to external USB-C-enabled external storage devices or as a single-cable connection from a USB-C dock to a laptop.
This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensures a reliable, high-quality cable for USB-C devices.

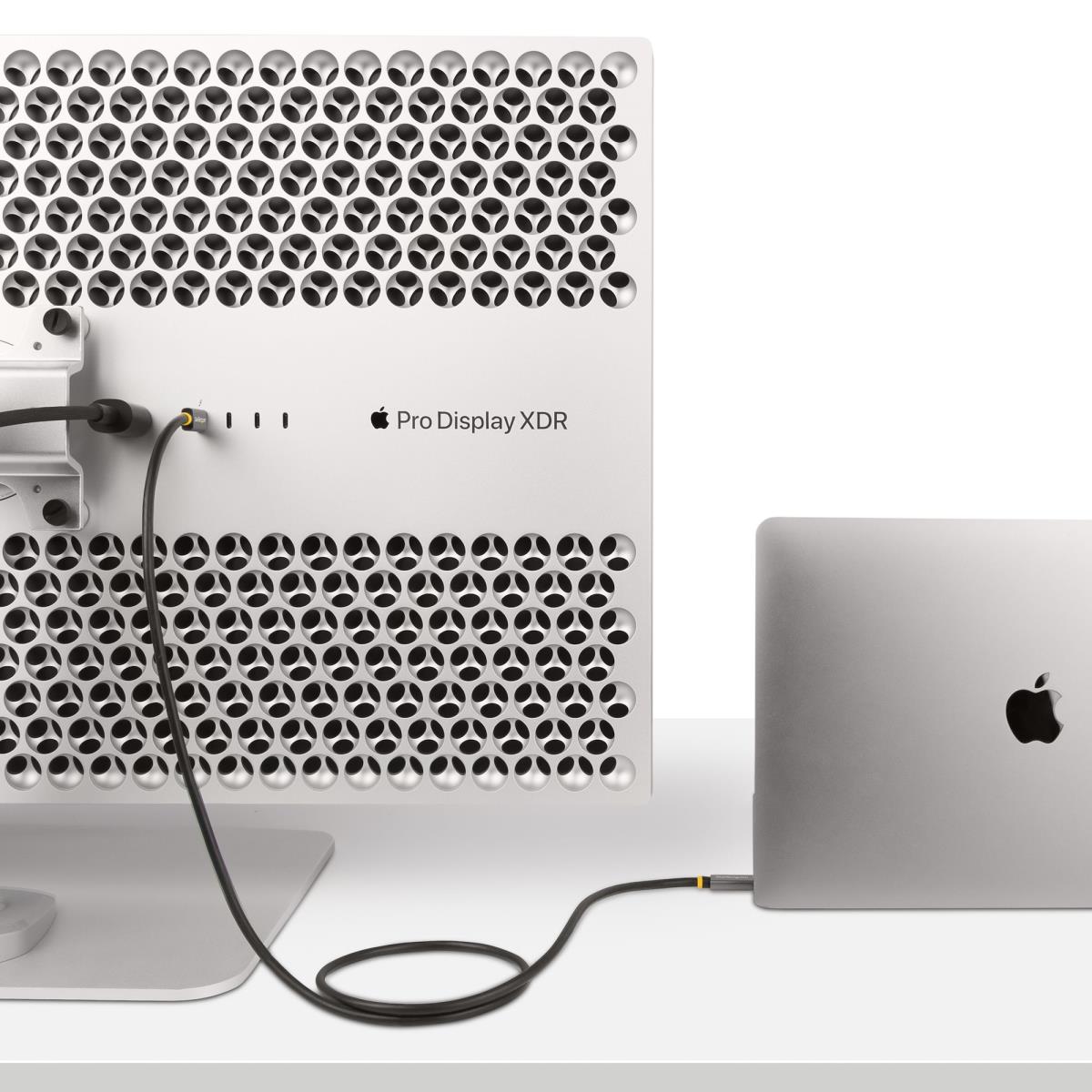

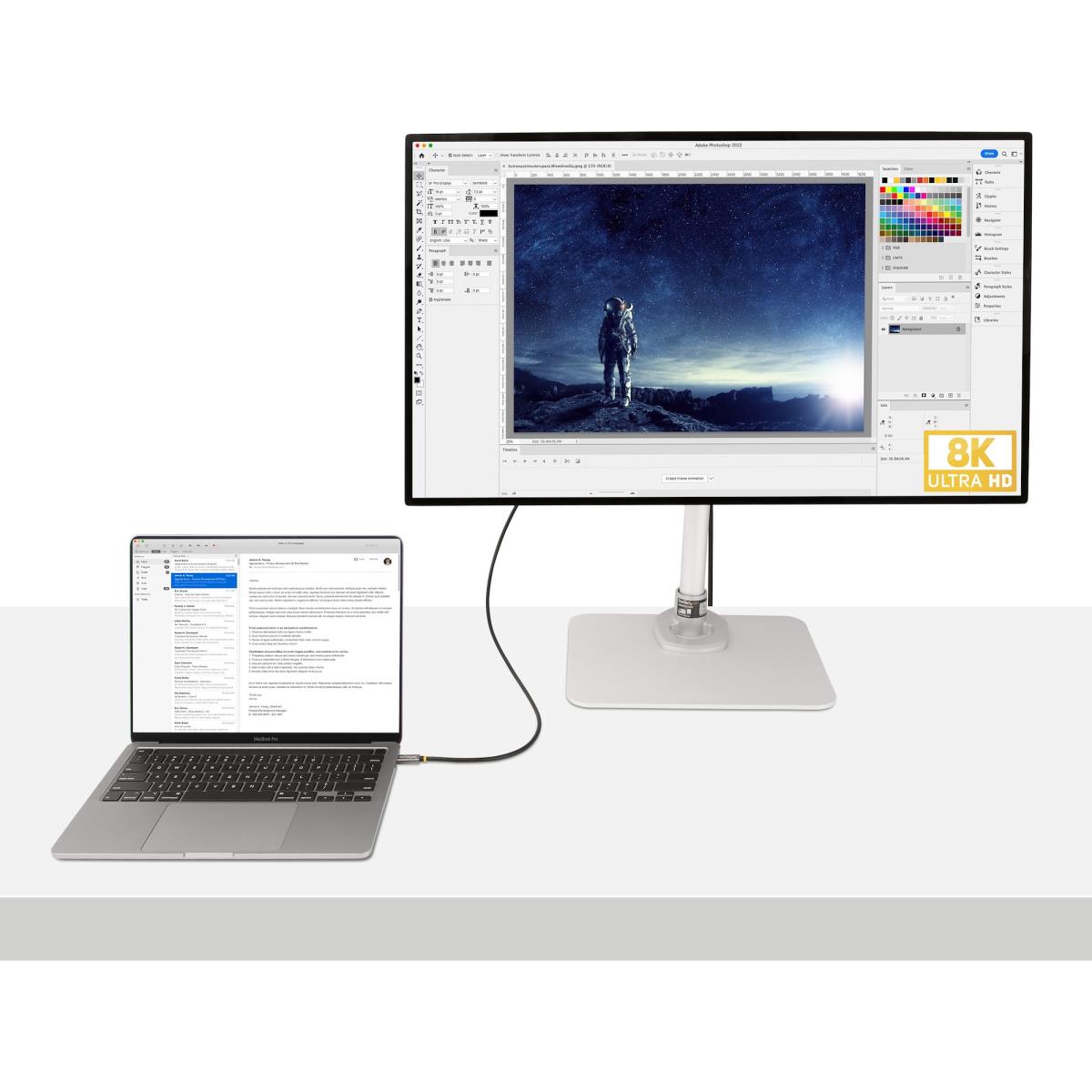

Experience 8K Video with DisplayPort 2.1 Alt Mode
The USB4 cable supports up to 8K 120Hz or 4K 240Hz video over DisplayPort 2.1 Alt Mode with DSC, HDR, and HBR3, and is compatible with dual 4K 60Hz and lower resolutions.

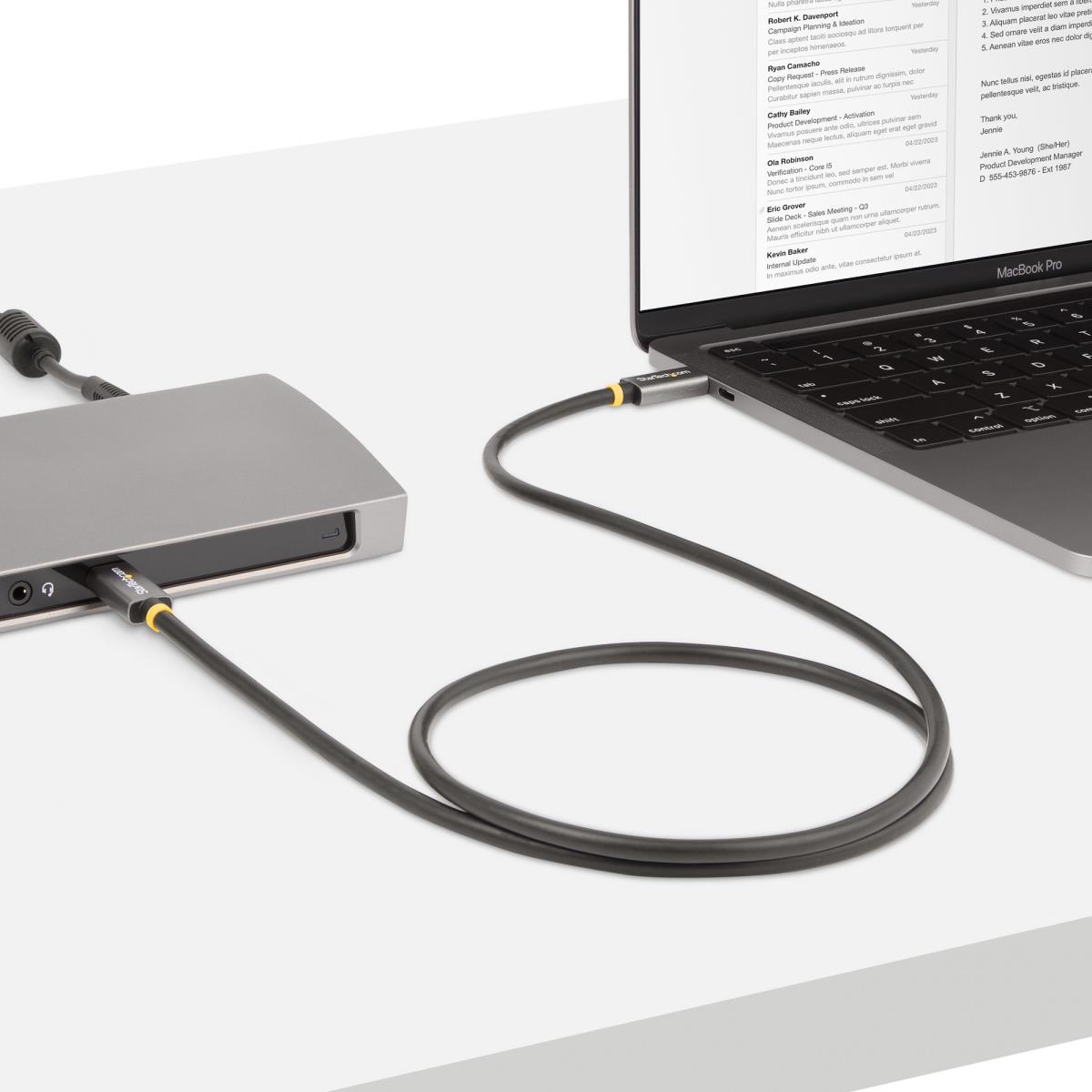

Power a USB-C Laptop
Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB4 cable from a laptop to a USB-C wall charger or docking station.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 34 |
| USB version | USB4 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 1 m |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 40000 Mbit/s |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Power Delivery (USB PD) | Yes |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| USB Power Delivery up to | 100 W |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| High Dynamic Range (HDR) supported | Yes |
| Display Stream Compression (DSC) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum data transfer rate | 40 Gbit/s |
| Cable diameter | 5 mm |
| Weight | 53 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Cable length | 1 m |
| Weight | 53 g |
| Package width | 126 mm |
| Package depth | 187 mm |
| Package height | 14 mm |
| Package weight | 30 g |
| Packaging data | |
| Package width | 126 mm |
| Package depth | 187 mm |
| Package height | 14 mm |
| Package weight | 30 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Ports & interfaces | |
| USB version | USB4 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 40000 Mbit/s |
| Certificates | |
| Compliance certificates | RoHS |
| Technical details | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 180 pc(s) |
| Master (outer) case width | 517 mm |
| Master (outer) case length | 329 mm |
| Master (outer) case height | 226 mm |
| Other features | |
| Cable type | Round cable |
| Doesn't contain | Halogen |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Compliance certificates | RoHS |
