EU Product - RUCM-AFAC Kabel adapter USB 3.2 Gen 1 - Adapter - Digital
Introduction

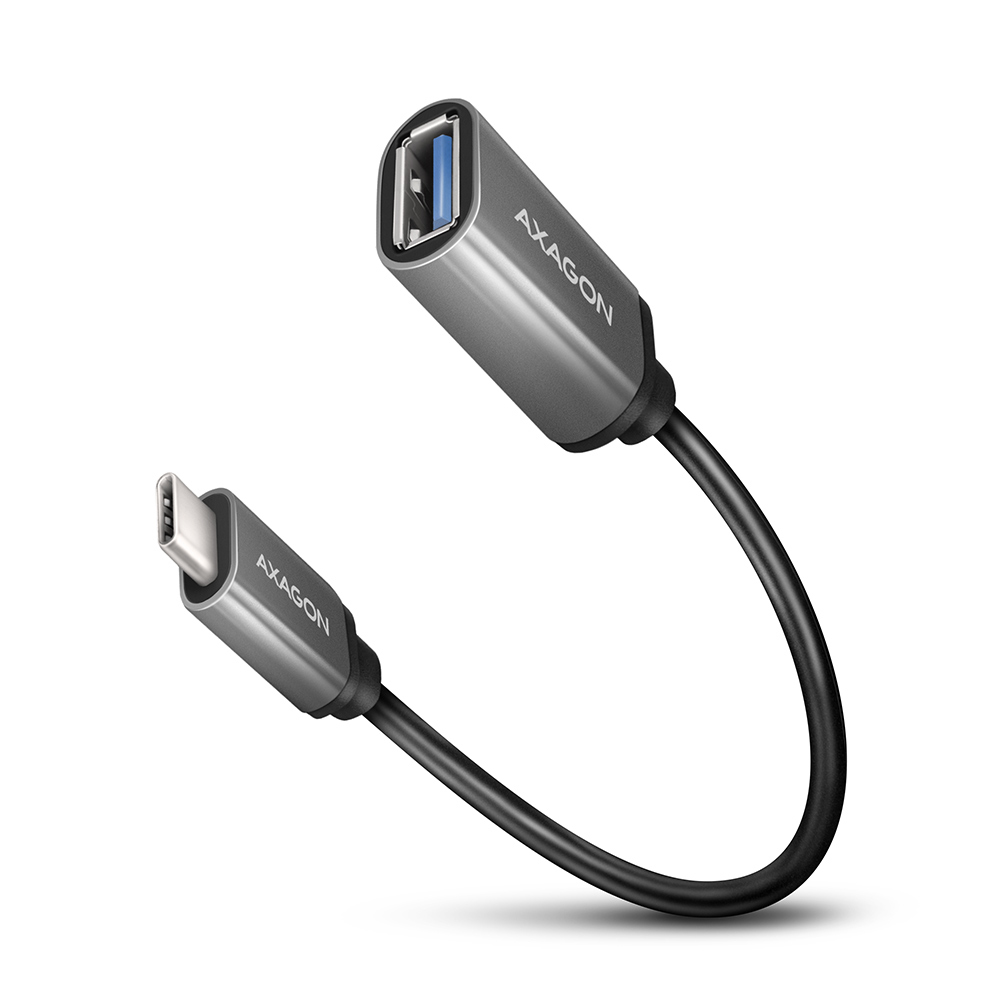

Cable adapter USB-C <-> USB-A AXAGON RUCM-AFAC connects existing devices with a USB-A connector to any new device with a modern USB-C interface.
Adapter is designed for quick connection of a USB hub or external drive to notebooks equipped with only USB-C connectors. It is also great for connecting a flash drive to a mobile phone with a USB-C connector. It supports data transfer speeds of up to 5 Gb/s and power supplies of up to 3A.
The reduction is equipped with metal terminals, connectors with a nickel-plated surface and gold-plated contacts. Cable conductors are made of Tin-plated oxygen free copper. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. Triple shielding protects transmitted signals from adverse interference.
Connectors:
• vstup USB-C (M) male.
• výstup USB-A (F) female.
Other Features:
• DATA SYNC & FAST CHARGING - simultaneous data transfer and mobile device battery charging.
• SuperSpeed USB - USB 3.2 Gen 1 (formerly USB 3.1 Gen 1 / USB 3.0).
• Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0.
• Supports 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low speed) transmission rates.
• Support for high-speed charging by current up to 3A.
• Cable includes power wires 22AWG, data wires 30AWG.
Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.
• Double shielding via galvanized foil and oxygen free copper braiding minimizes interference and prevents signal loss.
• Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection.
• Pulldown resistor 5 kO.
• Suitable for notebooks, mobile phones and smartphones, powerbanks, tablets and other mobile devices with USB-C connector.
Other data:
• cable length 0.2 m,
• 4.2 mm outer diameter.
Package contains:
• USB-C M <-> USB-A F cable adapter,
• packed in a printed and sealed foil package with hanging hole.
Specifications
| Ports & interfaces | |
|---|---|
| Connector contacts plating | Gold |
| Connector 2 | USB A |
| Connector 1 | USB C |
| Cable length | 0.2 m |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Performance | |
| AWG wire size | 22 |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Product colour | Grey |
| Connector material | Nickel |
| Conductor material | Tinned copper |
| Country of origin | China |
| Certification | CE, RoHS |
| Certificates | |
| Certification | CE, RoHS |
| Compliance certificates | RoHS, CE |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 205 mm |
| Package type | Polybag |
| Package height | 11 mm |
| Package depth | 130 mm |
| Package weight | 22 g |
| Technical details | |
| Package type | Polybag |
| Product colour | Grey |
| Cable length | 0.2 m |
| Country of origin | China |
| Cable diameter | 4.2 mm |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS, CE |
| Design | |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Product colour | Grey |
| Certification | CE, RoHS |
| Cable length | 0.2 m |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Warranty period | 3 year(s) |
