RUGGED RIGHT ANGLE USB-C CABLE
Introduction

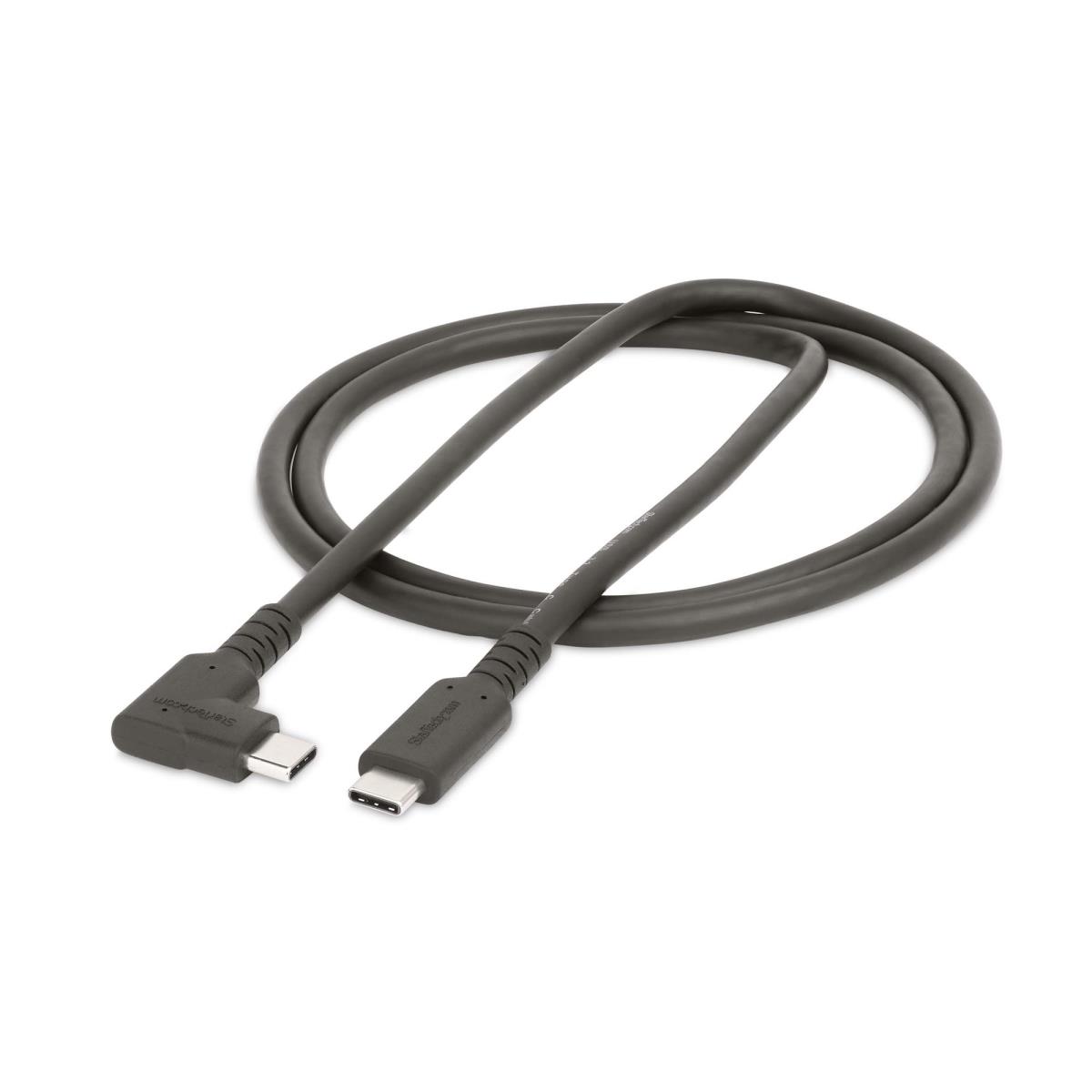

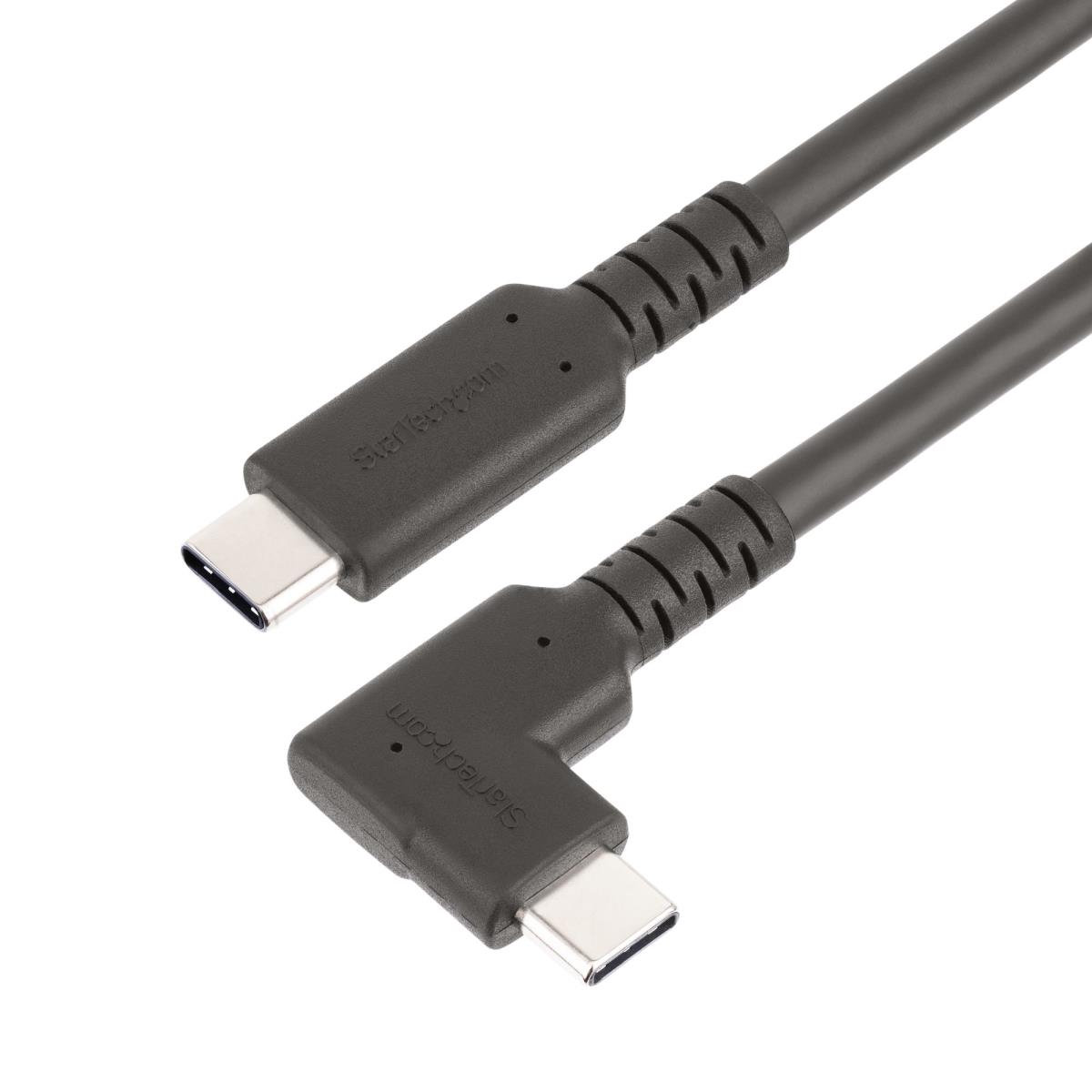

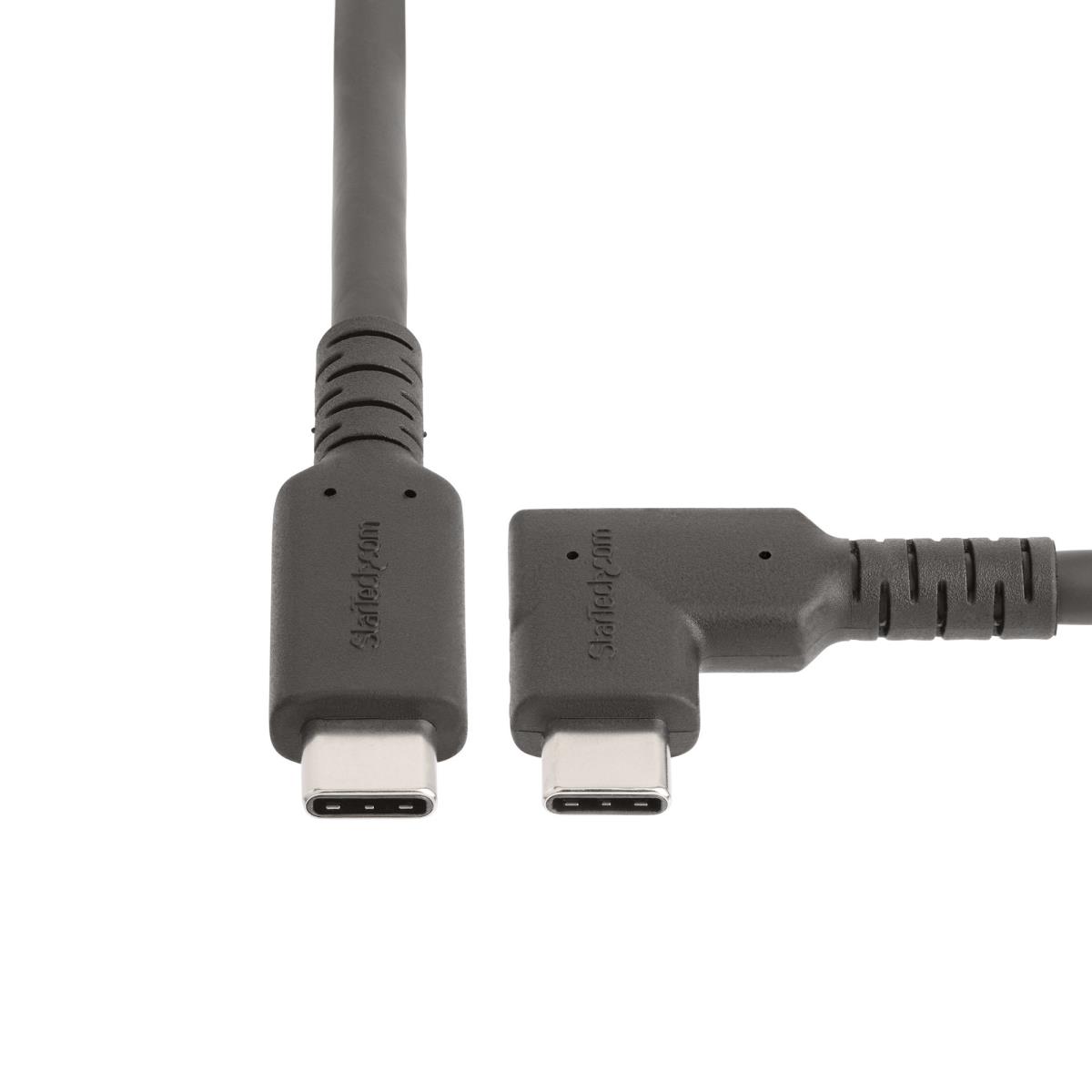

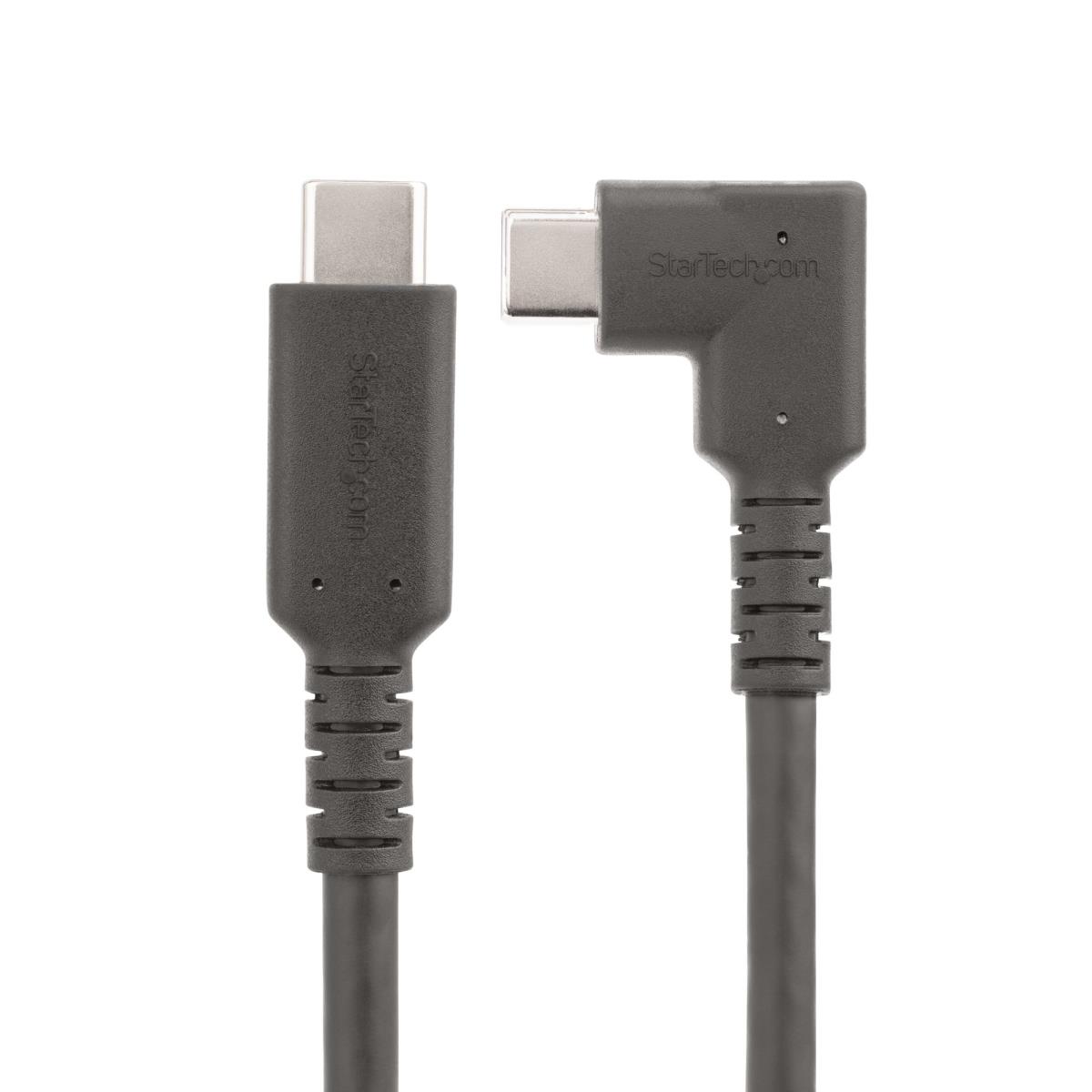

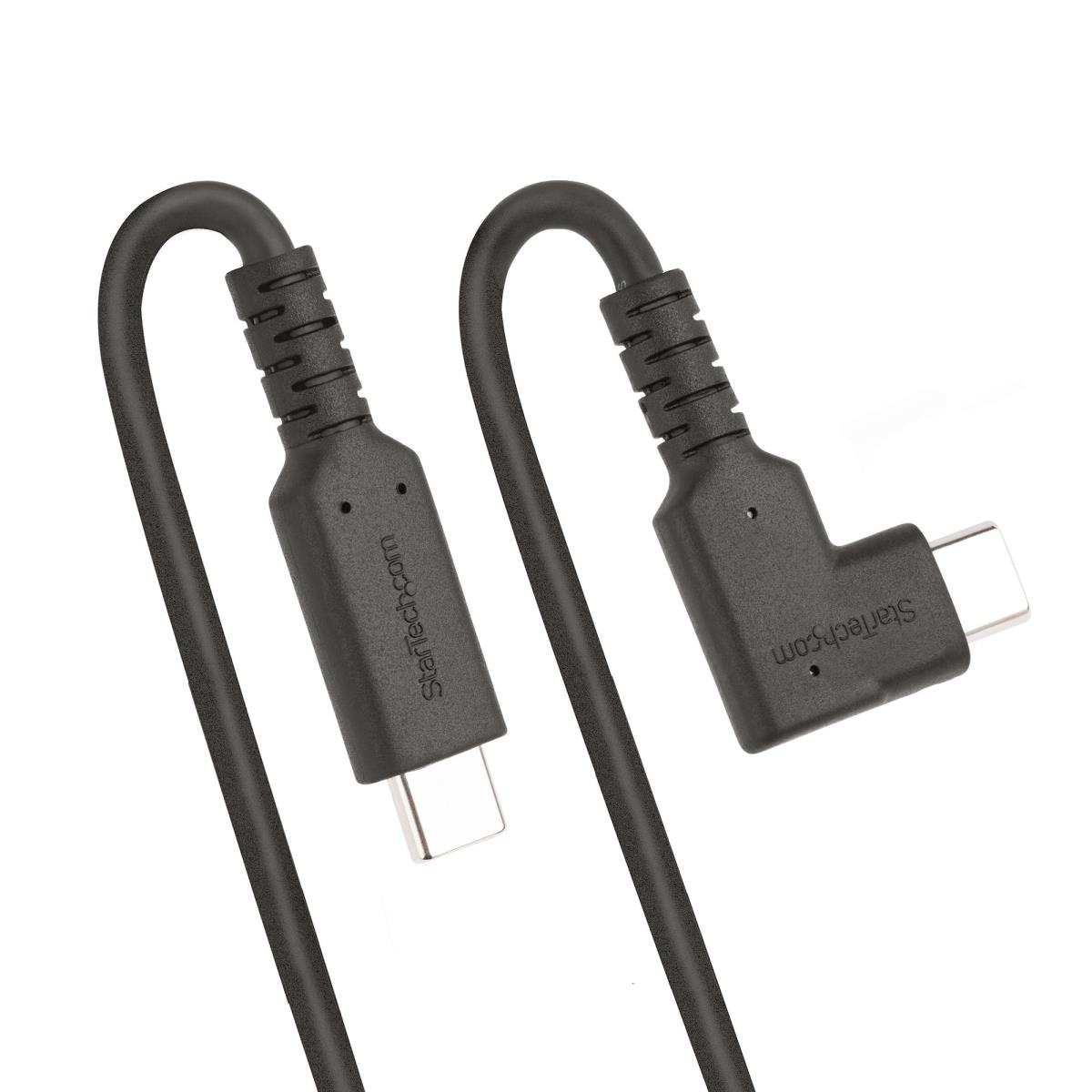

Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable

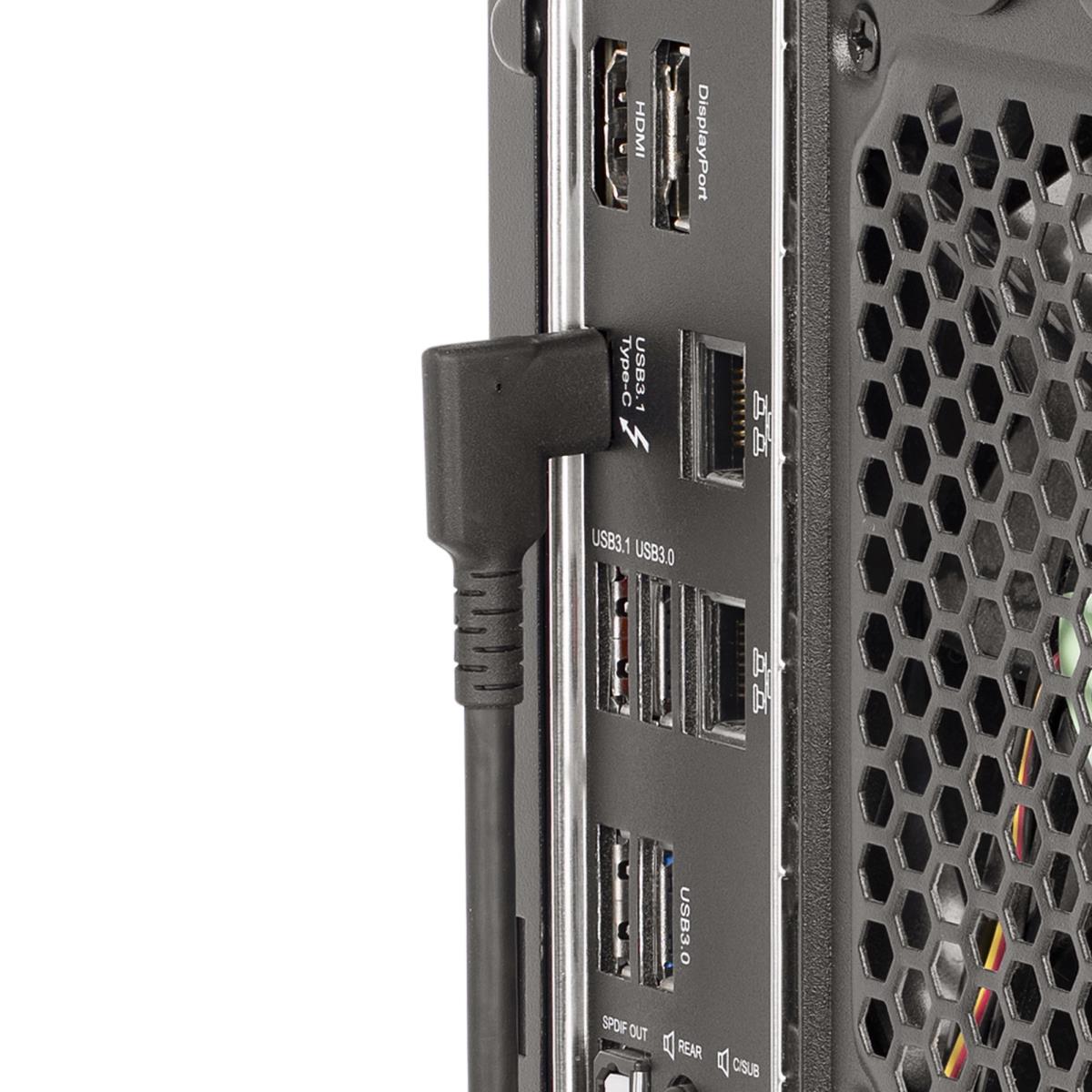

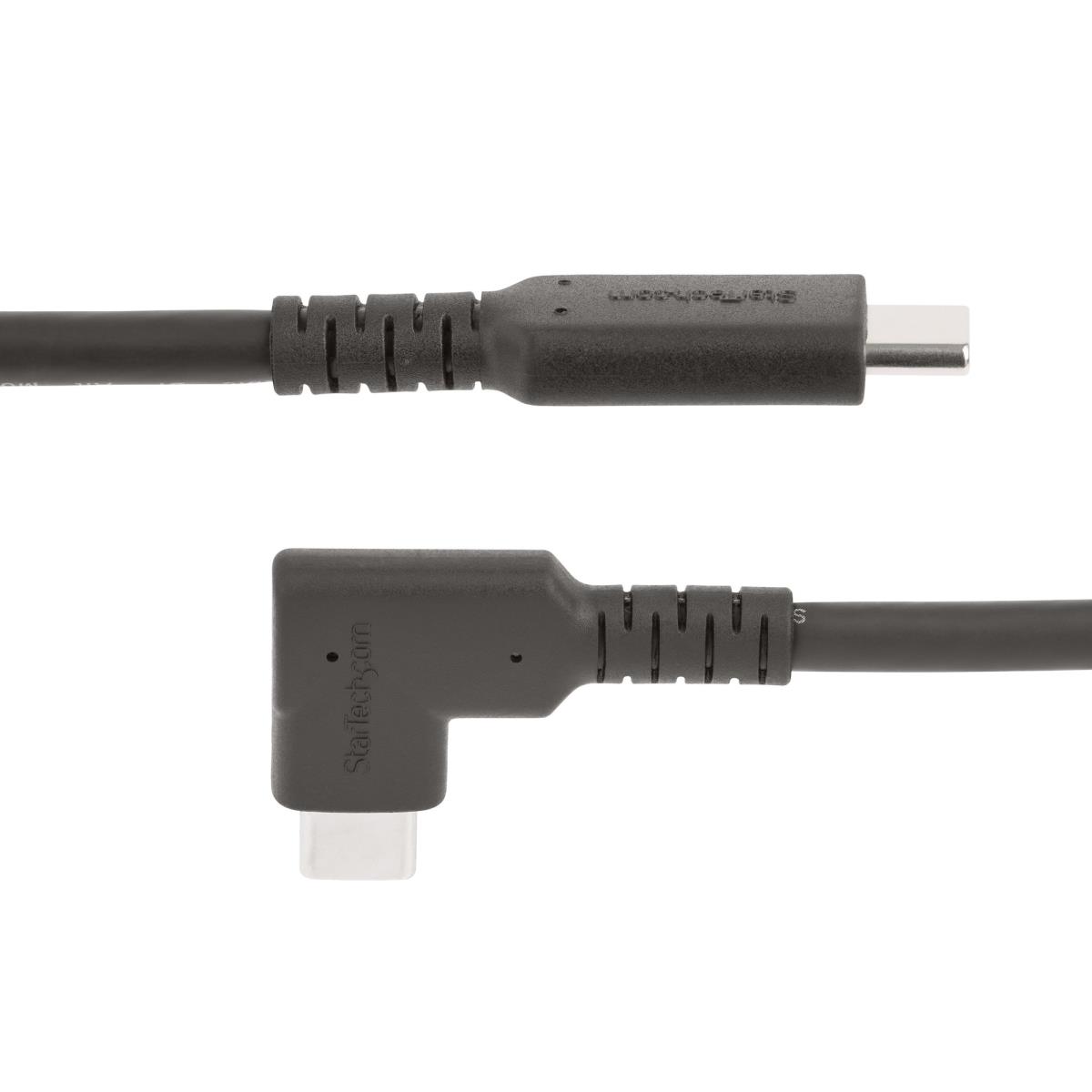

Connect USB 10Gbps source and peripheral devices, using this 3.3ft (1m) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.
It is ideal for 10Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.

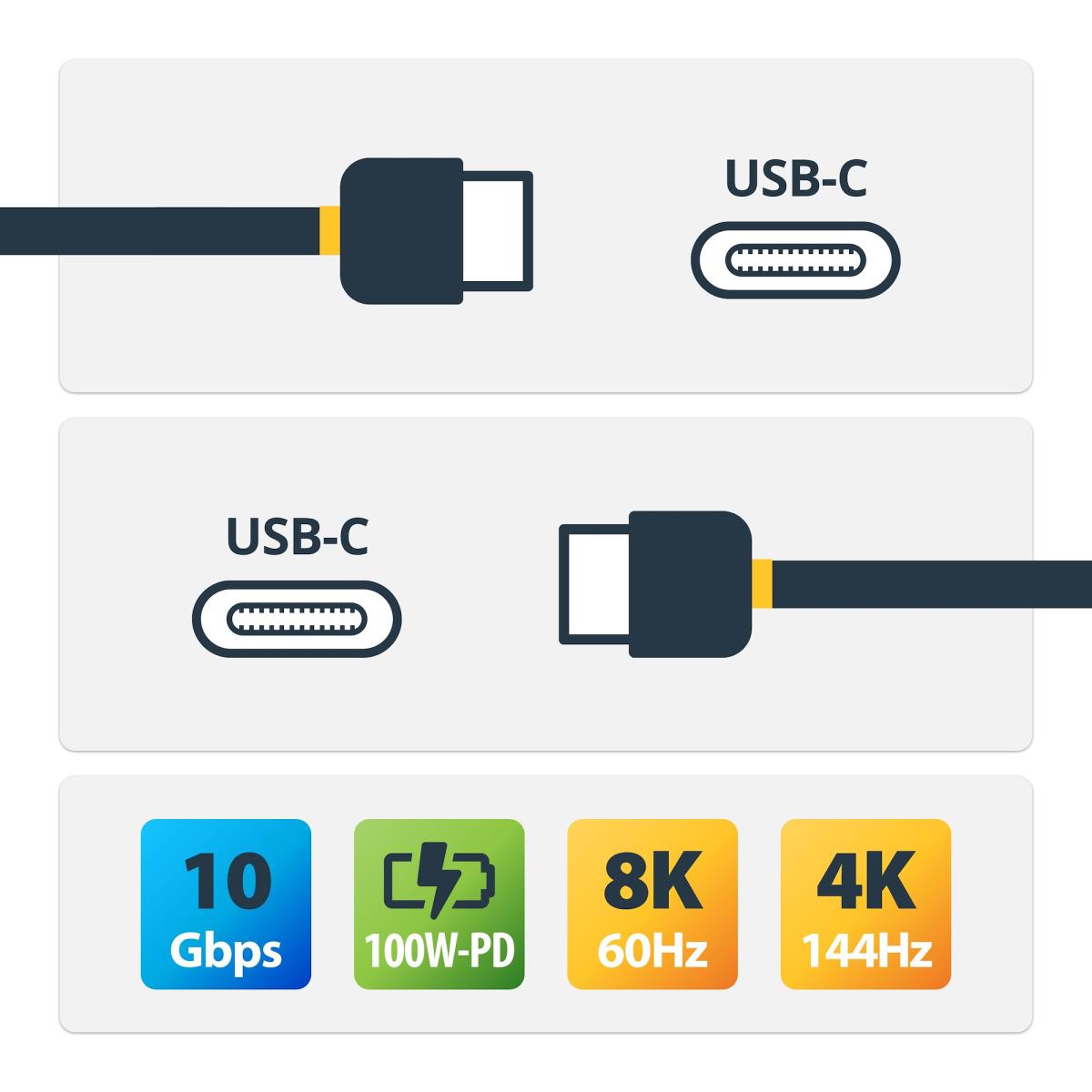

Experience 8K Video with DisplayPort 1.4 Alt Mode
The Rugged USB-C cable supports up to 8K 60Hz or 4K 144Hz video over DisplayPort 1.4 Alt Mode, and is compatible with 1080p and lower resolutions.
Enhanced Durability
Designed to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.
Full-Featured USB-C Power and Data

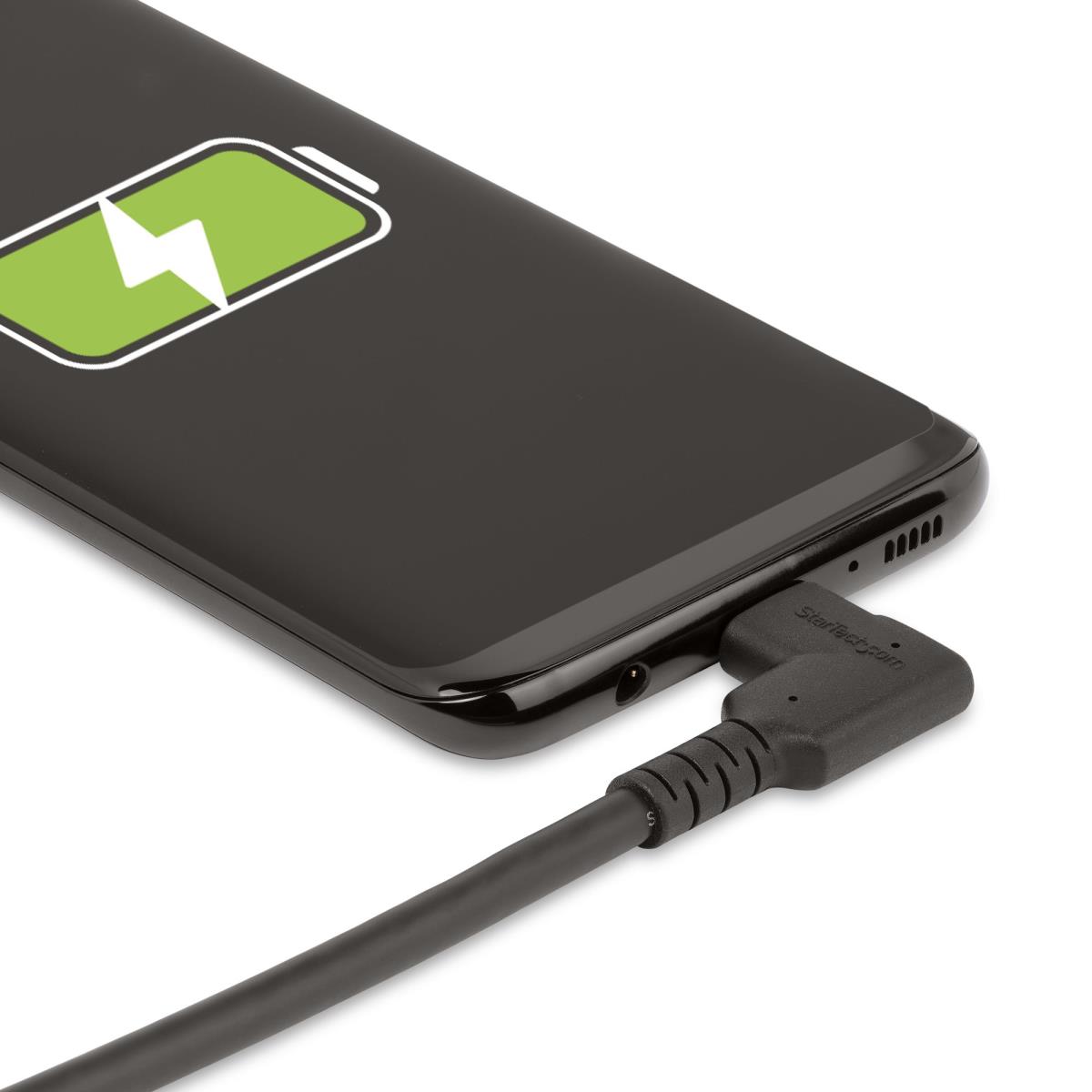

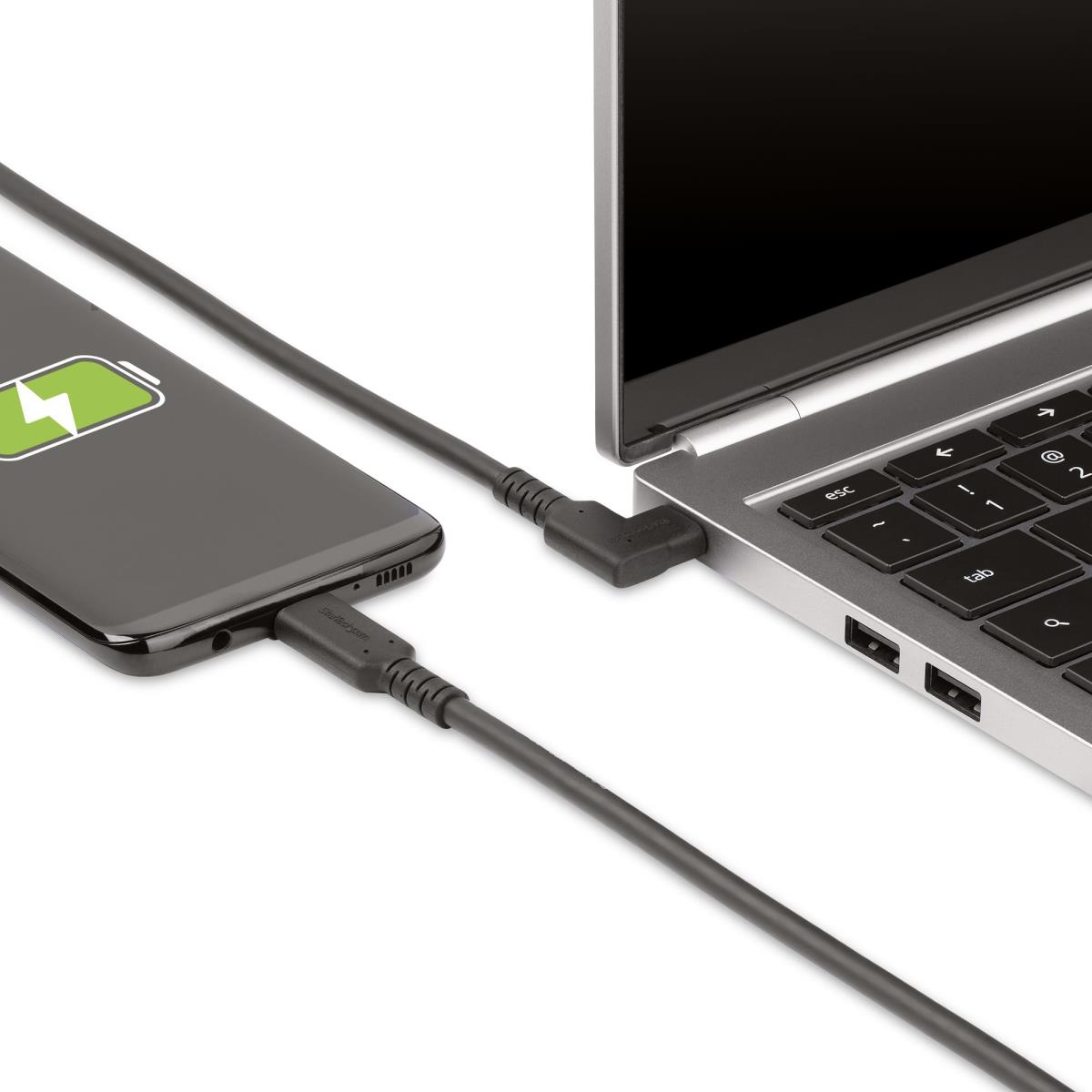

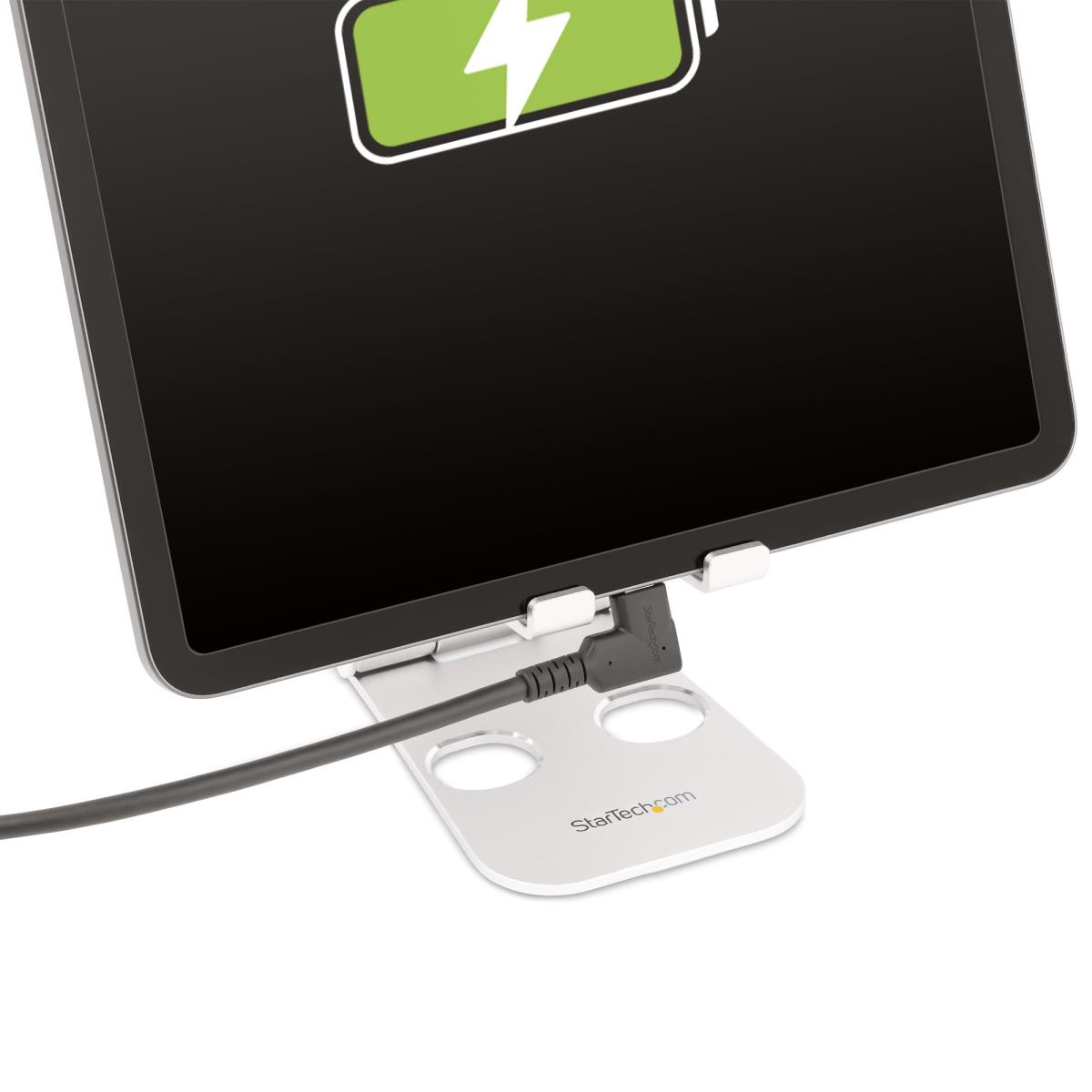

This USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminum mylar foil |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Straight |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 1 m |
| Connector contacts plating | Nickel/Gold |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Power Delivery (USB PD) | Yes |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| USB Power Delivery up to | 100 W |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| DisplayPort version | 1.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Output current (max) | 5 A |
| Cable diameter | 4.8 mm |
| Quantity per pack | 1 pc(s) |
| Power | |
| Output current (max) | 5 A |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Cable length | 1 m |
| Bend radius (min) | 8 mm |
| Package width | 128 mm |
| Package depth | 129 mm |
| Package height | 14 mm |
| Package weight | 95 g |
| Packaging data | |
| Package width | 128 mm |
| Package depth | 129 mm |
| Package height | 14 mm |
| Package weight | 95 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Nickel/Gold |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 442 mm |
| Master (outer) case length | 401 mm |
| Master (outer) case height | 301 mm |
