3M ACTIVE USB-C CABLE USB 3.2
Introduction

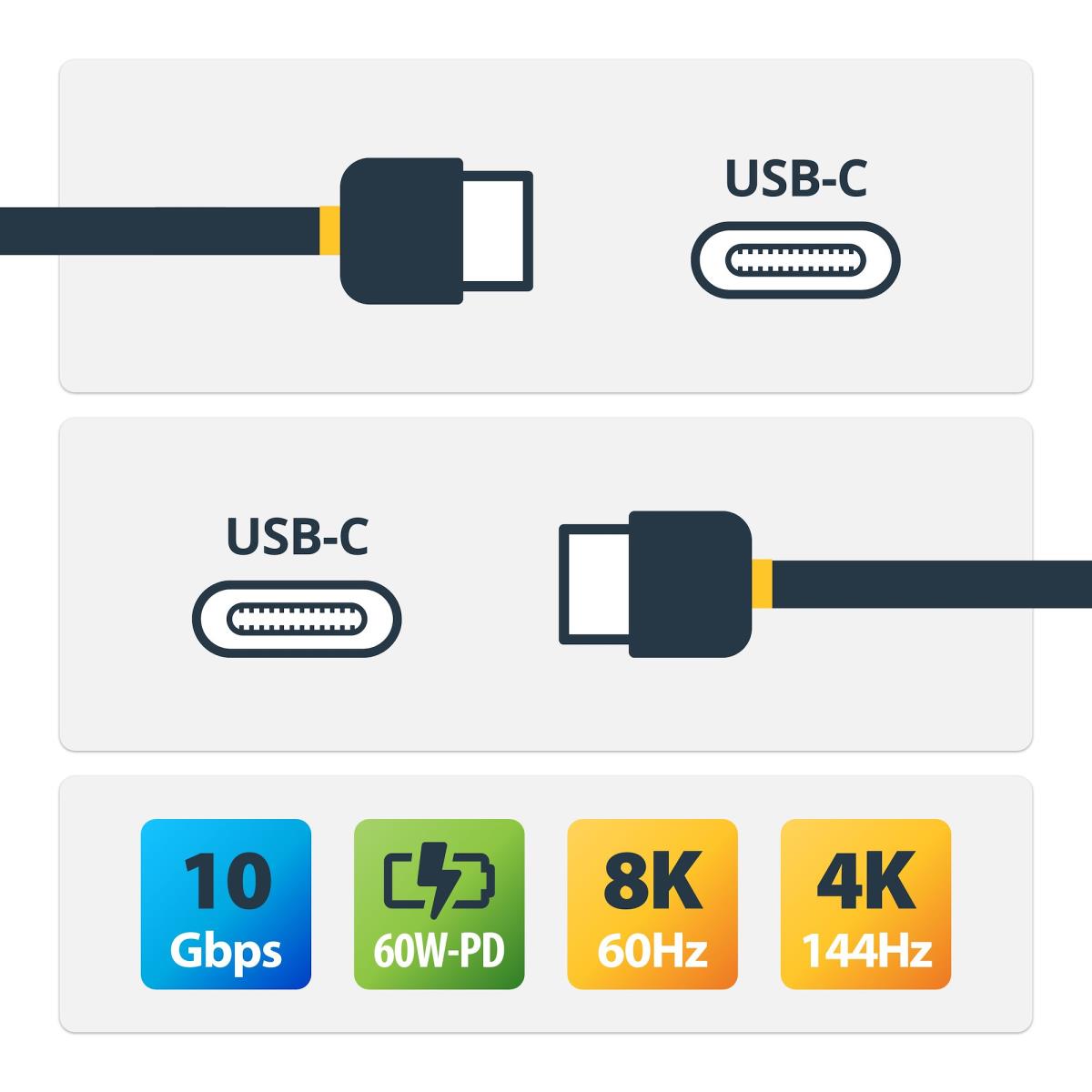

Experience full-featured USB-C and 8K video at distances up to 3m using this active USB-C cable

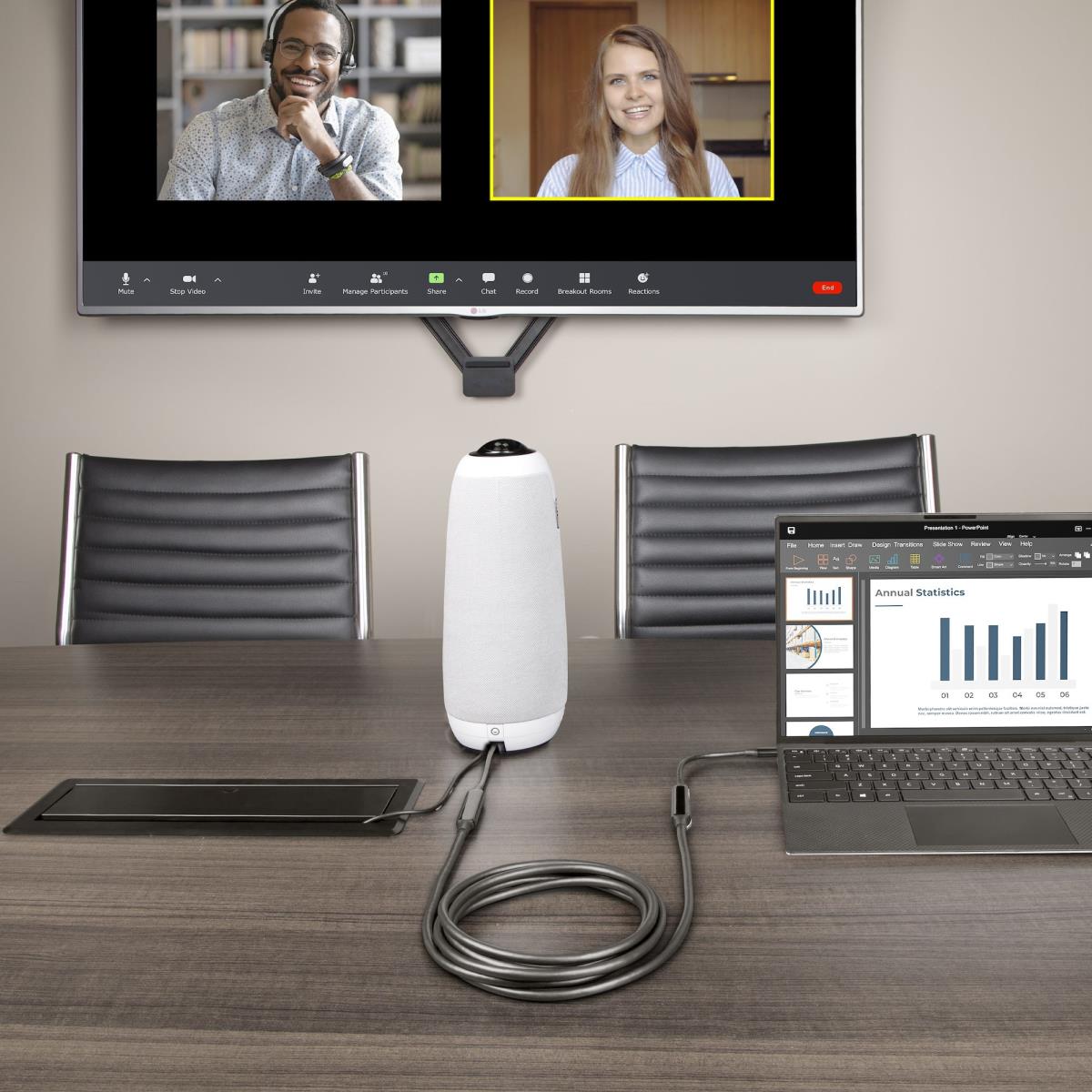

Connect USB 10Gbps source and peripheral devices using this 9.8ft (3m) Active USB Type-C Cable. This cable is ideal for setups requiring full-featured USB-C and DP 1.4 support, such as large UHD displays/video walls, and boardroom/conference room cameras.
Versatile Compatibility

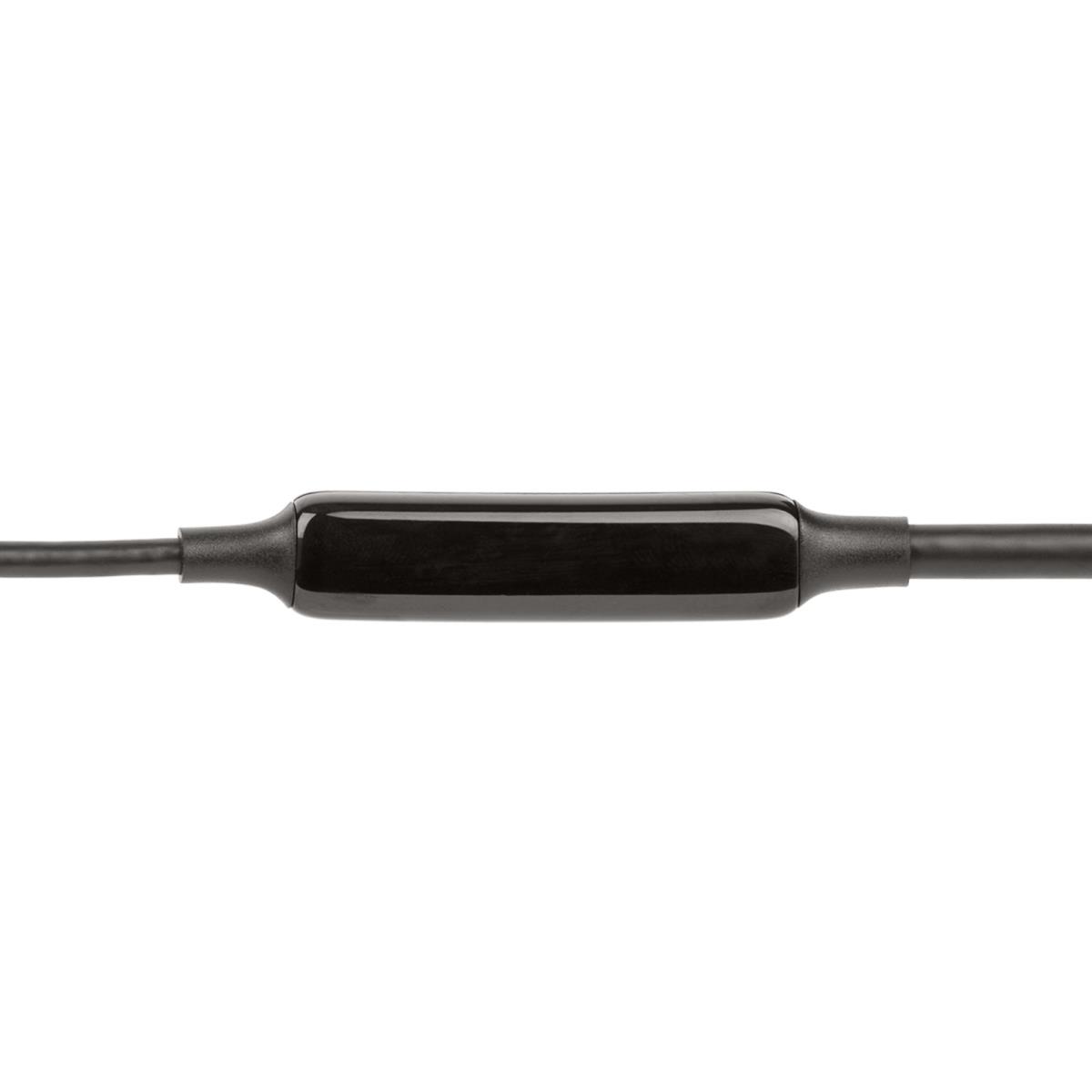

The USB-C to C cable enables universal compatibility with USB 3.2, USB 3.0, and USB-C devices. An integrated active chipset facilitates bi-directional connectivity for convenient setup, and supports up to 10Gbps throughput without additional power or signal boosters.
Experience 8K Video with DisplayPort 1.4 Alt Mode
The Active USB-C cable supports up to 8K 60Hz or 4K 144Hz video over DisplayPort 1.4 Alt Mode with HBR3, HDR10, MST, DSC 1.2, and HDCP 2.2. It is backward compatible with DP 1.3/1.2 resolutions, including 4K 60Hz, 1440p, and 1080p.
Full-Featured USB-C Power and Data
The long Active USB-C Cable supports a data bandwidth of up to 10 Gbps. A certified E-marker chip ensures consistent Power Delivery of up to 60W. Dock and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface using a single USB-C connection that extends beyond the length of passive cables.
Specifications
| Features | |
|---|---|
| Cable shielding | Aluminum mylar foil |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| AWG wire size | 29 |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 3 m |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Power Delivery (USB PD) | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| USB Power Delivery up to | 60 W |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 240 Hz |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Cable diameter | 6.2 mm |
| Weight | 400 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 6.2 mm |
| Cable length | 3 m |
| Weight | 400 g |
| Package width | 198 mm |
| Package depth | 148 mm |
| Package height | 41 mm |
| Package weight | 195 g |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 148 mm |
| Package height | 41 mm |
| Package weight | 195 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Certificates | |
| Compliance certificates | RoHS |
| Other features | |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 518 mm |
| Master (outer) case length | 341 mm |
| Master (outer) case height | 216 mm |
