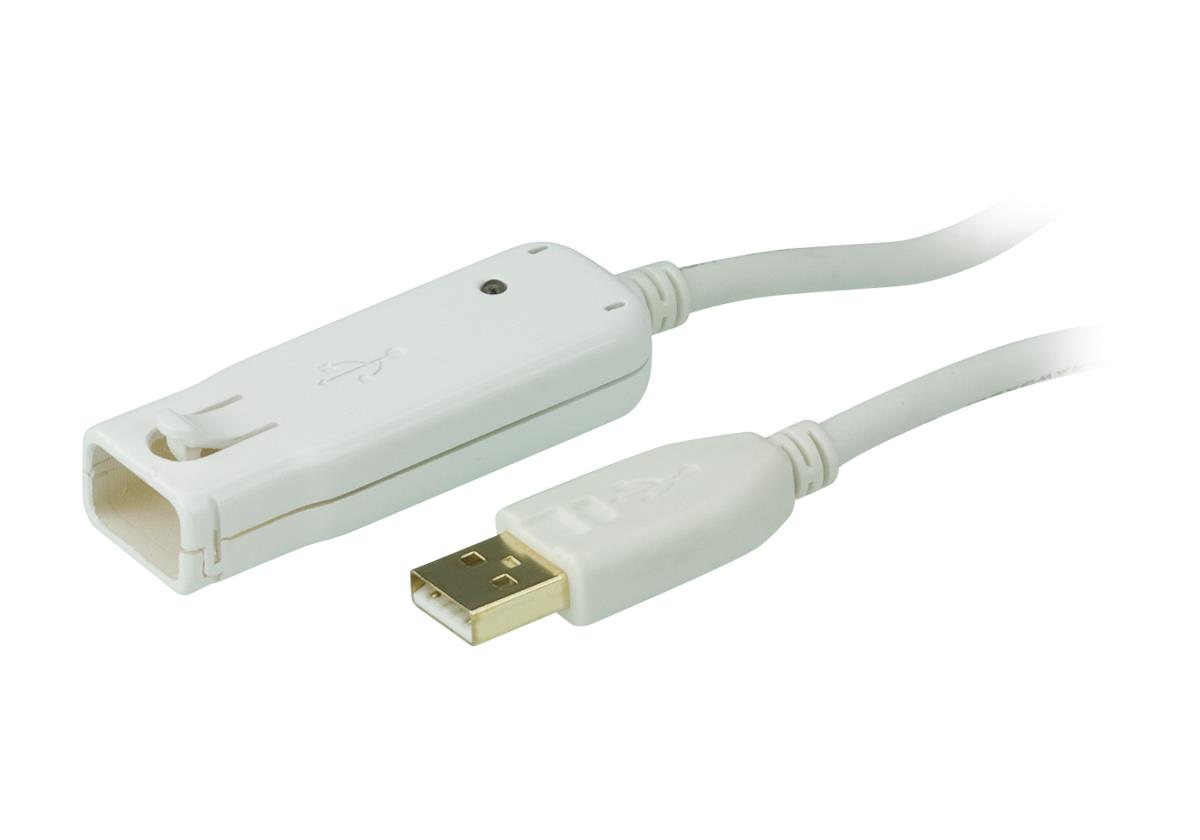

USB2 EXTENDER 12M
Introduction
The UE2120 allows users to extend the distance between a computer and USB device up to 12 meters via the active extender cable. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards.
The UE2120 features a unique lockable mechanical design that securely links the male and female ends of the USB cable, ensuring stable connection between cables. Up to 5 extender cables can be chained together, so that cable distance is increased by up to 60 meters.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 12 m |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | White |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable jacket material | Plastic |
| Maximum data transfer rate | 0.48 Gbit/s |
| Weight | 468 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable length | 12 m |
| Weight | 468 g |
| Package width | 56 mm |
| Package depth | 186 mm |
| Package height | 157 mm |
| Package weight | 525 g |
| Packaging data | |
| Package width | 56 mm |
| Package depth | 186 mm |
| Package height | 157 mm |
| Package weight | 525 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | White |
| Master (outer) case net weight | 9.36 kg |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Product colour | White |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
| Master (outer) case gross weight | 11.4 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 335 mm |
| Master (outer) case net weight | 9.36 kg |
| Harmonized System (HS) code | 84733080 |
