3M USB3.0 ACTIVE EXTENSION CABL
Introduction
Extend the distance of a USB 3.2 Gen1 device an additional 3 meters

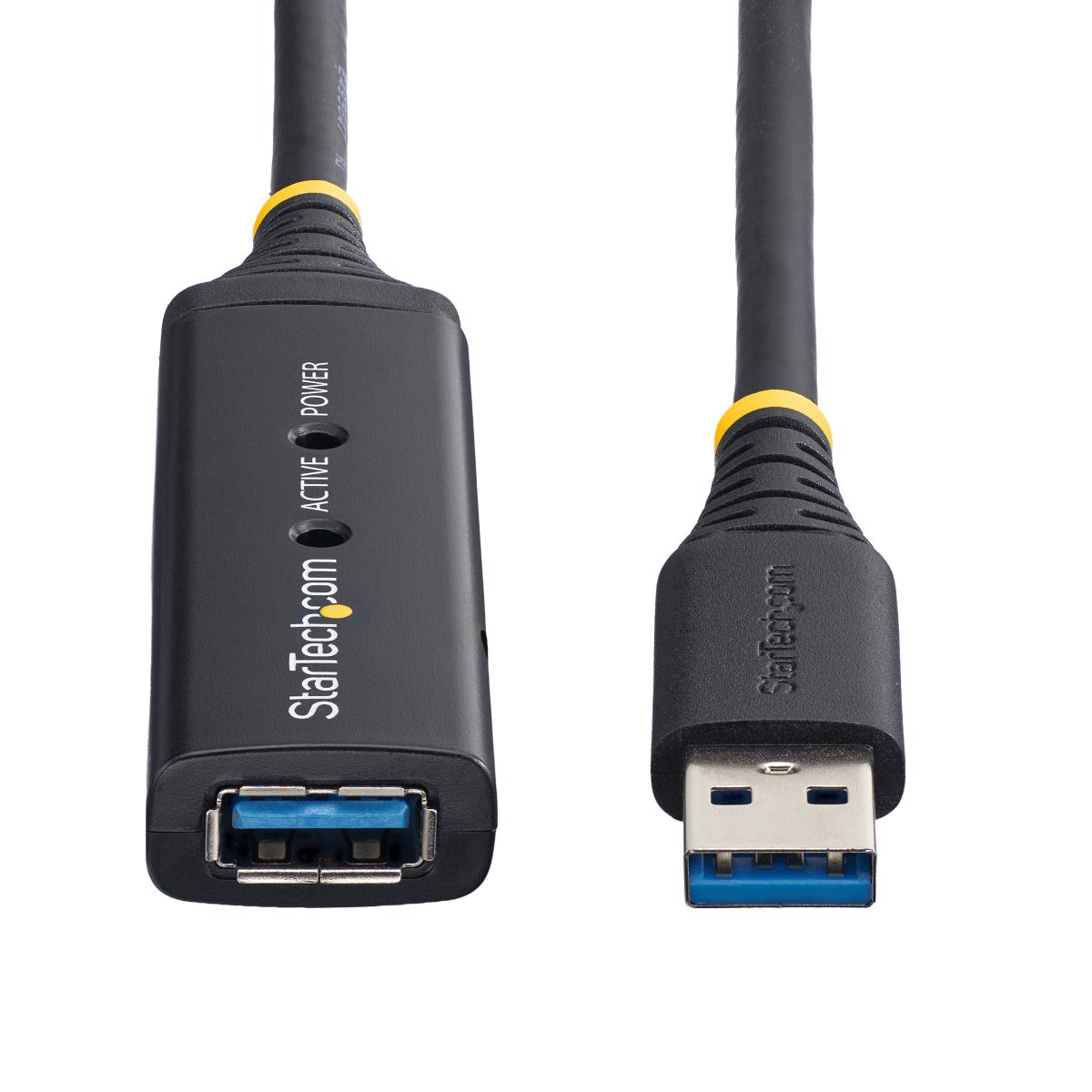

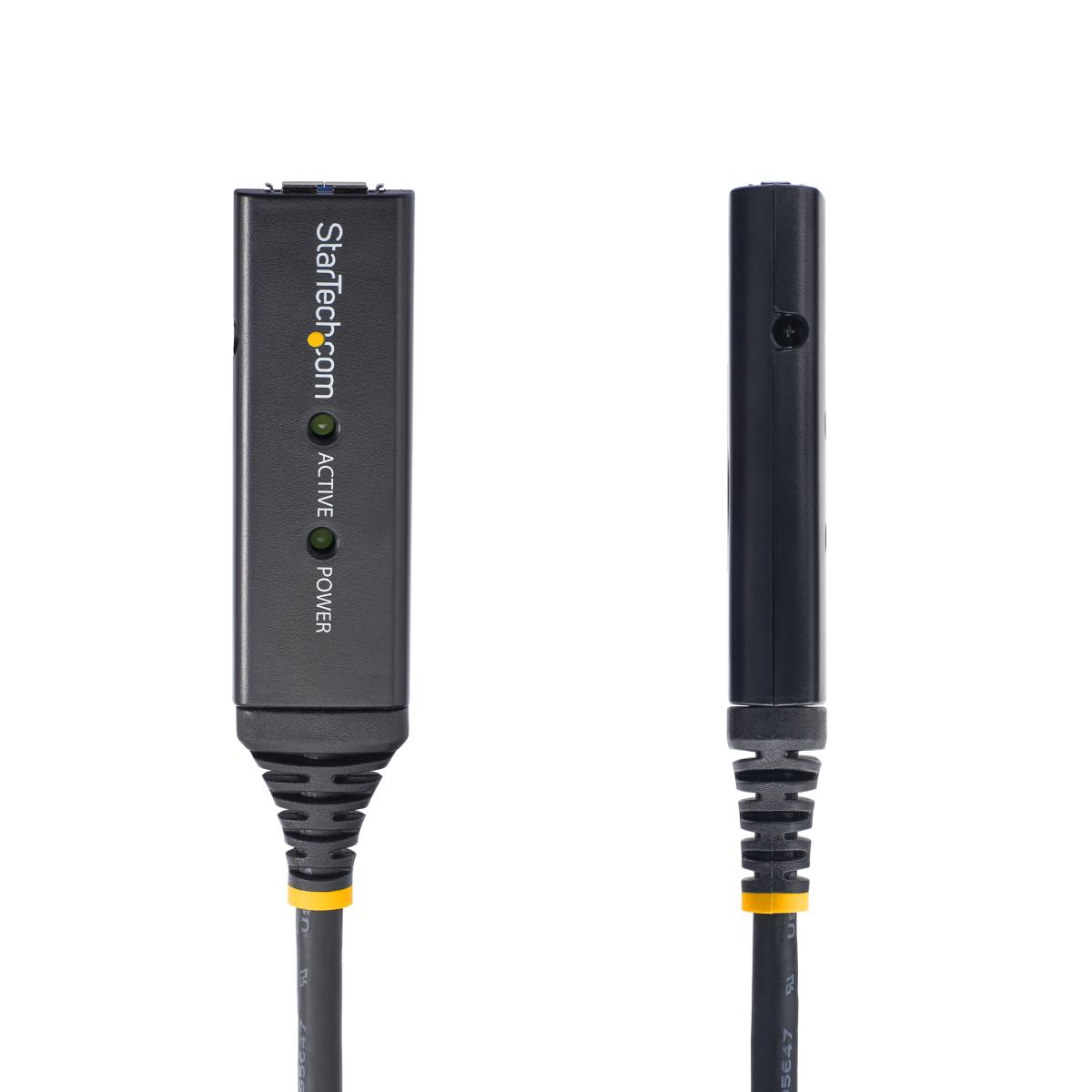

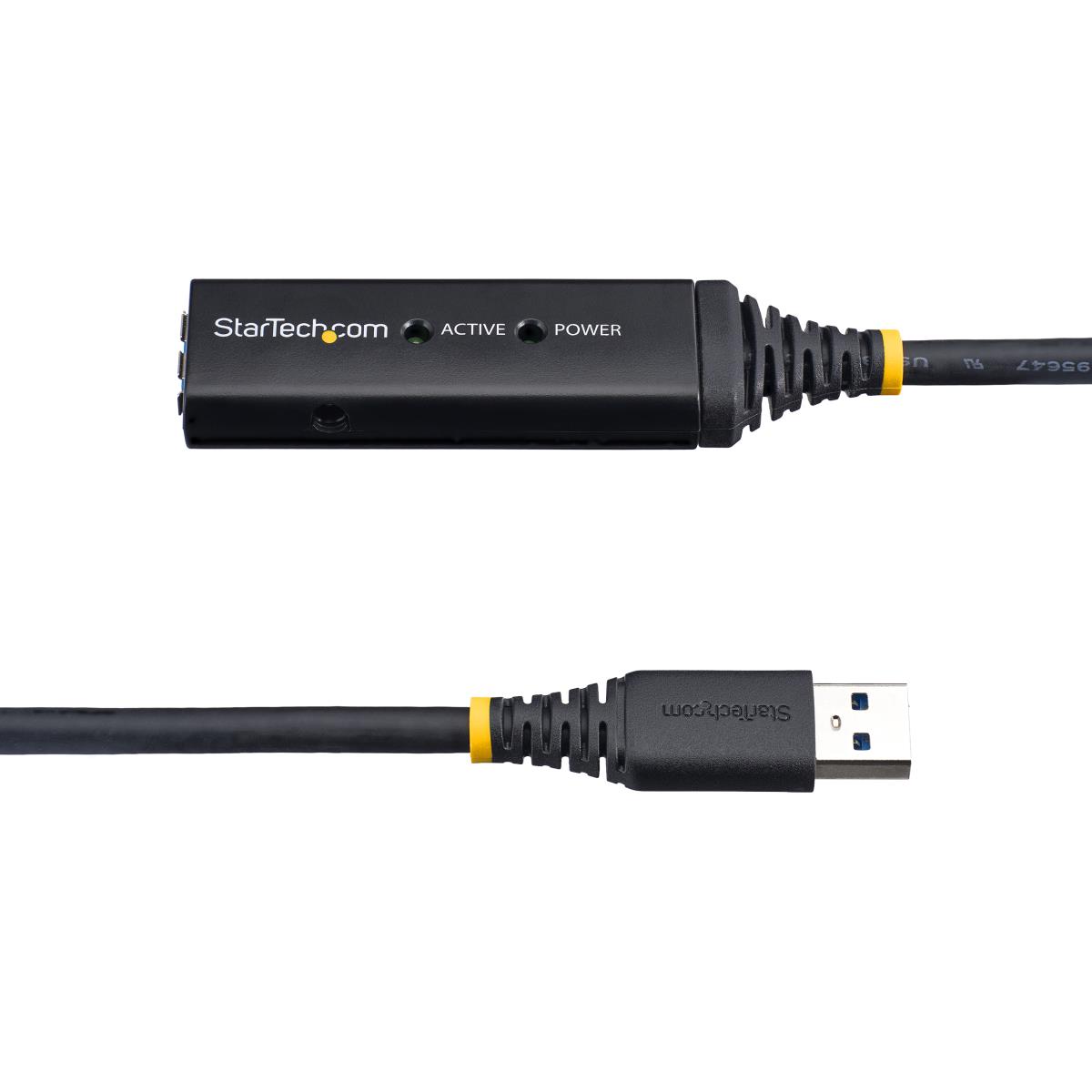

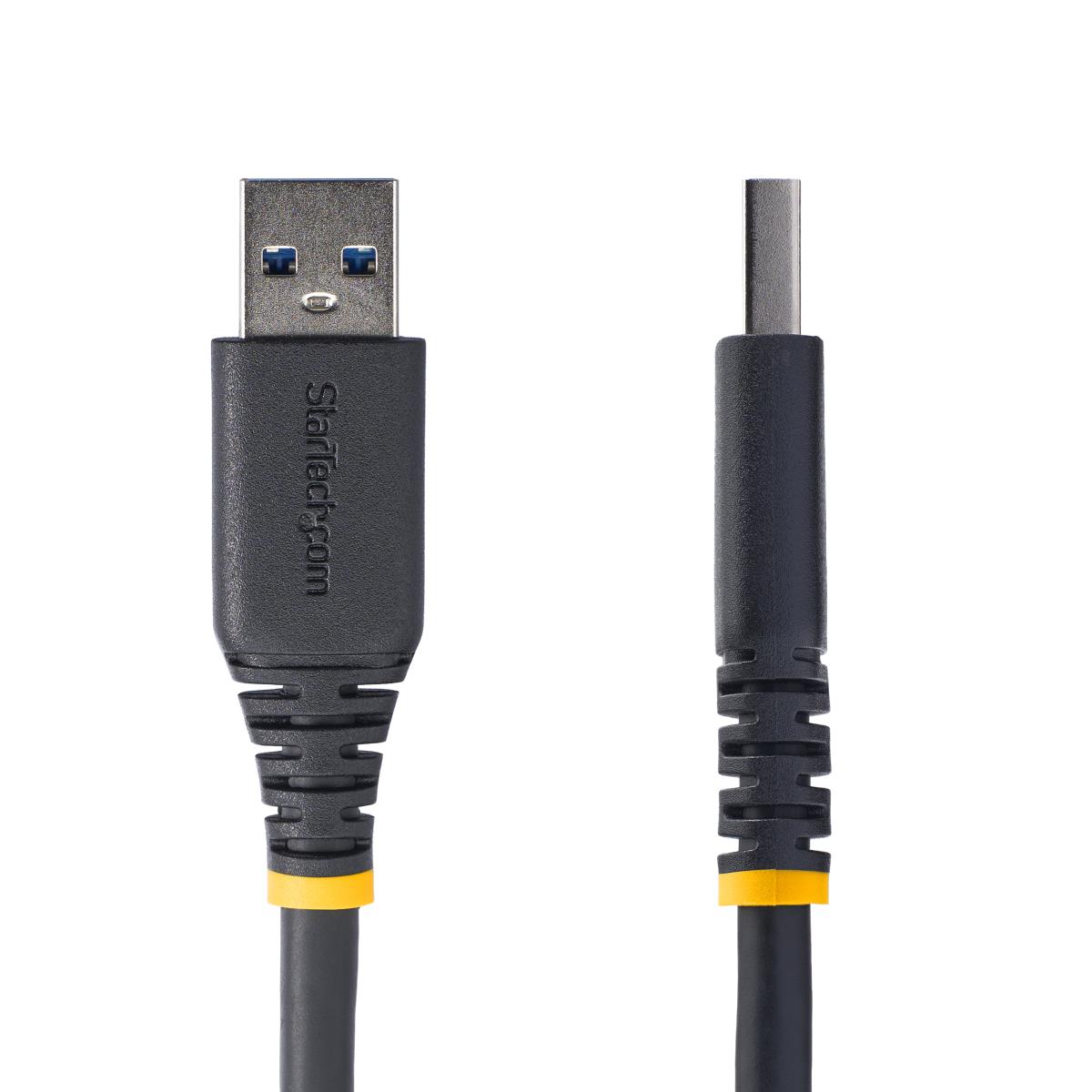

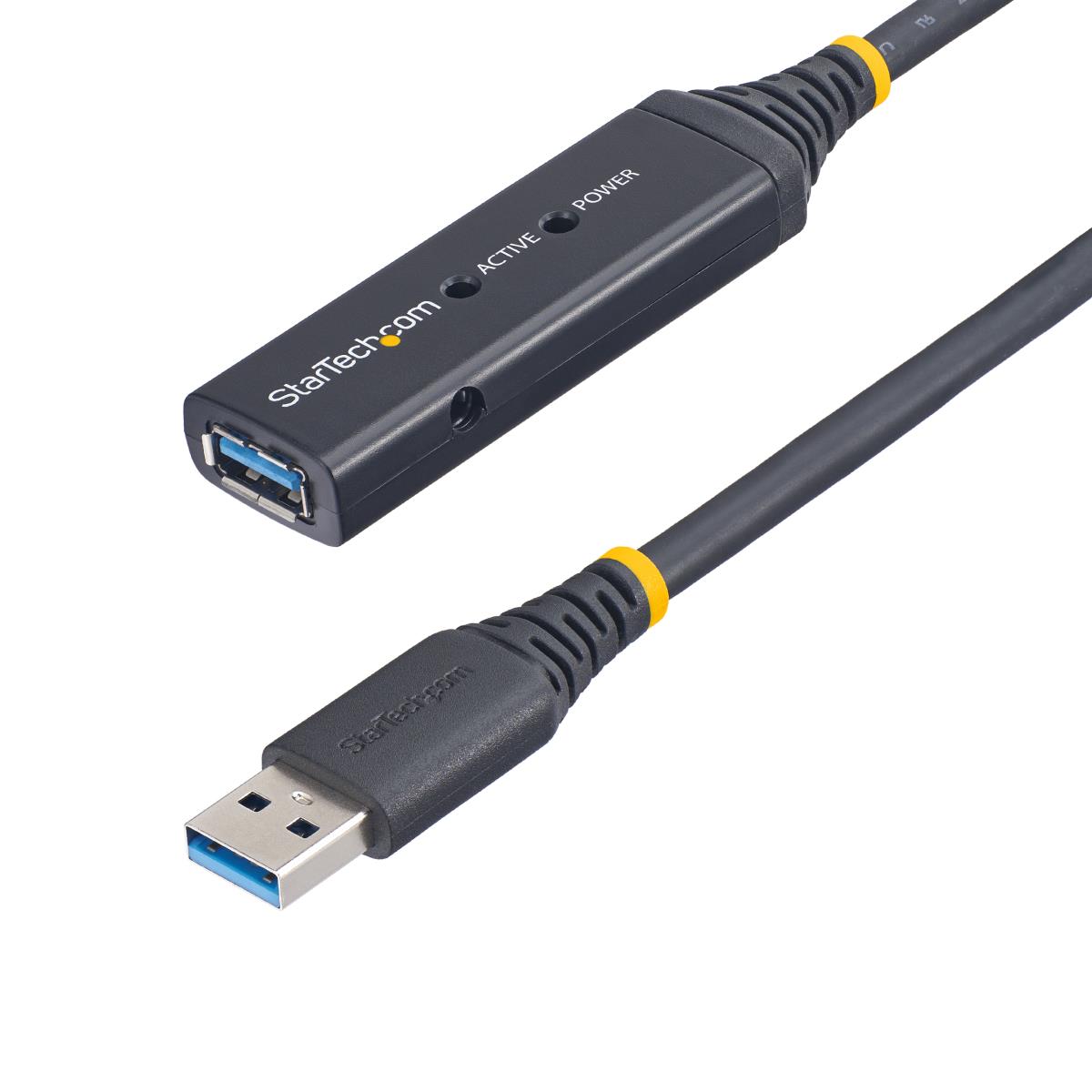

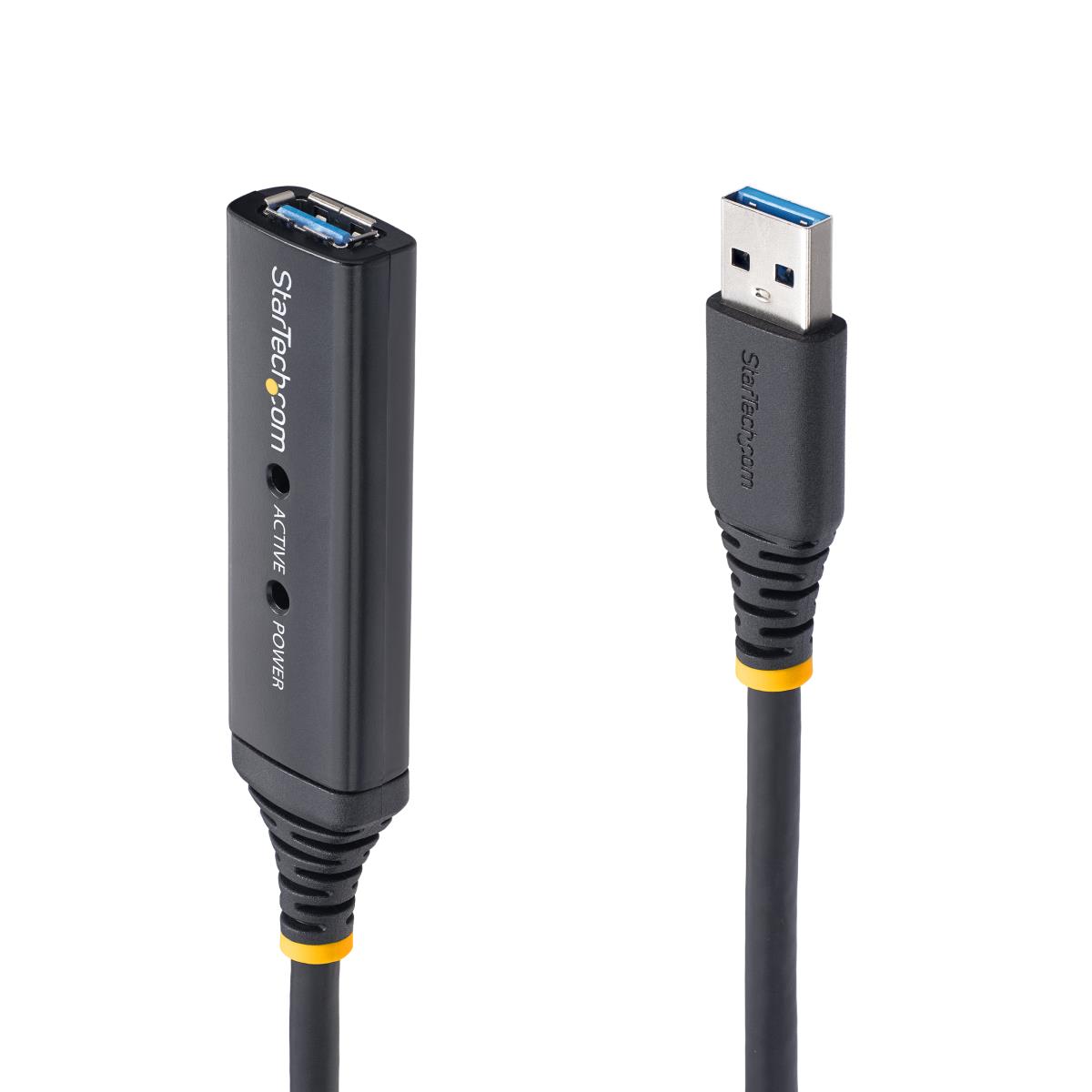

The USB3AAEXT3M, 3-meter Active USB 3.2 Gen 1 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.2 Gen 1 devices of up to 3-meters (10-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.2 Gen 1 extension cable incorporates bus-powered active circuitry to ensure performance beyond the typical length limits of standard USB cables. Up to 4 of these cables can be daisy-chained together, allowing the connection to be extended a total of 12-meters. If necessary, the USB device can be powered from a wall outlet, using the Universal AC power adapter provided with the cable.
The USB3AAEXT3M extension cable (USB Extender) supports high speed USB 3.2 Gen 1 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 3 m |
| Connector contacts plating | Nickel |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current (max) | 2 A |
| Input current (max) | 0.35 A |
| Weight | 230 g |
| Quantity per pack | 1 pc(s) |
| Power | |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current (max) | 2 A |
| Input current (max) | 0.35 A |
| Weight & dimensions | |
| Cable length | 3 m |
| Weight | 230 g |
| Package width | 147 mm |
| Package depth | 232 mm |
| Package height | 52 mm |
| Package weight | 300 g |
| Packaging data | |
| Package width | 147 mm |
| Package depth | 232 mm |
| Package height | 52 mm |
| Package weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Nickel |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Compliance certificates | RoHS |
| Other features | |
| Product colour | Black |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case width | 414 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 317 mm |
| Harmonized System (HS) code | 84733080 |
