Part No:25SATSAS35HD
Stock:6 In Stock
EAN Code:0065030874434

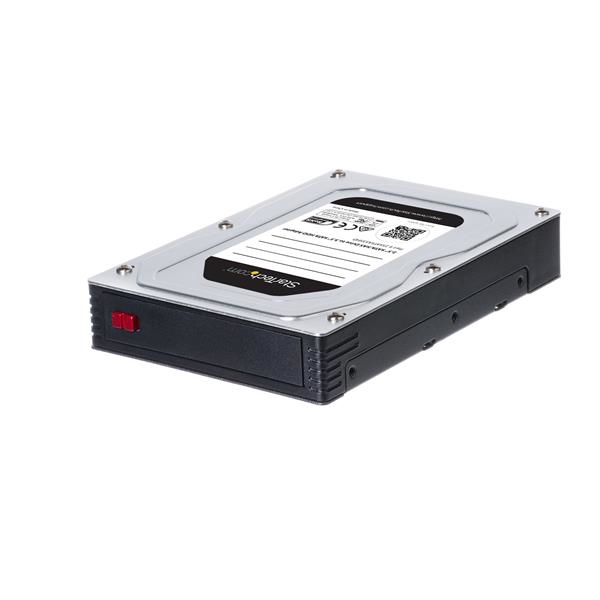

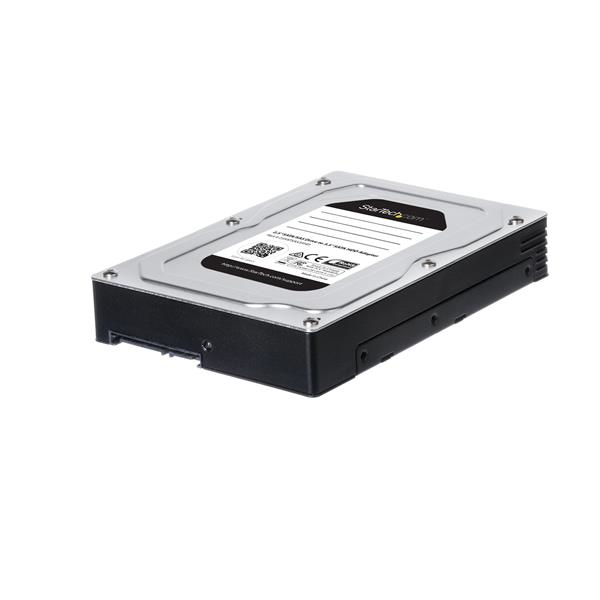

Turn almost any 2.5" SATA/SAS drive into a 3.5" drive
This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.
Convert a 2.5" drive into a 3.5" drive
The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.
To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.
Easy and flexible installation

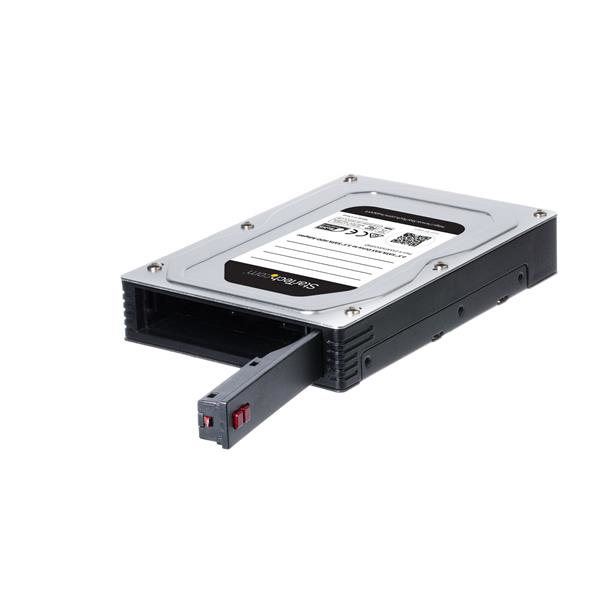

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.
The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.
Identify and track your drives
The adapter includes a label you can use to track and record information about the installed drive.
The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Supports 2.5" form factor drives up to 15 mm in height
- Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
- Tool-less 2.5" drive installation
Features | |
---|---|
Certification | CE, FCC |
HDD size | 2.5" |
Hot-swap | Yes |
Key lock | No |
Supported storage drive heights | 7,9.5,12.5,15 mm |
Type | Carrier panel |
Size (imperial) | 8.89 cm (3.5") |
Number of HDDs supported | 1 |
HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
Data transfer rate | 6 Gbit/s |
Product colour | Black, Silver |
Material | Aluminium, Plastic |
S.M.A.R.T. support | Yes |
Technical details | |
Certification | CE, FCC |
HDD size | 2.5" |
Hot-swap | Yes |
Operating relative humidity (H-H) | 5 - 65% |
Key lock | No |
Supported storage drive heights | 7,9.5,12.5,15 mm |
Type | Carrier panel |
Size (imperial) | 8.89 cm (3.5") |
Operating temperature (T-T) | -20 - 55 °C |
Number of HDDs supported | 1 |
HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
Data transfer rate | 6 Gbit/s |
Product colour | Black, Silver |
Material | Aluminium, Plastic |
S.M.A.R.T. support | Yes |
Sustainability certificates | RoHS |
Harmonized System (HS) code | 84733080 |
Weight & dimensions | |
Width | 101 mm |
Weight | 252 g |
Height | 26 mm |
Depth | 146 mm |
Packaging data | |
Package weight | 252 g |
Package dimensions (WxDxH) | 112 x 160 x 35 mm |
Packaging content | |
Manual | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 65% |
Storage temperature (T-T) | 0 - 55 °C |
Operating temperature (T-T) | -20 - 55 °C |
Sustainability | |
Sustainability certificates | RoHS |
Logistics data | |
Harmonized System (HS) code | 84733080 |
