STARTECH.COM 2TBT3-PCIE-ENCLOSURE STARTECH.COM THUNDERBOLT 3 PCIE CHASSIS

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

2TBT3-PCIE-ENCLOSURE STARTECH.COM THUNDERBOLT 3 PCIE CHASSIS

Part No:2TBT3-PCIE-ENCLOSURE

Stock:10 In Stock

EAN Code:0065030895002

£420.16 Excl. VAT

£504.19 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

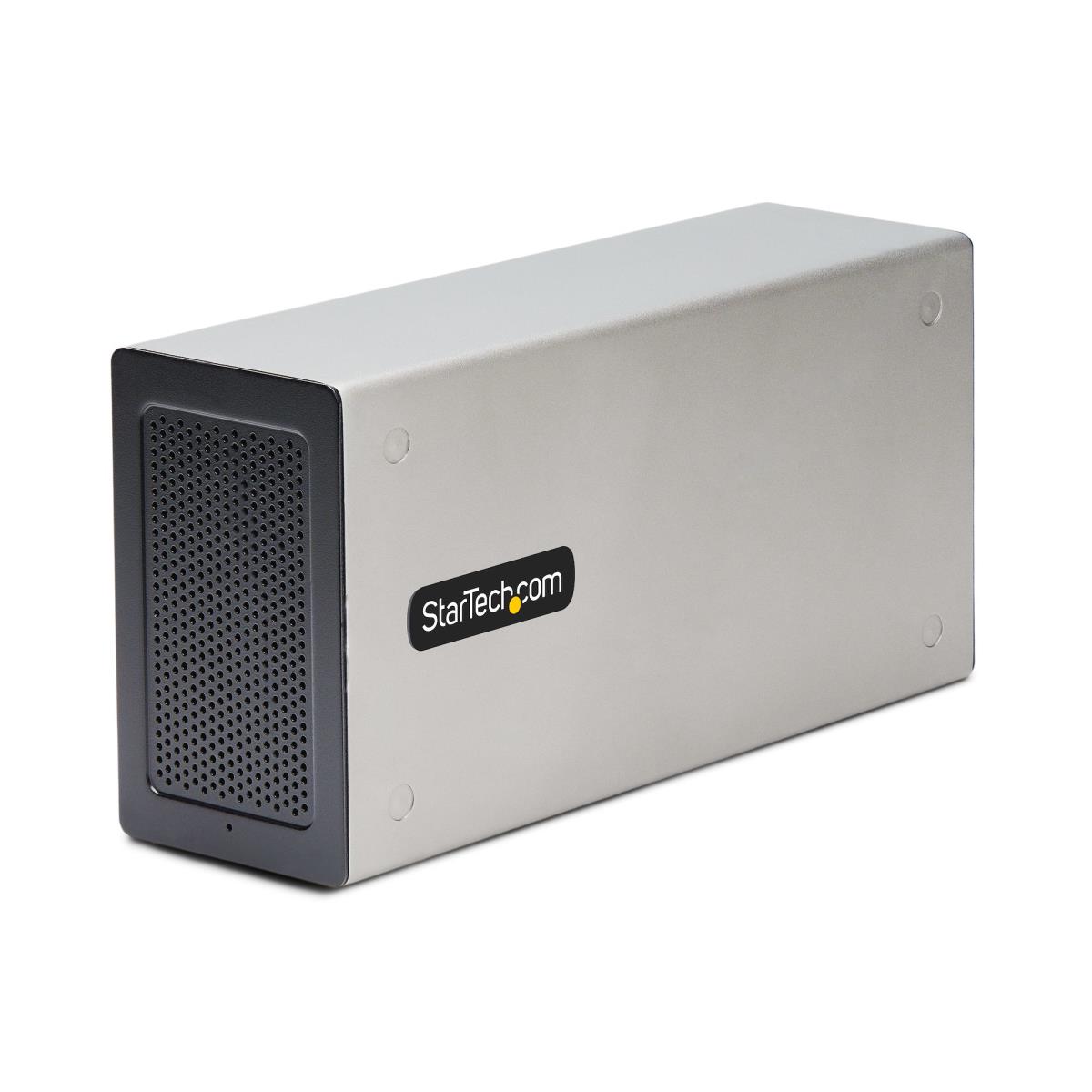

THUNDERBOLT 3 PCIE CHASSIS

Introduction

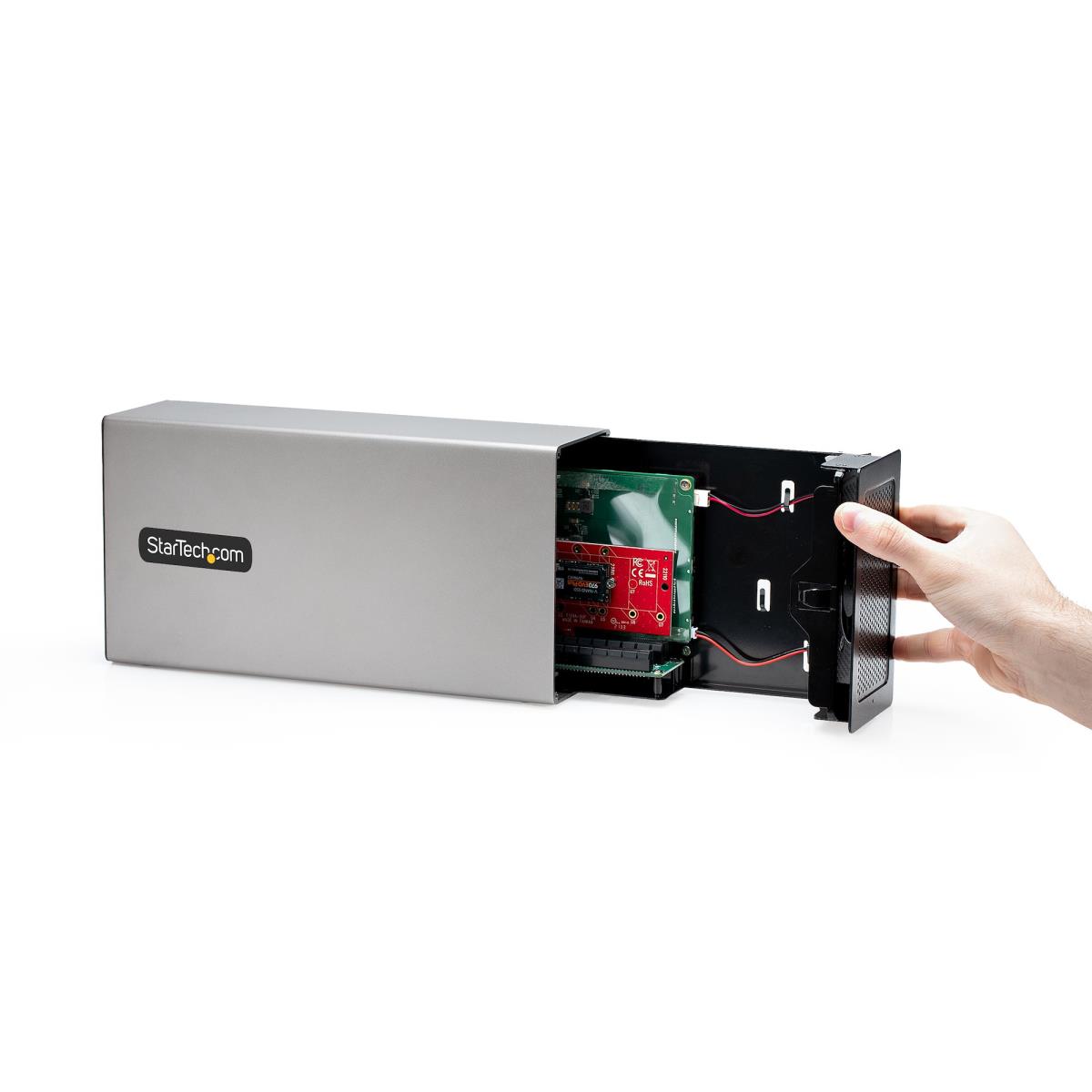

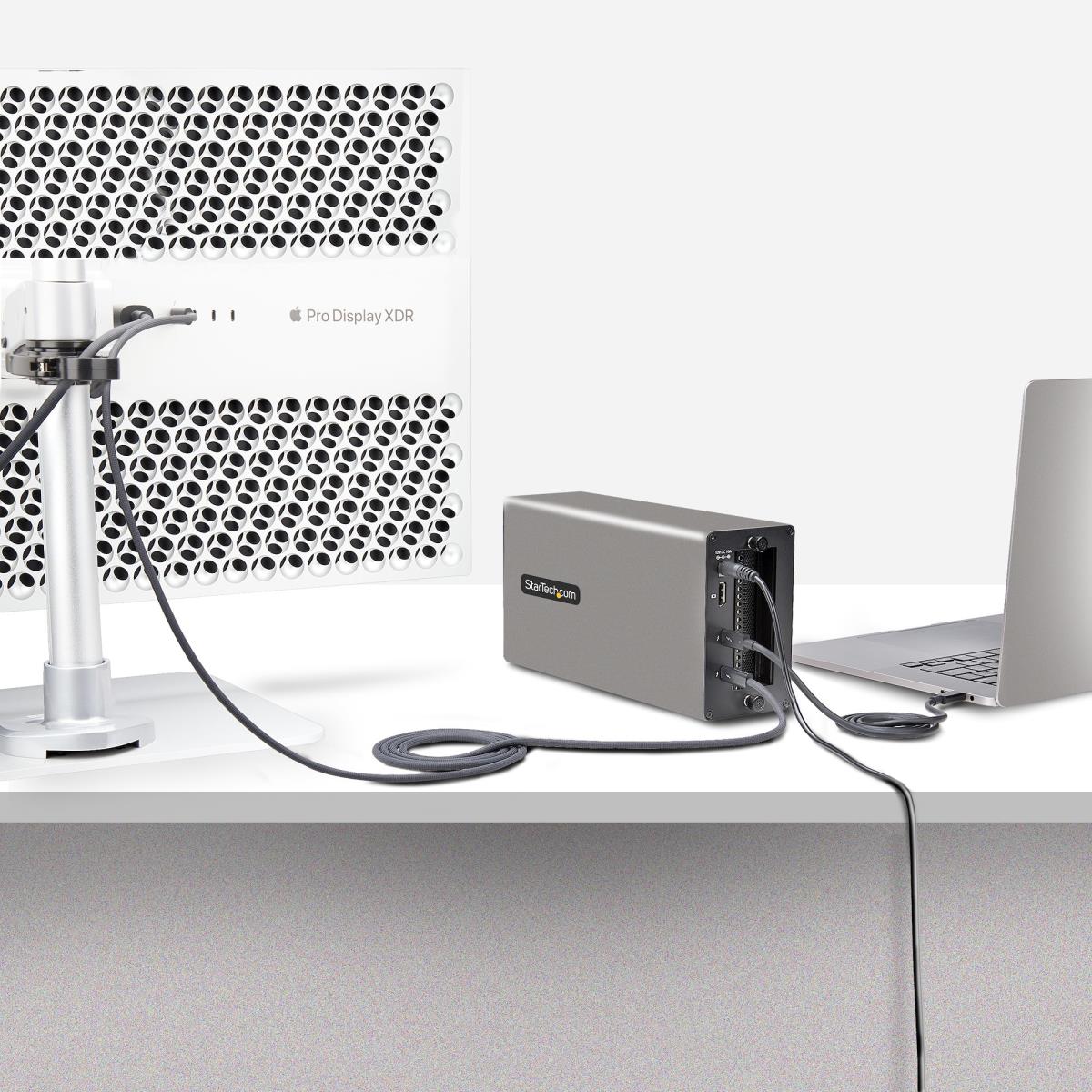

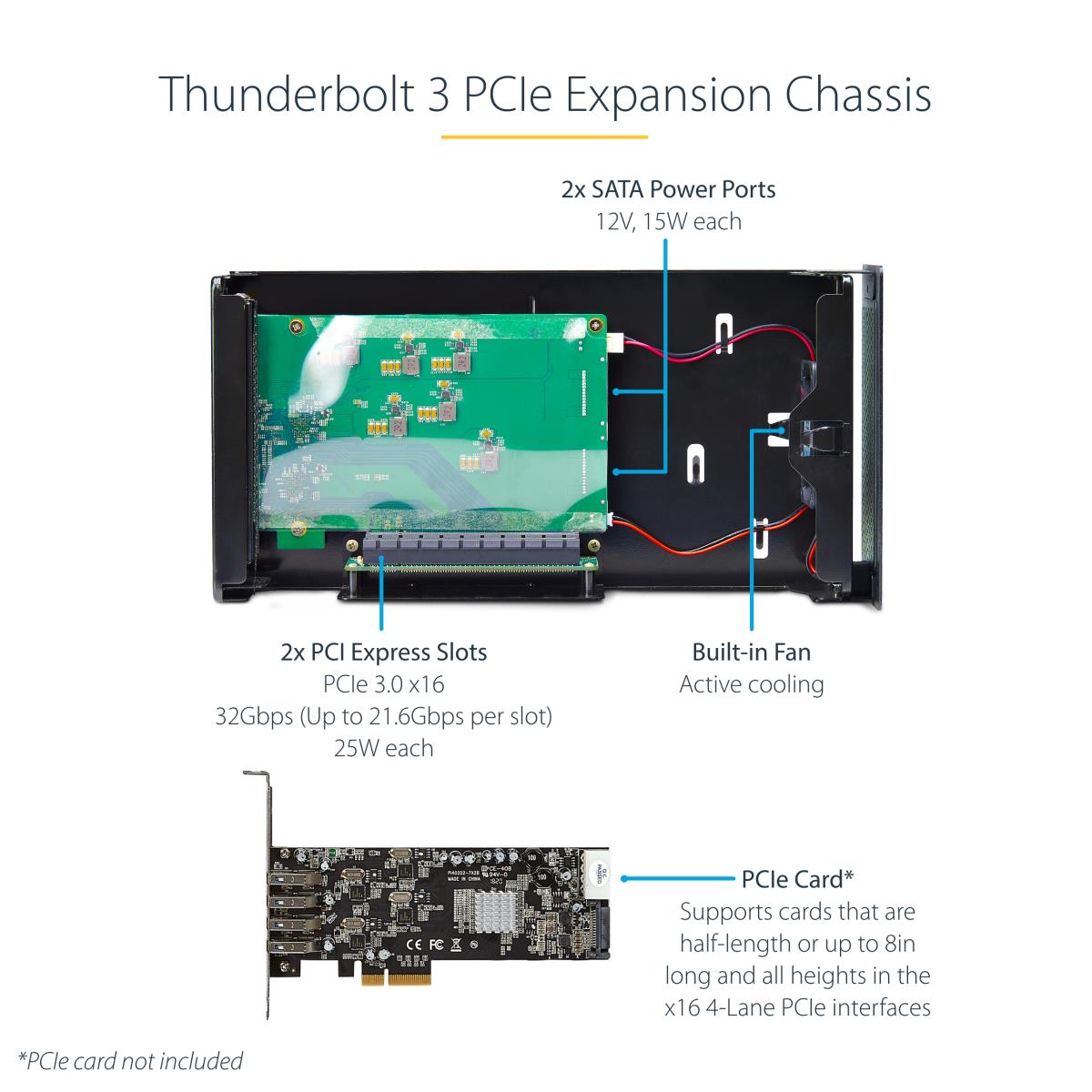

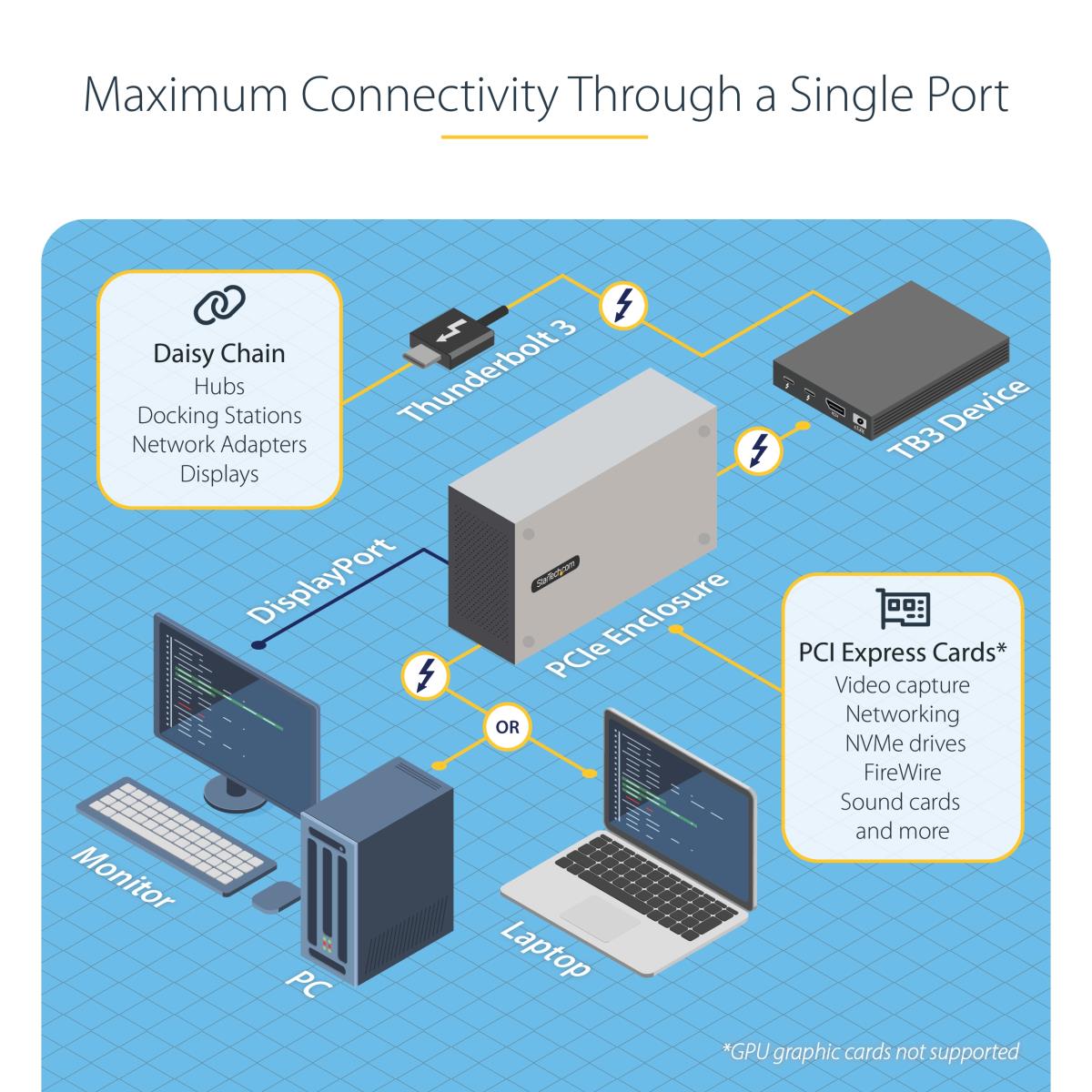

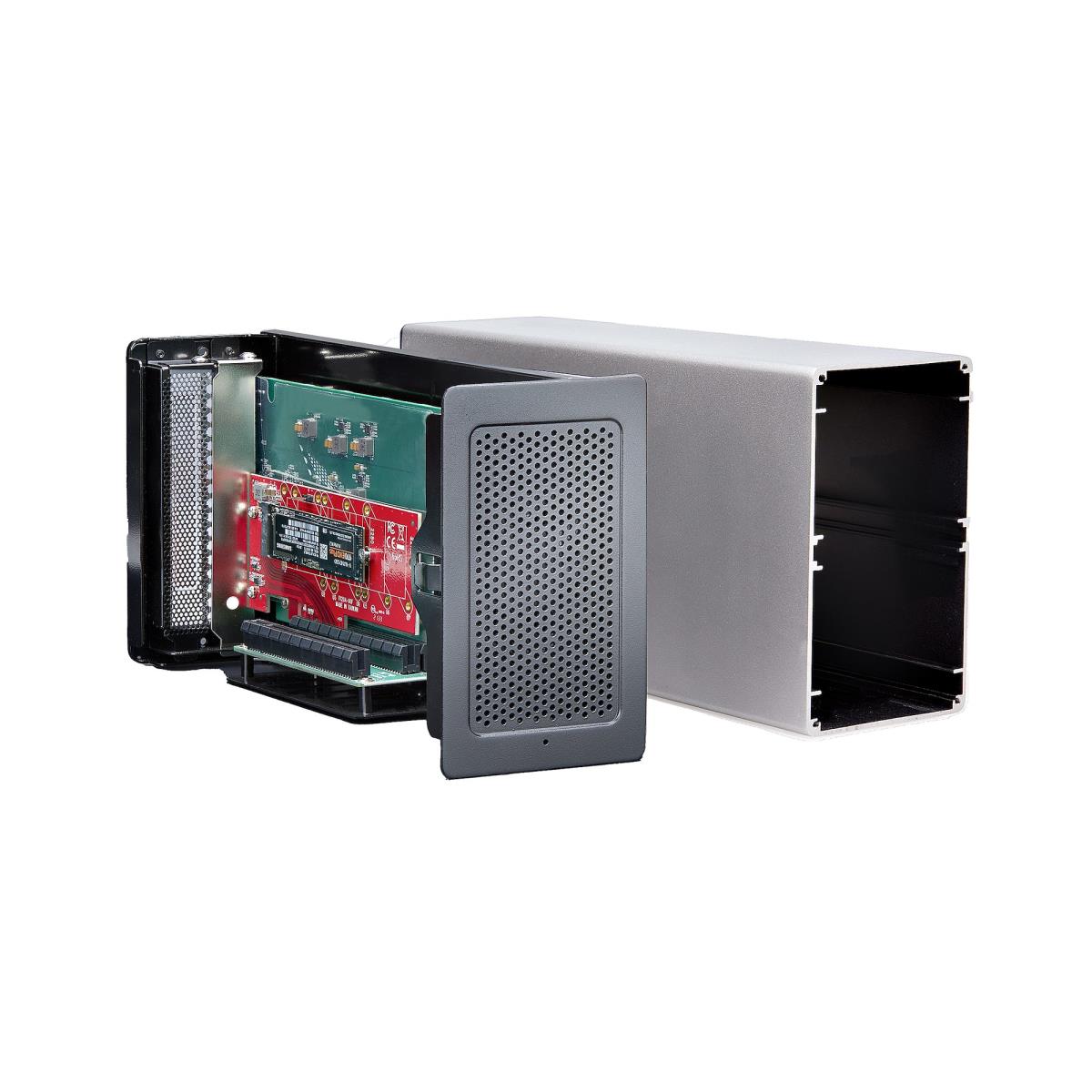

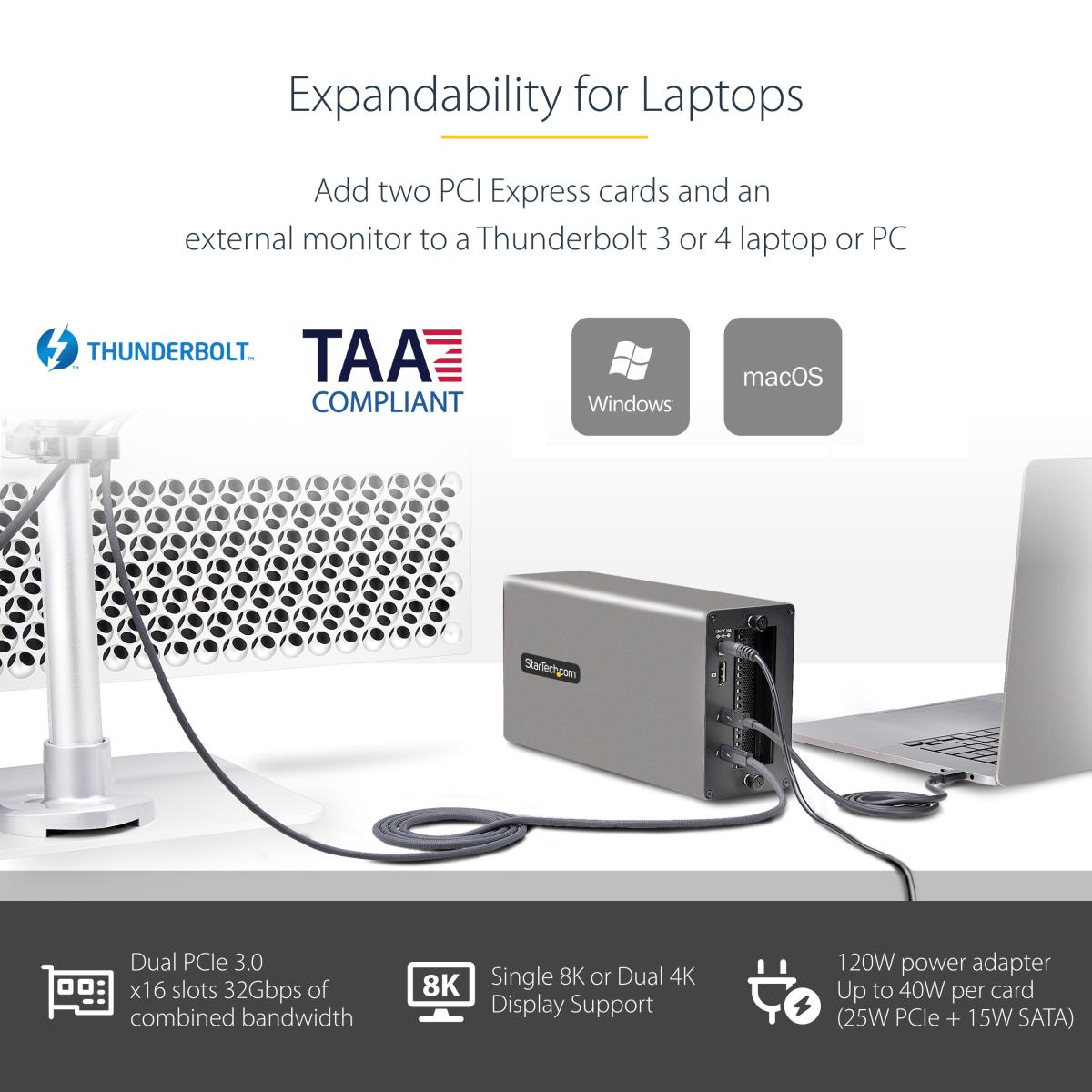

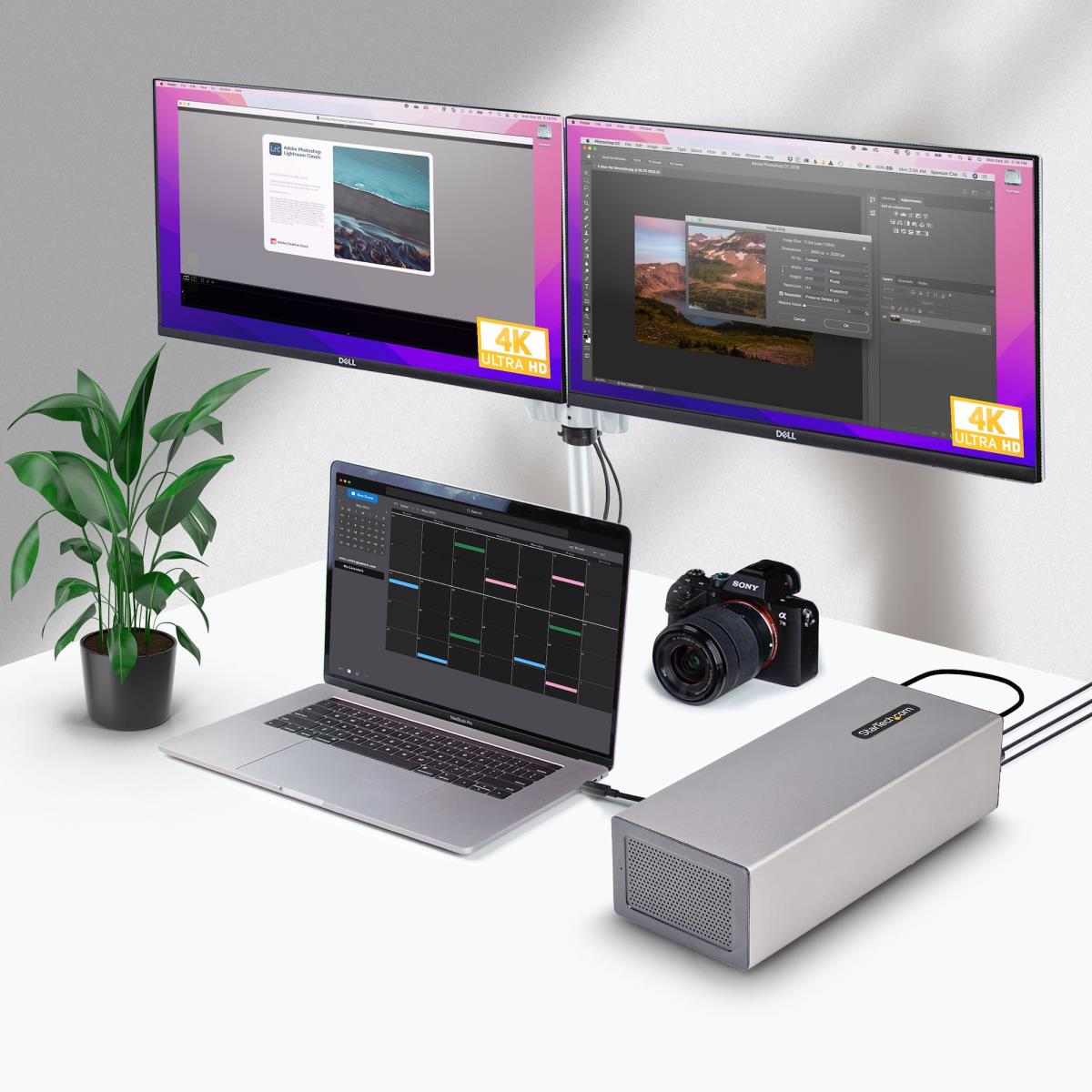

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.Enhanced Computer CapabilitiesConnect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.Flexible Card SupportThe expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.8K & 4K Monitor SupportConnect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).CompatibilityThe enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.Note: Some expansion cards installed in the chassis may require drivers to be installed.The StarTech.com Advantage

Specifications

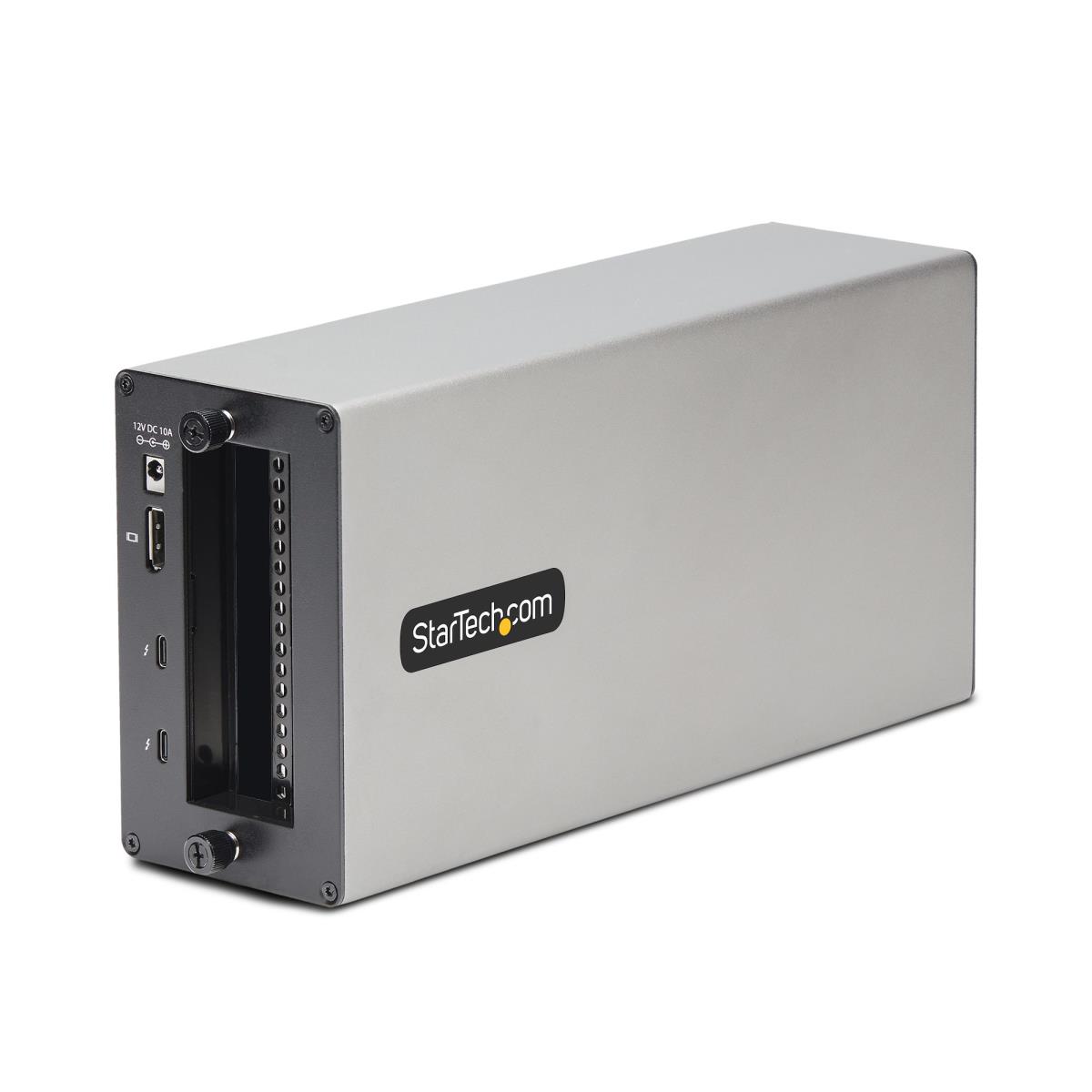

Ports & interfaces

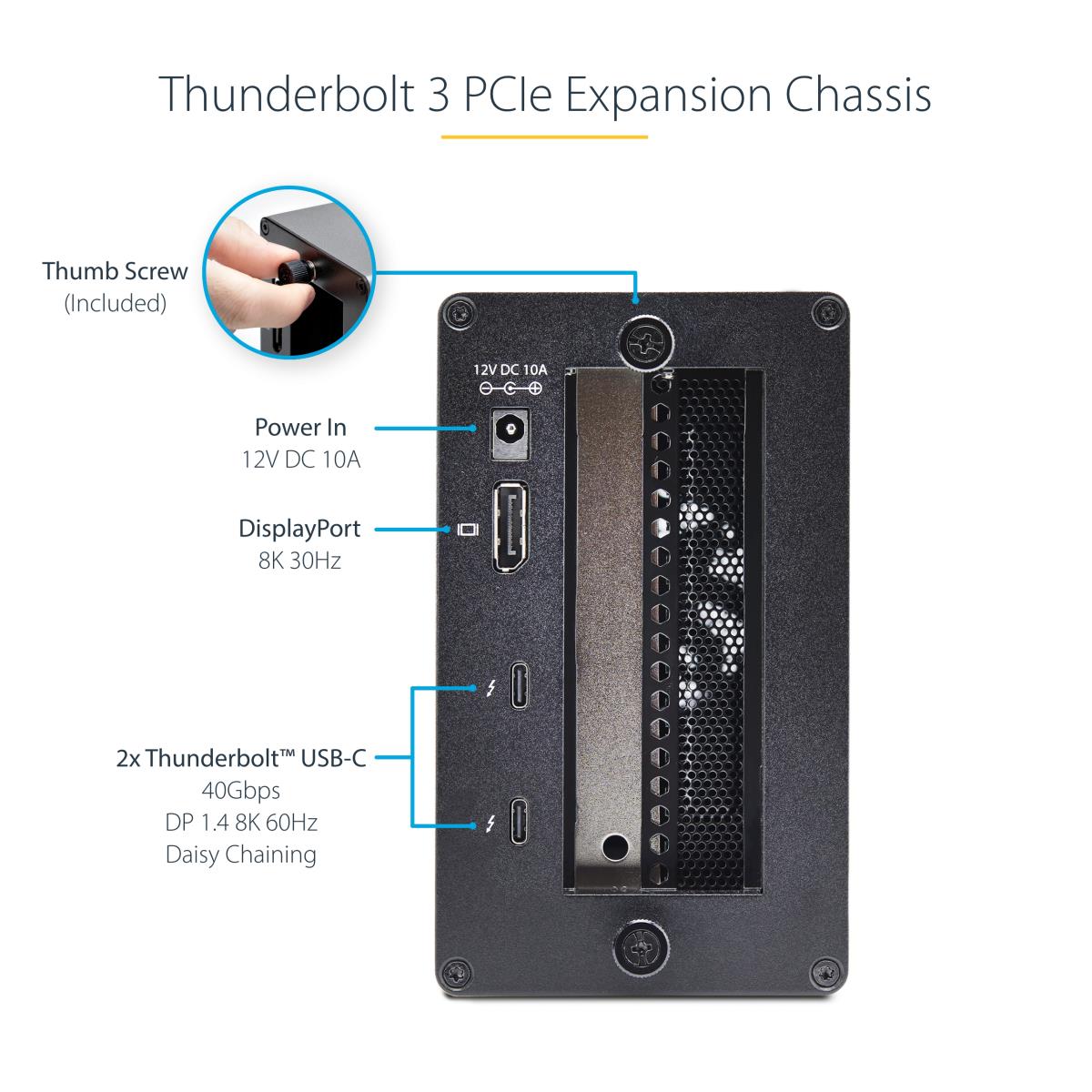

Thunderbolt 3 ports quantity2
Host interfaceThunderbolt 3
DisplayPorts quantity1
Microphone inNo
Connectivity technologyWired
PCIe version3.0
PCI Express x16 slots2
DisplayPort version1.4
Network
Ethernet LANNo
Performance
Number of displays supported2
Product colourSilver
Card reader integratedNo
LED indicatorsPower
Rubber feetYes
HD type8K Ultra HD
Housing materialAluminium
Maximum refresh rate60 Hz
Technical details
Product colourSilver
Sustainability complianceYes
Sustainability certificatesRoHS, Trade Agreements Act (TAA)
Products per master (outer) case3 pc(s)
Master (outer) case width375 mm
Master (outer) case length455 mm
Master (outer) case height325 mm
Cooling
Built-in fanYes
Number of fans1 fan(s)
Fan diameter6 cm
Storage
Card reader integratedNo
Power
Power source typeDC
Input current3 A
Power consumption (max)120 W
Compatible power plug typesAU, EU, JP, UK, US
AC input voltage100 - 240 V
Output voltage12 V
Output current10 A
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Indication
LED indicatorsPower
Operational conditions
Operating temperature (T-T)5 - 65 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)20 - 80%
Sustainability
Sustainability complianceYes
Sustainability certificatesRoHS, Trade Agreements Act (TAA)

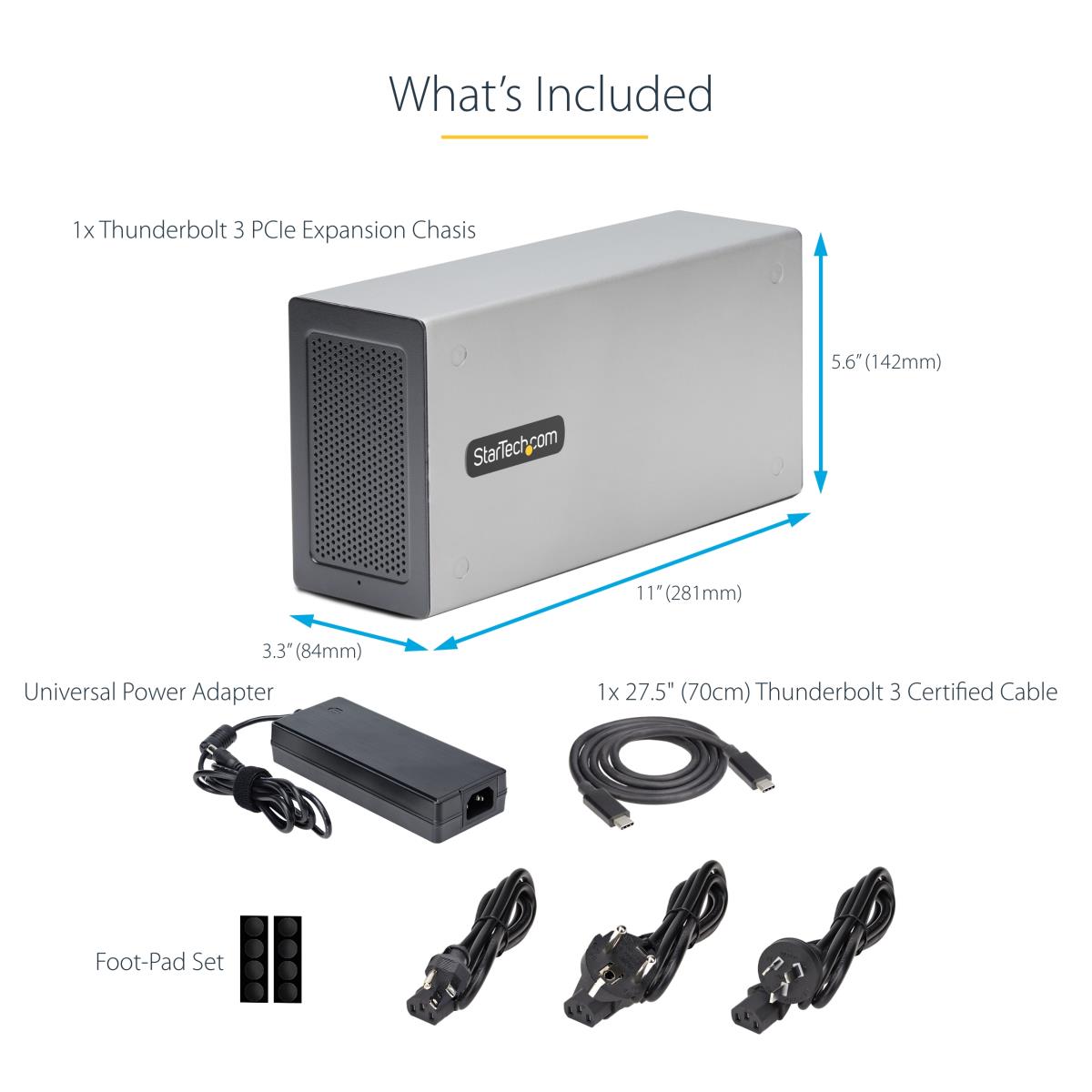

Weight & dimensions
Weight1.6 kg
Width281 mm
Depth84 mm
Height142 mm
Package weight3.4 kg
Package width285 mm
Package depth353 mm
Package height143 mm
Design
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colourSilver
LED indicatorsPower
Rubber feetYes
Packaging data
Package weight3.4 kg
Package width285 mm
Package depth353 mm
Package height143 mm

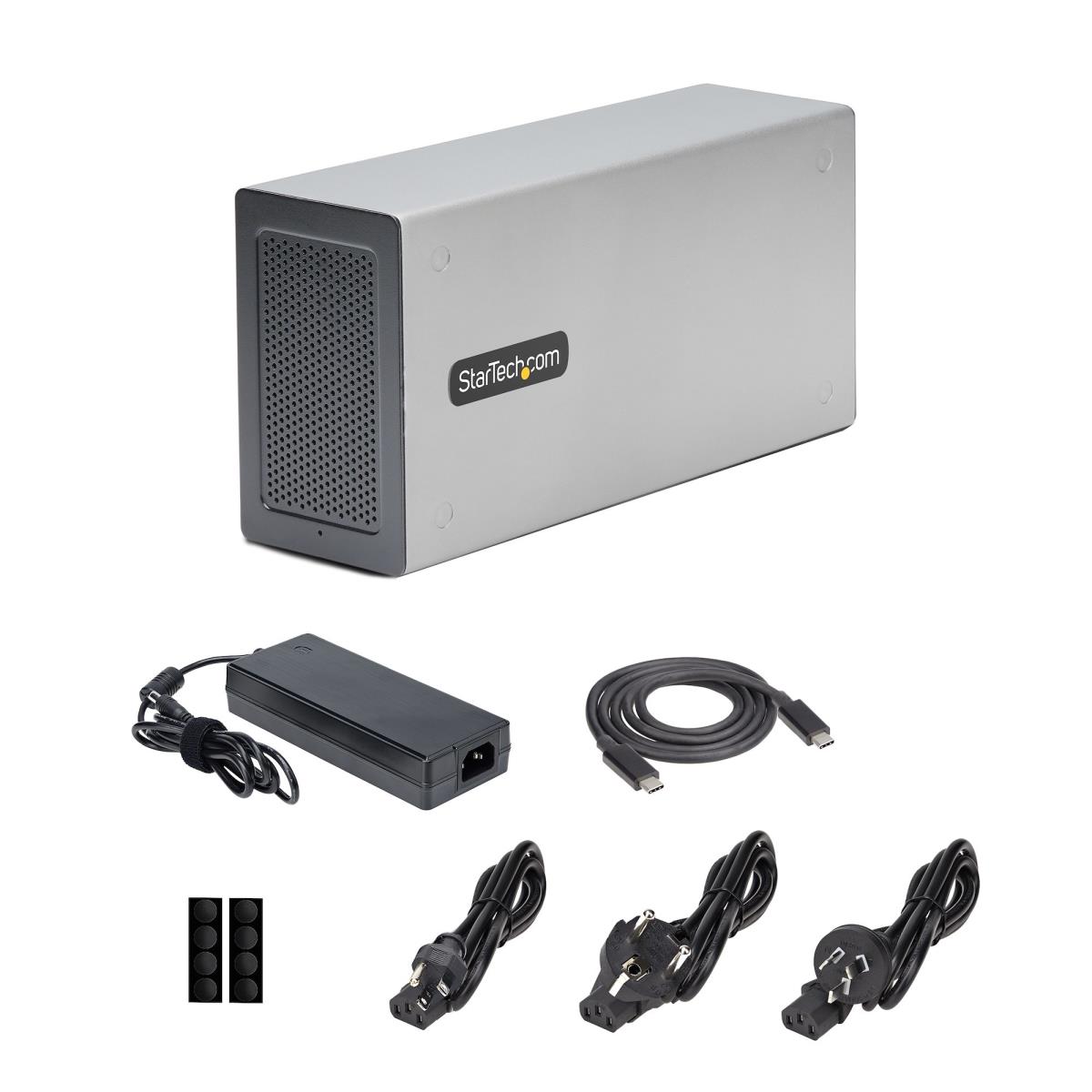

Packaging content
Quick start guideYes
Cables includedThunderbolt
AC adapter includedYes
Logistics data
Products per master (outer) case3 pc(s)
Master (outer) case width375 mm
Master (outer) case length455 mm
Master (outer) case height325 mm
Other features
ChipsetTitan Ridge DSL7440 (x2), Ti TPS65983B (x2)
