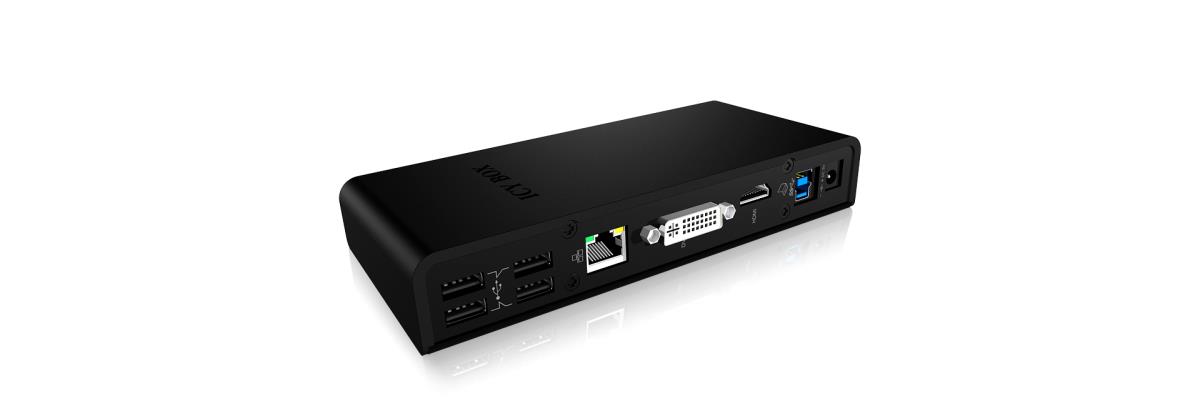

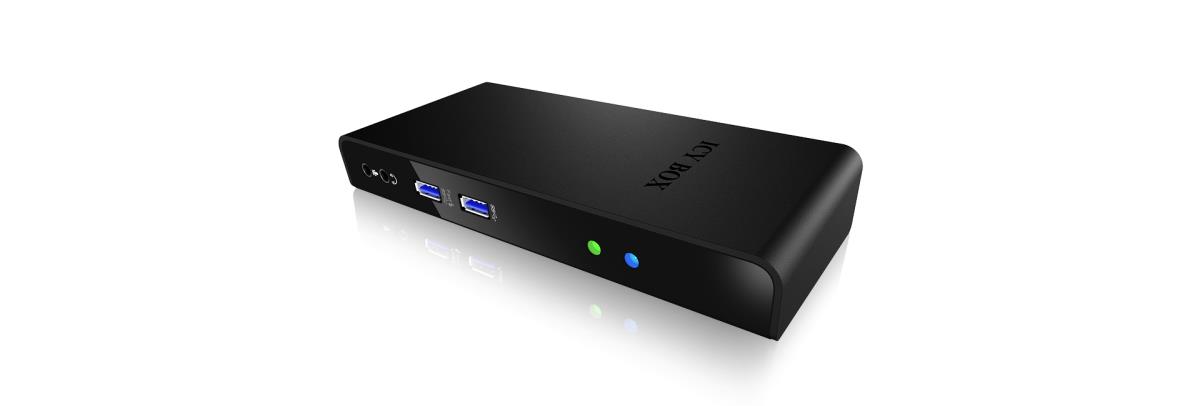

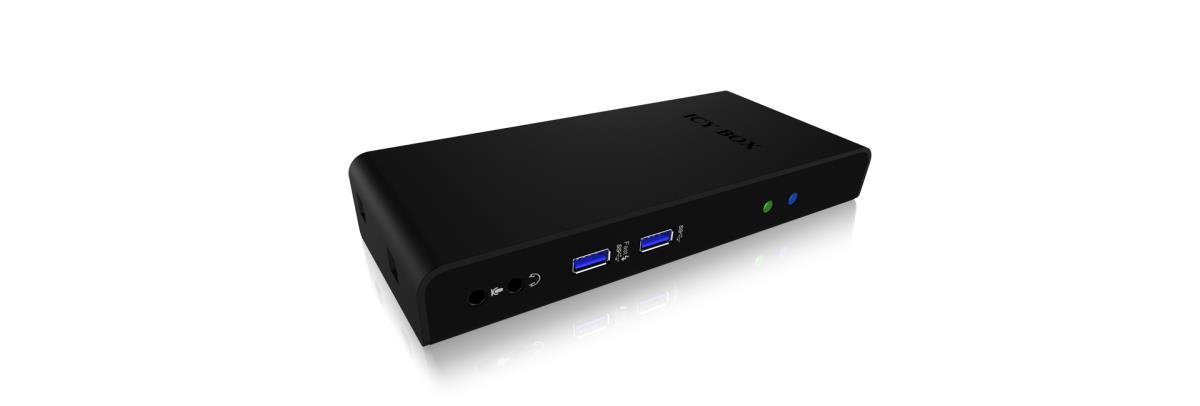

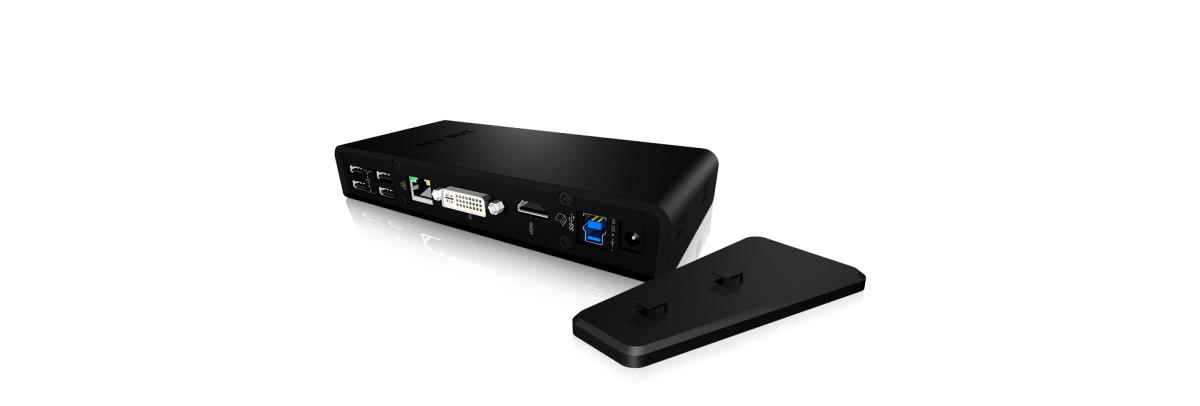

EU Product - IB-DK2241AC Dockingstation
Introduction
Bring diversity to the office everyday
With just one USB 3.0 host connector, you receive four further USB 2.0 ports, two USB 3.0 ports, one DVI-I and one HDMI connector as well as a Gigabit Ethernet connection and audio ports.
Multitasking for all
Thanks to the graphic interfaces DVI-I and HDMI, two additional screens can be connected, both in Full HD quality. The many available USB 2.0 and USB 3.0 ports make sure you will never have a need to compensate one device over the other.
Hands and feet

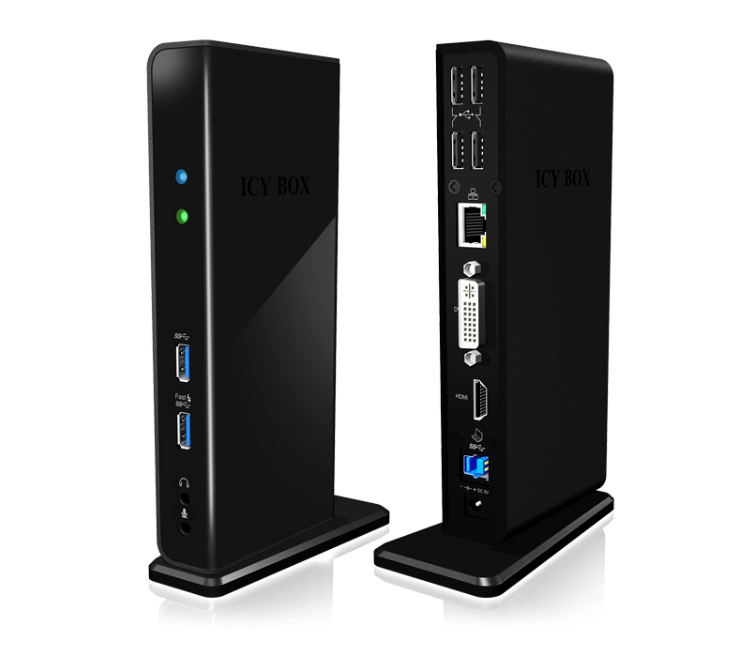

The high-quality metal stand makes sure the IB-DK2241AC is always in balance. Adding all the available ports, this device will make order in every situation.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of microphone inputs | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 2048 x 1152 pixels |
| Number of displays supported | 2 |
| Country of origin | China |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Any brand |
| Plug and Play | Yes |
| LED indicators | Yes |
| Hot-Plug support | Yes |
| Data transfer rate | 5 Gbit/s |
| Charging function | Yes |
| HD type | 2K |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal, Polycarbonate (PC) |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Any brand |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Data transfer rate | 5 Gbit/s |
| Charging function | Yes |
| Harmonized System (HS) code | 84718000 |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 215 mm |
| Master (outer) case gross weight | 8.5 kg |
| Master (outer) case length | 357 mm |
| Master (outer) case height | 330 mm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Power consumption (max) | 20 W |
| AC input voltage | 100-240 V |
| Output voltage | 5 V |
| Output current | 4 A |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 223 g |
| Width | 183 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Package weight | 840 g |
| Package width | 154 mm |
| Package depth | 68 mm |
| Package height | 204 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Black |
| LED indicators | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 840 g |
| Package width | 154 mm |
| Package depth | 68 mm |
| Package height | 204 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 215 mm |
| Master (outer) case gross weight | 8.5 kg |
| Master (outer) case length | 357 mm |
| Master (outer) case height | 330 mm |
| Harmonized System (HS) code | 84718000 |
| Other features | |
| Number of microphone inputs | 1 |
