Part No:M2-HDD-DUPLICATOR-N1
Stock:11 In Stock
EAN Code:0065030898003

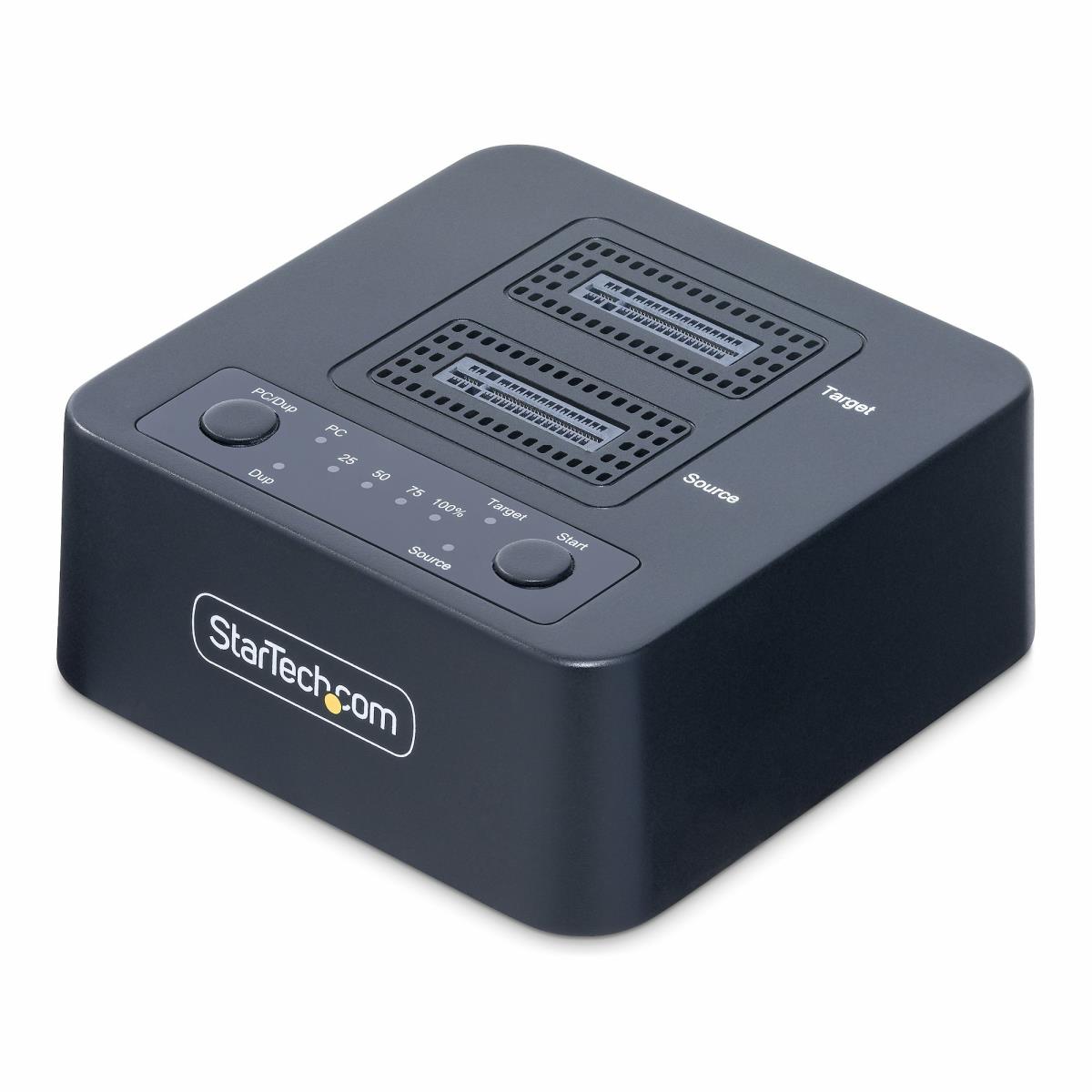

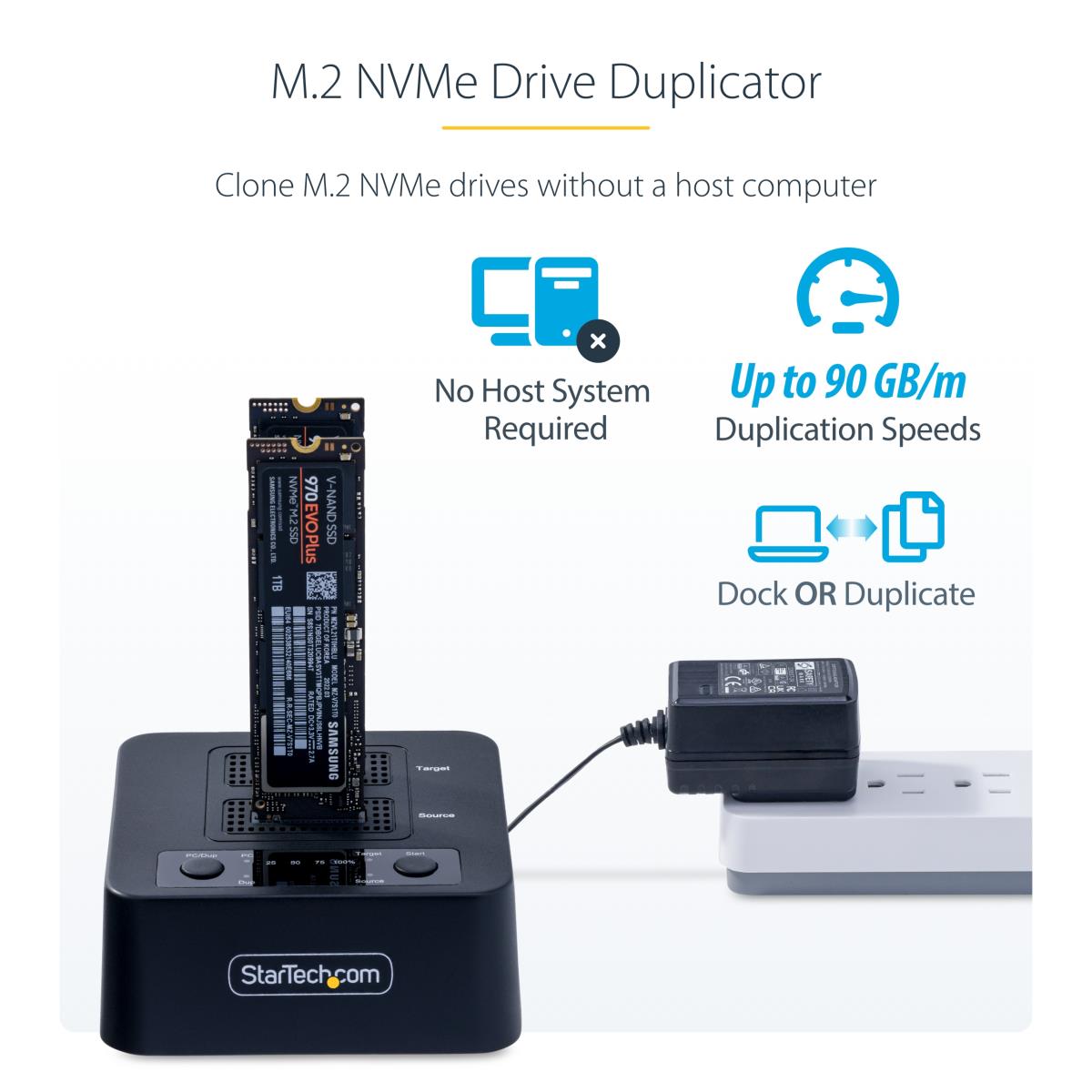

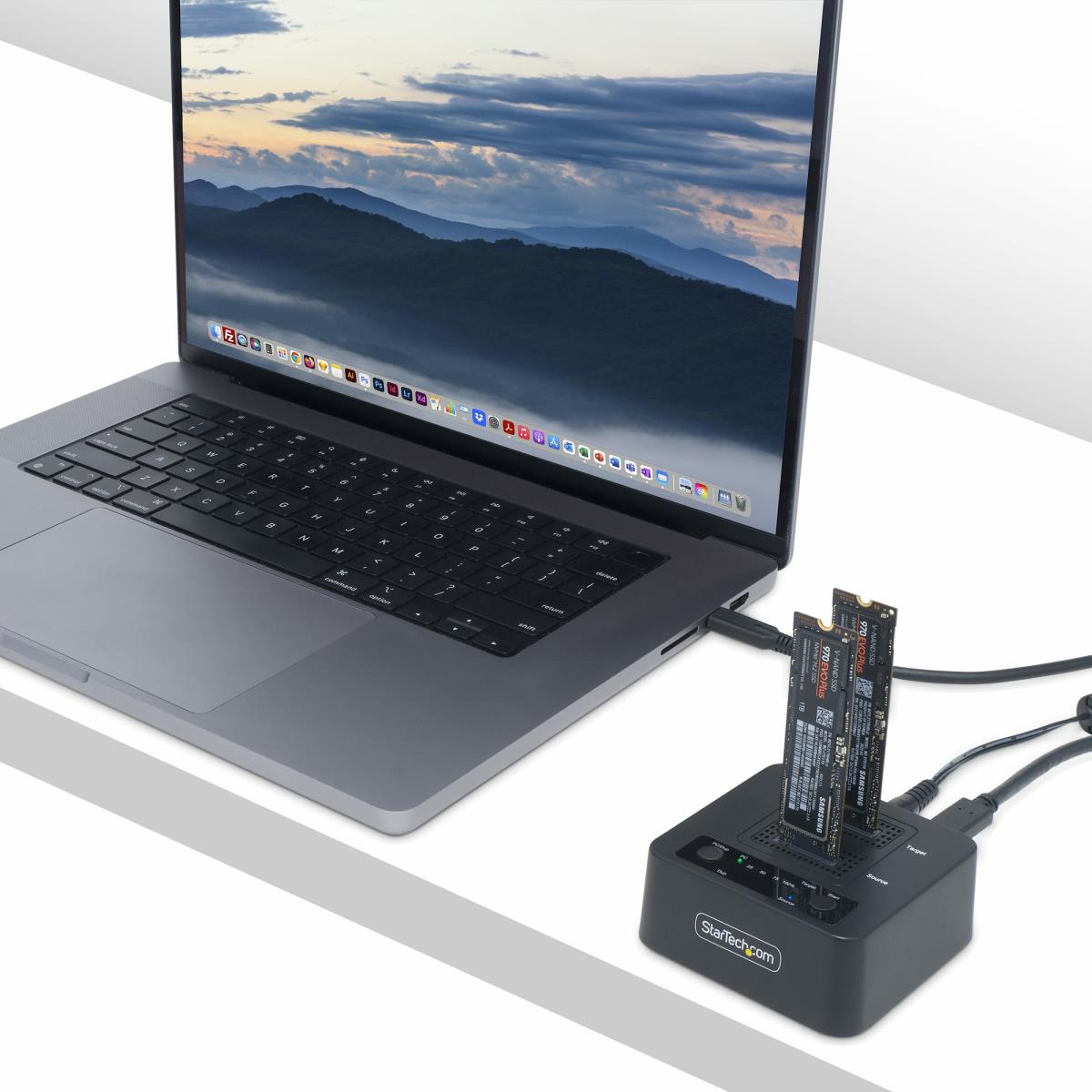

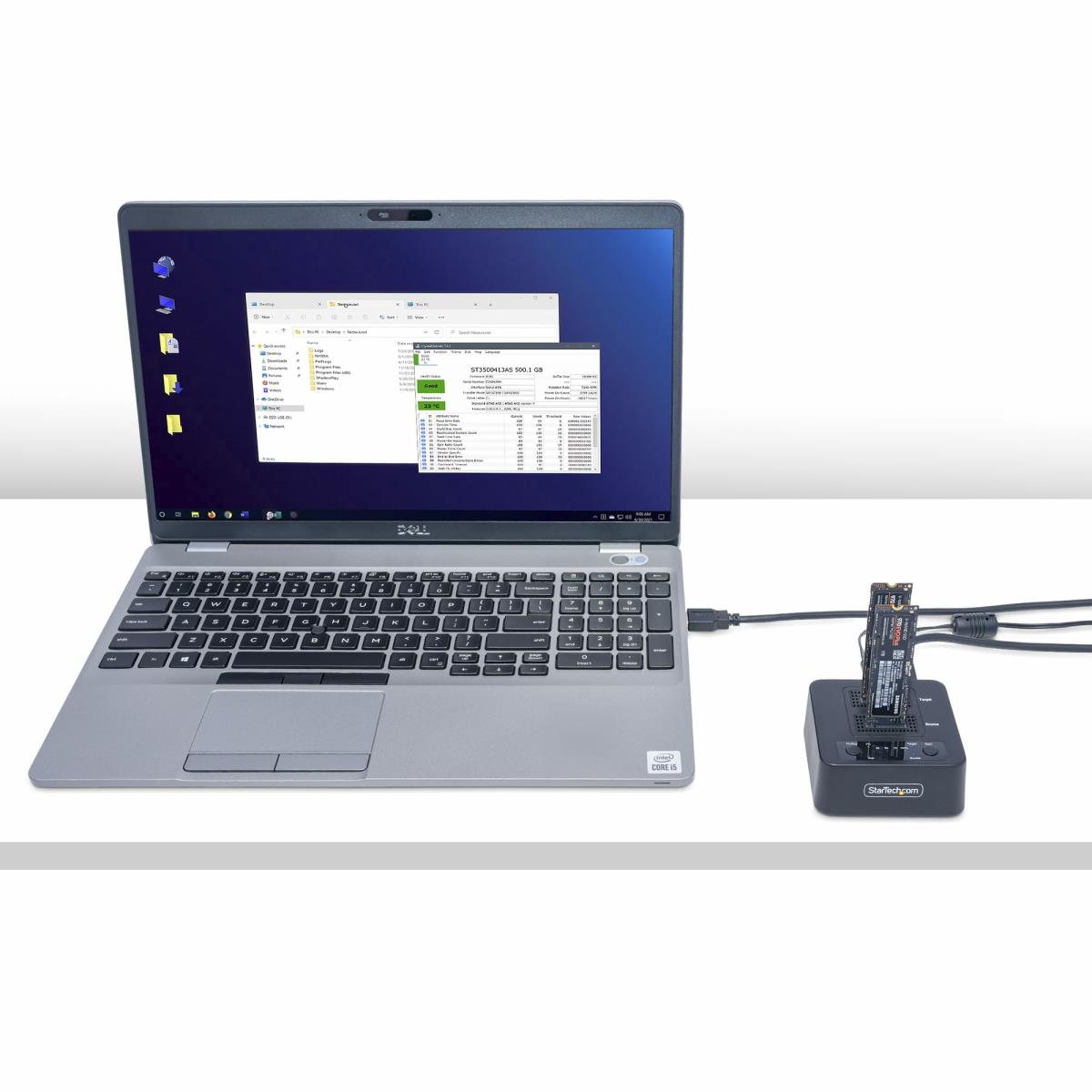

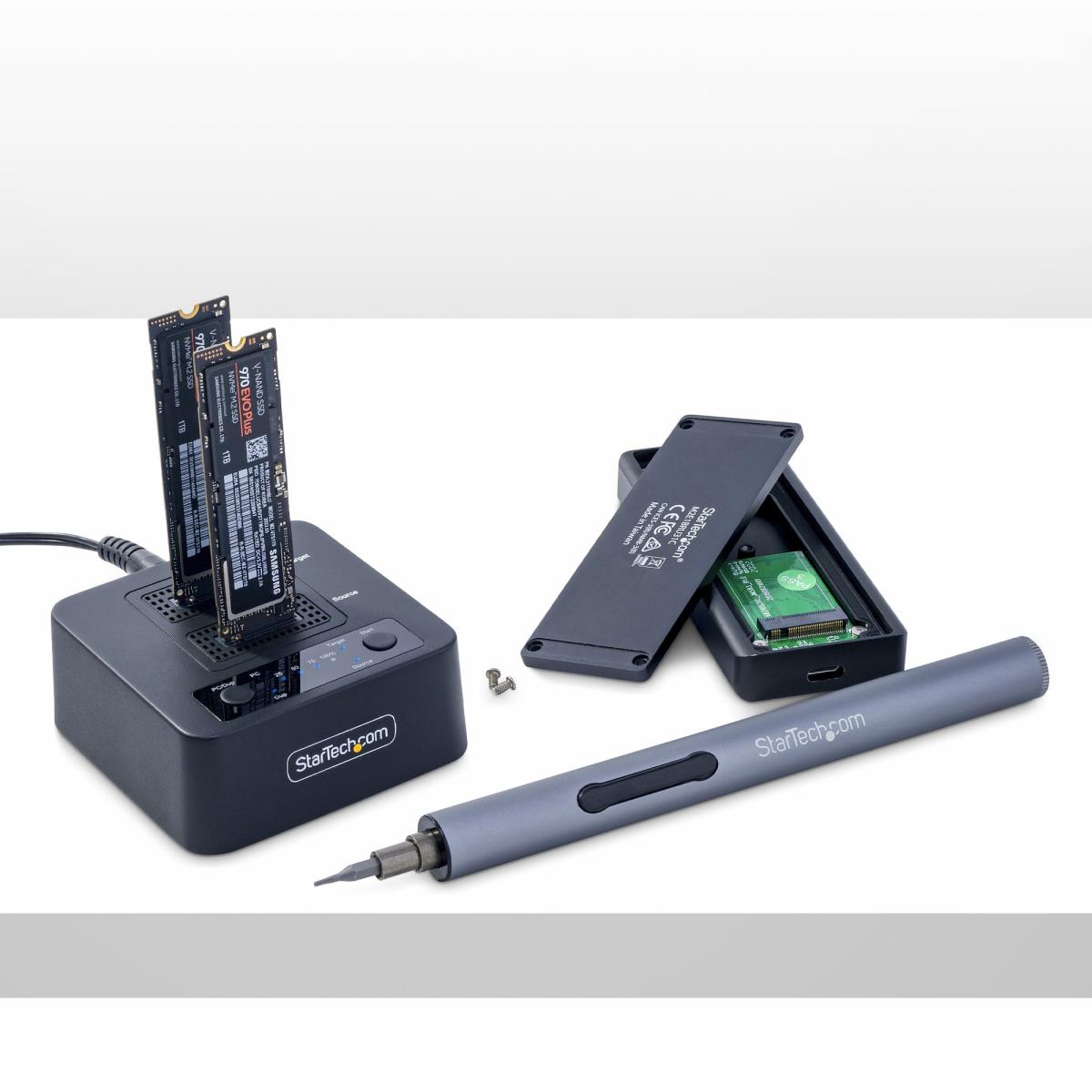

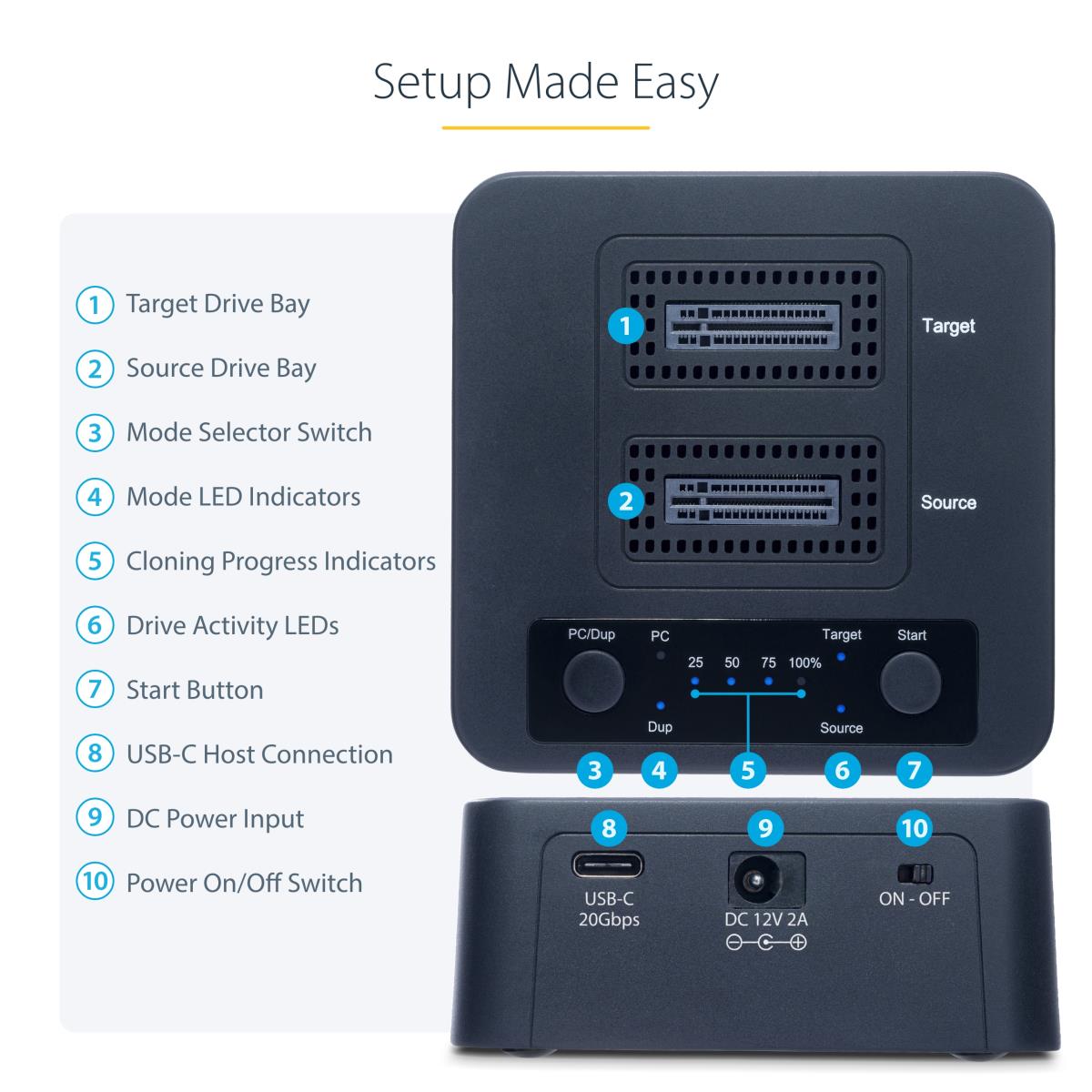

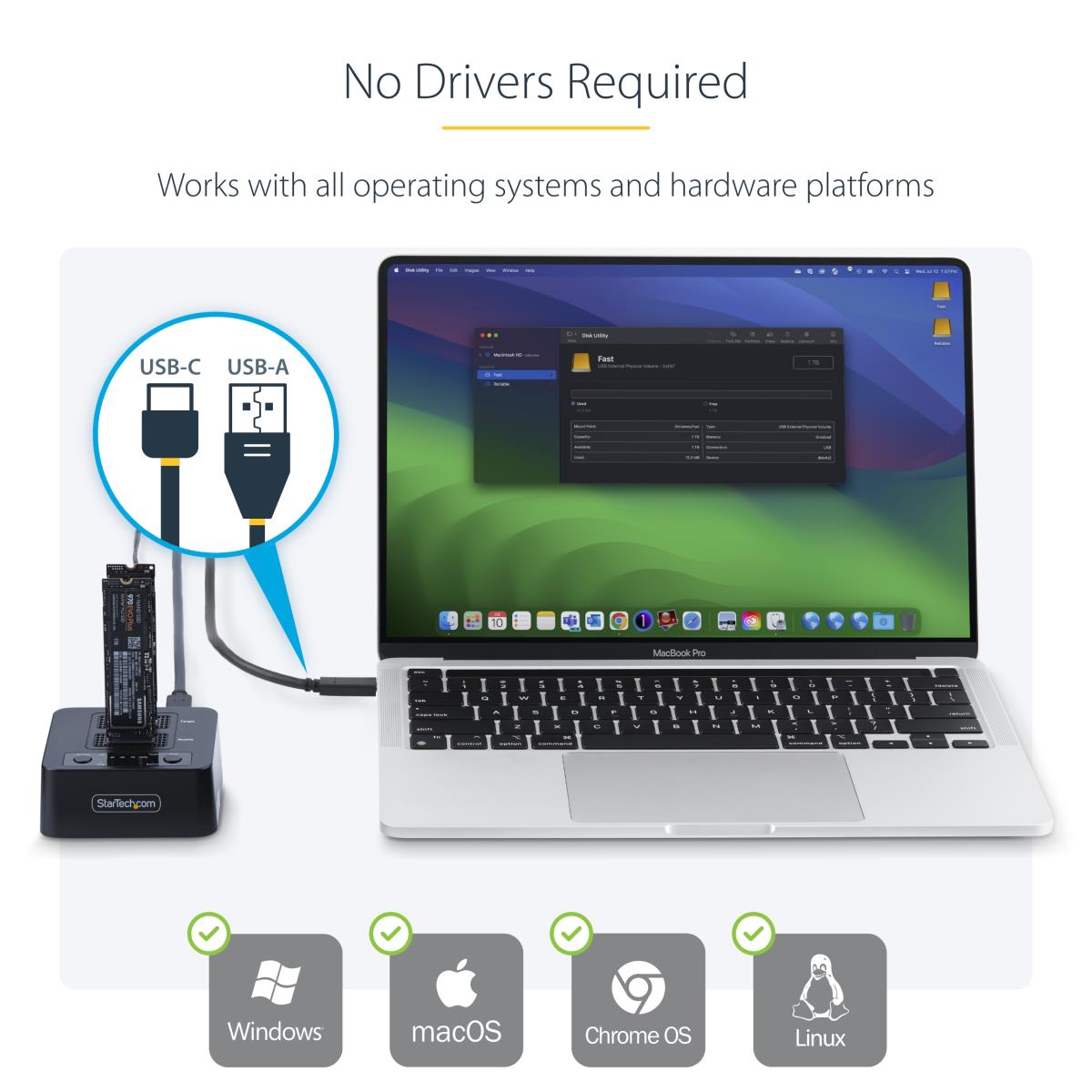

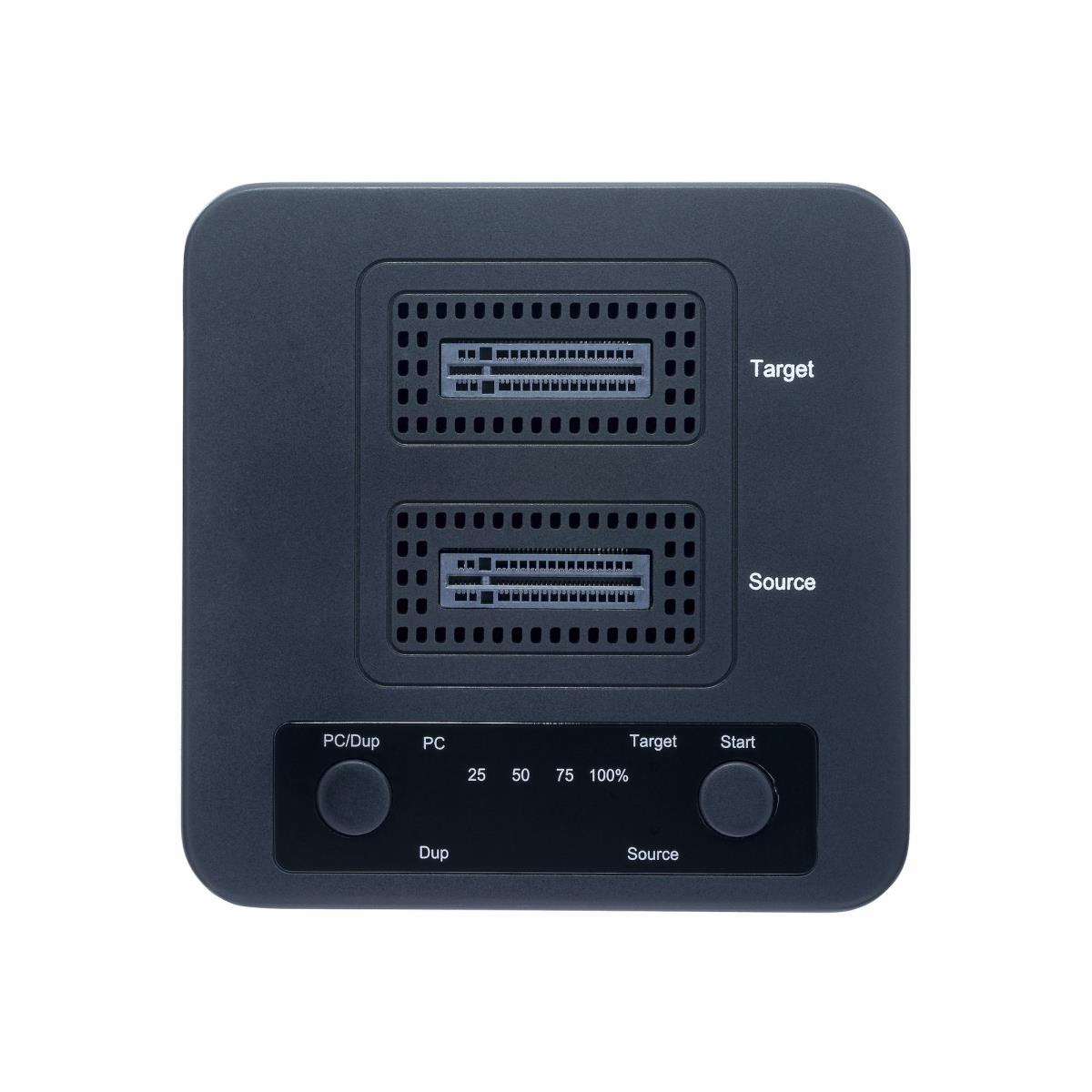

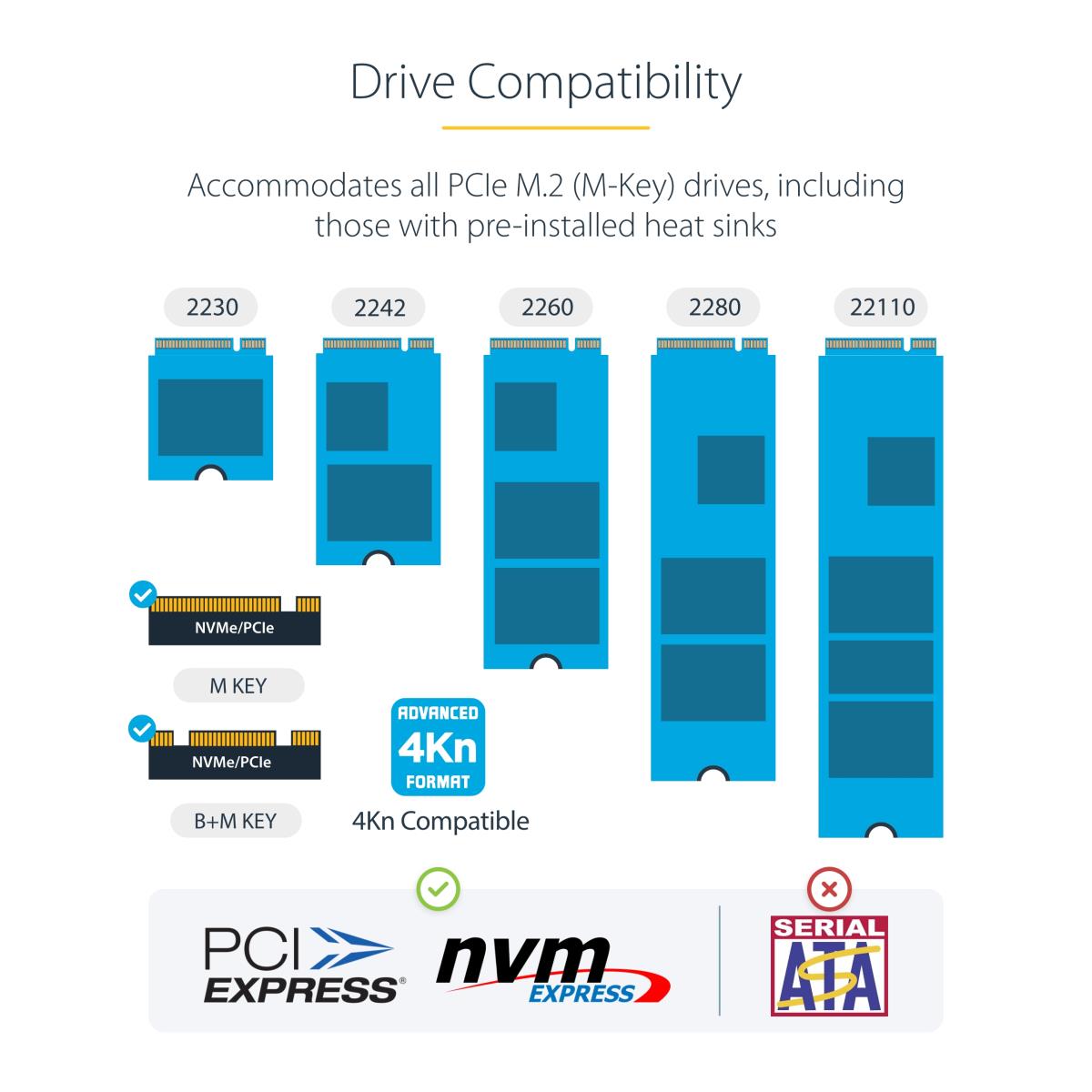

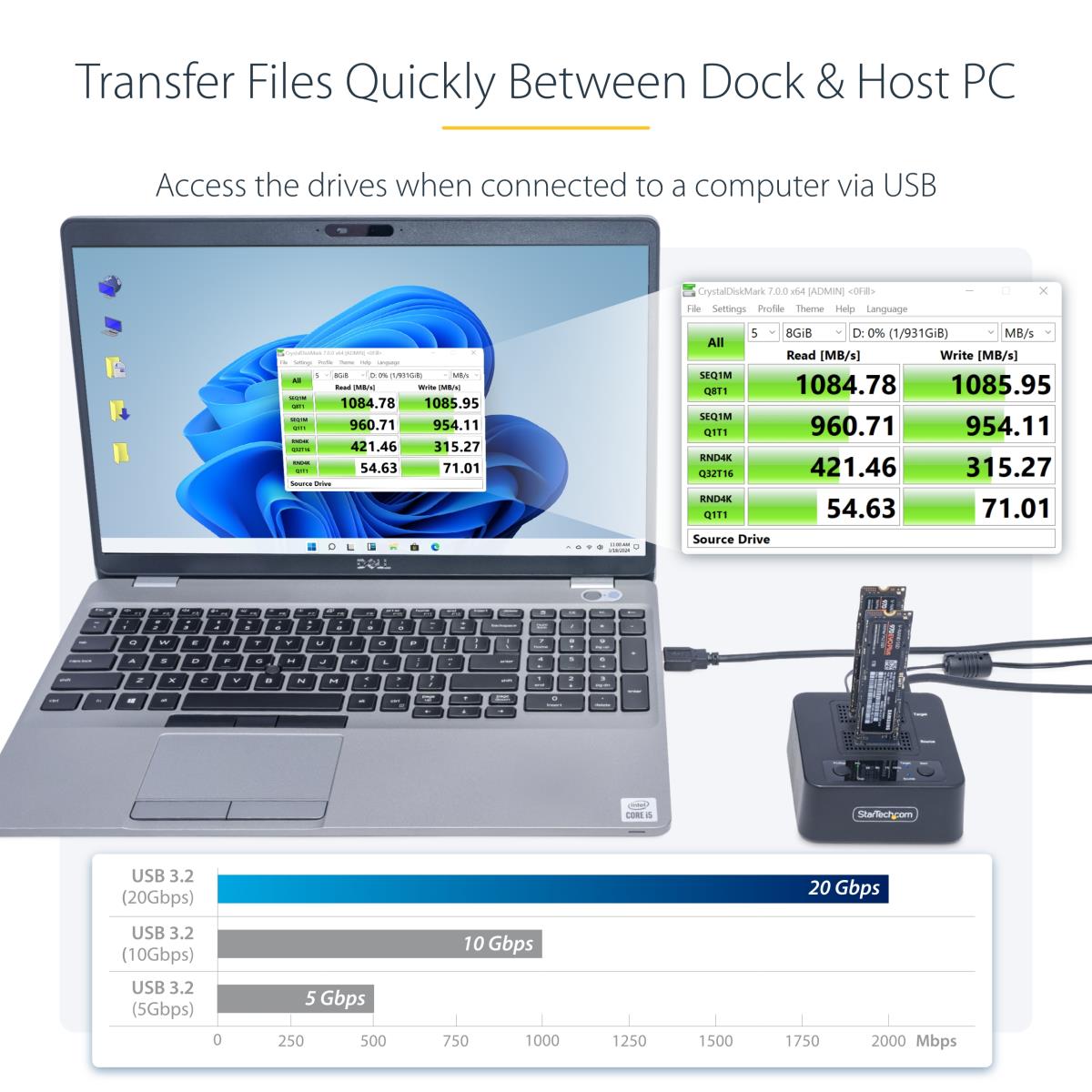

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USBThis M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.High-Speed M.2 NVMe DuplicationClone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.NVMe Drive Access over USB 3.2 Gen2x2The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.Compact and User-FriendlyThe device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.The StarTech.com Advantage
Technical details | |
---|---|
Product type | HDD/SSD duplicator |
Chipset | JMS586U |
Number of fans | 1 fan(s) |
LED indicators | Yes |
Fan diameter | 6 cm |
Housing material | Plastic |

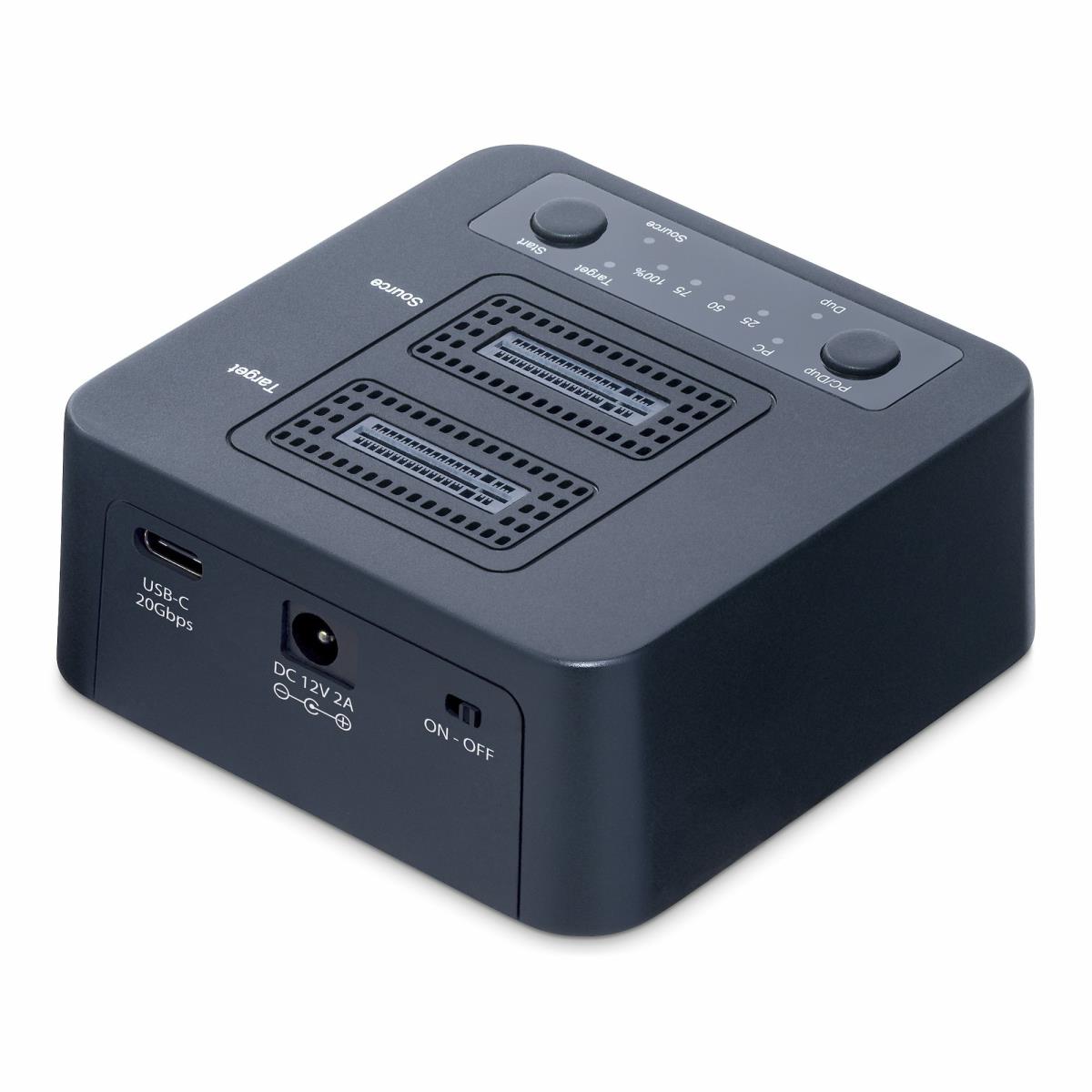

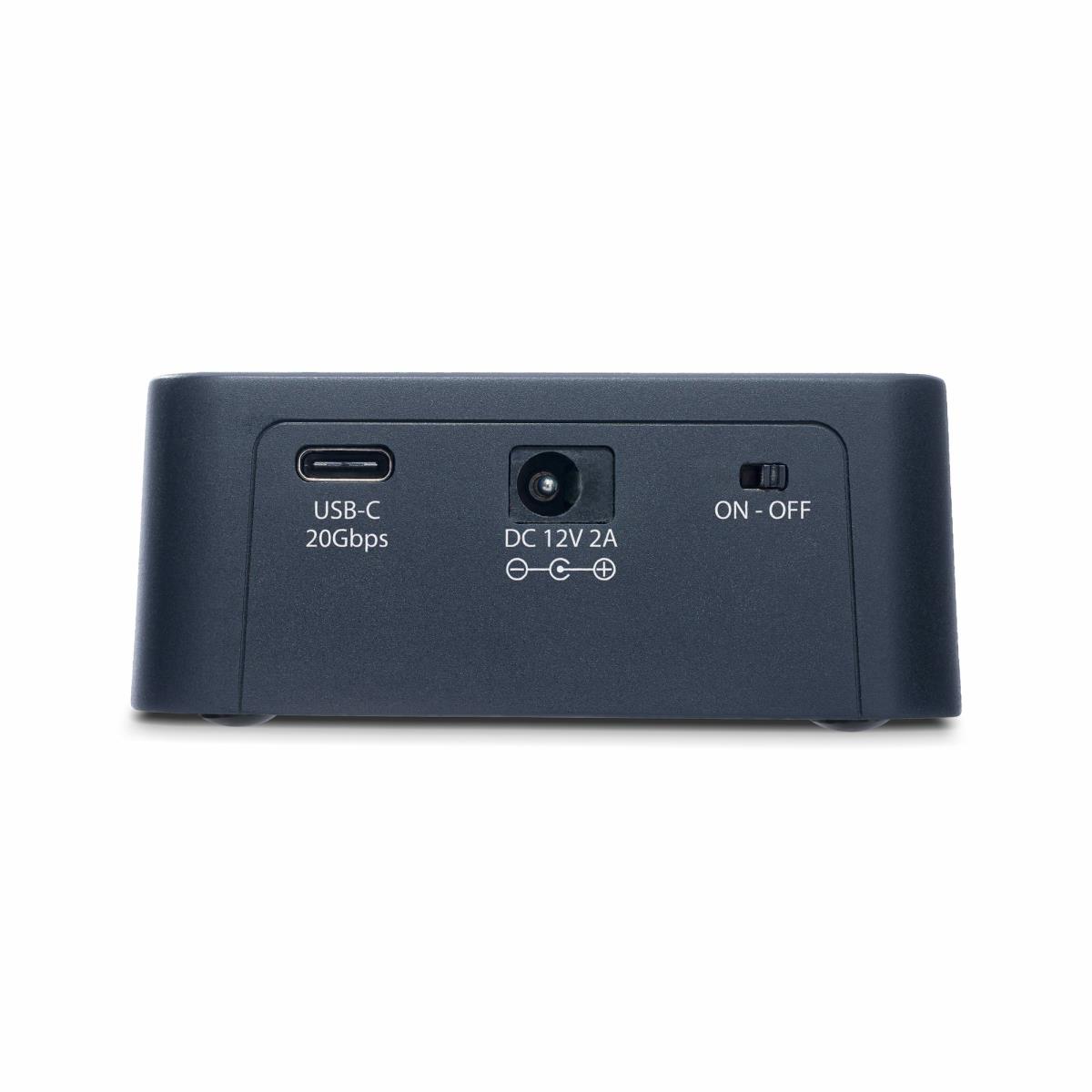

USB connector type | USB Type-C |
Hot-swap drive bays | No |
Plug and Play | Yes |
Package width | 160 mm |
Package height | 95 mm |
Number of simultaneous copies | 1 copies |
Interface | USB 3.2 Gen 2 (3.1 Gen 2) |
Duplicator operating modes | Copy |
Transfer rate | 20000 MB/s |
Transfer rate | 90 GB/min |
Product colour | Black |
Package depth | 90 mm |
Master (outer) case width | 500 mm |
Master (outer) case length | 338 mm |
Master (outer) case height | 220 mm |
Products per master (outer) case | 20 pc(s) |
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
Compliance certificates | RoHS |
Hard drive | |
SSD support | Yes |
SSD interface | M.2 |
Power | |
Output voltage | 12 V |
Output current | 2 A |
Input current | 0.6 A |
AC input voltage | 100 - 240 V |
Power plug type | Type M |
Included power plug types | ANZ, EU, NA, UK |
Power consumption (typical) | 0.1 W |
Operational conditions | |
Storage temperature (T-T) | -20 - 55 °C |
Operating temperature (T-T) | 5 - 55 °C |
Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions | |
Weight | 129 g |
Dimensions (WxDxH) | 77 x 77 x 44 mm |
Colour | |
Product colour | Black |
Packaging data | |

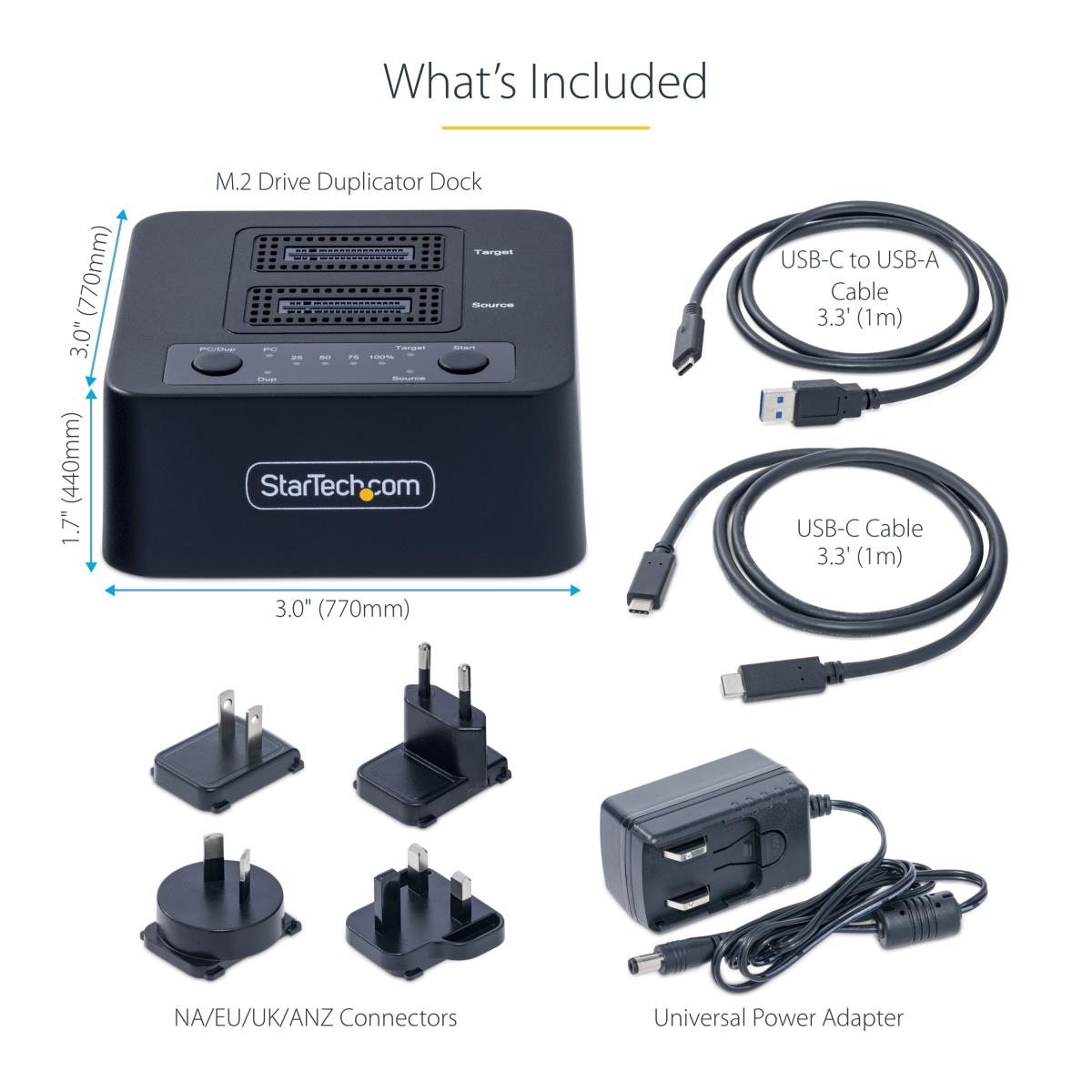

Manual | Yes |

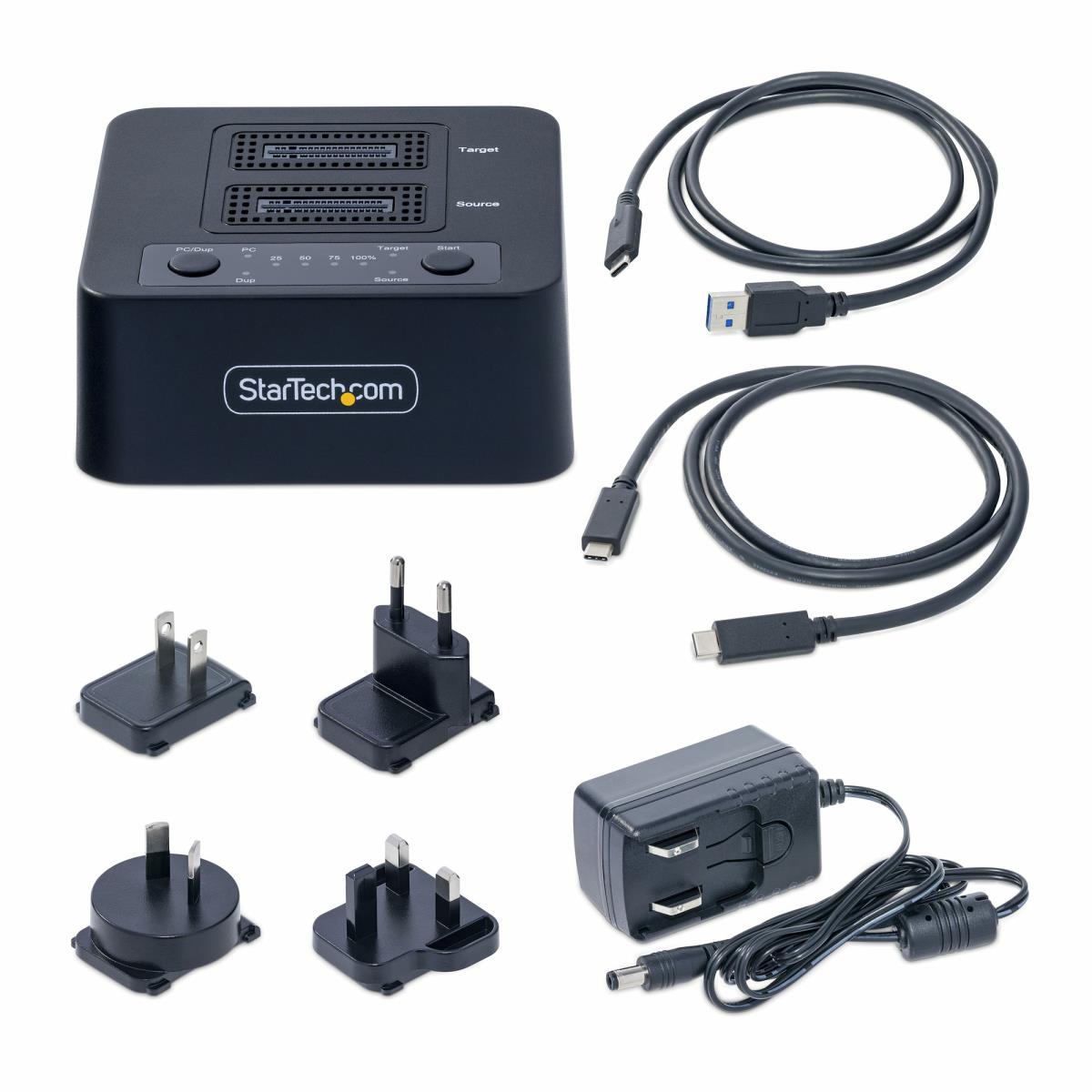

Cables included | USB Type-A to USB Type-C, USB Type-C to USB Type-C |
AC adapter included | Yes |
Package width | 160 mm |
Package height | 95 mm |
Package weight | 140 g |
Package depth | 90 mm |
Other features | |
Output voltage | 12 V |
Logistics data | |
Master (outer) case width | 500 mm |
Master (outer) case length | 338 mm |
Master (outer) case height | 220 mm |
Products per master (outer) case | 20 pc(s) |
