STARTECH.COM SATSASBP425 STARTECH.COM INSTALL 4 SSD/HDDS IN 5.25 BAY

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

SATSASBP425 STARTECH.COM INSTALL 4 SSD/HDDS IN 5.25 BAY

Part No:SATSASBP425

Stock:10 In Stock

EAN Code:0065030859837

£74.57 Excl. VAT

£89.48 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

INSTALL 4 SSD/HDDS IN 5.25 BAY

Introduction

Now it’s easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It’s ideal for systems integrators and administrators who are looking for flexible management of their data storage.

Designed for durability and trouble-free use

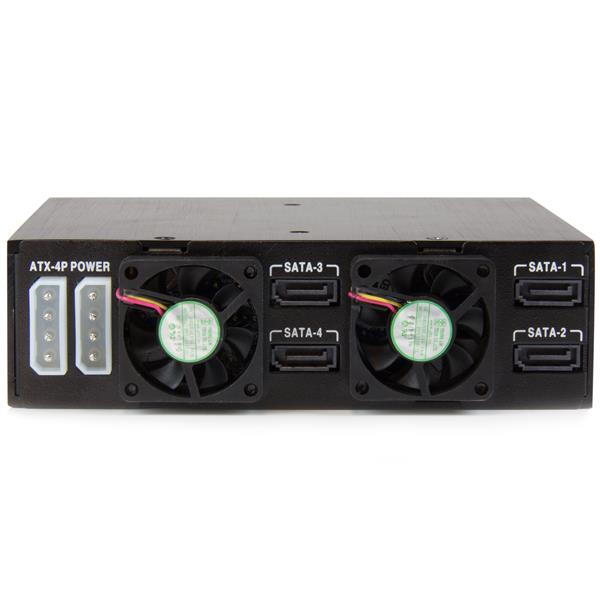

The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

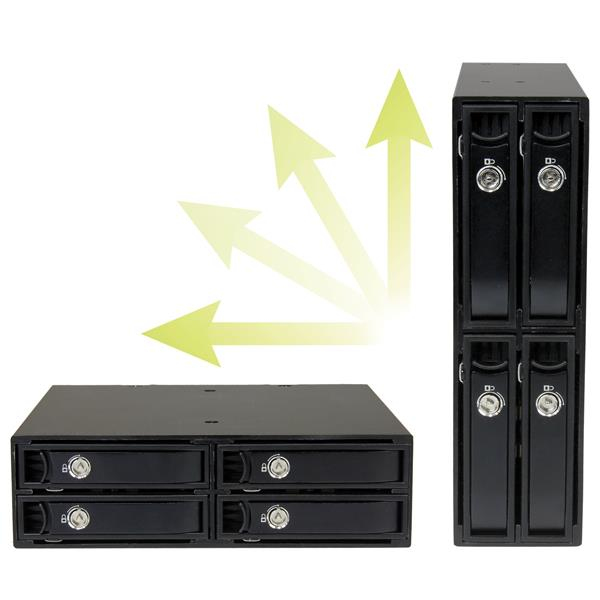

The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel trays in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.

Convenient, interchangeable drive trays

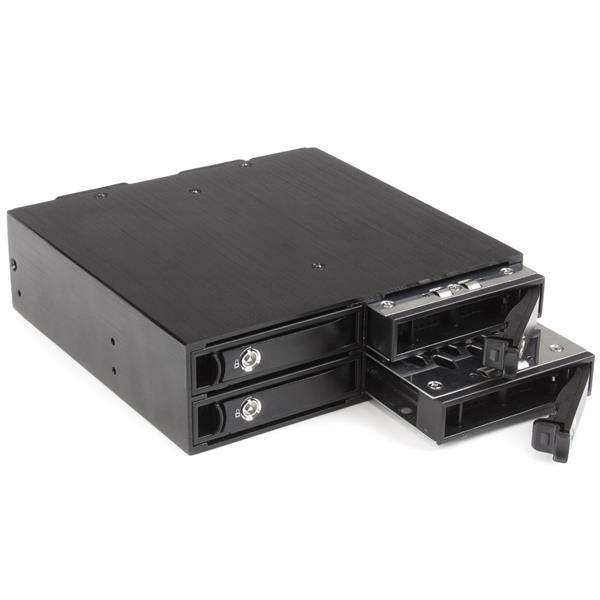

Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.

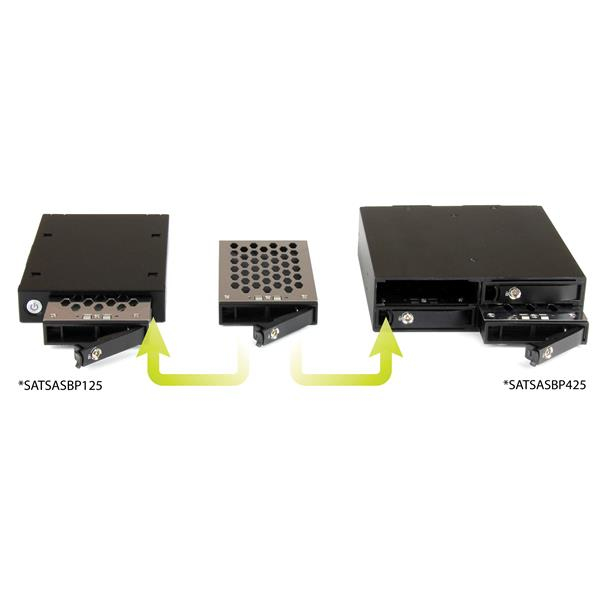

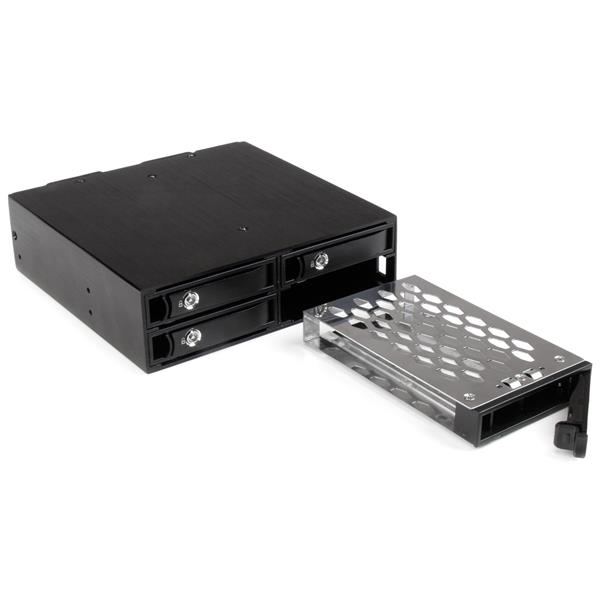

The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.

Compatible with a wide range of drives
Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.

To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.

The SATSASBP425 backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Supports a wide range of 2.5in SAS or SATA HDD/SSDs from 5-15 mm
- High-quality metal housing maximizes heat dissipation
- Two 40 mm fans help to ensure optimum operating temperature
- Maximize performance through SAS II and SATA III, with file transfer speeds of up to 6Gbps

Specifications

Features
LED indicatorsActivity, Power
CertificationCE, FCC
HDD size2.5"
Hot-swapYes
Noise level20 dB
Maximum HDD capacity2 TB
Key lockYes
Supported storage drive heights5,9.5,12.5,15 mm
Bearing typeSleeve bearing
TypeStorage drive tray
Size (imperial)13.3 cm (5.25")
Number of HDDs supported4
Number of fans2 fan(s)
HDD interfaceSerial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Fan diameter4 cm
Data transfer rate6 Gbit/s
Product colourBlack
MaterialAluminium, Steel
Technical details
LED indicatorsActivity, Power
CertificationCE, FCC
HDD size2.5"
Hot-swapYes
Noise level20 dB
Operating relative humidity (H-H)5 - 65%
Maximum HDD capacity2 TB
Key lockYes
Supported storage drive heights5,9.5,12.5,15 mm
Bearing typeSleeve bearing
TypeStorage drive tray
Size (imperial)13.3 cm (5.25")
Operating temperature (T-T)0 - 55 °C
Number of HDDs supported4
Number of fans2 fan(s)
HDD interfaceSerial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
Fan diameter4 cm
Data transfer rate6 Gbit/s
Product colourBlack
MaterialAluminium, Steel
Package width194 mm
Package height80 mm
Package depth216 mm
Sustainability certificatesRoHS
Harmonized System (HS) code84733080
Ports & interfaces
Port multiplierNo
Weight & dimensions
Width146 mm
Weight760 g
Height42 mm
Depth152 mm
Packaging data
Package weight1.04 kg
Package width194 mm
Package height80 mm
Package depth216 mm

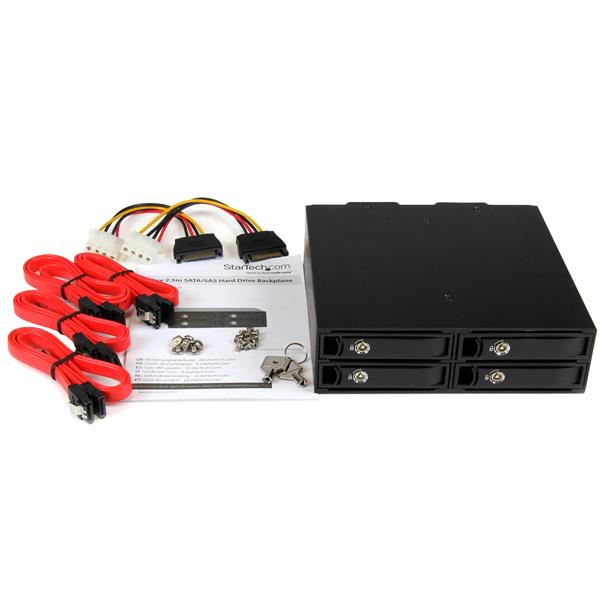

Packaging content
Screws includedYes
Number of lock keys included2 pc(s)
Number of screws24
Cables includedSATA
Operational conditions
Operating relative humidity (H-H)5 - 65%
Storage temperature (T-T)-20 - 55 °C
Operating temperature (T-T)0 - 55 °C
Sustainability
Sustainability certificatesRoHS
Logistics data
Harmonized System (HS) code84733080
